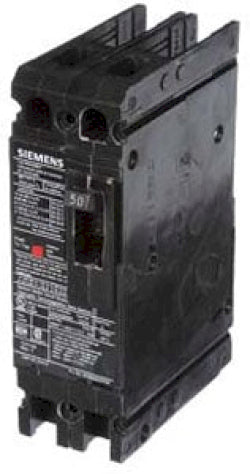

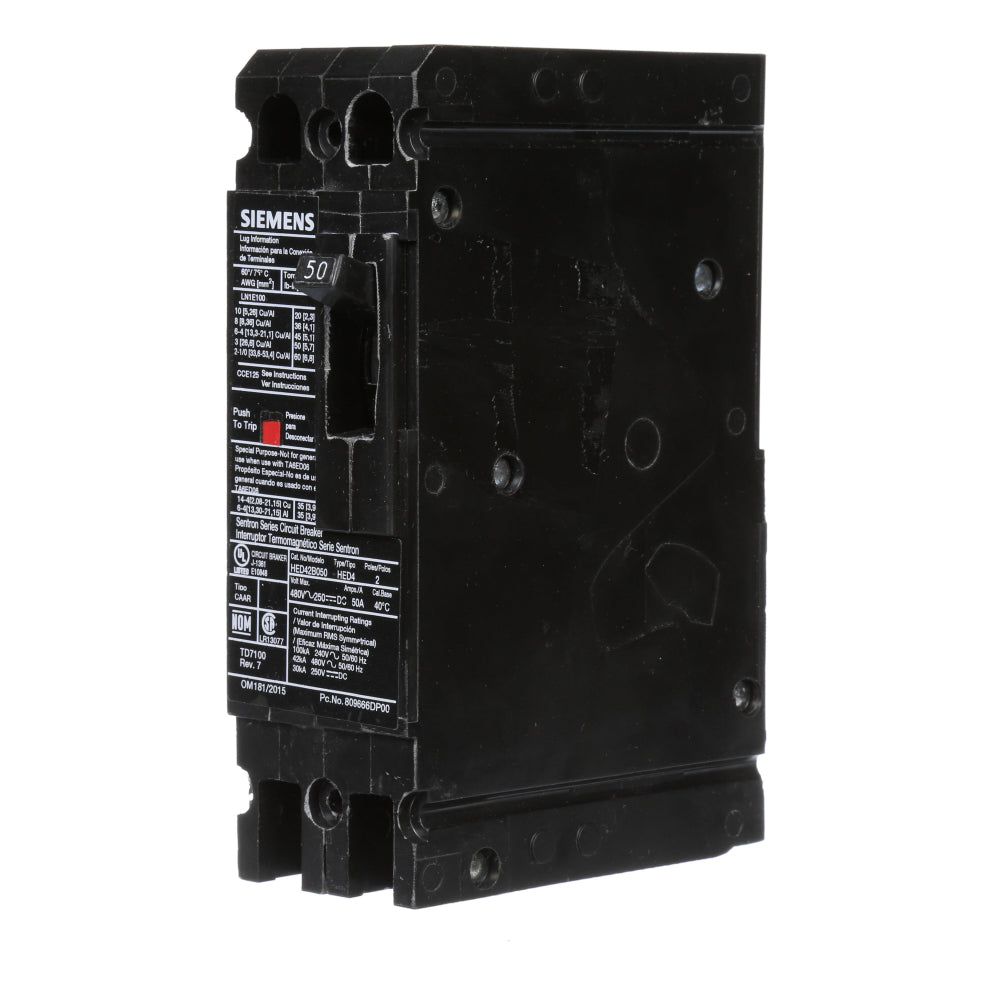

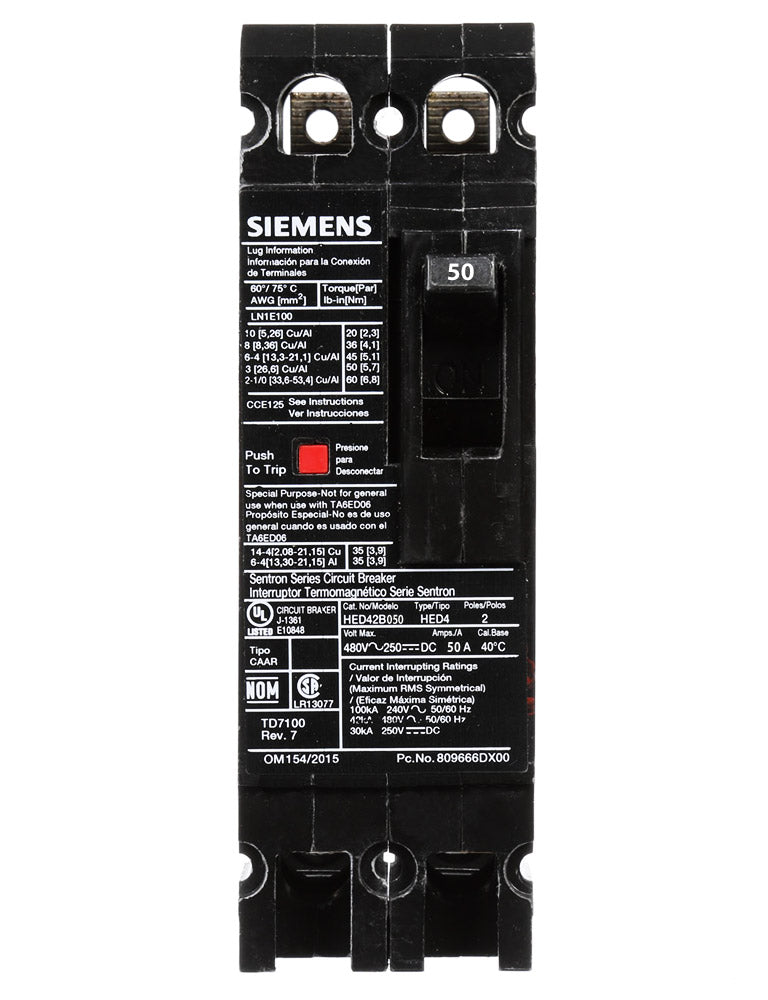

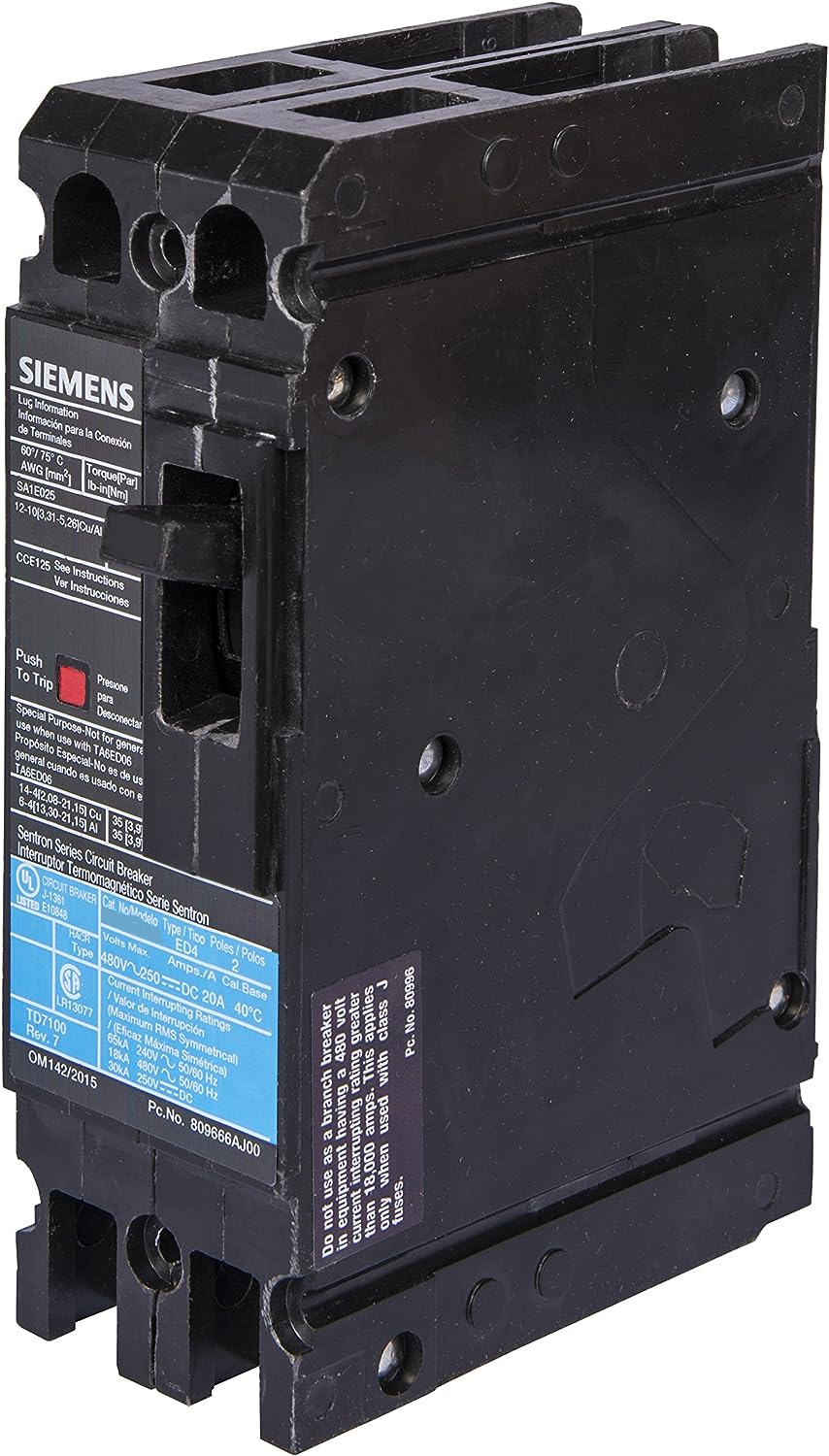

HED42B050 - Siemens 50A 2-Pole 480V Bolt-On Molded Case Circuit Breaker HED Series

HED42B050

HED42B050 is a Siemens 50 Amp, 2-pole, 480 Volt bolt-on molded case circuit breaker from the HED series designed for reliable circuit protection.This Siemens HED42B050 circuit breaker features a thermal magnetic trip unit with long-time and instantaneous protection functions. It has a high interrupting rating of 42kA at 480V AC, suitable for industrial and commercial applications. The breaker is designed for bolt-on mounting and includes load side lug terminals. It meets UL listing and HACR standards and is rated for 40 degree C ambient temperature.

Key Specifications
• Amperage: 50 Amps
• Voltage Rating: 480V AC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupting Rating: 42kA at 480V AC
• Series/Frame: HED
• Trip Unit: Thermal Magnetic (Long-Time and Instantaneous)
• Phase: Single Phase
• Standards: UL Listed, HACR Rated
• Connection: Load Side Lug Terminals
• Ambient Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: HED42B050
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Sentron Series
• Type : HED
• Voltage : 480
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 42kA@480V
• Connection : Lug In Panelboard
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Load Side Lug
• Frame Size : 125A/ED
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 10 AWG Max. Wire Size 1/0 AWG
• Breaker Type : High Interrupting Capacity
• Protection : Thermal Magnetic
• Phase Connection : Any



Product Data

• UPC : 783643210011
• GTIN : 00783643210011
• Country of Origin : Mexico
• Dimensions : 2 in x 6.34 in
• Weight : 2.749
• Panel Type : SB Switchboards, Sentron Panelboards
• Standards : HACR Rated, UL Listed
• Certification : HACR Rated, UL Listed
• Wire Size : AWG 10 to AWG 1/0, Cu/Al
