Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
HED42B045L

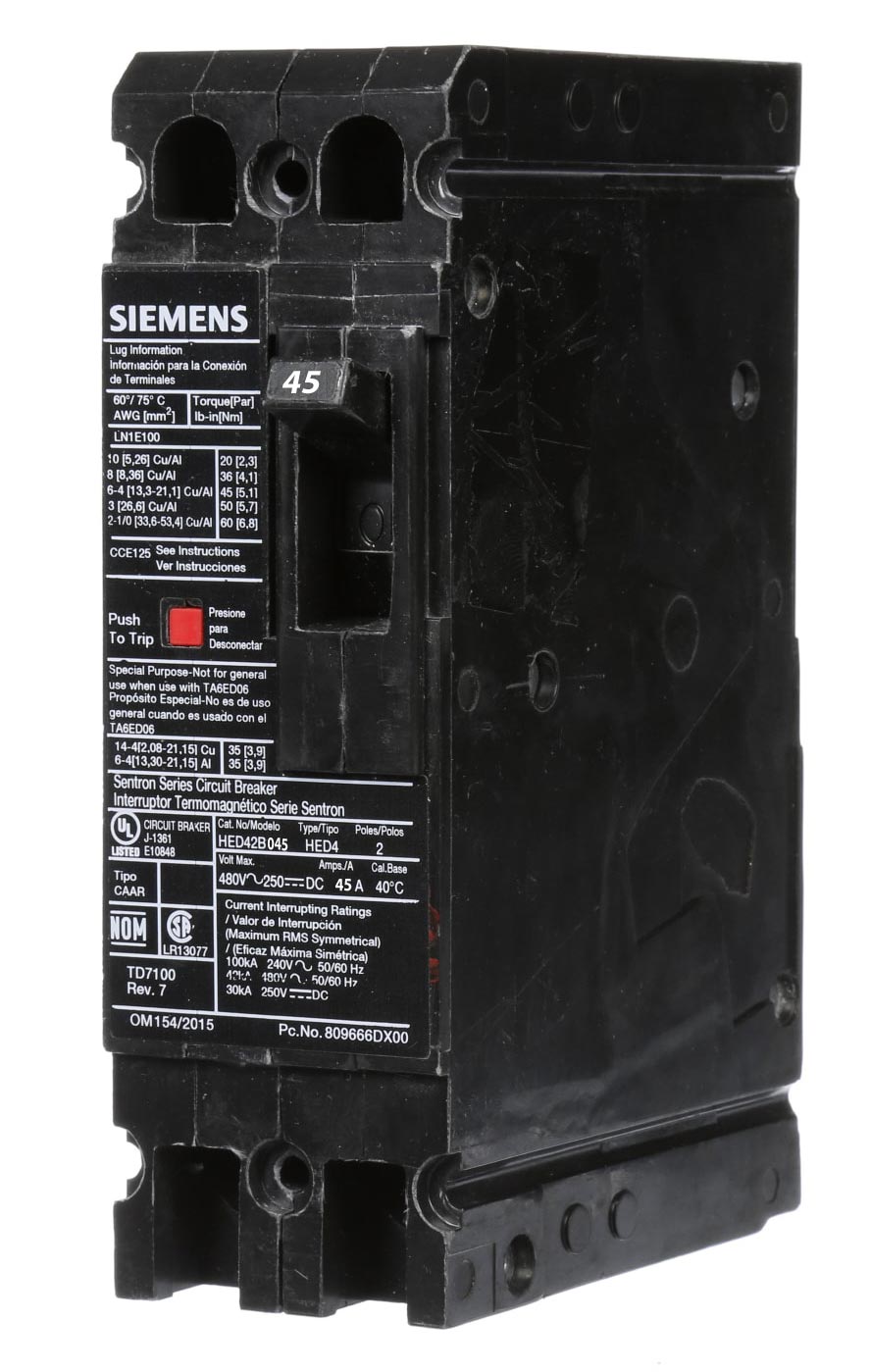

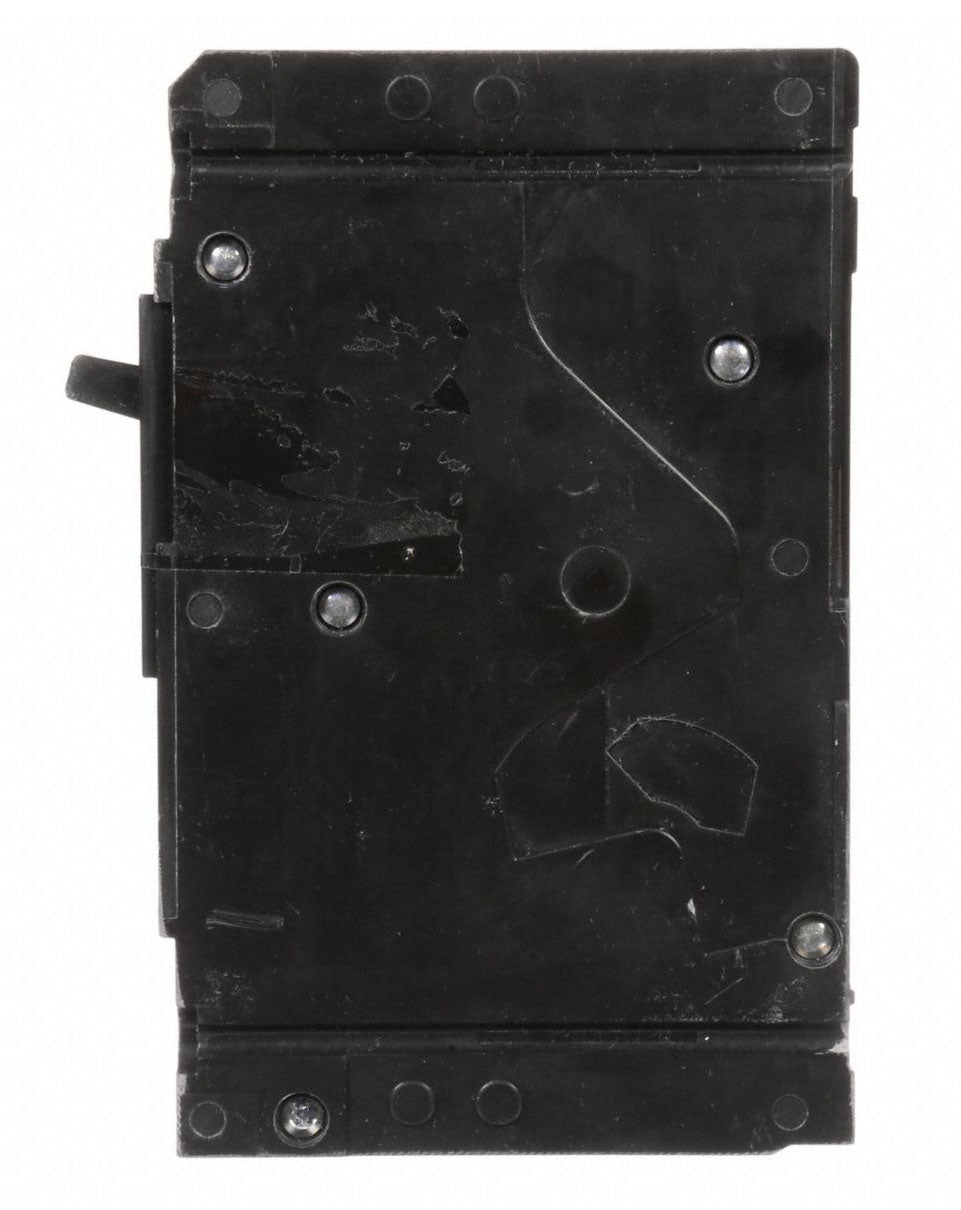

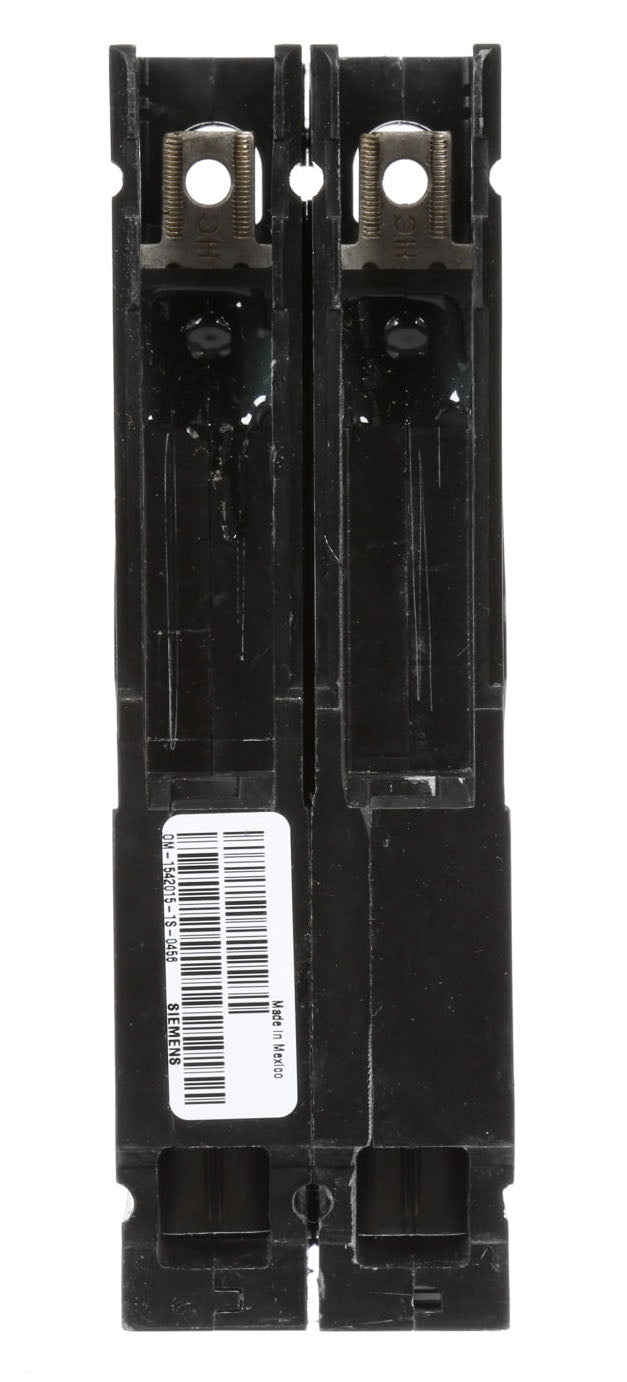

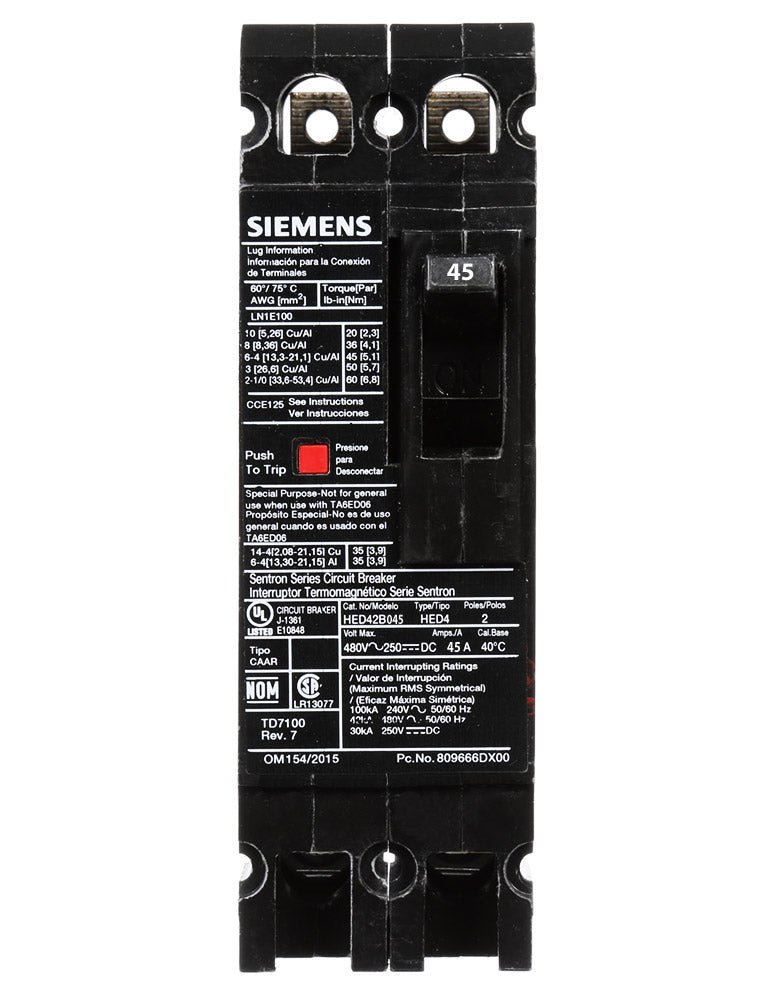

HED42B045L is a Siemens Sentron Series molded case circuit breaker designed for reliable protection in industrial and commercial applications. This 2 pole breaker features a 45A current rating and is rated for 480VAC systems, providing high interrupting capacity and robust performance. The HED42B045L is built with a bolt-on mounting design for secure installation and includes load side lug terminals for easy wiring. It is part of the Sentron Series, known for high breaking capacity and durability in demanding environments. The breaker is designed for use at 40°C and features a non-interchangeable trip unit for added safety and reliability.
- Part Number: HED42B045L
- Manufacturer: Siemens
- Series: Sentron Series
- Frame: ED
- Poles: 2
- Amperage: 45A
- Voltage: 480VAC
- Interrupt Rating: 42kAIC at 480V
- Mounting Type: Bolt-On
- Temperature Rating: 40°C
- Terminal Type: Load Side Lug
- Trip Unit: Non-Interchangeable
Specifications
- Part Number: HED42B045L
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : HED
- Voltage : 480
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 42kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643090194
- GTIN : 00783643090194
- Country of Origin : Mexico
- Weight : 2.712
