Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
HDN36090

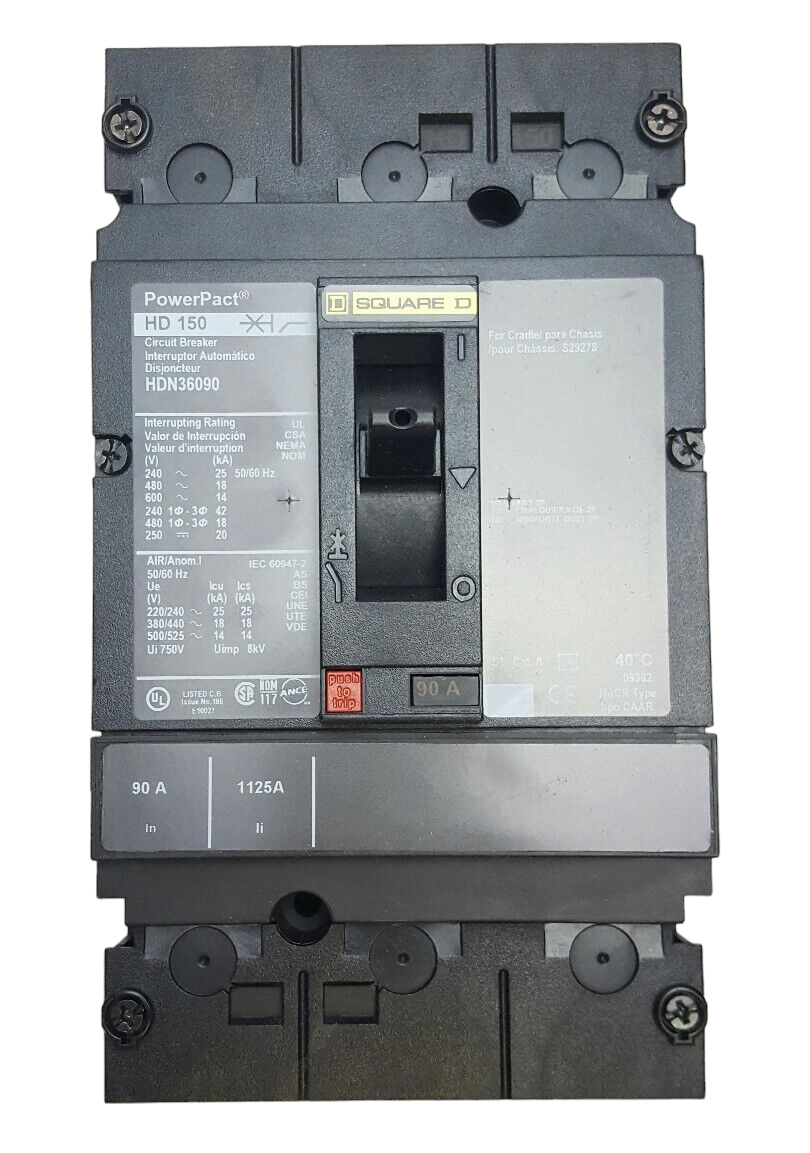

HDN36090 is a Schneider Electric PowerPacT H Frame molded case circuit breaker designed for reliable circuit protection.This 3 pole, 90 amp circuit breaker features a thermal magnetic trip unit and is rated for up to 600 VAC and 250 VDC. It has a 14 kA interrupting rating at 480 VAC and is unit mount type, offering versatile installation options. The breaker is UL 489 listed and designed for overload and short circuit protection with an 80% rating.
- Key Specifications
- Amperage: 90 Amp
- Voltage Rating: 600 VAC, 250 VDC
- Poles: 3
- Interrupt Rating: 14 kA at 480 VAC
- Frame Type: PowerPacT H Frame
- Trip Unit: Thermal Magnetic
- Mounting Type: Unit Mount
- UL 489 Listed
- 80% Rated
- Part Number: HDN36090
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : HDN
- Voltage : 600
- Amperage : 90
- Phase : 3
- Poles : 3
- AIC rating : 18kA@480V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Frame Size : H Frame
- Protection : Thermal Magnetic
- Weight : 5
