Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Plugs Recep
- Rated current
- 15
- Voltage
- 125 125V
- Poles
- 2
- UPC
- 783585237817
- GTIN
- 00783585237817
- Dimensions
- 2.06 x 1.62 x 0.96 in 2-1/16 in H x 1-5/8 in W x 31/32 in D
- Weight
- 0.08
Product description & additional details
HBL7596

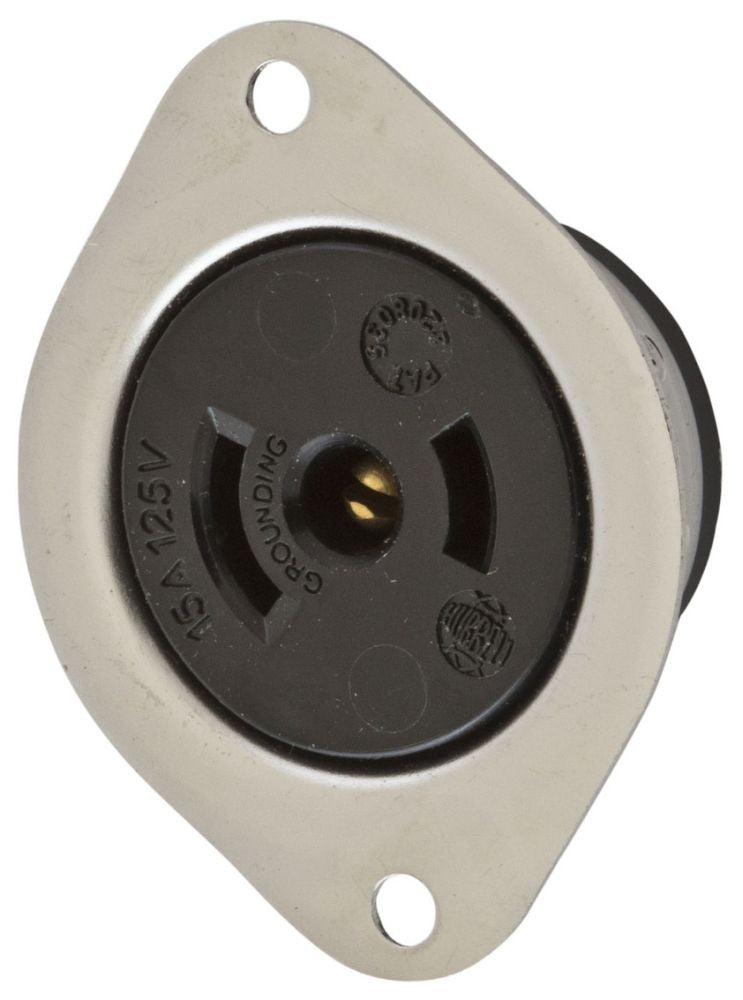

HBL7596 is a 15A 125V AC 2-pole 3-wire grounding flanged receptacle from Hubbell's Midget Twist-Lock series, designed for secure industrial power connections with a stainless steel mounting flange and screw terminals.This receptacle features a high heat resistant phenolic base, brass contacts, and is certified for current interrupting at full rated current. It is suitable for indoor dry environments and provides reliable performance in demanding applications. The terminals accommodate #18 AWG to #14 AWG solid or stranded copper wire and are identified in accordance with UL 498.
- Part Number: HBL7596
- Manufacturer: Hubbell
- Amperage Rating: 15A
- Voltage Rating: 125V AC
- Poles: 2-Pole
- Wires: 3-Wire Grounding
- Mounting Type: Screw Terminal, Stainless Steel Flange
- Interrupt Rating: Full Rated Current
- Series/Frame: Midget Twist-Lock
- Certifications: UL 498, CSA C22.2 No.42
- Terminal Accommodation: #18 AWG - #14 AWG
- Operating Temperature: -40°C to 75°C
Specifications
- Part Number: HBL7596
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 125 125
- Amperage : 15
- Poles : 2
Product Data
- UPC : 783585237817
- GTIN : 00783585237817
- Dimensions : 2.06 x 1.62 x 0.96 in 2-1/16 in H x 1-5/8 in W x 31/32 in D
- Weight : 0.08
Return eligibility: what to know before ordering
Return requests must be made within 30 days of shipping and require authorization. Used, installed, energized, or tested items are not eligible. A restocking fee of up to 35% may apply. Review the full policy before purchase.
Product-specific restrictions apply. International orders are non-cancellable and non-refundable under the policy.
Warranty supplied by Essential Electric
Warranty coverage is provided by Essential Electric, subject to the product and policy terms. Essential Electric is an independent supplier. Surplus or discontinued inventory may not qualify for the original manufacturer’s warranty.
