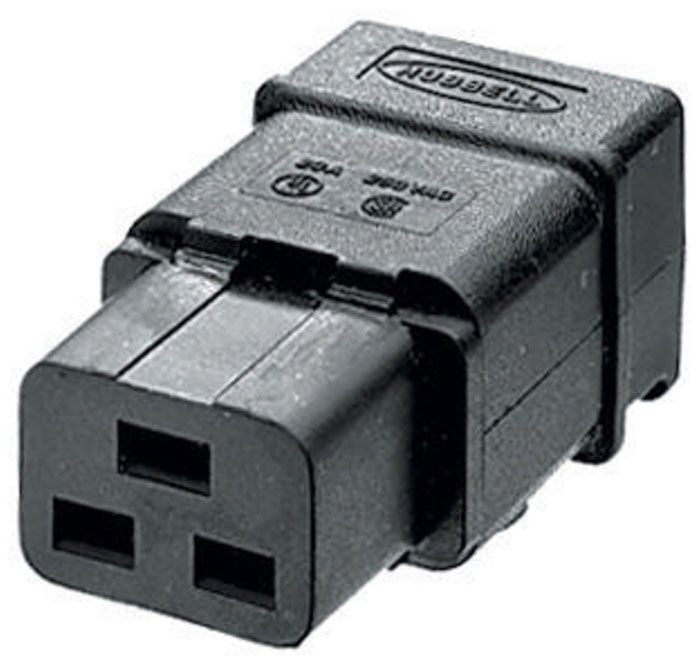

Reference images. Contact us for photos of the available unit.
Product Description & Specifications
Confirm the complete catalog number and application requirements before ordering. The specifications below reflect the product information available for this listing.
- Manufacturer
- Hubbell
- Sub-Category
- Plugs Recep
- Voltage
- 250 250V
- Poles
- 2
- UPC
- 783585777108
- GTIN
- 00783585777108
- Dimensions
- 2.74 x 1.42 x 1.36 in 2.75 in H x 1.42 in W
- Weight
- 0.5
Product description & additional details
H320C
H320C is a 20/16 ampere, 250 volt IEC 320 female straight blade connector with 2-pole configuration and 3-wire grounding designed for North American and international applications. This insulated appliance coupler features a nylon body with screw terminal connectivity and accommodates cord sizes from 0.325 inches to 0.475 inches (8.0-12.0 mm). The connector supports North American #16-12 AWG stranded or solid copper conductors and international 1.55mm²-2.5mm² wire sizes, with a maximum continuous operating temperature of 75 degrees Celsius and minimum of -40 degrees Celsius without impact.
- Amperage Rating: 20A 250V AC North American / 16A 250V AC European
- Voltage Rating: 250V AC
- Wattage: 7500W
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Conductor Range: #14 AWG to #12 AWG
- Dielectric Strength: Withstands 2,000V minimum
- Material: Nylon body with nickel-plated steel terminal clamp
- Operating Temperature: Maximum 75°C, Minimum -40°C without impact
- Connectivity: Screw Terminals
- EU RoHS Compliant: Yes
- Dimensions: 2.74 in L x 1.42 in W x 1.36 in H
Specifications
- Part Number: H320C
- Manufacturer : Hubbell
- Brand : Hubbell
- Category : Wiring Devices
- Item Subcategory : Plugs Recep
- Voltage : 250 250
- Poles : 2
Product Data
- UPC : 783585777108
- GTIN : 00783585777108
- Dimensions : 2.74 x 1.42 x 1.36 in 2.75 in H x 1.42 in W
- Weight : 0.5
