Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H368

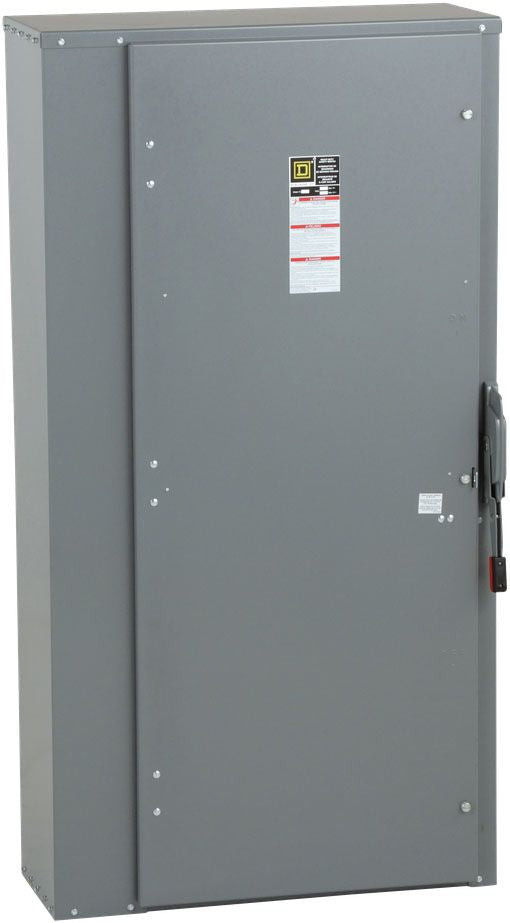

H368 is a Square D heavy duty fusible safety switch rated for 600 VAC/VDC at 1200 amperes with 3 poles and single throw contact form. This industrial-grade switch is designed for general purpose applications requiring reliable disconnection and overcurrent protection in demanding environments. The unit features a steel enclosure construction and is suitable for motor control and power distribution applications up to 500 hp at 600 VAC. Key Specifications
- Part Number: H368
- Manufacturer: Square D (Schneider Electric)
- Voltage Rating: 600 VAC/VDC
- Amperage Rating: 1200 A
- Number of Poles: 3
- Contact Form: 3PST (Single Throw)
- Fuse Type: Class L Fusible
- Horsepower Rating: 500 hp at 600 VAC
- Enclosure Material: Steel
- Enclosure Type: NEMA 1
- Dimensions: 36.62 in W x 17.75 in D x 69.13 in H
- Certifications: UL Listed, RoHS Compliant
Specifications
- Part Number: H368
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : H
- Voltage : 600 AC/DC
- Amperage : 1200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R,L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
Product Data
- UPC : 785901195467
- GTIN : 00785901195467
- Country of Origin : Mexico
- Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
- Weight : 361.001 lb
- Certification : UL Listed
