Square D H367NR Disconnect Switch (Fusible)

H367NR

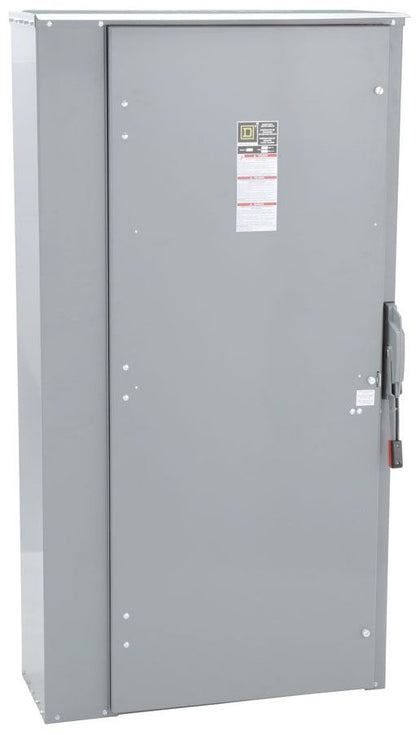

The Square D H367NR is a 3 phase 3 pole 600 Volt 800 Amp H type Disconnect Switch. This switch has a Nema rating of 3R and an AIC rating of 200kA@600V. The H367NR is a single switch configuration and uses class L Fuses. The H367NR has a NEMA type 3R enclosure for rainproof applications. It is suitable for use as service entrance equipment and features a quick make, quick break operating mechanism. The enclosure is made of galvannealed steel and includes a factory-installed neutral. This fusible disconnect has a short circuit current rating of 10kA to 200kA. This safety switch accepts H,J,K,L,R fuse types and is surface mounted. This switch comes with an 24 months warranty. Wire Size AWG 3/0...750 kcmil copper or aluminum. Tightening Torque 375 lbf.in (42.37 N.m) 0.13…0.59 in² (85.01…380 mm²) (AWG 3/0...750 kcmil)

Specifications

• Part Number: H367NR
• Manufacturers: Square D
• Sub-Category: Disconnect
• UPC: 78590144243
• GTIN: 785901442431
• Poles: 3
• Phase: 3
• Voltage: 600
• Amperage: 800
• AIC Rating: 200kA@600V
• Wire size: AWG 3/0...750 kcmil copper or aluminium
• Family: Series E
• Type: H
• Certification: UL Listed
• Dimensions: Depth 17.75 in (450.85 mm) Width 36.62 in (930.15 mm) Height 69.13 in (1755.90 mm)
• Weight: 432.94 lb
