Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H361DSVW

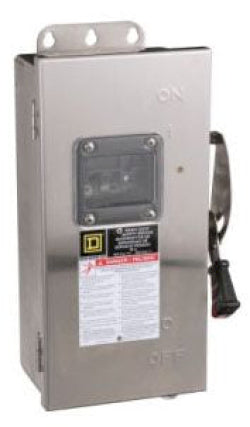

H361DSVW is a Square D heavy duty fusible safety switch rated for 30 amperes at 600 volts AC with 3-pole configuration and NEMA 4/4X enclosure rating. This industrial-grade disconnect switch features a 304 stainless steel construction with viewing window, designed for reliable power distribution and equipment protection in demanding environments. The switch accommodates Class H, J, K, L, and R fuses and is suitable for 3-phase applications with a power rating of 7.5 HP at 600 VAC.
- Amperage: 30 Amps
- Voltage: 600 VAC / 600 VDC
- Poles: 3
- Frame Type: H
- Enclosure Rating: NEMA 4, 4X
- Construction: 304 Stainless Steel
- Fuse Type: Fusible (Class H/J/K/L/R)
- Interrupting Rating: 200 kA
- Viewing Window: Yes
- Horsepower Rating: 20 HP at 600 VAC
- Terminal Connection: AWG 12 to AWG 6
Specifications
- Part Number: H361DSVW
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 4/4X
- Compatible Frames : ED
Product Data
- UPC : 078590120872
- GTIN : 00785901208723
- Dimensions : 14.93 in (379.22 mm) x 8.67 in (220.22 mm) x 5.11 in (129.79 mm) (Height x Width x Depth)
- Weight : 10
- Certification : UL
