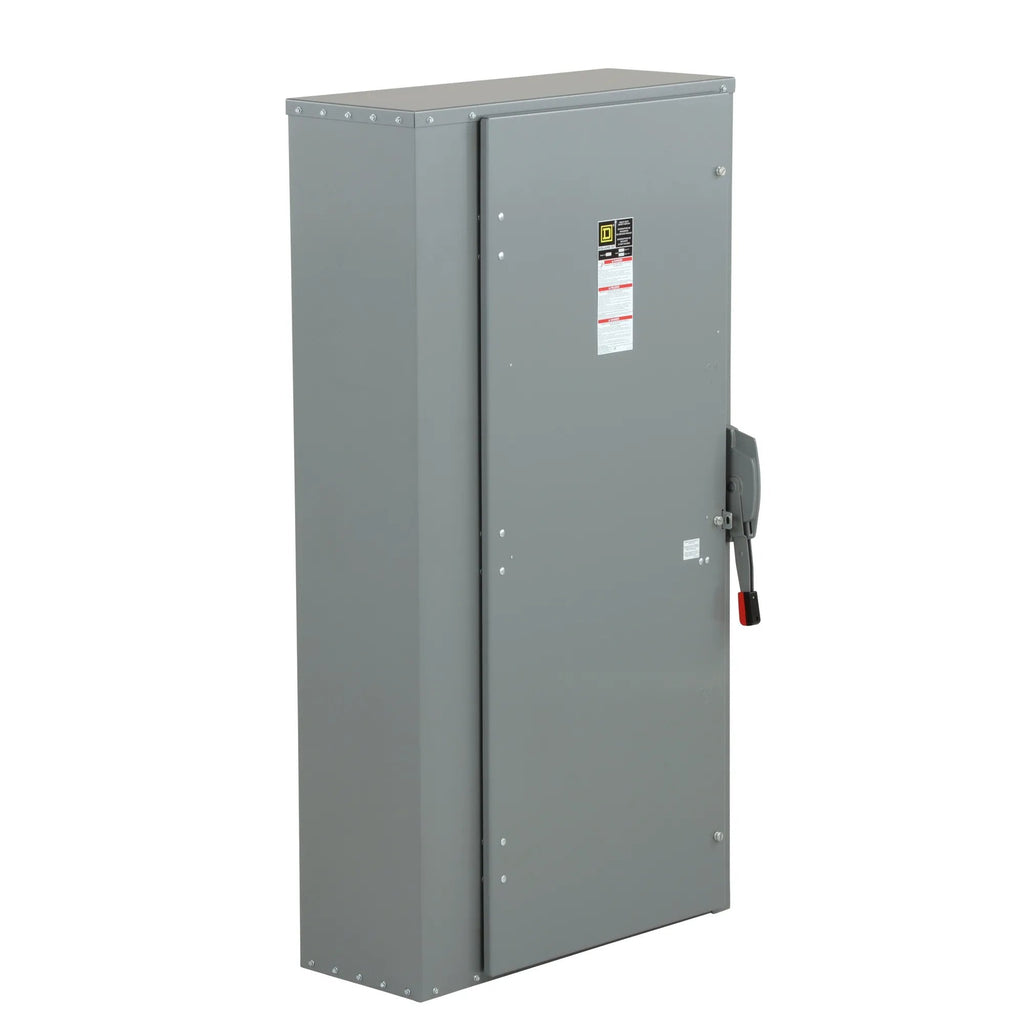

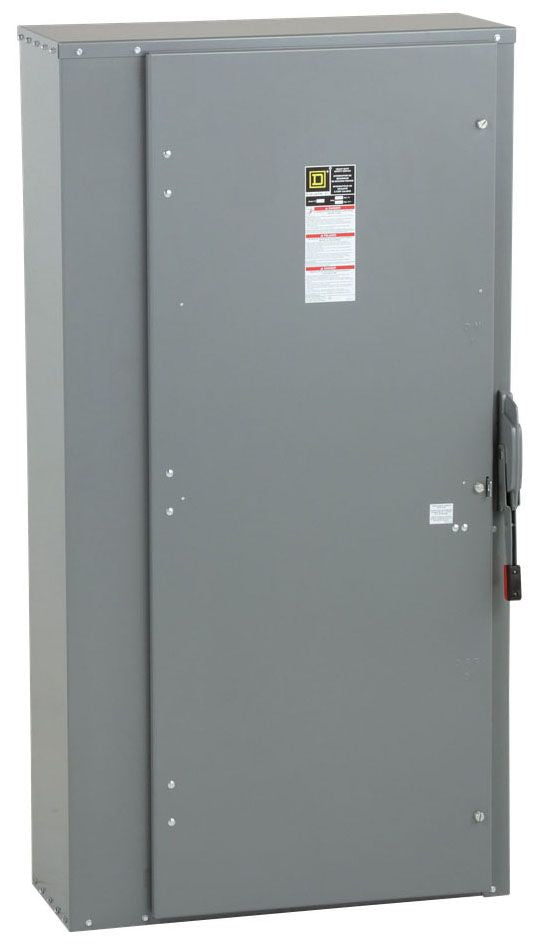

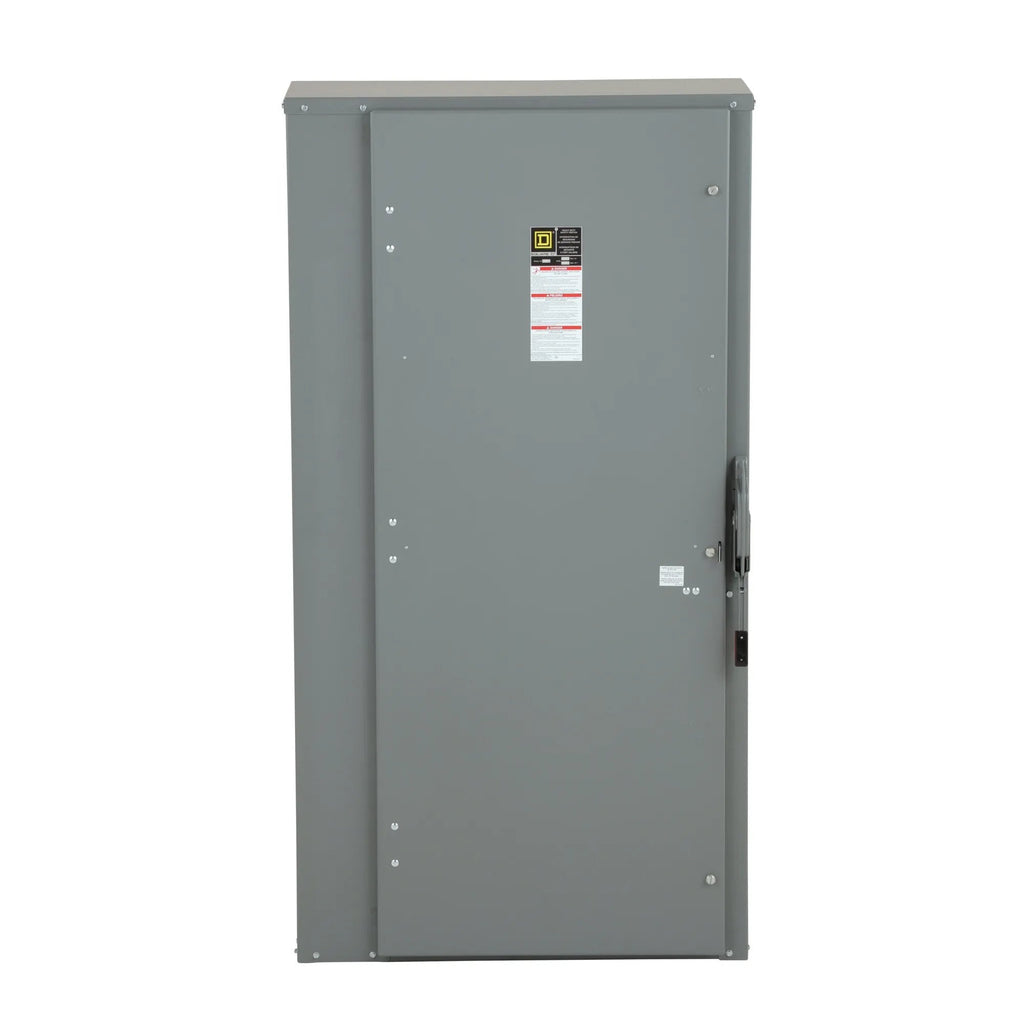

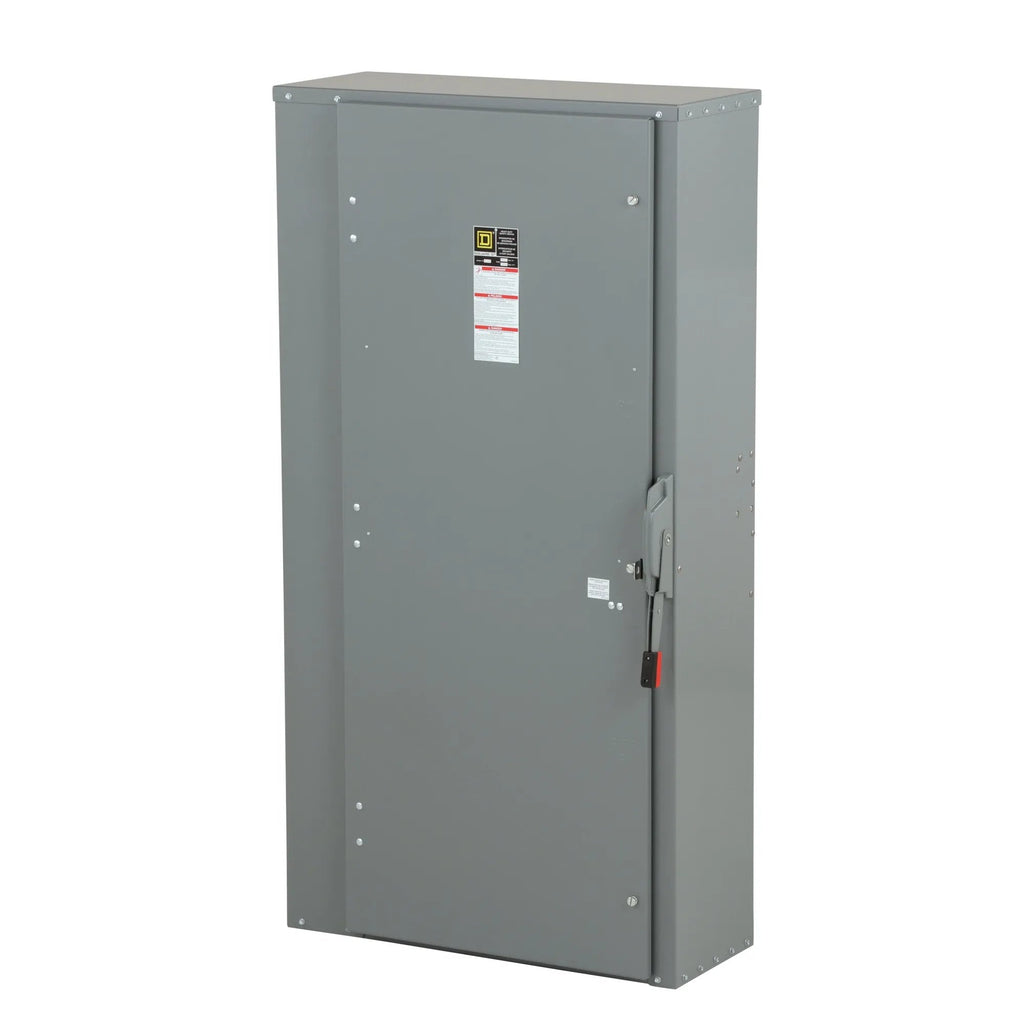

H367N - Square D 800A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 1

H367N

H367N is a heavy duty fusible safety switch designed for reliable circuit protection in industrial and commercial applications. This Square D Series E switch features a 3-pole, 800A, 600VAC/DC rating and is suitable for indoor use with a NEMA 1 enclosure. The switch provides visible blade indication, quick make/break operation, and dual cover interlock for added safety. It accepts Class R and L fuses and is equipped with a factory-installed neutral for 4-wire systems. Engineered for durability and safety, the H367N offers a robust steel enclosure, handle lock-off provision for multiple padlocks, and optional viewing window for blade position verification. The tangential knockouts simplify conduit installation, and the switch is UL listed for compliance with industry standards.

• Part Number: H367N
• Manufacturer: Square D
• Series/Frame: Series E, Type H
• Amperage: 800A
• Voltage: 600VAC/DC
• Poles: 3
• Interrupt Rating: 200kA @ 600V
• Mounting Type: Wall Mount
• Enclosure: NEMA 1, Steel
• Fusible: Yes, Class R/L
• Neutral: Factory Installed
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H367N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600 AC/DC
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R,L
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 785901442417
• GTIN : 00785901442417
• Country of Origin : Mexico

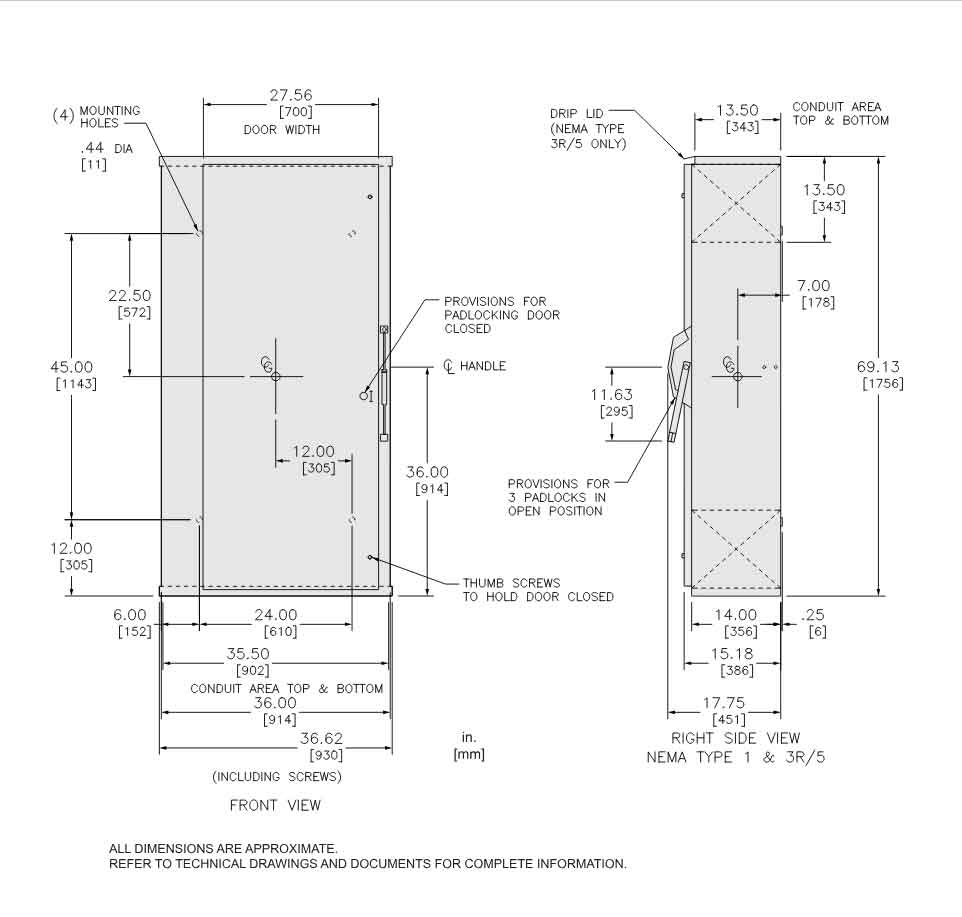

• Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
• Weight : 373 lb
• Certification : UL Listed
