H366N - Square D Heavy Duty Fusible Safety Switch, 600A, 600V, 3 Pole, NEMA 1, Indoor, Factory Installed Neutral, 4 Wire, 500 HP, UL 98, RoHS

H366N

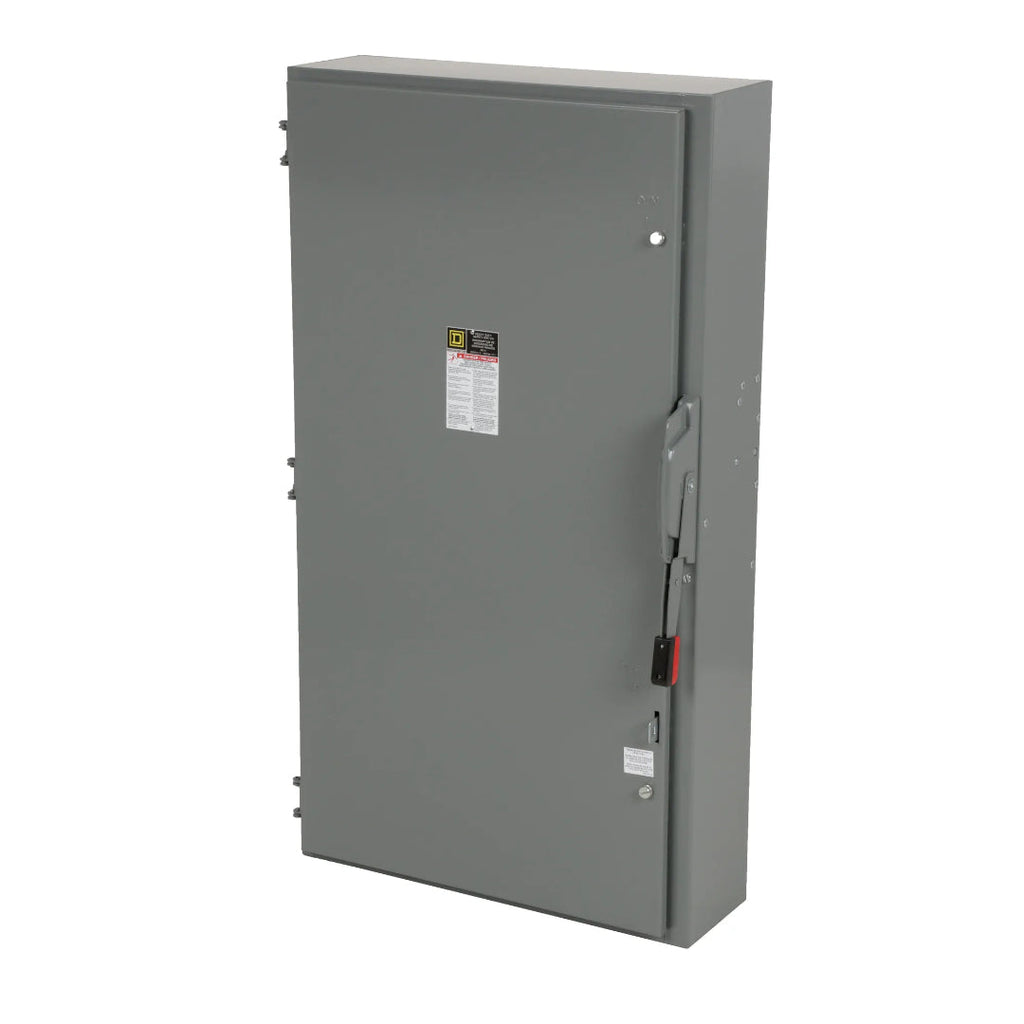

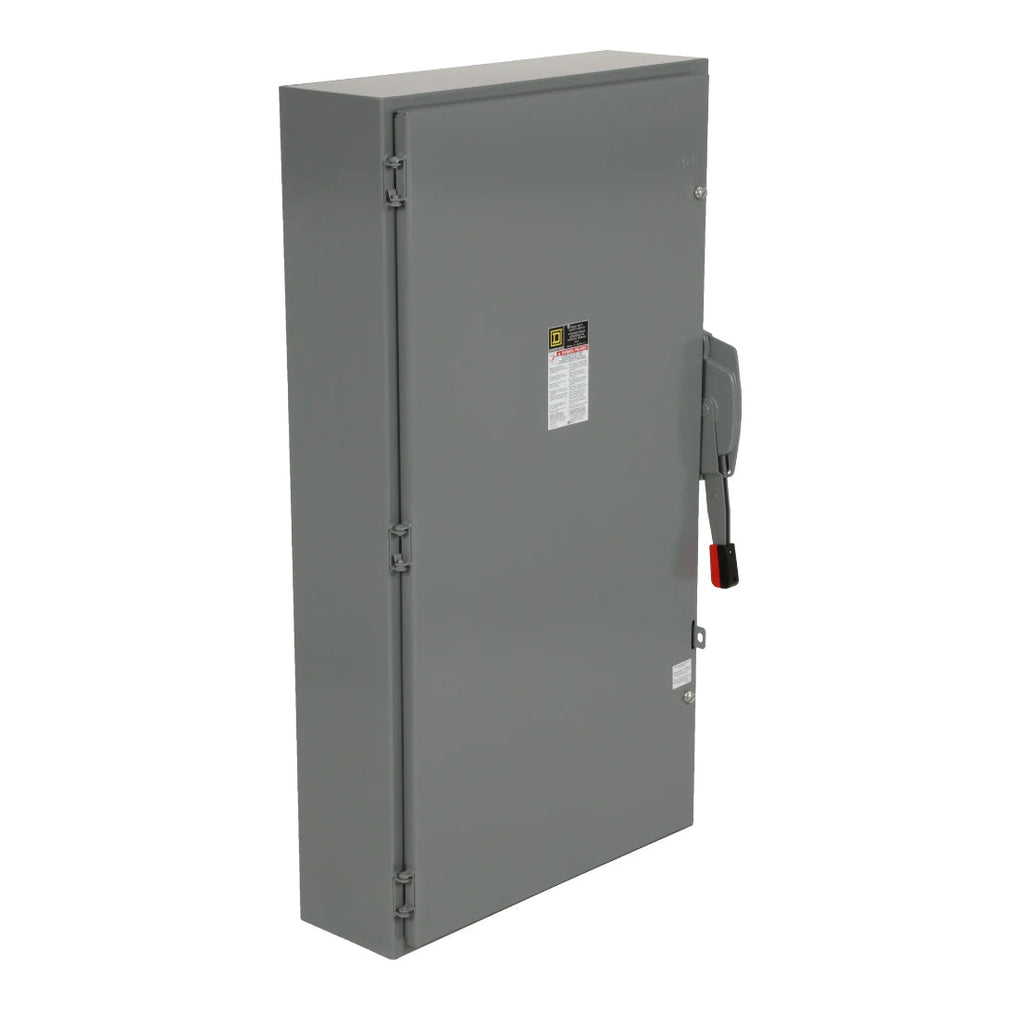

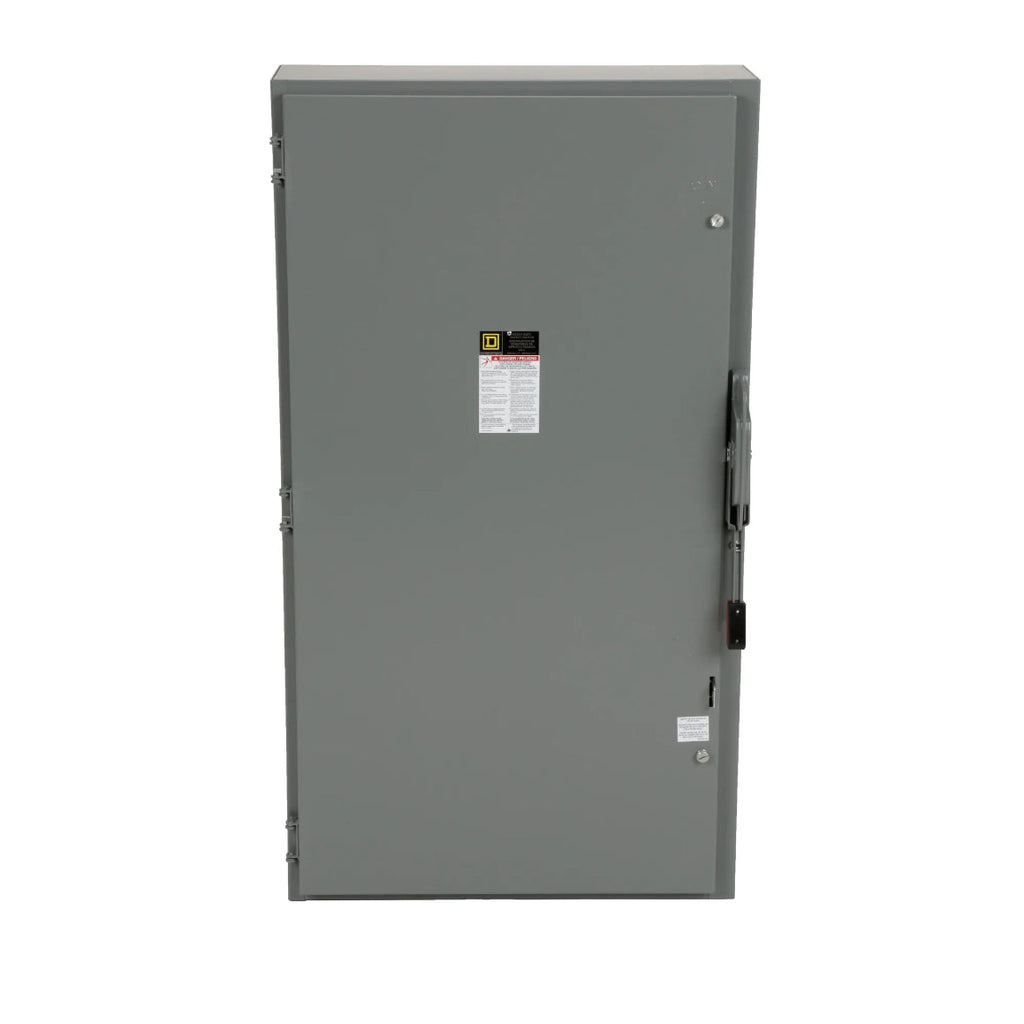

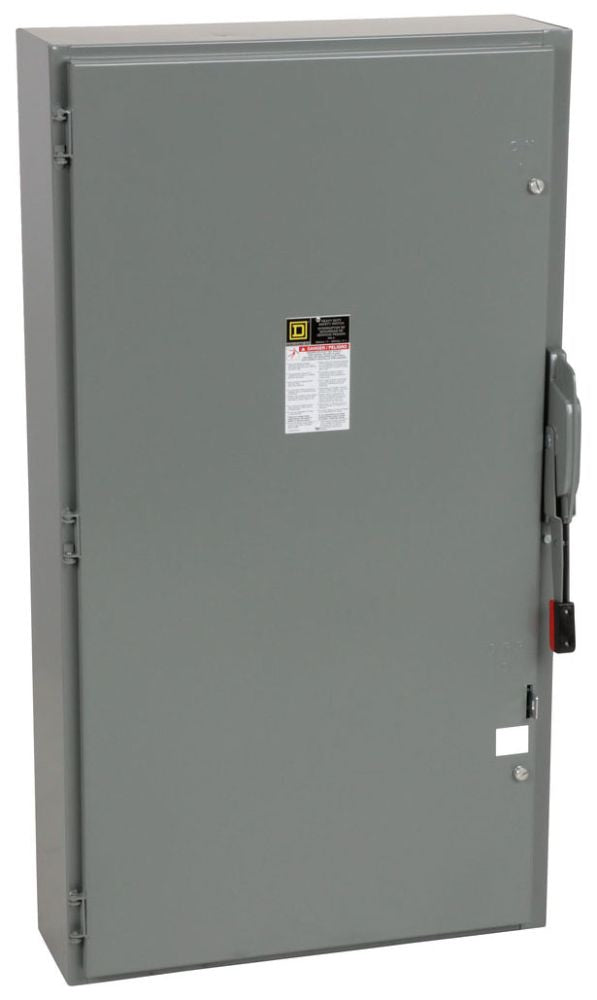

H366N is a Square D heavy duty fusible safety switch designed for commercial, industrial, and general purpose applications.

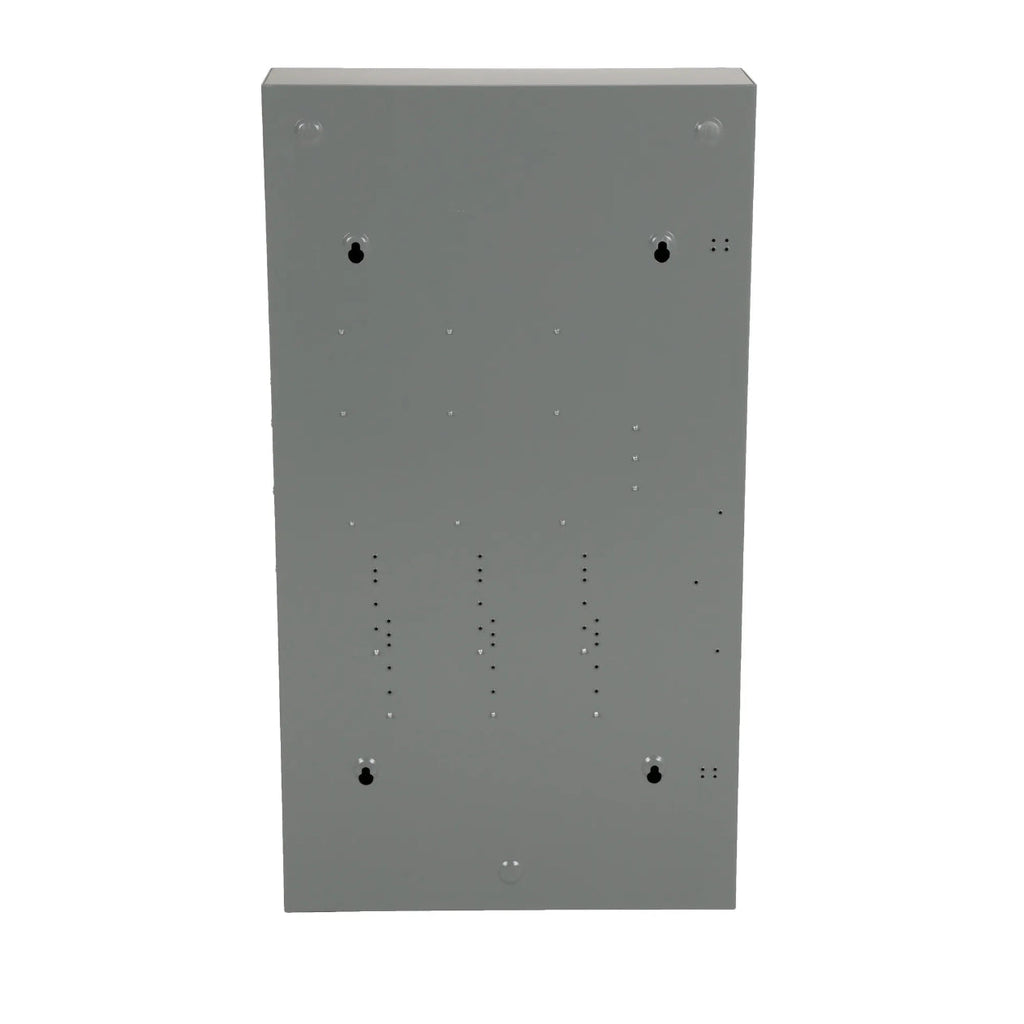

This switch features a factory installed neutral, visible blade operation for clear ON/OFF indication, and a quick make/quick break mechanism. The dual cover interlock prevents the cover from opening when the switch is ON and stops the switch from being turned ON when the cover is open. The enclosure is steel, surface mounted, and includes tangential knockouts for easier conduit installation. The handle offers lock-off provisions for multiple padlocks in the OFF position, and the cover can be padlocked closed for added safety.

Key Specifications
• Part Number: H366N
• Manufacturer: Square D
• Amperage: 600A
• Voltage: 600V AC/DC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: Not specified in available data
• Series/Frame: H Series, Heavy Duty
• Trip Unit: Not applicable (safety switch)
• Certifications: UL 98, RoHS Compliant, Federal Specification WS-865C
• Enclosure: NEMA 1, Steel
• Fuse Type: R (Fusible)
• Horsepower Rating: 200 HP, 500 HP
• Dimensions: 27.63" W x 10.13" D x 50.25" H
• Weight: 90.7 kg
• Warranty: 18 Months

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H366N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600 AC
• Amperage : 600
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 785901451990
• GTIN : 00785901451990
• Country of Origin : Mexico
• Dimensions : 50.25 in (1276.35 mm) x 27.63 in (701.80 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 175.001 lb
• Certification : UL listed
