Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H366AWK

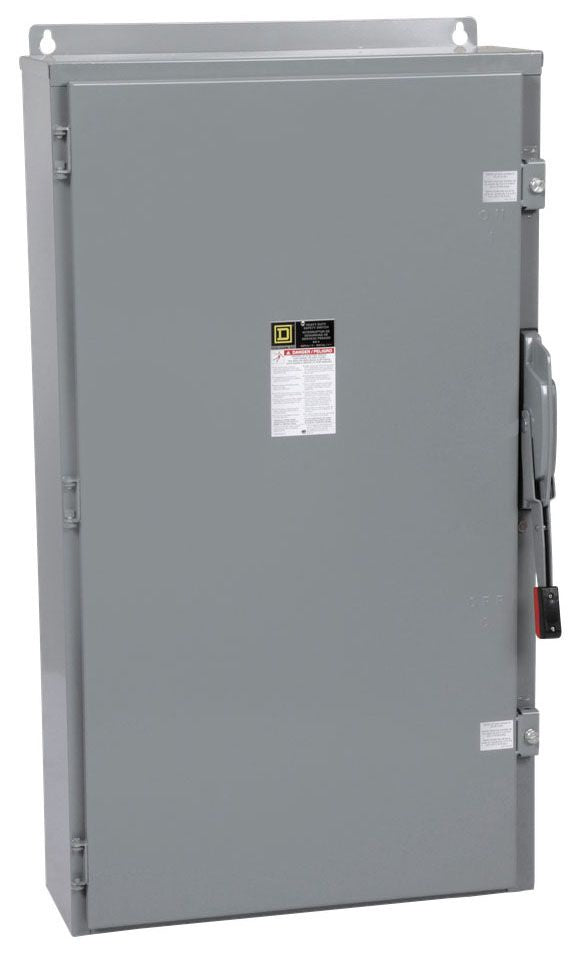

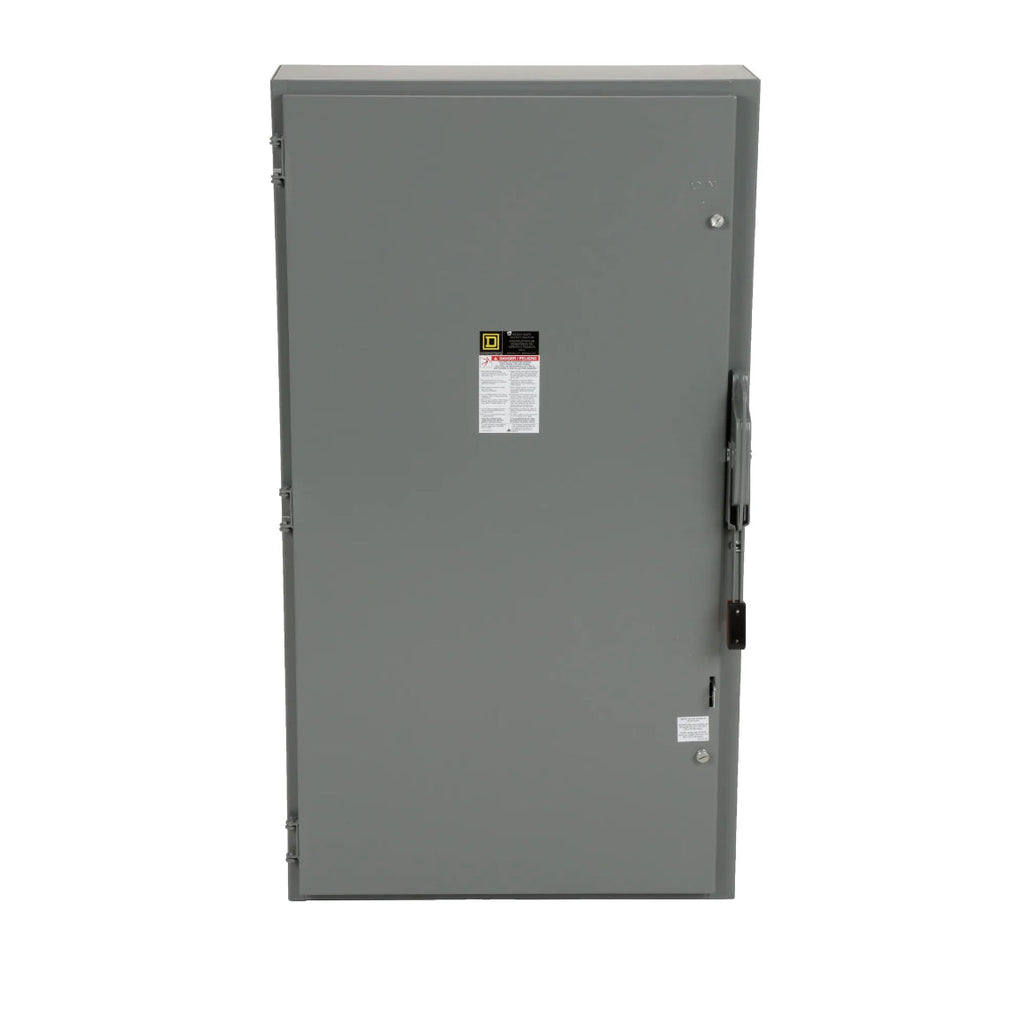

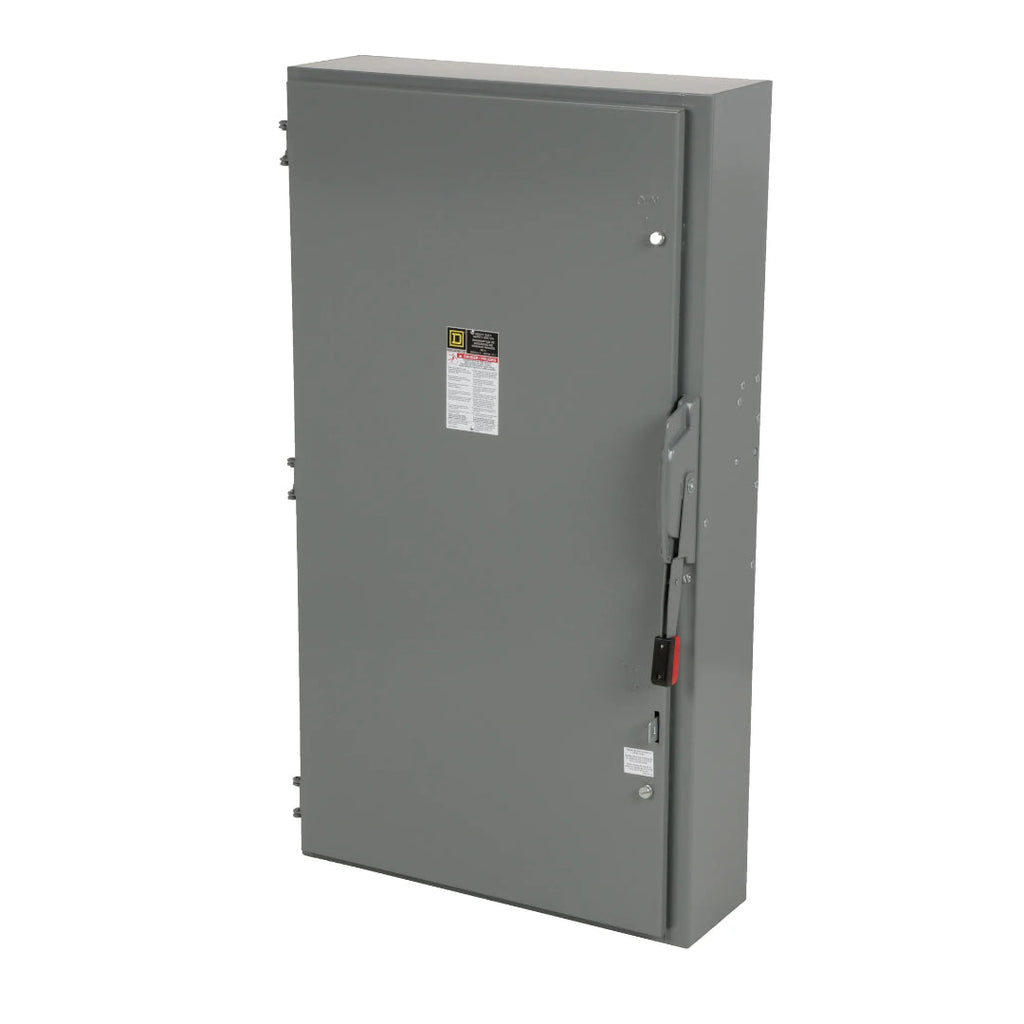

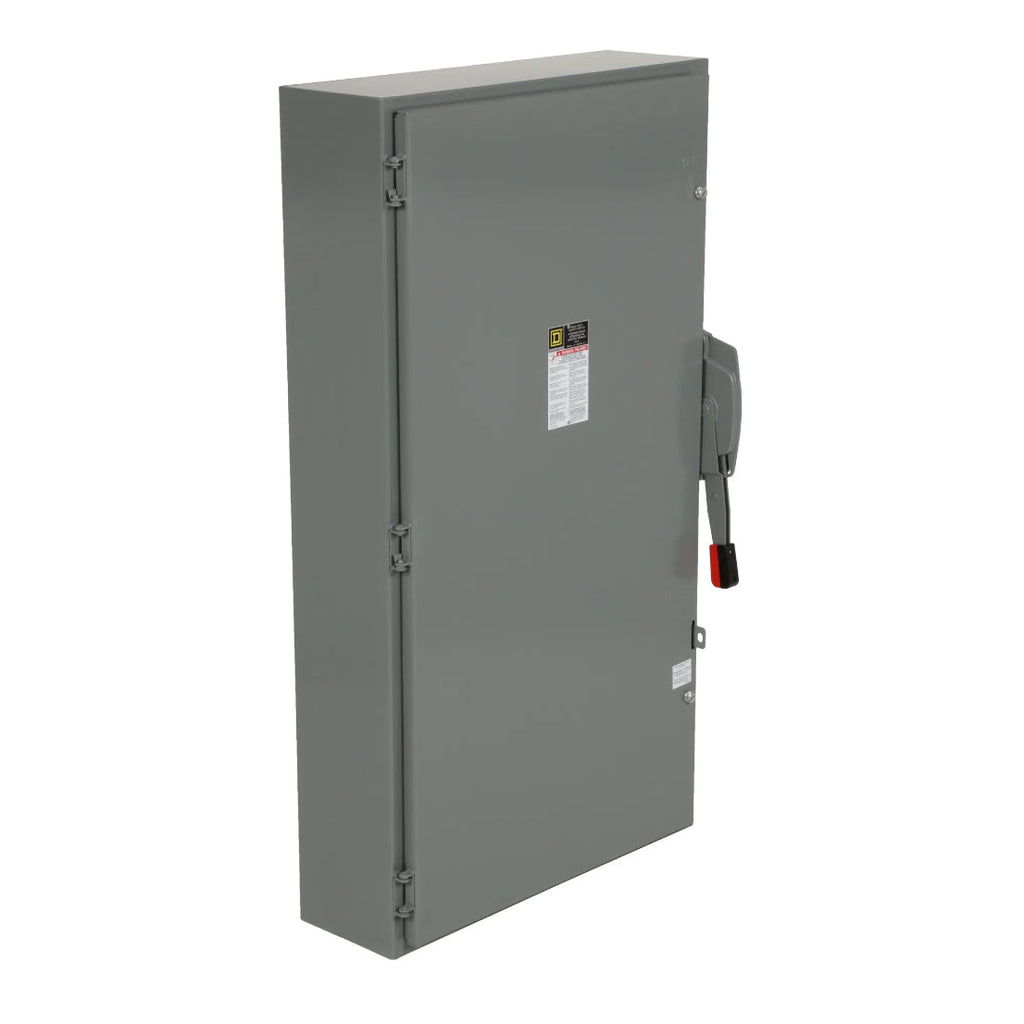

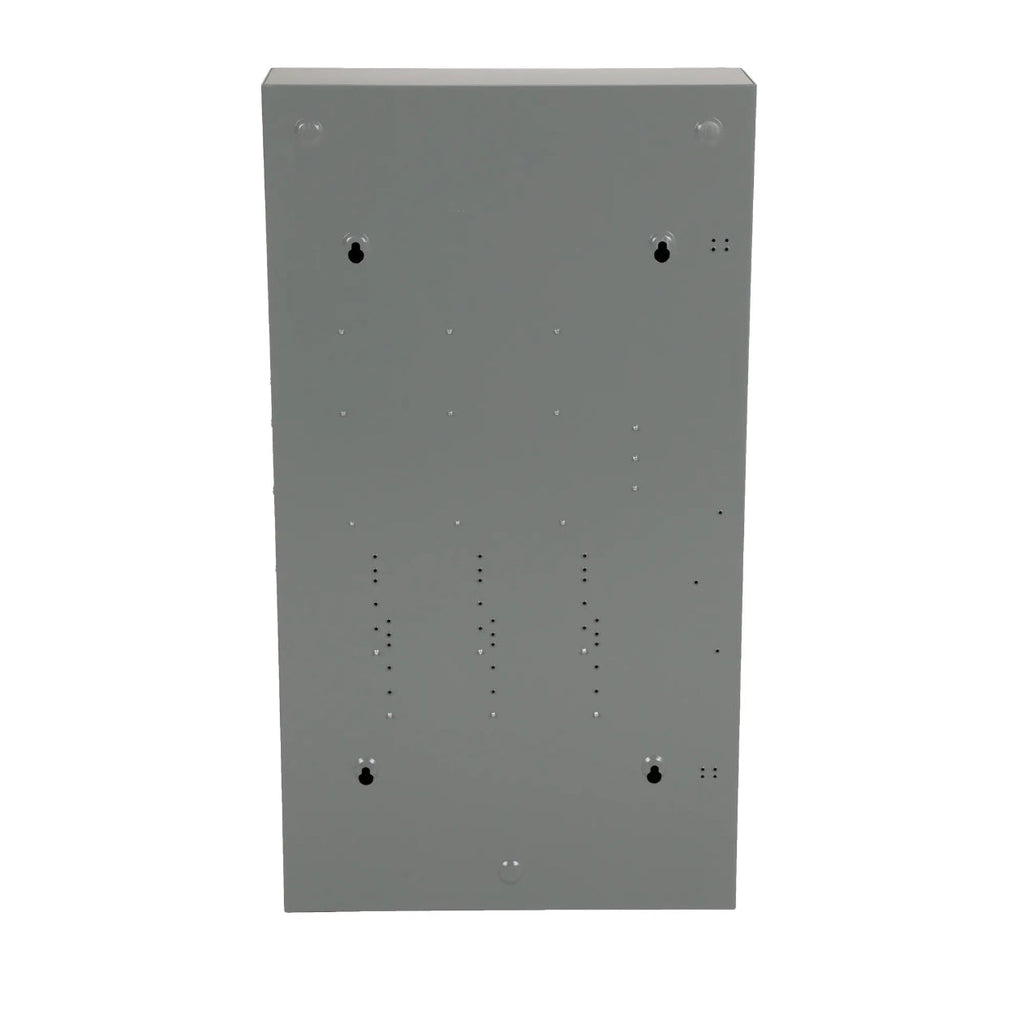

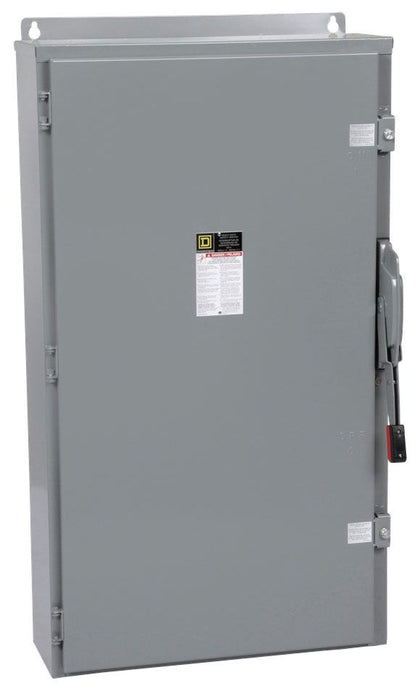

H366AWK is a heavy duty 3 pole fusible safety switch by Square D rated for 600 Amps and 600 Volts AC/DC with NEMA 3R/12 enclosure.H366AWK features a single throw disconnect mechanism, 200kA interrupt rating at 600V, and is suitable for indoor/outdoor use with a galvannealed steel enclosure. It supports up to 500 HP motor load at 600V and includes a quick make/break operating mechanism with dual cover interlock for safety.
- Key Specifications
- Amperage: 600 Amps
- Voltage: 600 Volts AC/DC
- Poles: 3 Pole
- Mounting Type: Surface Mount
- Interrupt Rating: 200kA at 600V
- Series/Frame: Square D Type H
- Trip Unit: Fusible
- Enclosure Rating: NEMA 3R/12 Galvannealed Steel
- Motor HP Rating: 150 HP at 480V, 3 Phase; 500 HP at 600V
- Certifications: UL Listed, RoHS Compliant
Specifications
- Part Number: H366AWK
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : H
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 12
Product Data
- UPC : 785901451938
- GTIN : 00785901451938
- Country of Origin : Mexico
- Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
- Weight : 175.001 lb
- Certification : UL
