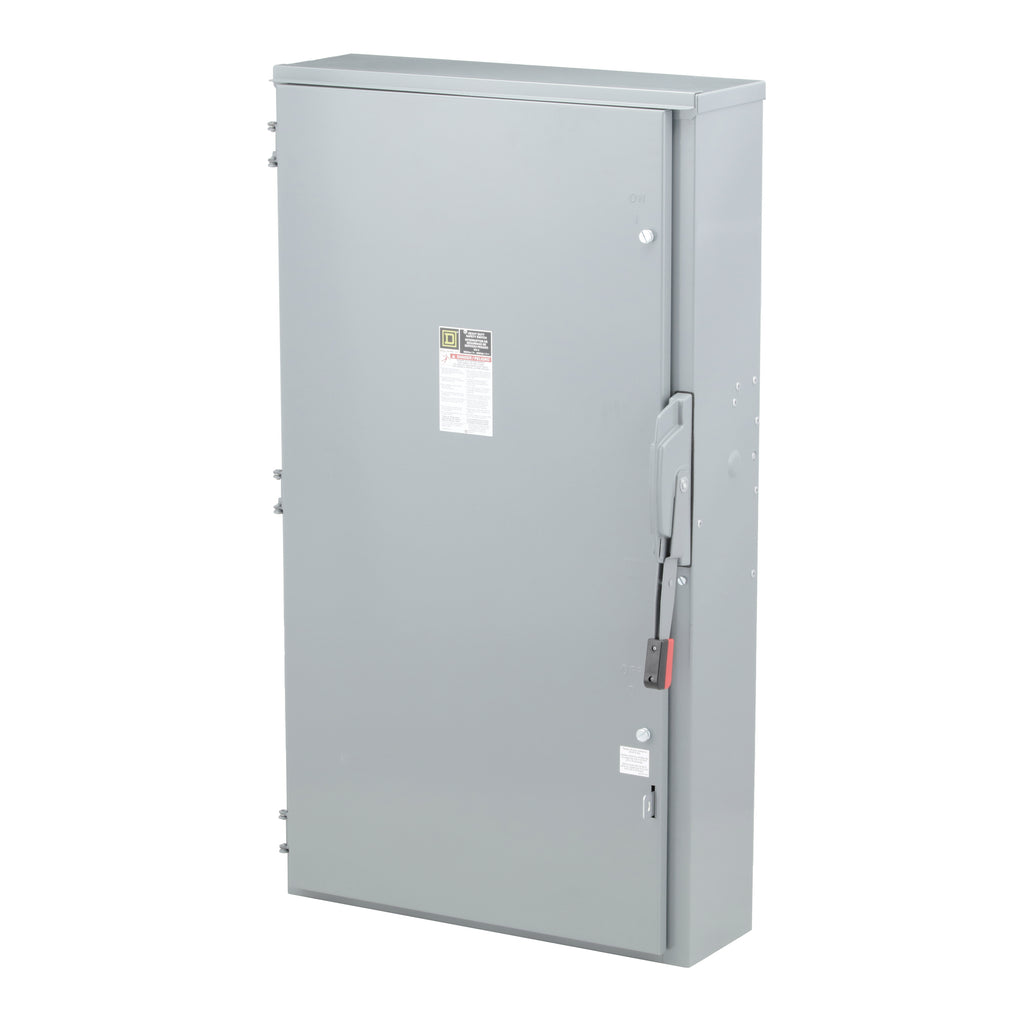

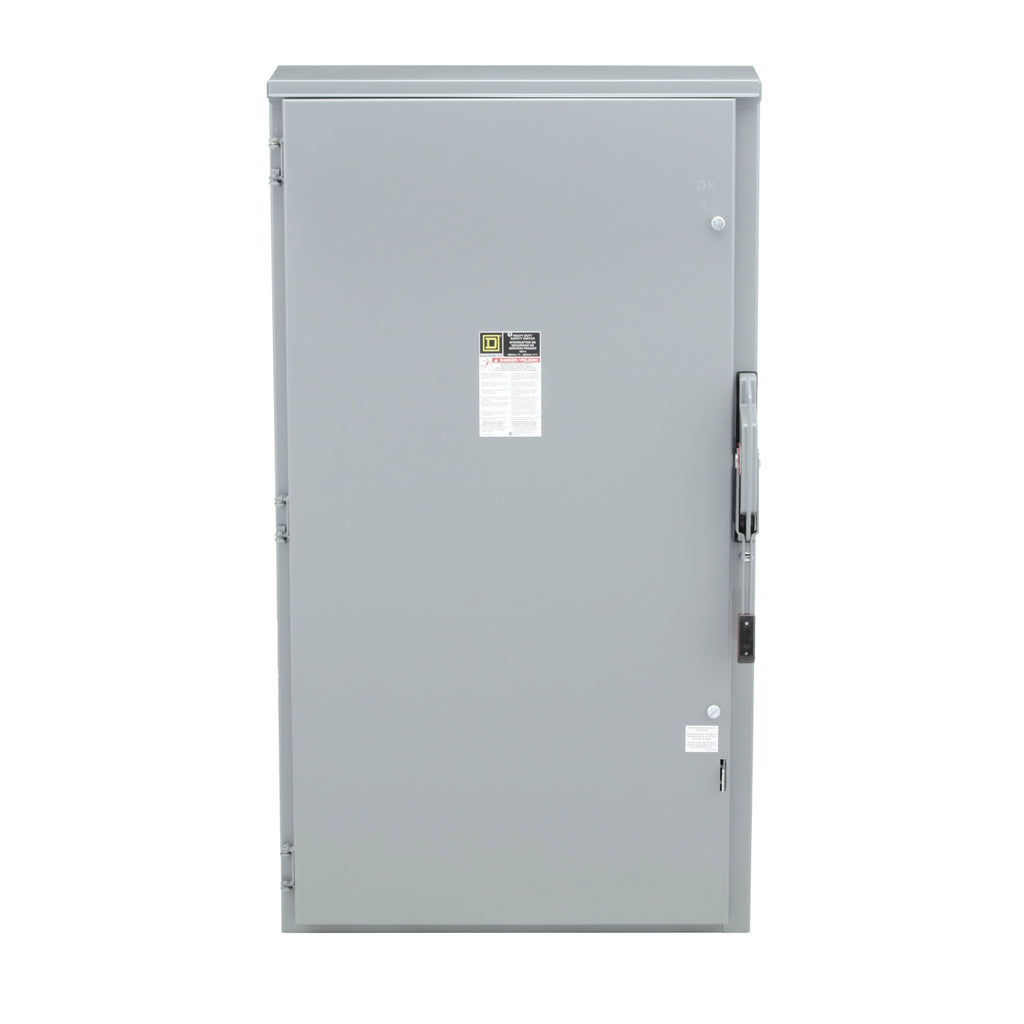

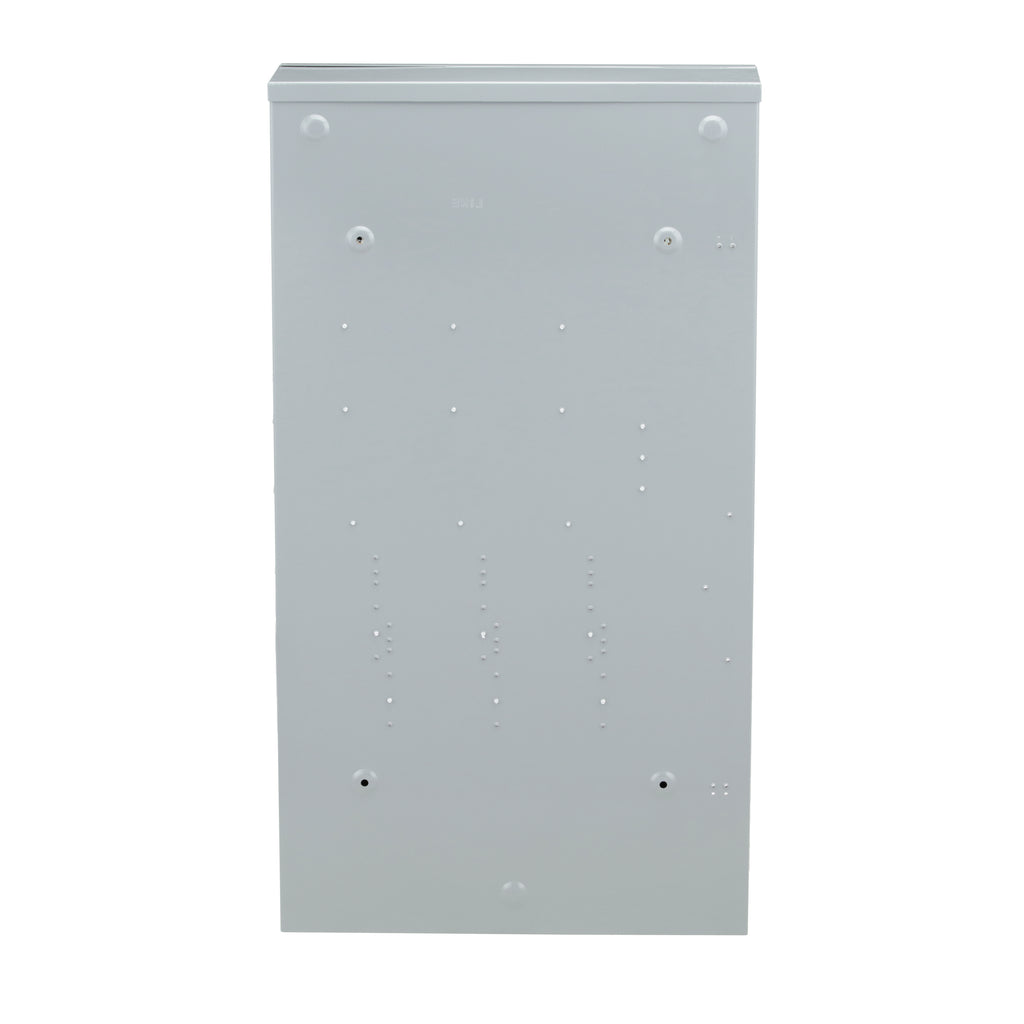

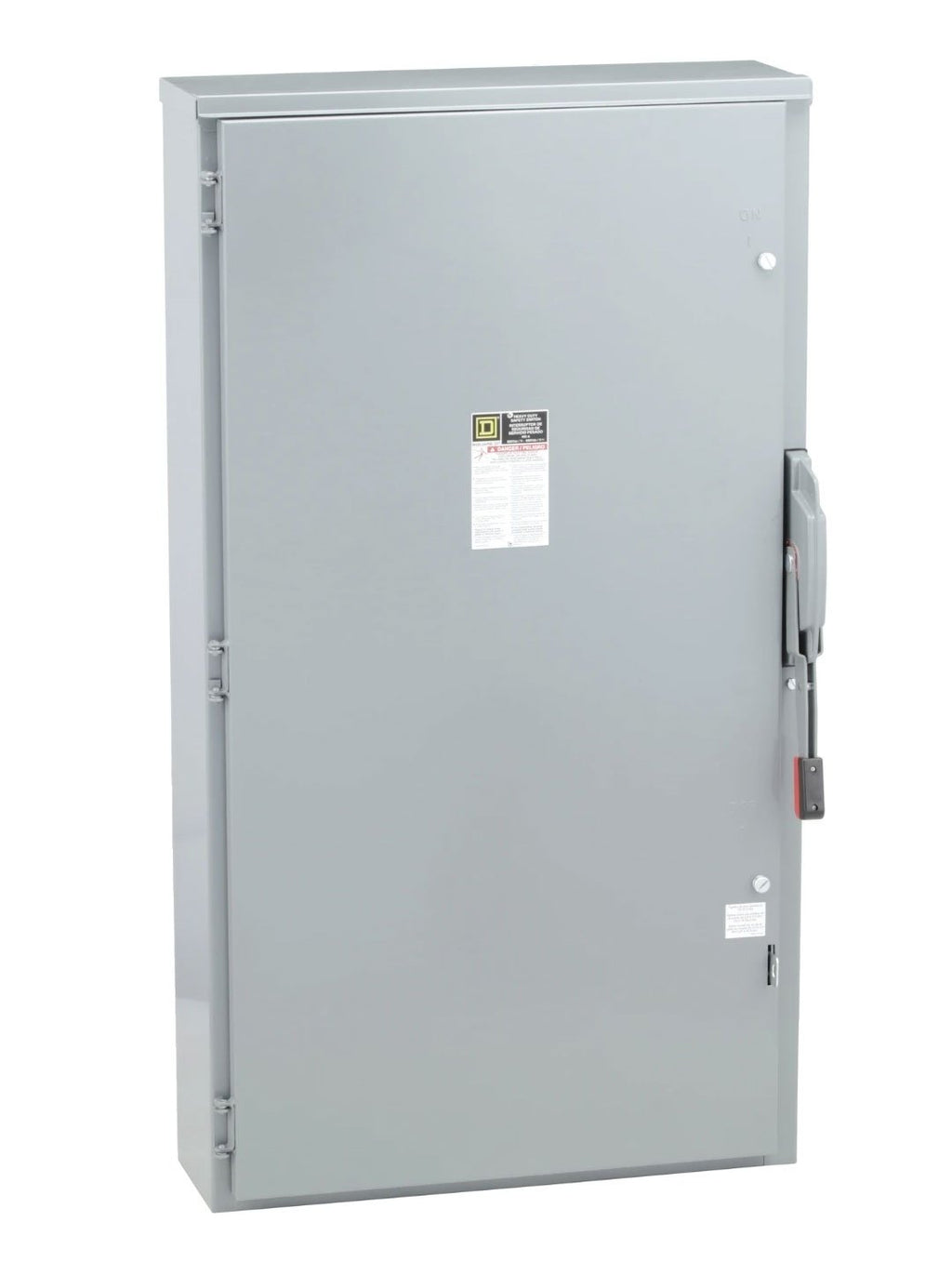

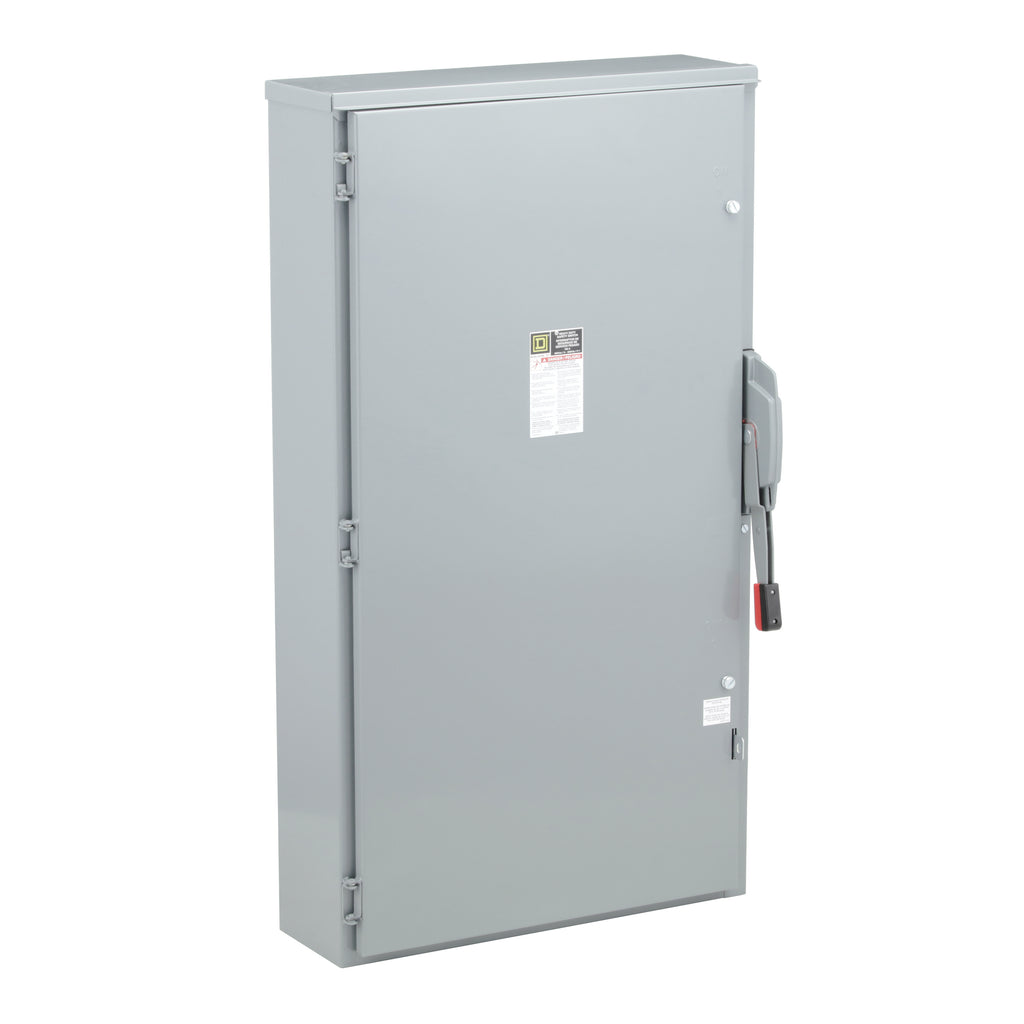

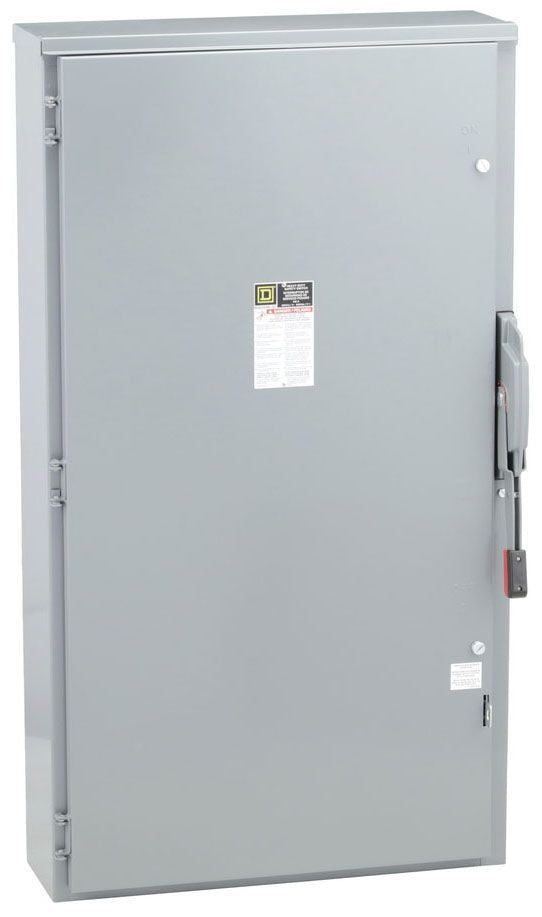

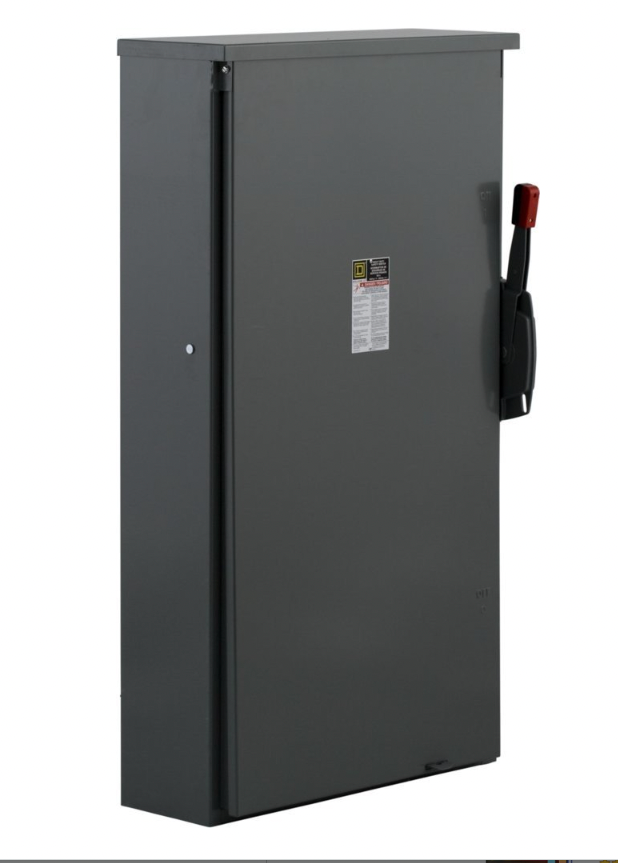

H365R - Square D 400A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R Surface Mount

H365R

H365R is a Square D heavy duty fusible safety switch designed for commercial and industrial applications requiring reliable power disconnect and protection.This 400 amp, 3-pole safety switch features a 600 volt maximum rating and a NEMA 3R rainproof, sleet and ice proof galvannealed steel enclosure suitable for indoor/outdoor surface mounting. It includes lug terminals for wire sizes #1/0 to 750 kcmil aluminum or copper, a single throw fusible disconnect mechanism, and is UL listed. The switch supports fuse classes H, J, K, L, and R with short circuit current ratings from 10kA to 200kA.

• Amperage: 400A
• Voltage Rating: 600 VAC/VDC
• Number of Poles: 3
• Mounting Type: Surface mount
• Interrupt Rating: 10kA to 200kA (Fuse dependent)
• Enclosure Rating: NEMA 3R (Rainproof, sleet/ice proof)
• Enclosure Material: Galvannealed steel
• Terminal Type: Lugs (#1/0 to 750 kcmil Al/Cu)
• Disconnect Type: Fusible, single throw
• Certifications: UL Listed
• Series/Frame: H Series
• Approvals: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H365R
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 3R

Product Data

• UPC : 785901451877
• GTIN : 00785901451877
• Country of Origin : Mexico
• Dimensions : 50.31 in (1277.87 mm) x 27.88 in (708.15 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 181 lb
