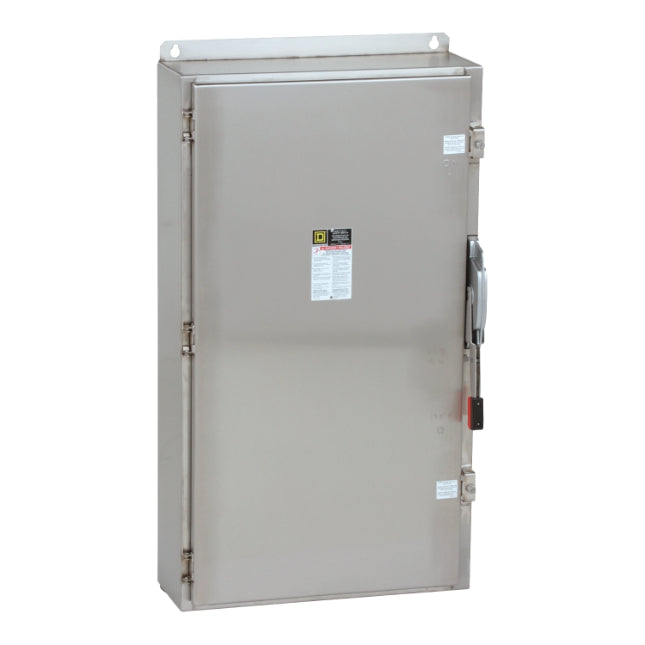

H365NDS - Square D 400 Amp 600 VAC/DC 3-Pole Fusible Heavy Duty Safety Switch NEMA 4/4X 304 Stainless Steel

H365NDS

H365NDS is a Square D heavy duty fusible safety switch rated for 400 Amps and 600 VAC/DC with 3 poles and a NEMA 4/4X stainless steel enclosure.H365NDS features a 3-pole design with a 400 Amp current rating, suitable for 600 Volt AC/DC applications. It includes a fusible disconnect for enhanced circuit protection, a quick-make, quick-break operating mechanism, and a dual cover interlock for safety. The enclosure is constructed from 304 stainless steel, rated NEMA 4, 4X, and 5 for robust environmental protection. It supports up to 250 HP motor load and carries UL listing for safety compliance.

Key Specifications
• Amperage: 400 Amps
• Voltage: 600 VAC/DC
• Poles: 3
• Interrupt Rating: 200kA at 600V
• Mounting Type: Heavy Duty Fusible Safety Switch
• Enclosure: 304 Stainless Steel, NEMA 4/4X/5
• Horsepower Rating: 250 HP
• Trip Unit: Fusible
• Certifications: UL Listed
• Neutral: Included
• Manufacturer: Square D (Schneider Electric)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H365NDS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 600
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 5

Product Data

• UPC : 785901195917
• GTIN : 00785901195917
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 185.001 lb
