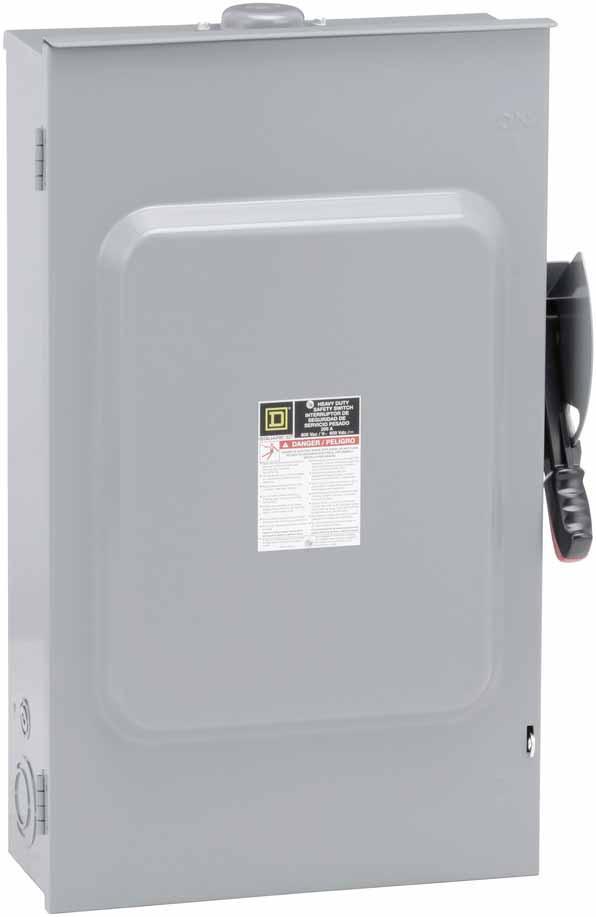

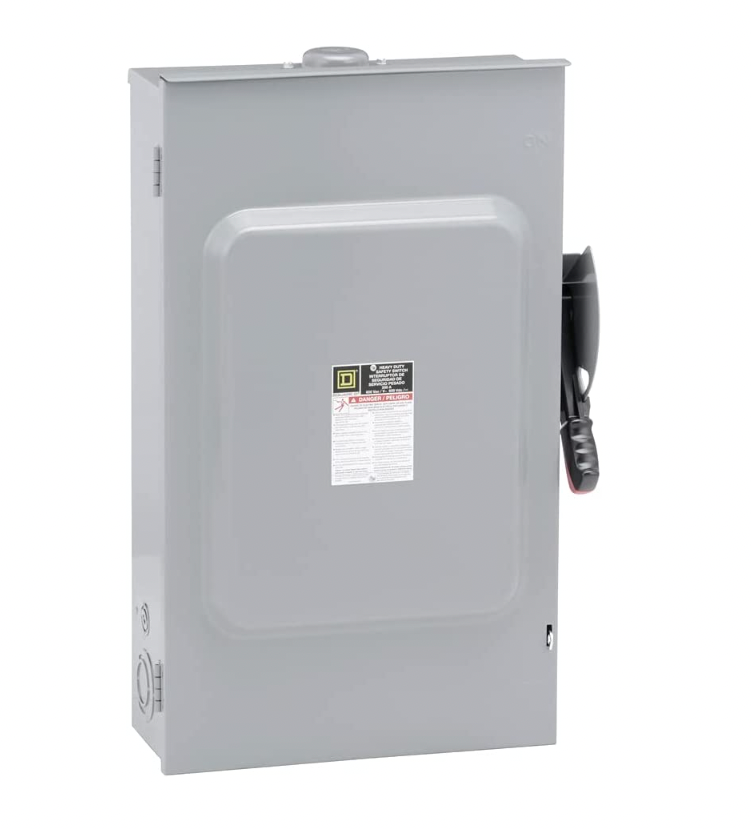

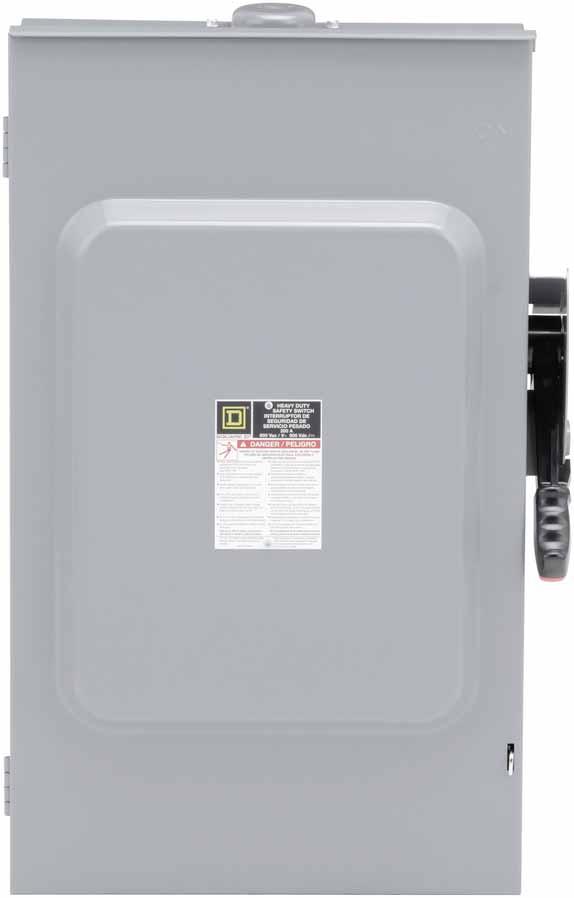

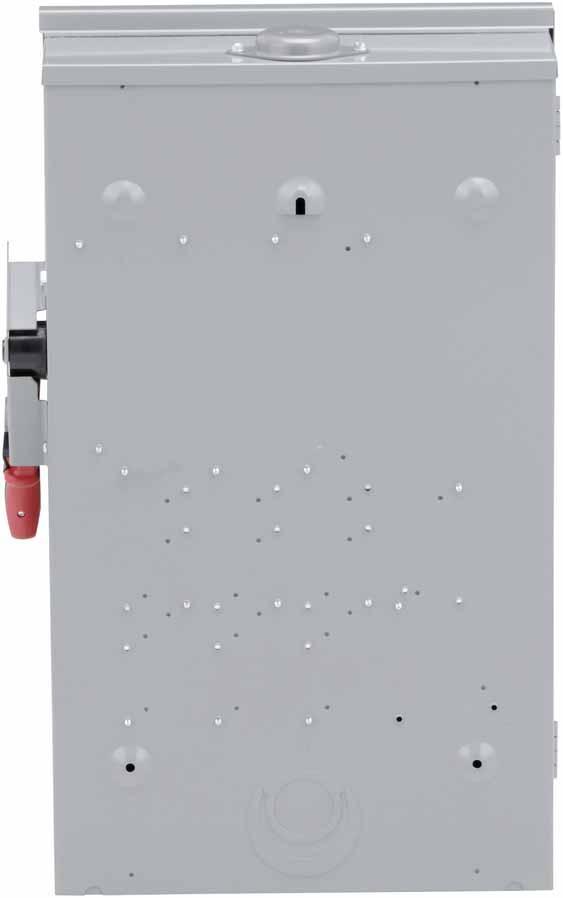

H364NRB - Square D 200A 600VAC 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H364NRB

H364NRB is a Square D heavy duty fusible safety switch designed for reliable circuit protection in demanding applications. This switch features a 200A current rating, 600VAC voltage rating, and 3-pole configuration with a solid neutral and fuseholders. The NEMA 3R enclosure provides protection against dust, rain, and sleet, making it suitable for both indoor and outdoor installations. The switch is rated for 10kA short circuit current and is built for durability with a galvanized steel enclosure. This Square D H364NRB safety switch is ideal for industrial and commercial power distribution systems requiring robust disconnect capability. It supports 4-wire, 3-blade operation and is compatible with Class H, J, K, L, and R fuses. The switch includes a bolt-on hub provision for secure mounting and is designed for easy installation and maintenance.

• Part Number: H364NRB
• Manufacturer: Square D
• Series: H
• Current Rating: 200A
• Voltage Rating: 600VAC/DC
• Number of Poles: 3
• Fusibility: Fusible
• Enclosure Type: NEMA 3R
• Short Circuit Current Rating: 10kA
• Mounting Type: Bolt-on hub provision
• Wire Configuration: 4-wire, 3-blade, 1 solid neutral
• Material: Galvanized steel
• Application: Industrial, commercial power distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H364NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 200
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R

Product Data

• UPC : 785901616313
• GTIN : 00785901616313
• Dimensions : 29.25 in (742.95 mm) x 18.63 in (473.20 mm) x 8.5 in (215.9 mm) (Height x Width x Depth)
• Weight : 46.251 lb
• Certification : UL Listed
