Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H364NDS

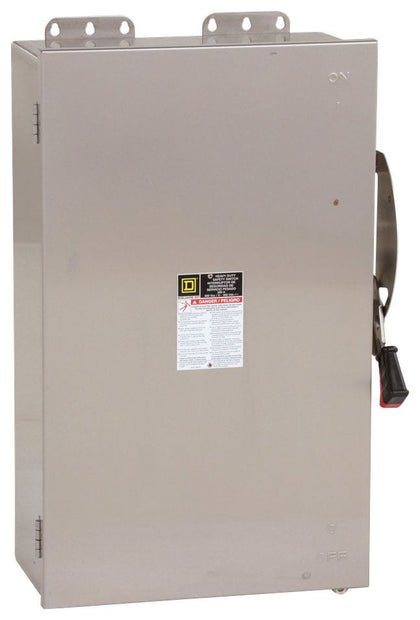

H364NDS is a Square D 3 pole, 200 Amp, 600 Volt fusible safety switch with a NEMA 4X stainless steel enclosure designed for heavy duty industrial applications. This surface-mounted disconnect switch provides reliable service entrance protection and is suitable for indoor/outdoor use. The H364NDS switch features a 200kA interrupting rating at 600V, supports Class H, J, R, and T fuses, and includes a factory-installed neutral for enhanced safety and convenience.
- Amperage: 200 Amps
- Voltage: 600 VAC/VDC
- Poles: 3
- Phase: 3
- Mounting Type: Surface mount
- Interrupting Rating: 200kAIC at 600V
- Enclosure Material: 304 Stainless Steel
- NEMA Rating: 3, 3R, 4, 4X, 5, 12
- Fusibility: Fusible (Class H, J, R, T fuses compatible)
- Terminal Connection: Lugs for copper/aluminum wire
- Certifications: UL Listed, RoHS, REACh compliant
- Duty Rating: Heavy Duty
Specifications
- Part Number: H364NDS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 200
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 4/4X
Product Data
- UPC : 078590126677
- GTIN : 00785901266778
- Dimensions : 29 in (736.6 mm) x 19.25 in (488.95 mm) x 8.88 in (225.55 mm) (Height x Width x Depth)
- Weight : 54.201
