Product Info
- Manufacturer: Square D
- Sub-Category: Disconnect
Description
H364N

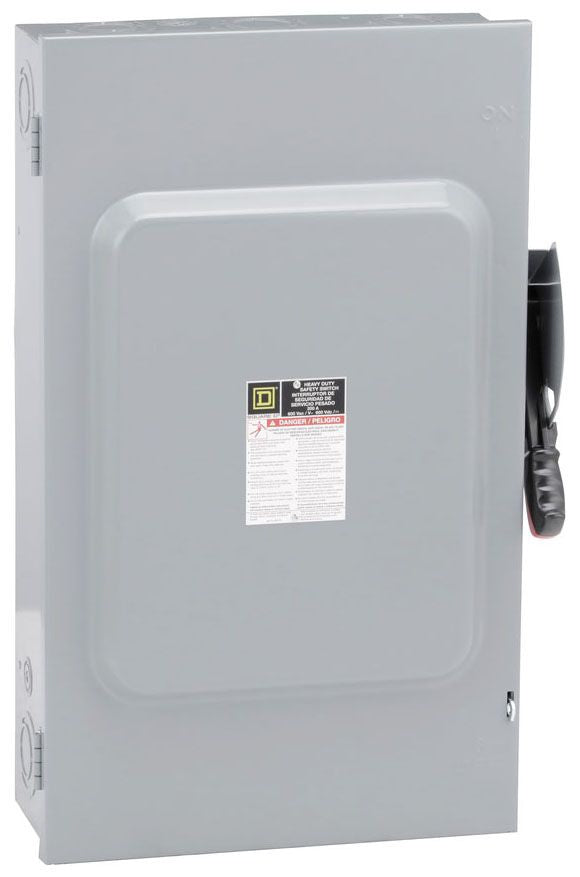

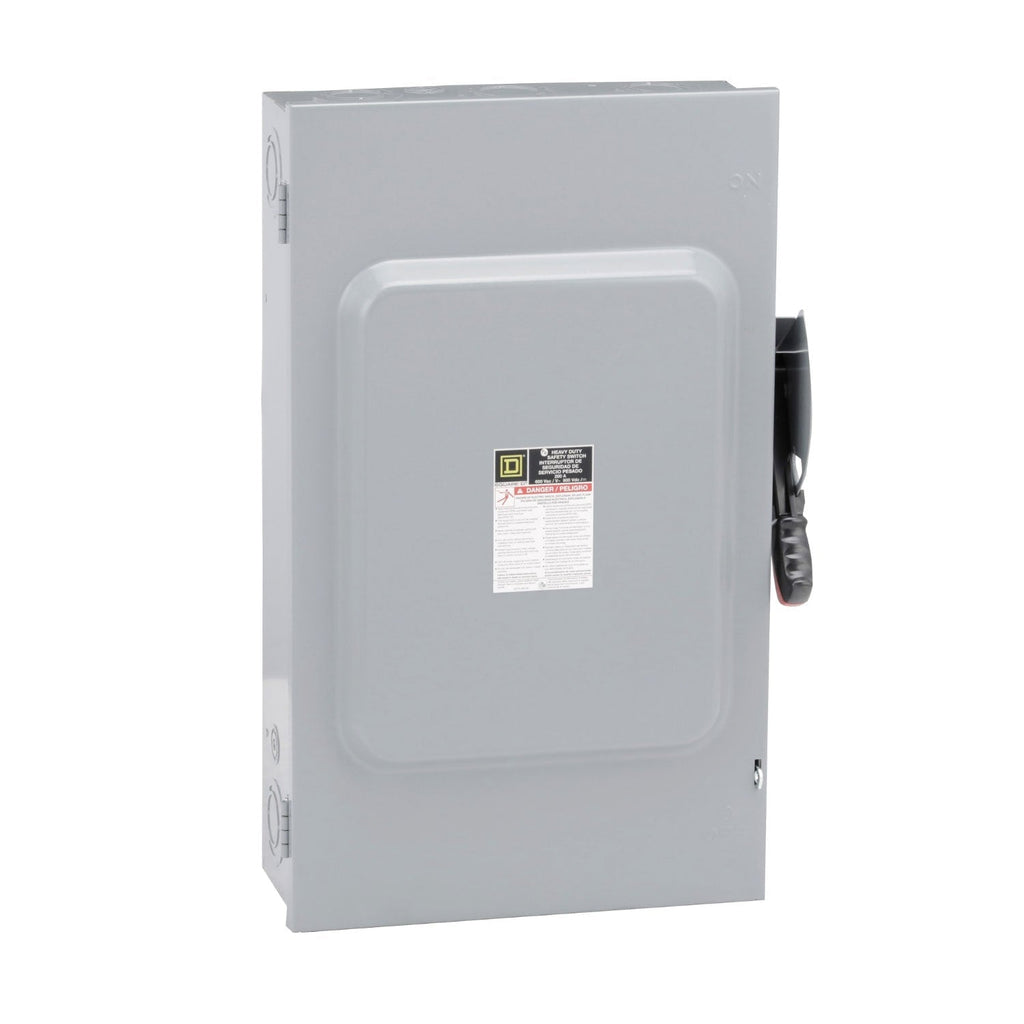

The Square D H364N is a 3 phase 3 pole 600 Volt 200 Amp H type Disconnect Switch. This switch has a Nema rating of 1 and an AIC rating of 200kA@600V. The H364N is a single switch configuration and uses class R, J, H, and K fuses and includes a Neutral. Suitable for use as service entrance equipment.
Specifications
- Part Number: H364N
- Manufacturer : Square D
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 200
- Poles : 3
- Phase : 3
- AIC rating : 200kA@600V
- Nema Rating : 1
- Configuration : Single
- Fuse Class : R
- Wire Size : 250 kcmil (Copper) 6 AWG (Aluminium)
Product Data
- UPC : 785901482338
- GTIN : 00782113213545
- Dimensions : Depth 8.25 in (209.55 mm) Width 18.5 in (469.90 mm) Height 29 in (736.60 mm)
- Weight : 60.49 lb
- Certification : UL listed
