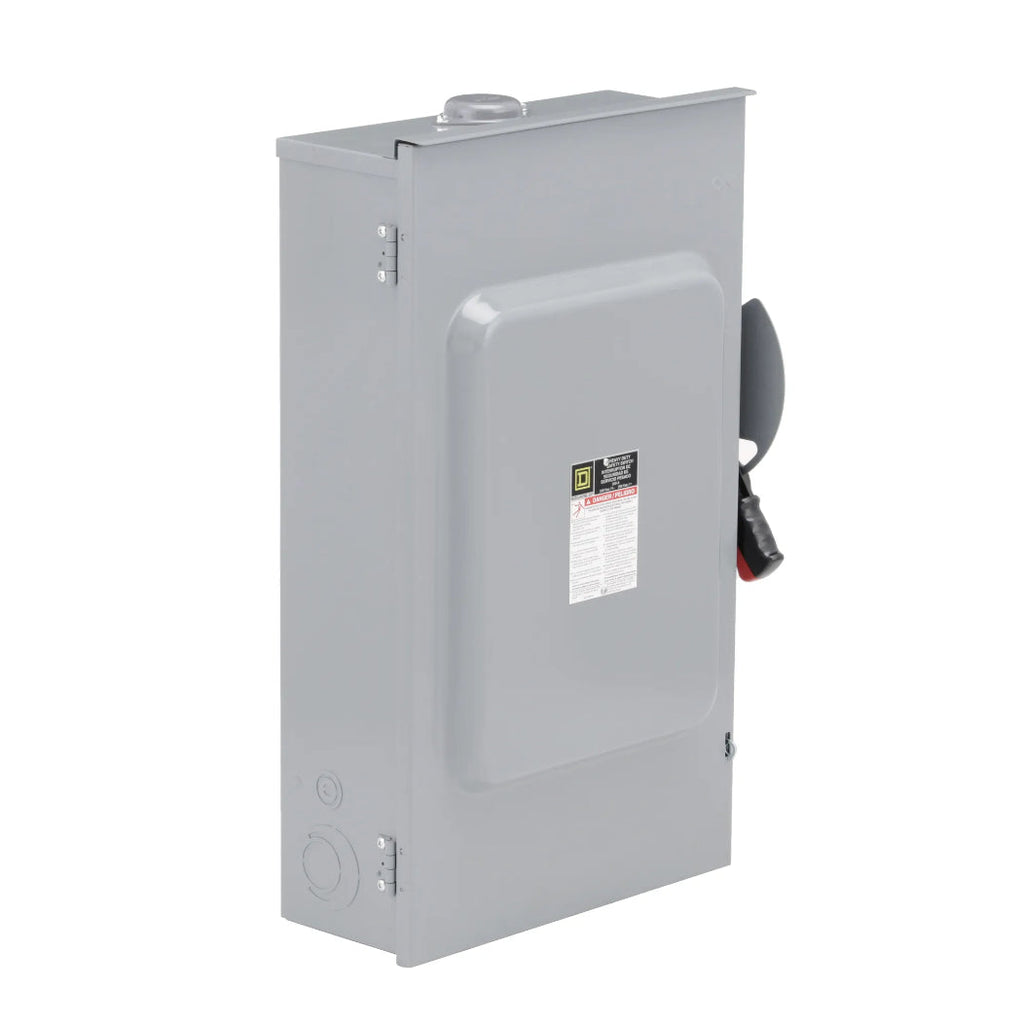

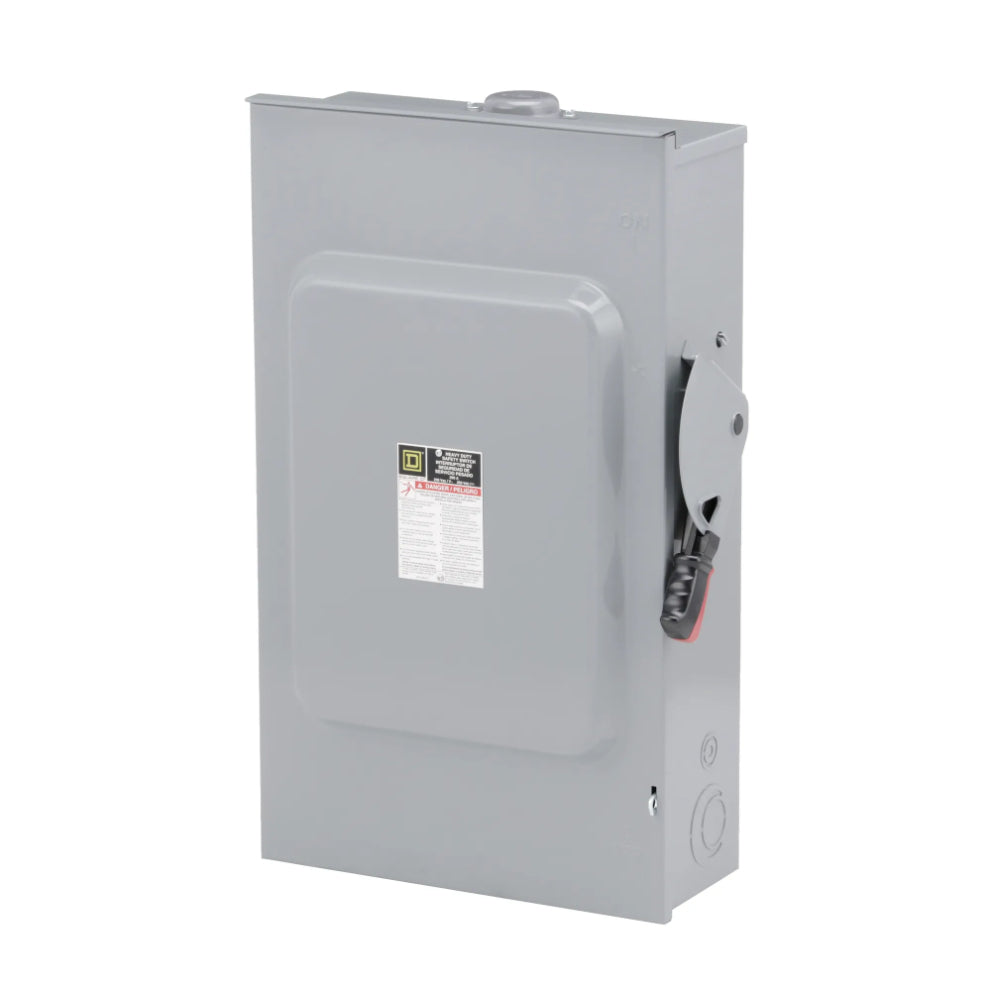

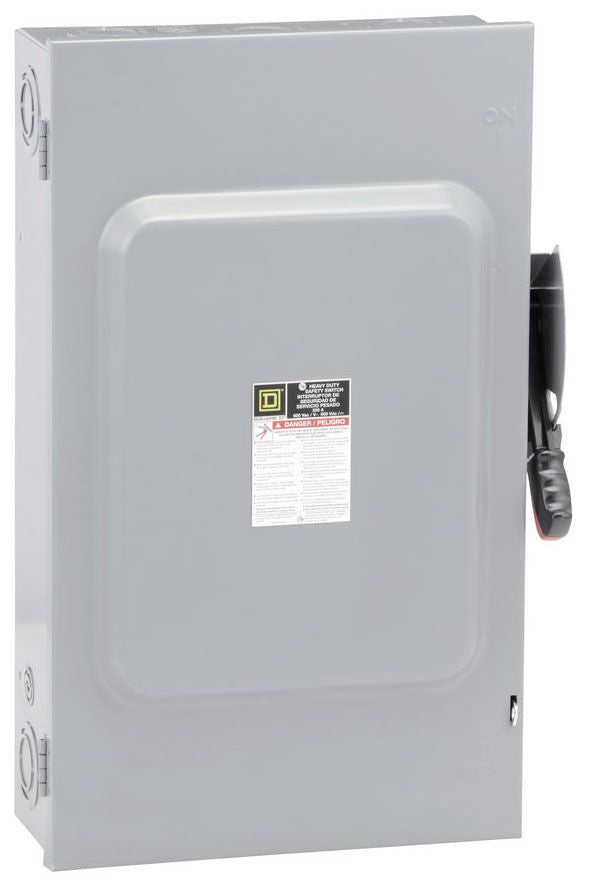

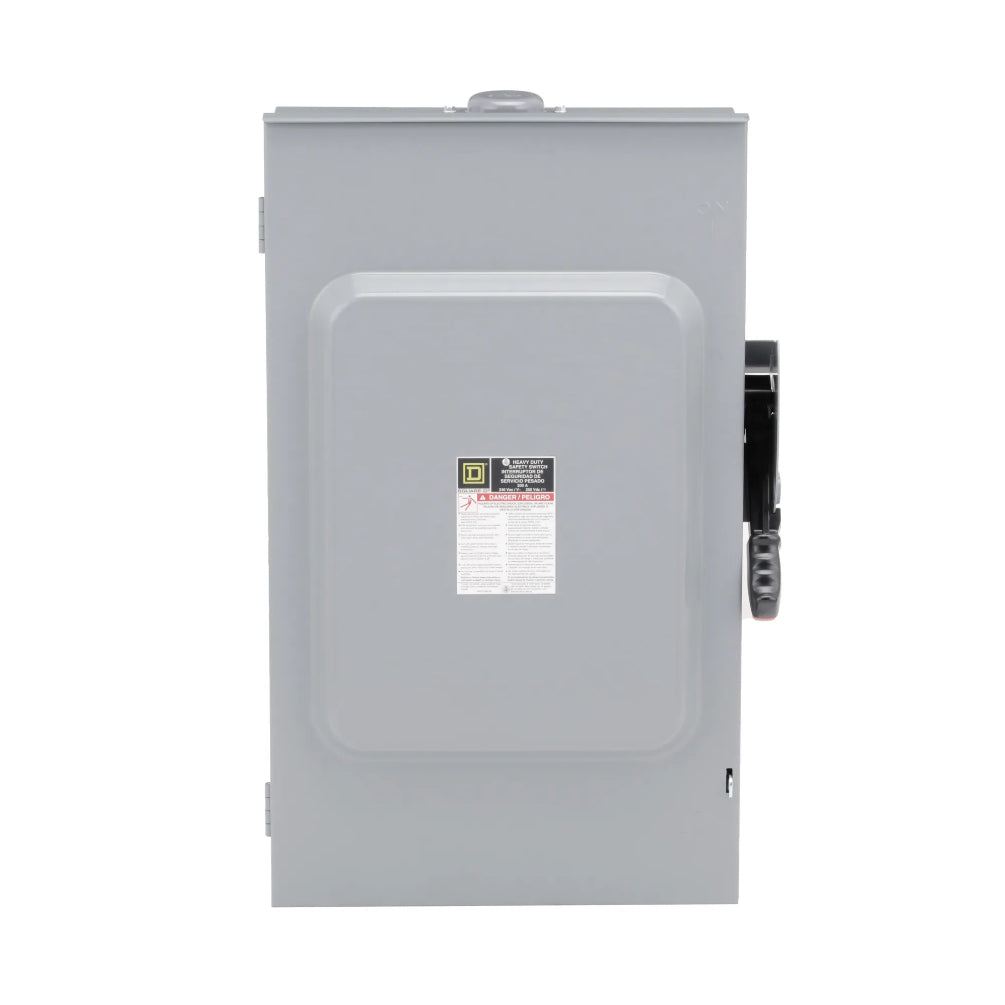

Square D H364 Disconnect Switch (Fusible) 200A 600V Nema 1

Save $627.03
SKU: H364-New

Title: New
Price:
Sale price$1,079.97 Regular price$1,707.00
Stock:
In stock, ready to be shipped

We also have No Box, Recertified, and Surplus options available.
Call (866) 377-3532 for a price!

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

Description

H364

The Square D H364 is a 3 phase 3 pole 600 Volt 200 Amp H type Disconnect Switch. This switch has a Nema rating of 1 and an AIC rating of 200kA@600V. The H364 is a single switch configuration and uses class R, J, H, and K fuses. Suitable for use as service entrance equipment.


Specifications

  • Part Number: H364
  • Manufacturers: Square D
  • Sub-Category: Disconnect
  • UPC: 785901482314
  • GTIN: 00783164008685
  • Poles: 3
  • Phase: 3
  • Voltage: 600
  • Amperage: 200
  • AIC Rating: 200kA@600V
  • Wire size: #6 to 250 AWG/kcmil(Al/Cu)
  • Family: Series F
  • Type: H
  • Certification: UL Listed
  • Dimensions: Depth 8.25 in (209.55 mm) Width 18.5 in (469.90 mm) Height 29 in (736.60 mm)
  • Weight: 59.5 lb
  • Switch Style: Fusible
