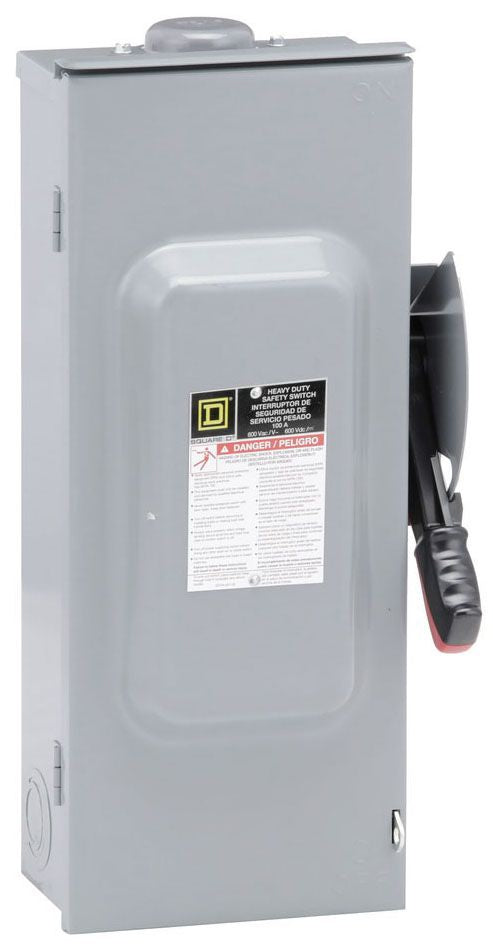

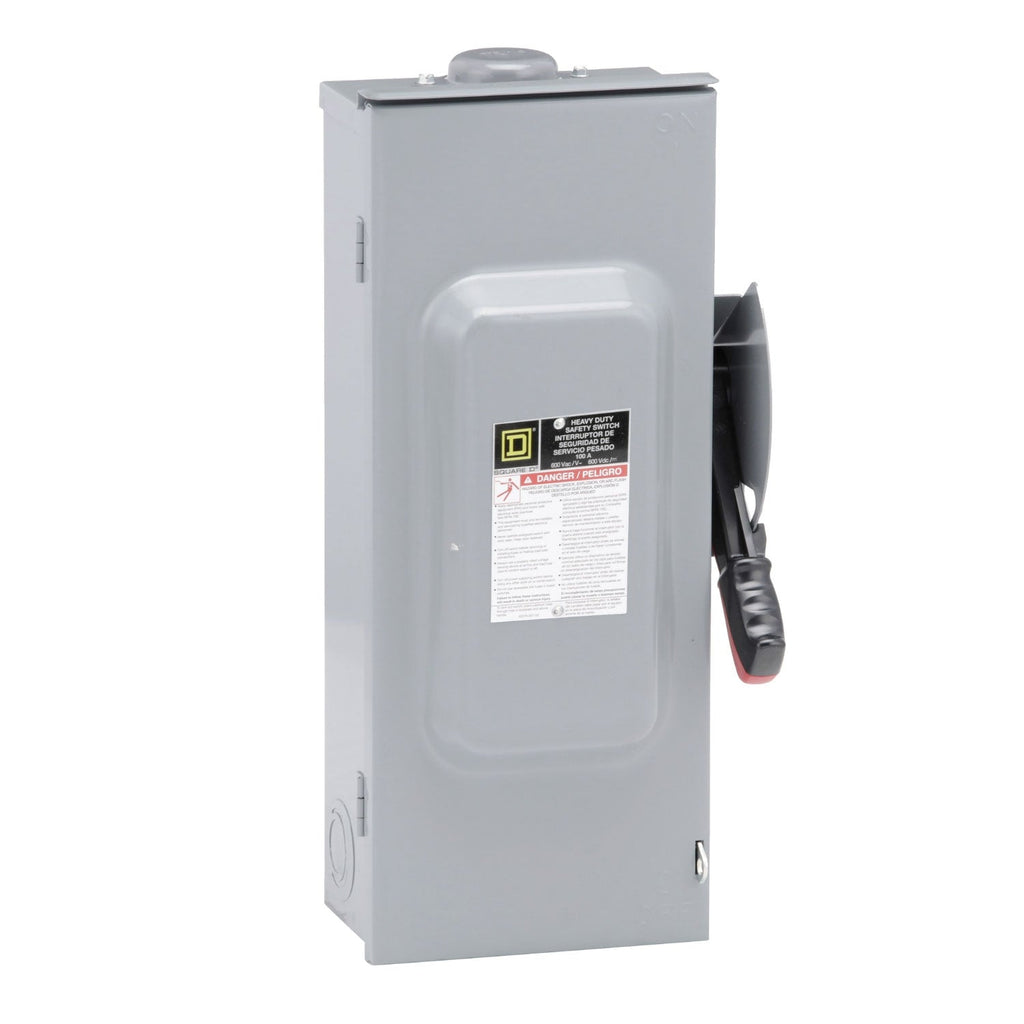

H363NRB - Square D 100A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 3R

H363NRB

H363NRB is a Square D heavy duty fusible safety switch rated for 100 amps and 600 volts with a 3-pole configuration and NEMA 3R enclosure.This Square D H363NRB safety switch features a surface mount galvannealed steel enclosure rated for rainproof, sleet, and ice proof indoor/outdoor use. It includes factory-installed neutral, lug terminals supporting #12 to 1/0 AWG aluminum or #14 to 1/0 AWG copper wire, and a fusible disconnect for overcurrent protection. The switch has a short circuit current rating of 10kA (Class H or K) and 200kA (Class R or J), meeting UL listing requirements.

Key Specifications
• Amperage: 100A
• Voltage Rating: 600V AC
• Number of Poles: 3
• Mounting Type: Surface
• Interrupt Rating: 10kA Class H/K, 200kA Class R/J
• Series/Frame: H Series
• Trip Unit: Fusible Disconnect
• Enclosure Rating: NEMA 3R (Rainproof, Sleet/Ice Proof)
• Enclosure Material: Galvannealed Steel
• Terminal Type: Lugs
• Wire Size Range: #12 to 1/0 AWG Aluminum, #14 to 1/0 AWG Copper
• Certifications: UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H363NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : FD



Product Data

• UPC : 785901011576
• GTIN : 00785901011576
• Dimensions : 21.25 in (539.75 mm) x 10.25 in (260.35 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 17.68 lb
