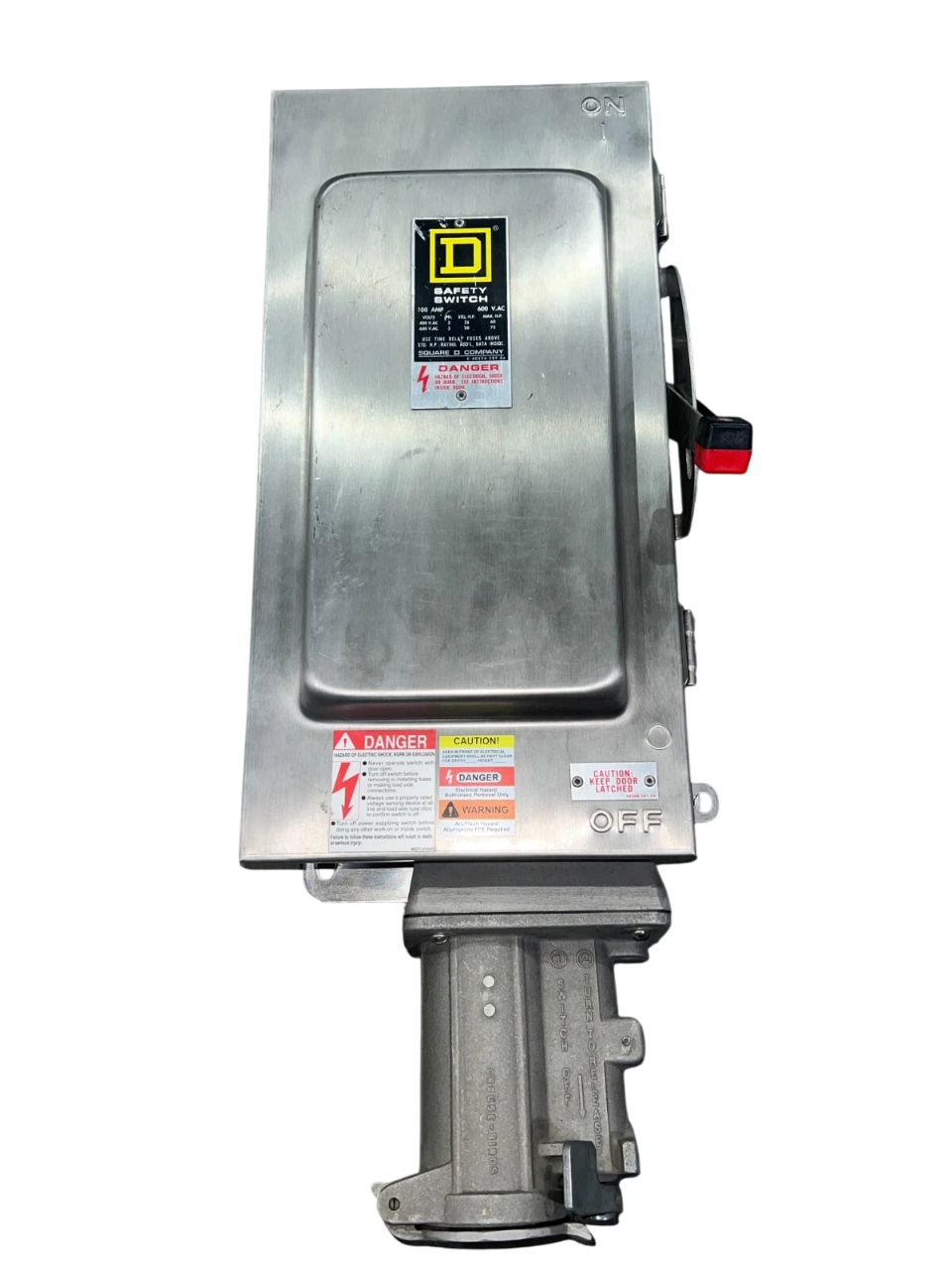

H363DSWC - Square D 100A 600V 3-Pole Heavy Duty Fusible Safety Switch NEMA 1

H363DSWC

H363DSWC is a Square D heavy duty fusible safety switch designed for indoor use with a NEMA 1 enclosure.

This 3-pole safety switch is rated for 100 amps and 600 volts AC, featuring a single throw mechanism and fusible protection compatible with Class H, J, K, L, and R fuses. It is constructed with galvanized steel for durability and supports wire sizes from 14 to 1/0 AWG copper and 12 to 1/0 AWG aluminum. The switch is UL listed and suitable for heavy-duty applications requiring reliable disconnect and overcurrent protection.

Key Specifications
• Amperage: 100 Amps
• Voltage Rating: 600 Volts AC
• Poles: 3-Pole
• Mounting Type: Indoor NEMA 1 Enclosure
• Interrupt Rating: Compatible with Class H/J/K/L/R Fuses
• Frame/Series: H363 Heavy Duty
• Terminal Type: Lugs
• Wire Size Range: 14 to 1/0 AWG Copper, 12 to 1/0 AWG Aluminum
• UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H363DSWC
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : J,R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3/3R/4/4X/5/12
• Compatible Frames : FD

Product Data

• UPC : 785901220626
• GTIN : 00785901220626
• Country of Origin : United States
• Dimensions : 28.00 in (711.20 mm) x 11.25 in (285.75 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 34
• Certification : UL LISTED
