Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H362SS

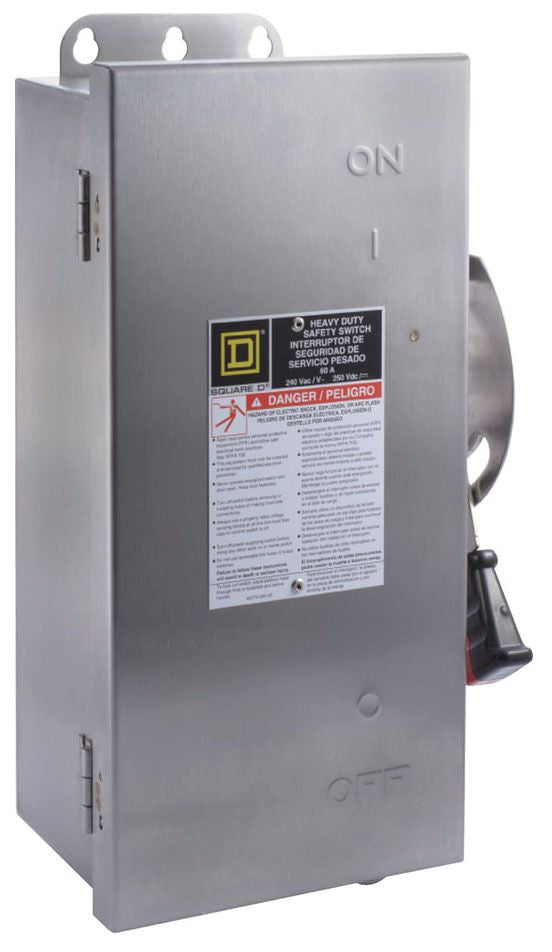

H362SS is a Square D heavy duty fusible safety switch rated for 60 Amps, 600 Volts, and 3 poles with stainless steel enclosure.The H362SS switch features a 200kA interrupting rating at 600V, NEMA 4/4X/5/12 ratings for outdoor and harsh environments, and a surface mounting type. It is part of the Square D Series F, H frame, designed for reliable disconnect and protection in industrial applications.
- Key Specifications
- Amperage: 60 Amps
- Voltage: 600 Volts AC/DC
- Poles: 3
- Interrupting Rating: 200kA at 600V
- Mounting Type: Surface mount
- Frame Type: H
- Enclosure Material: Stainless Steel 316
- NEMA Ratings: 3/3R/4/4X/5/12
- Fuse Type: Fusible (Class H/J/K/L/R compatible)
- Certifications: UL Listed
- Dimensions (in): 6.97 L x 10.81 W x 16.87 H
Specifications
- Part Number: H362SS
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series F
- Type : H
- Voltage : 600
- Amperage : 60
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 4/4X/5 316
- Compatible Frames : ED
Product Data
- UPC : 785901538721
- GTIN : 00785901538721
- Dimensions : 16.87 in (428.50 mm) x 10.81 in (274.57 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
- Weight : 19.6 lb
- Certification : UL
