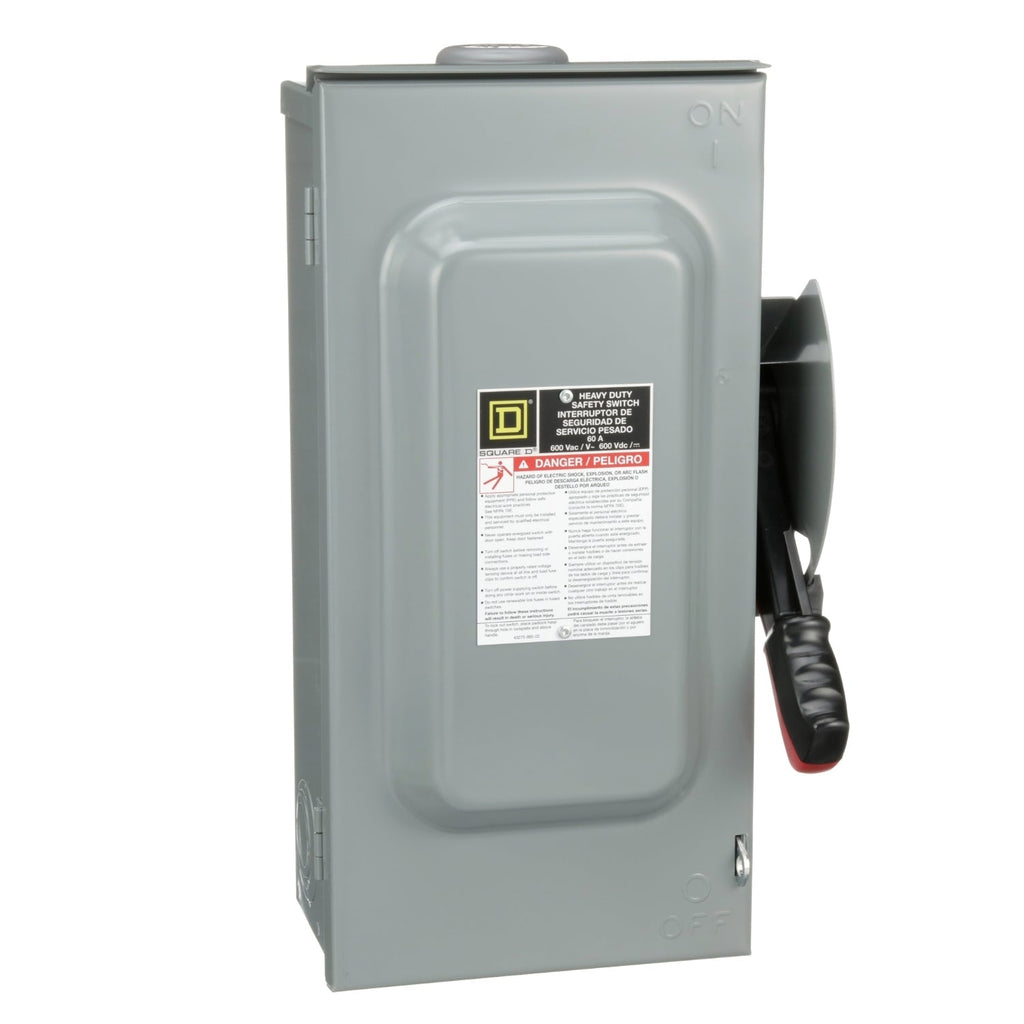

H362NRB - Square D 60A 600V 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H362NRB

H362NRB is a heavy duty fusible safety switch from Square D rated for 60 amps and 600 volts with 3 poles and a NEMA 3R enclosure.H362NRB features a 3-pole fusible disconnect with a 60A current rating, suitable for 600 VAC/DC operation. It includes a factory-installed neutral and a bolt-on hub provision for surface mounting. The enclosure is made of galvannealed steel with a NEMA 3R rating for rainproof applications. It has a short circuit current rating of 200kA at 600V and supports motor horsepower ratings up to 50 hp at 600 VAC. This switch is UL listed and designed for heavy duty industrial and commercial use.

Key Specifications
• Current Rating: 60 Amps
• Voltage Rating: 600 VAC/DC
• Number of Poles: 3
• Enclosure Rating: NEMA 3R galvannealed steel
• Disconnect Type: Fusible
• Mounting Type: Surface
• Short Circuit Current Rating: 200kA @ 600V
• Factory Installed Neutral
• Maximum Horsepower: 50 hp at 600 VAC
• Wire Size: AWG 14-3 copper, AWG 12-3 aluminum
• UL Listed (File E2875)
• Series/Frame: H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H362NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : ED

Product Data

• UPC : 785901122494
• GTIN : 00785901122494
• Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 15.351 lb
• Certification : UL
