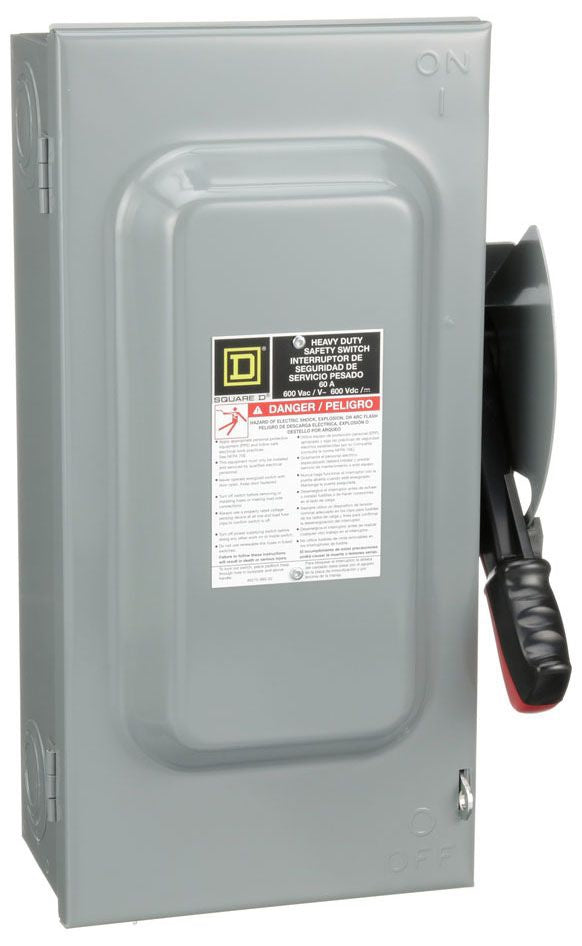

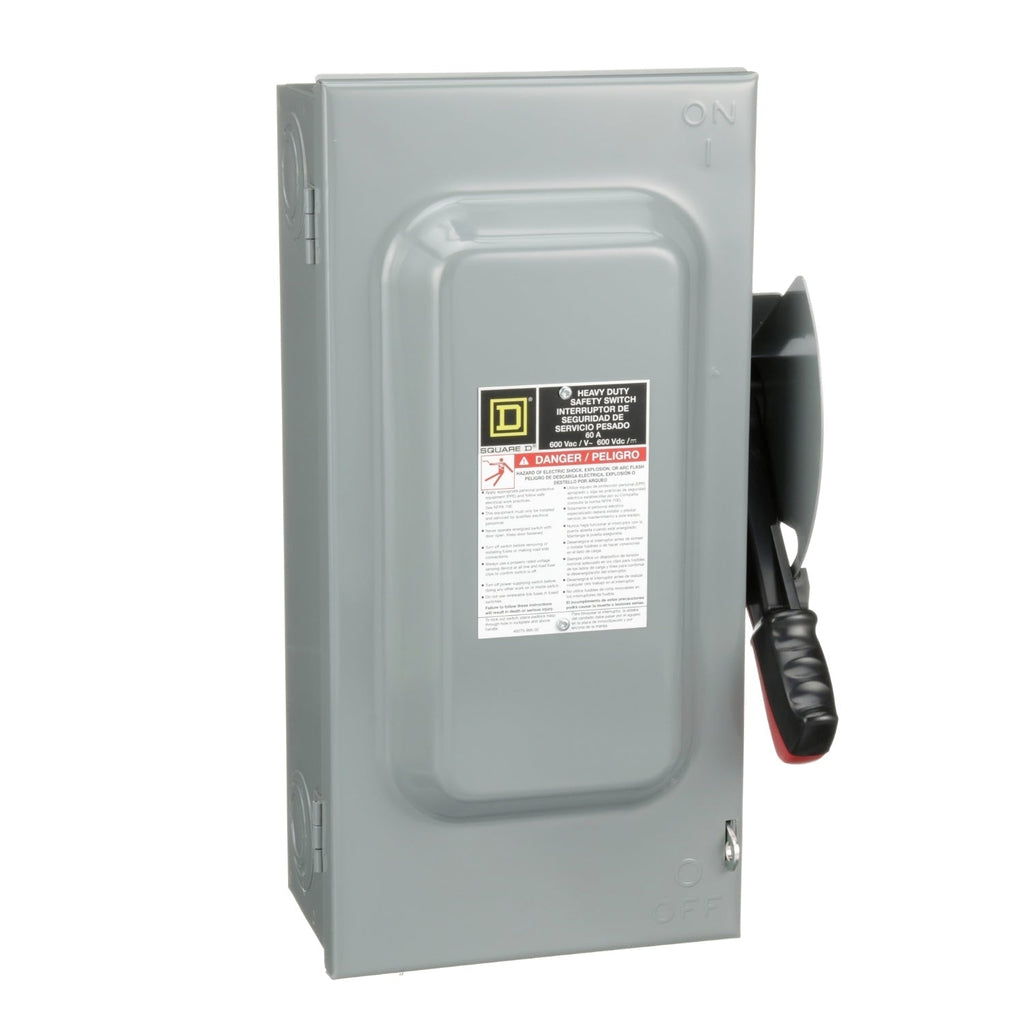

H362N - Square D 60A 600V 3 Pole Heavy Duty Fusible Safety Switch NEMA 1

H362N

H362N is a Square D heavy duty fusible safety switch rated for 60 amps and 600 volts with 3 poles and NEMA 1 indoor enclosure.H362N features a 3-phase, 4-wire design with a fusible disconnect, suitable for service entrance applications when equipped with neutral assembly or grounding kit. It has a 200kA interrupt rating at 600V and supports motor horsepower ratings up to 15 hp at 480V AC.

Key Specifications
• Amperage: 60A
• Voltage: 600V AC/DC
• Poles: 3
• Phase: 3
• Mounting Type: Surface
• Interrupt Rating: 200kA @ 600V
• Enclosure Type: NEMA 1 (Indoor)
• Duty Rating: Heavy Duty
• Fusibility: Fusible
• Horsepower Rating: 15 hp at 480V AC
• Neutral: 1 solid neutral
• Standards: California Proposition 65 compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H362N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 600
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@600V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1
• Compatible Frames : ED

Product Data

• UPC : 785901482215
• GTIN : 00785901482215
• Dimensions : 17.5 in (444.5 mm) x 10.5 in (266.7 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 15.3 lb
• Certification : UL Listed
