Product Info
- Manufacturer: Square D
- Sub-Category: Disconnect
Description
H361N

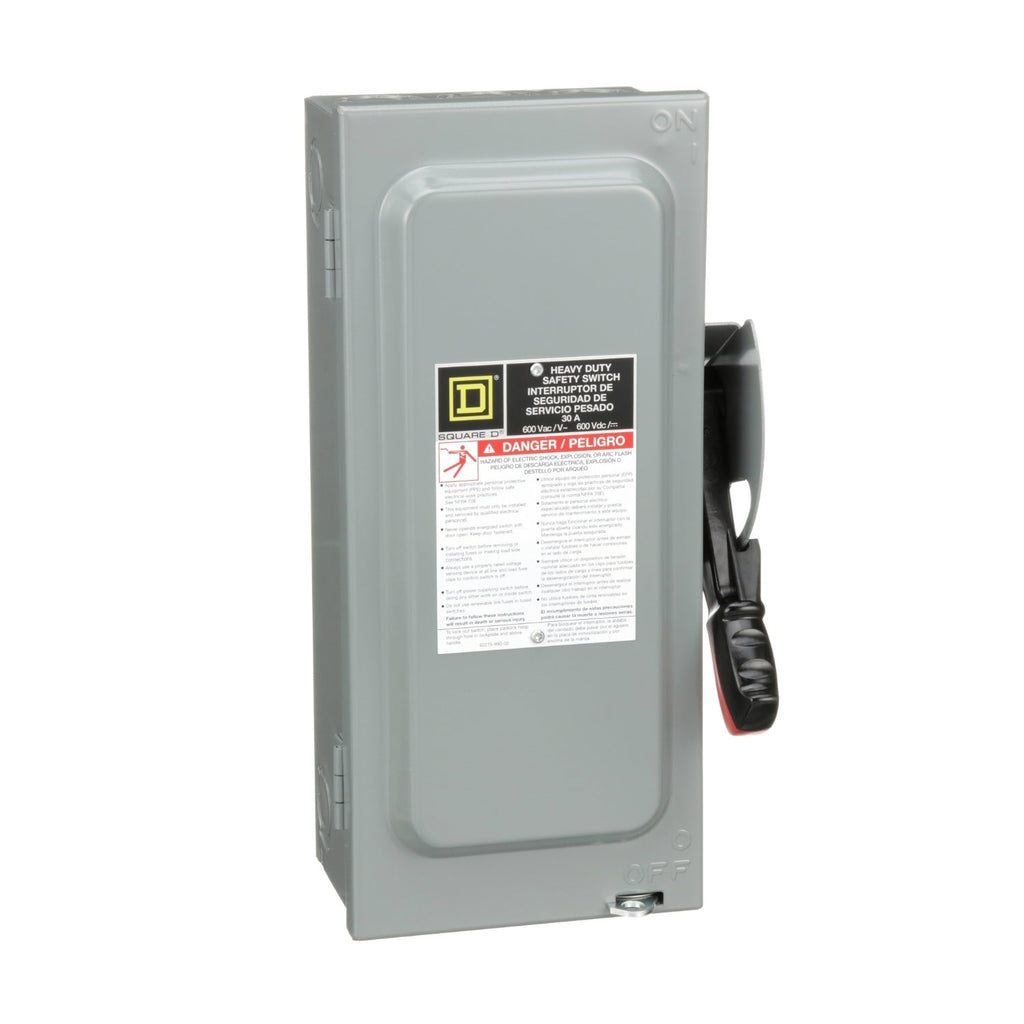

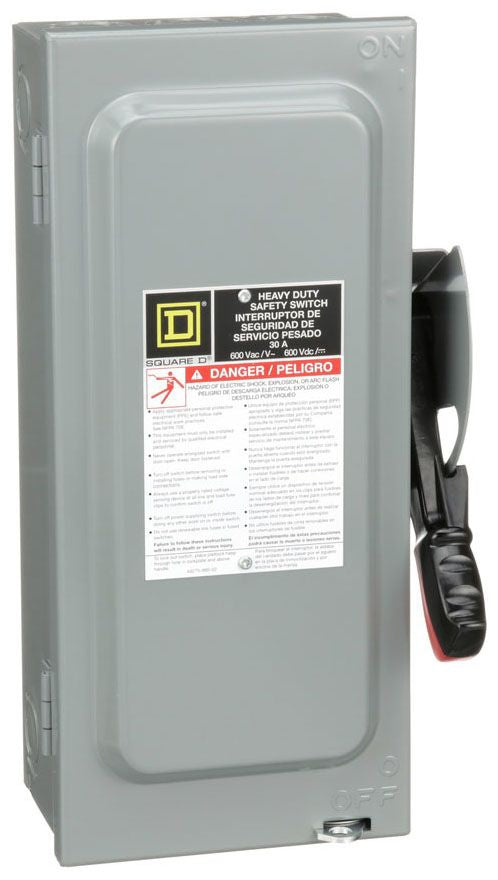

The Square D H361N is a 3 phase 3 pole 600 Volt 30 Amp H type Disconnect Switch. This switch has a Nema rating of 1 and an AIC rating of 200kA@600V. The H361N is a single switch configuration and uses class class R, J, H, and K fuses.
Specifications
- Part Number: H361N
- Manufacturers: Square D
- Sub-Category: Disconnect
- UPC: 785901481911
- GTIN: 00785901481911
- Poles: 3
- Phase: 3
- Voltage: 600
- Amperage: 30
- AIC Rating: 200kA@600V
- Wire size: #12 to #6 AWG(Al) or #14 to #6 AWG(Cu)
- Family: Series F
- Type: H
- Certification: UL Listed
- Dimensions: Depth 4.87 in (123.70 mm) Width 7.55 in (191.77 mm) Height 14.6 in (370.84 mm)
- Weight: 9.82 lb
