Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H327N

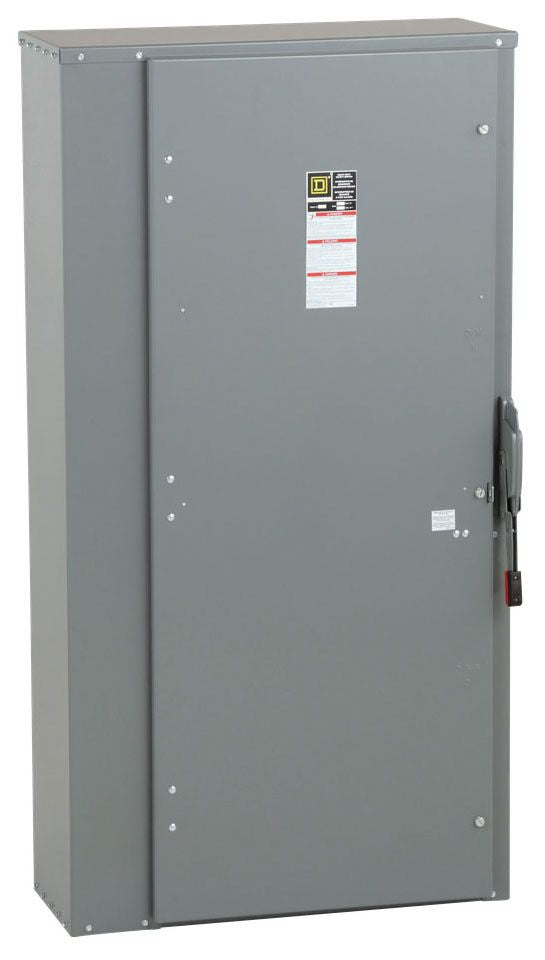

H327N is a heavy duty fusible safety switch designed for industrial power distribution and motor control applications. This three-pole, single-throw disconnect switch provides reliable load isolation and circuit protection in demanding environments. The unit features a steel NEMA 1 indoor enclosure with factory-installed neutral, making it suitable for three-phase power systems requiring manual disconnection and fuse-based overcurrent protection.
- Amperage Rating: 800A
- Voltage Rating: 240 VAC / 250 VDC
- Poles: 3
- Phase: 3-Phase
- Fuse Type: Class L Fusible
- Enclosure Type: NEMA 1 Indoor
- Neutral: Factory Installed
- Horsepower Rating: 250 HP
- Switch Type: Single Throw
- Wires: 4
- Height: 69.13 Inches
- Width: 36.62 Inches
- Depth: 17.75 Inches
Specifications
- Part Number: H327N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : H
- Voltage : 240 AC/250 DC
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R,L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : KM
Product Data
- UPC : 785901195375
- GTIN : 00785901195375
- Country of Origin : Mexico
- Dimensions : 69.13 in (1755.90 mm) x 36.62 in (930.15 mm) x 17.75 in (450.85 mm) (Height x Width x Depth)
- Weight : 356.001
- Certification : UL Listed
