Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Disconnect
Description
H326N

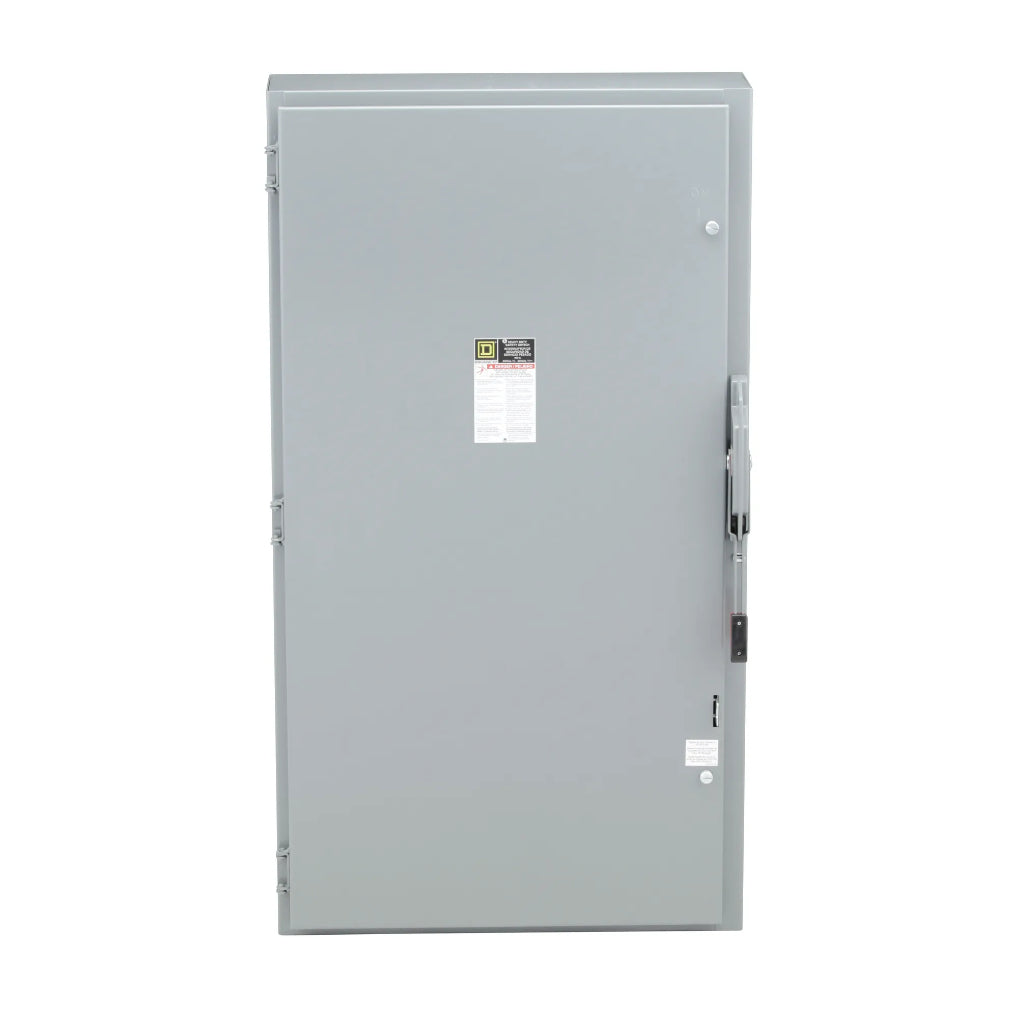

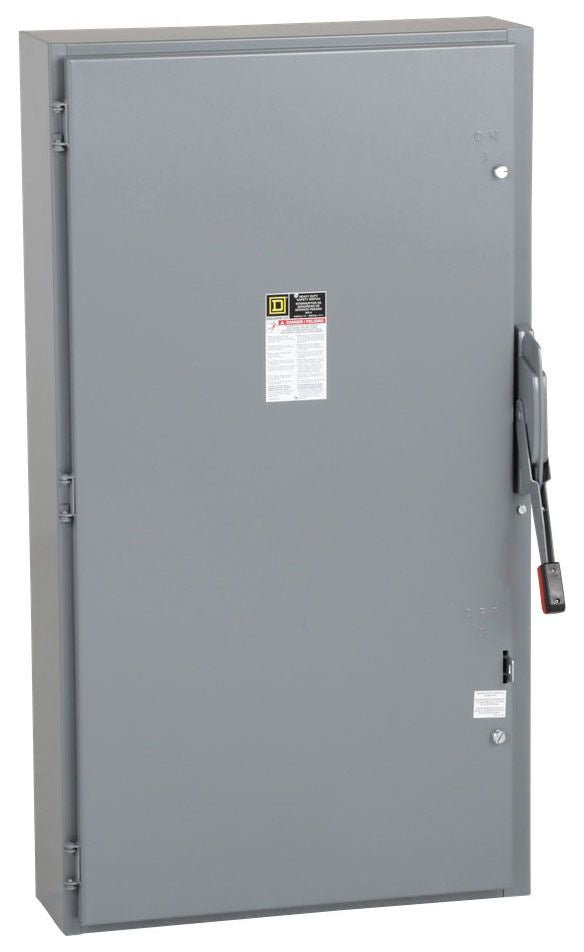

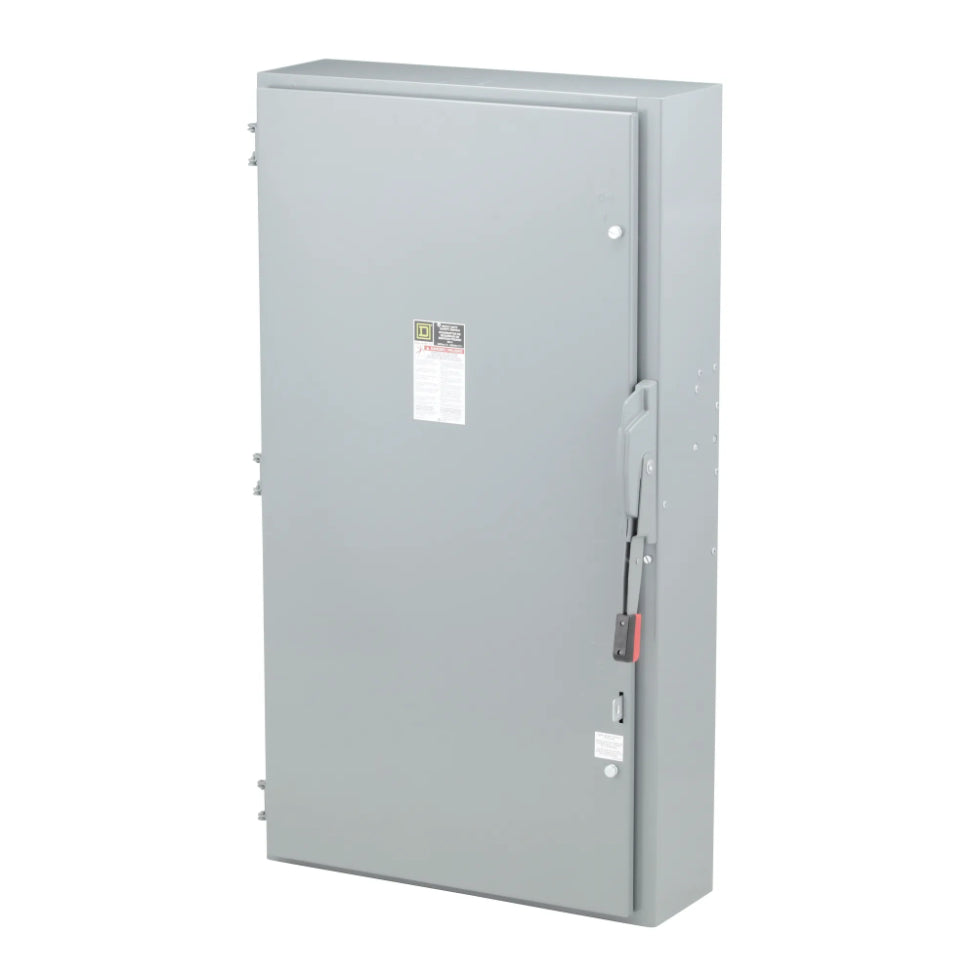

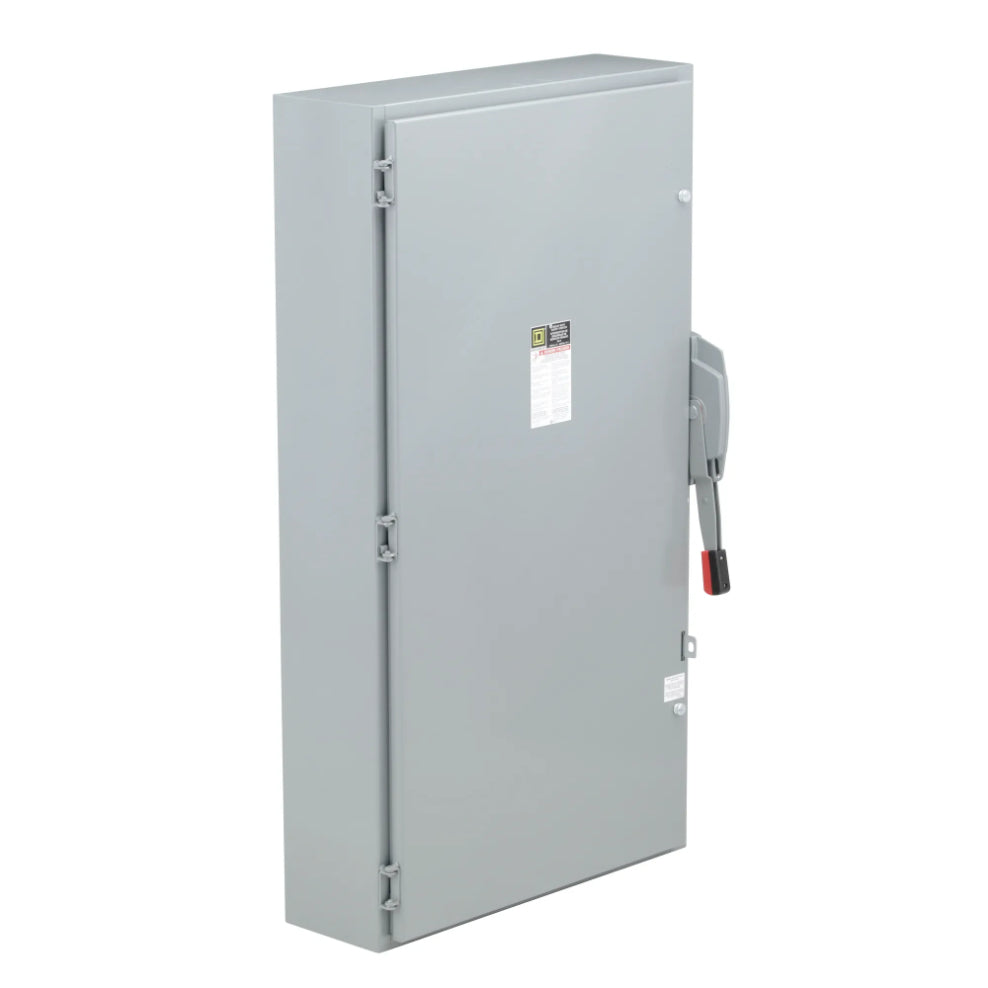

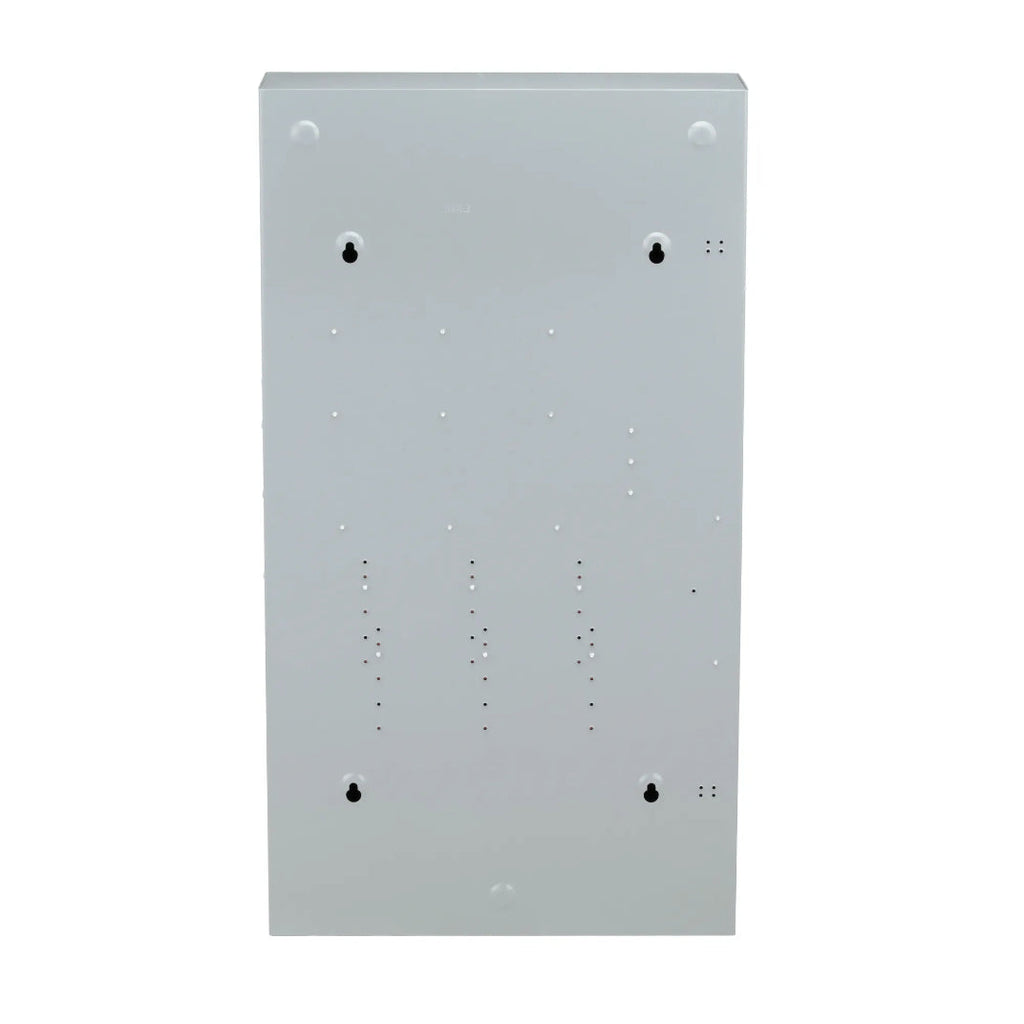

H326N is a Square D heavy duty fusible safety switch rated for 600 amps, 240 VAC/250 VDC, with 3 poles and a NEMA 1 enclosure.This switch offers robust electrical protection with a 200kA interrupt rating at 240V, designed for commercial and industrial applications. It features a 4-wire configuration including a neutral, supports 200 HP motor rating, and is constructed from galvannealed steel for durability. The switch is UL listed and designed for use with Class H fuses, providing reliable and safe disconnect functionality.
- Manufacturer: Square D
- Part Number: H326N
- Amperage: 600A
- Voltage: 240 VAC / 250 VDC
- Poles: 3
- Enclosure: NEMA 1
- Interrupt Rating: 200kA at 240V
- Mounting Type: Surface mount
- Series/Frame: Series E
- Trip Unit: Fusible with Class H fuses
- Motor HP Rating: 200 HP
- UL Listed (File E2875)
Specifications
- Part Number: H326N
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : Series E
- Type : H
- Voltage : 240 AC
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 200kA@240V
- Fuse Class : R
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : NEMA 1
- Compatible Frames : FJ3
Product Data
- UPC : 785901451686
- GTIN : 00785901451686
- Country of Origin : Mexico
- Dimensions : 50.25 in (1276.35 mm) x 27.63 in (701.80 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
- Weight : 175.001
- Certification : UL listed
