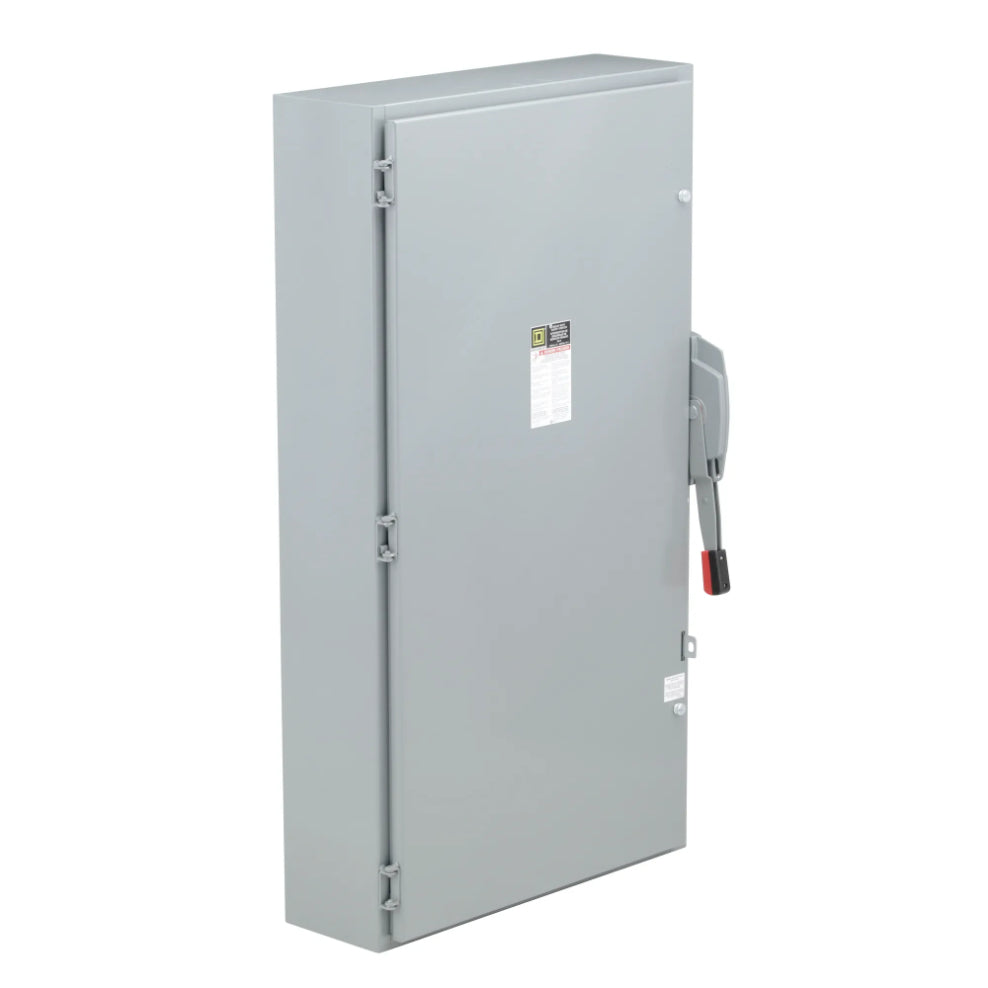

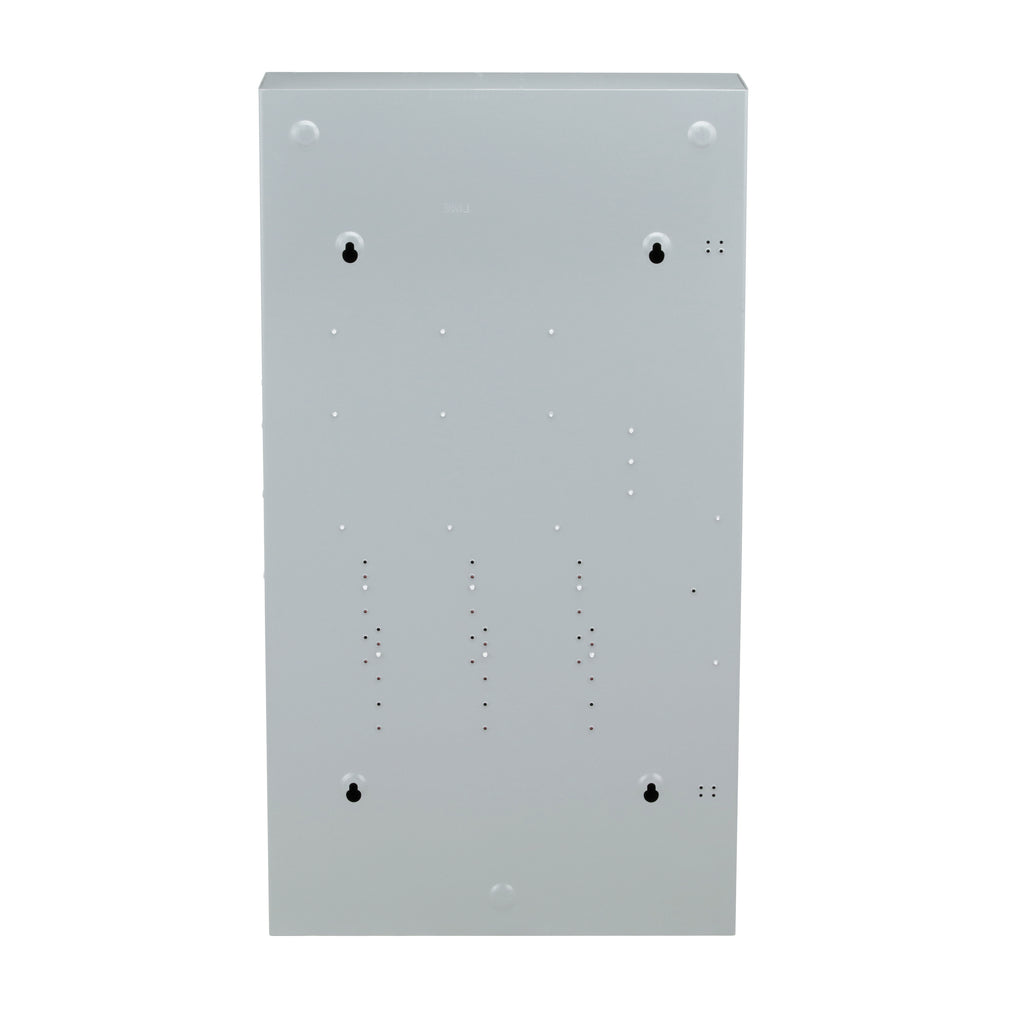

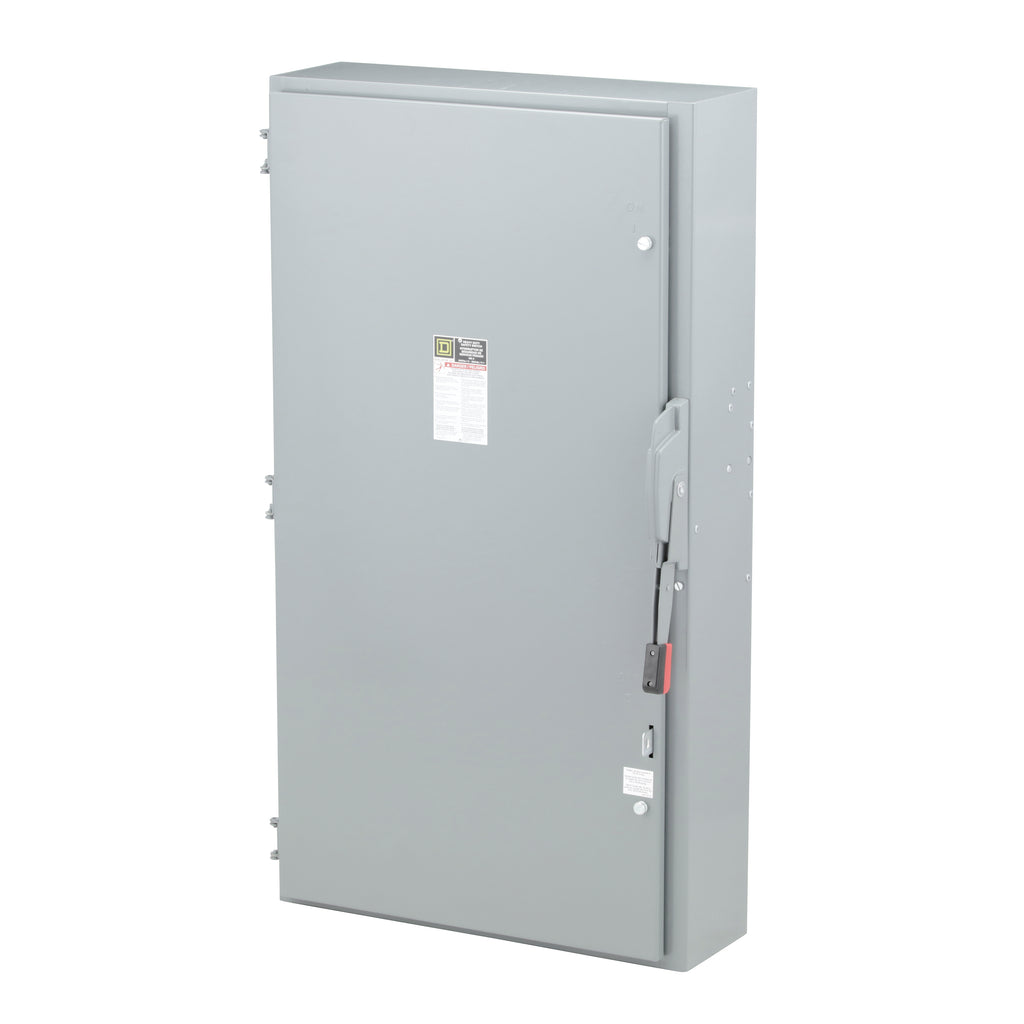

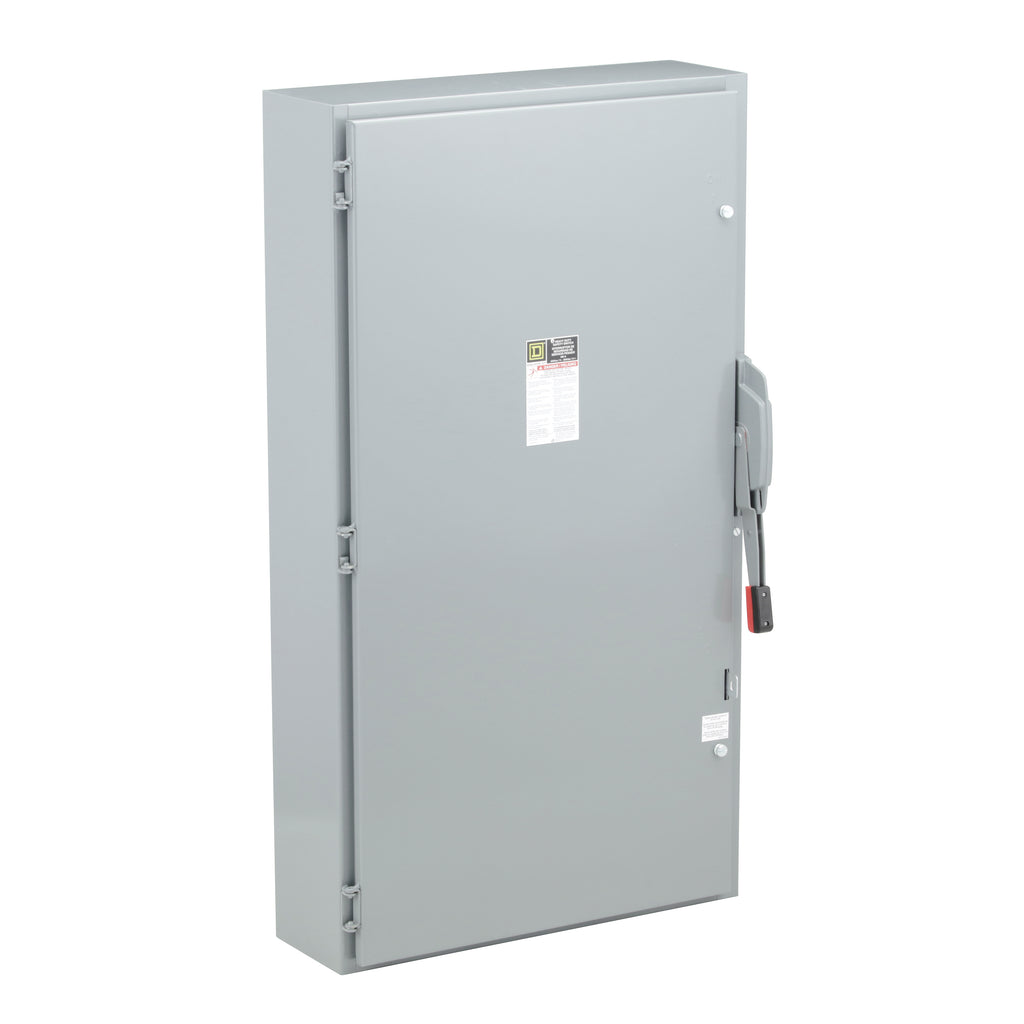

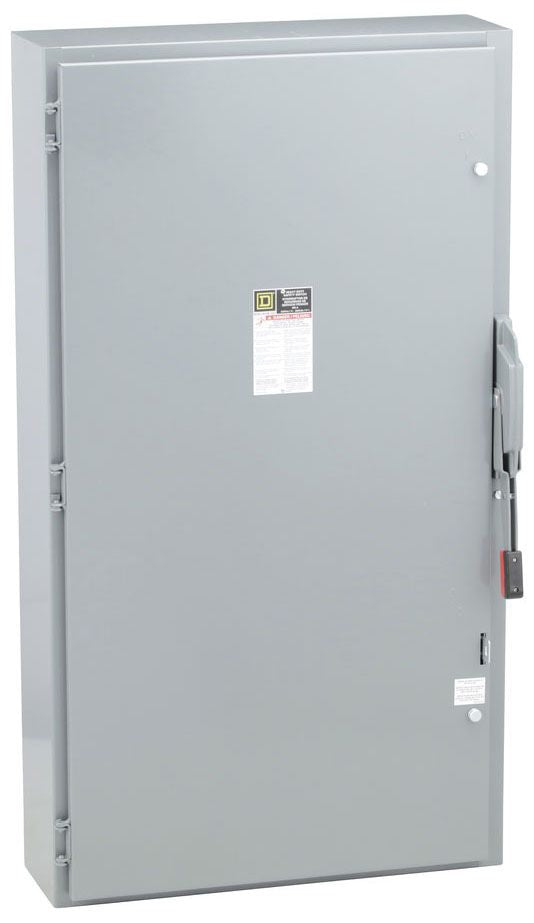

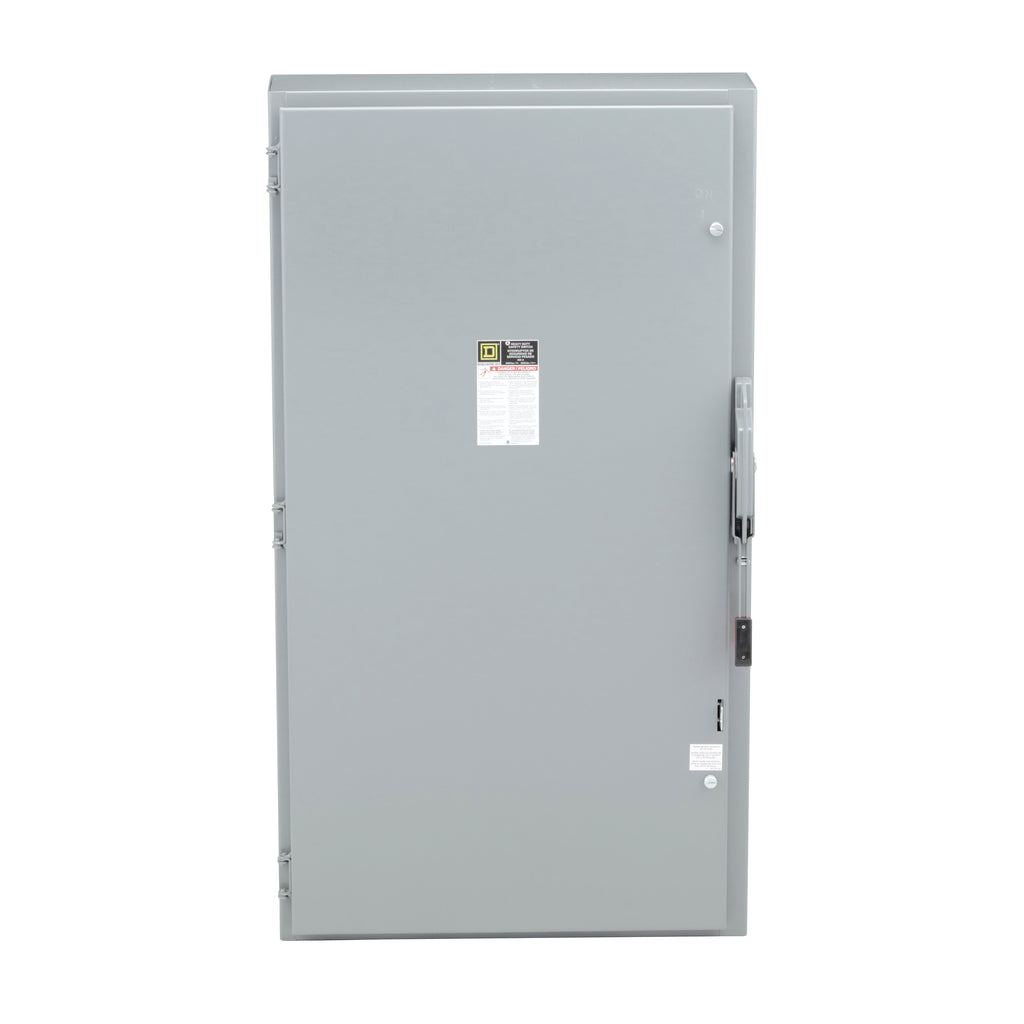

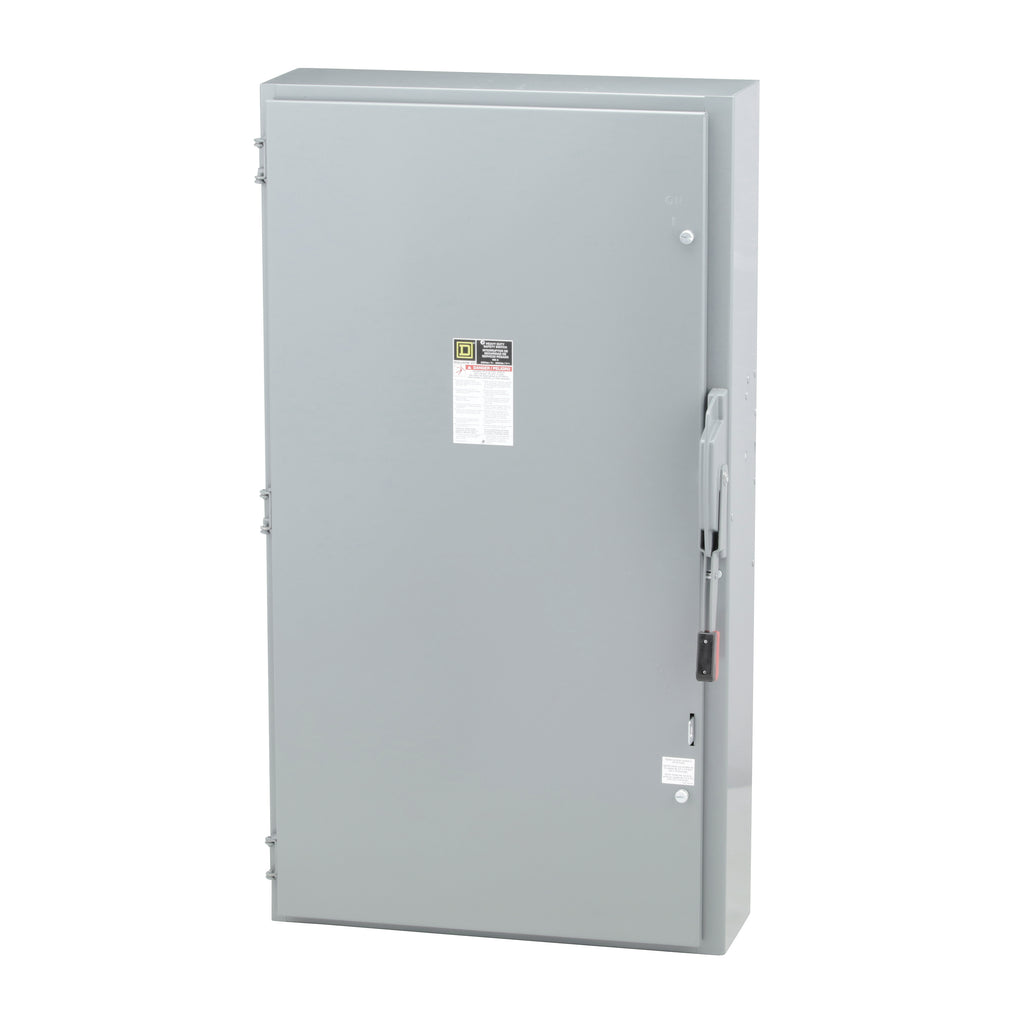

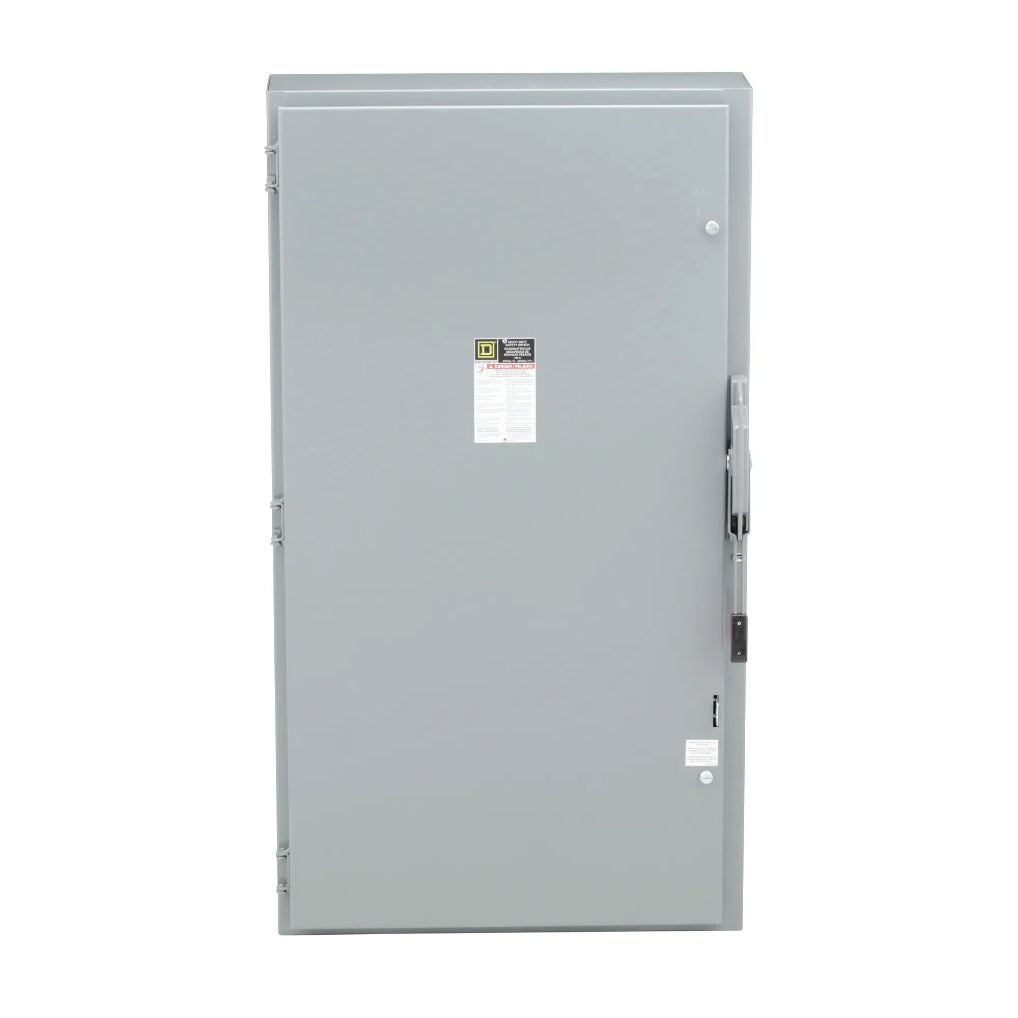

H325N - Square D 400A 240VAC/250VDC 3-Pole Fusible Heavy Duty Safety Switch NEMA 1

H325N

H325N is a heavy duty, fusible safety switch by Square D rated for 400 amps and designed for 3-pole applications with a NEMA 1 enclosure.This switch supports 240 VAC and 250 VDC operation with a factory-installed neutral and surface mounting type. It features a fusible disconnect with a short circuit current rating of 10 kA for H or K fuses and up to 200 kA for R, J, or L fuses. The enclosure is steel with NEMA 1 indoor rating, suitable for commercial and industrial use. It accepts wire sizes from AWG 1/0 to 750 kcmil copper or aluminum and is UL listed under file E2875.

Key Specifications
• Current Rating: 400 Amps
• Voltage Rating: 240 VAC / 250 VDC
• Number of Poles: 3
• Mounting Type: Surface
• Enclosure Rating: NEMA 1 Steel
• Disconnect Type: Fusible
• Short Circuit Current Rating: 10 kA (H or K), 200 kA (R, J, L)
• Factory Installed Neutral
• Duty Rating: Heavy Duty
• UL Listed File E2875
• Wire Size Range: AWG 1/0 to 750 kcmil
• Maximum Horsepower: 125 hp at 240 VAC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H325N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 1

Product Data

• UPC : 785901450368
• GTIN : 00785901450368
• Country of Origin : Mexico
• Dimensions : 50.25 in (1276.35 mm) x 27.63 in (701.80 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 167.999
• Certification : UL listed
