H325DS - Square D 400A 3-Pole 240VAC Fusible Heavy Duty Safety Switch NEMA 4

H325DS

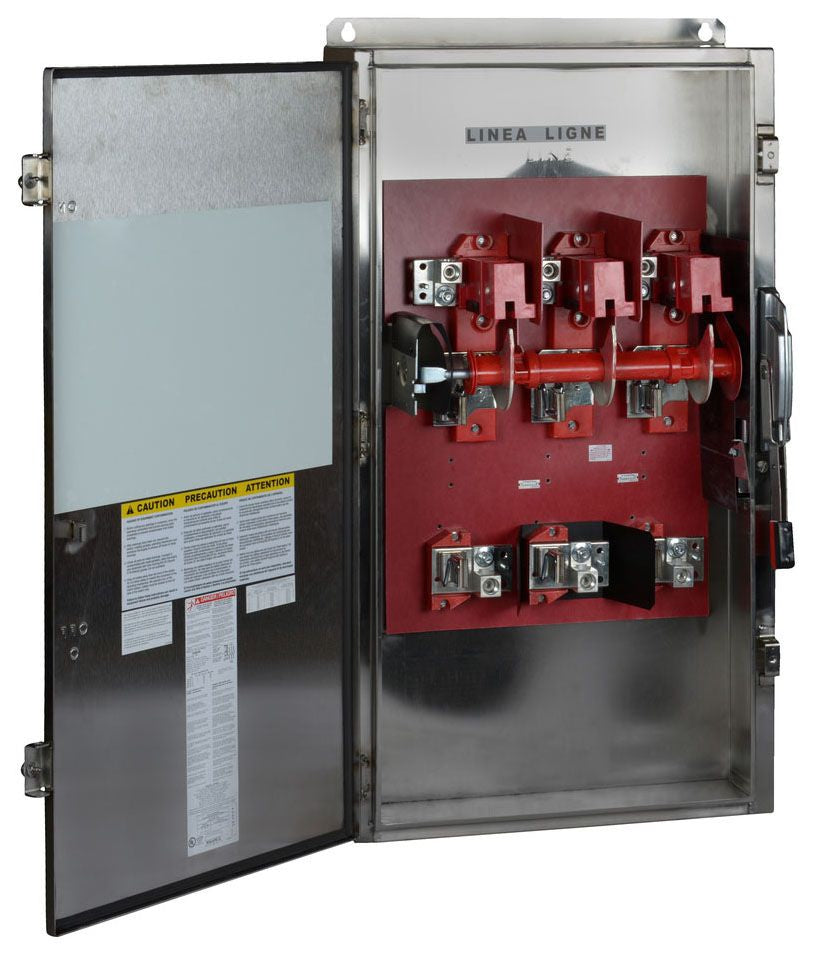

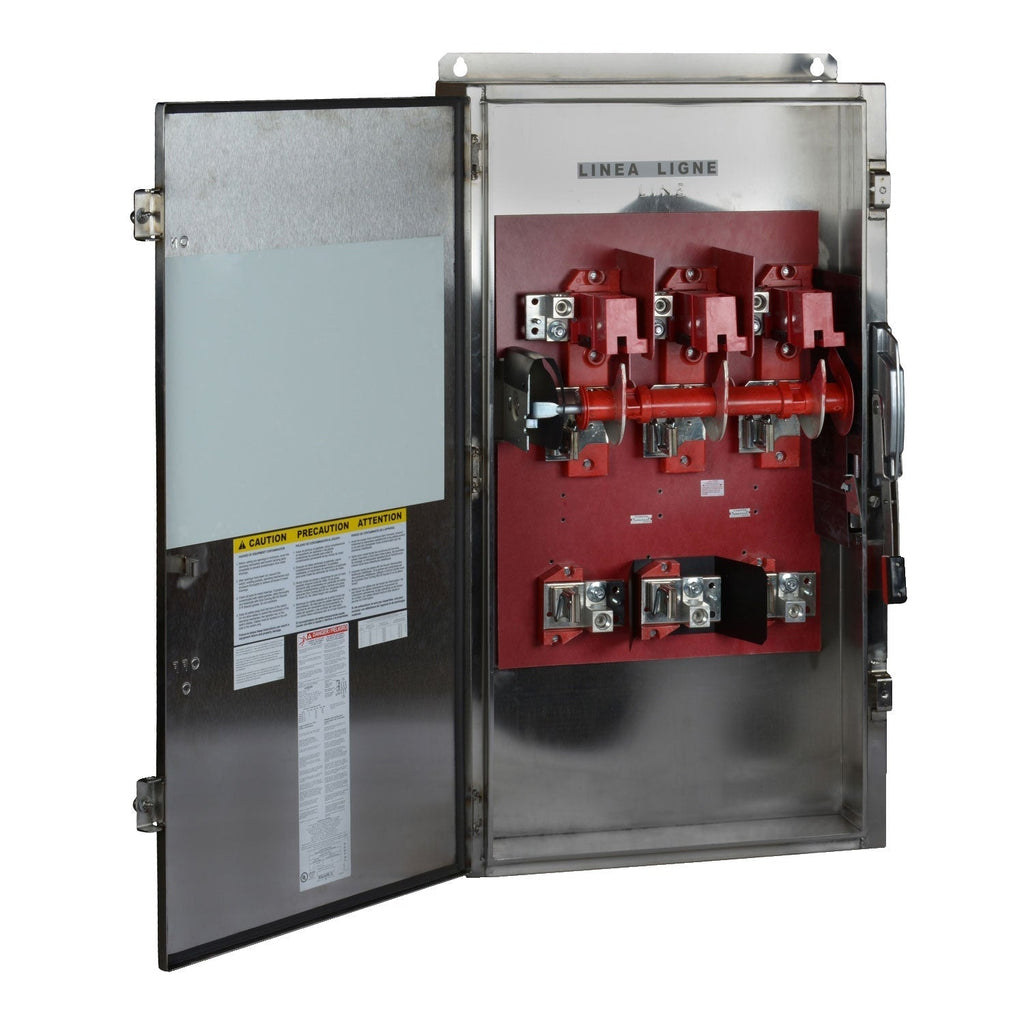

H325DS is a heavy duty fusible safety switch rated for 400 amperes at 240 VAC with three poles and single throw configuration. This industrial-grade disconnect switch features a 304 stainless steel enclosure rated NEMA 4, 4X, and 5 for indoor and outdoor use. The switch accommodates Class R fuses and is designed for three-phase power distribution applications with a 125 horsepower rating at 240 VAC and 250 VDC at 10 kA interrupt capacity.

• Amperage Rating: 400A
• Voltage: 240 VAC / 250 VDC
• Poles: 3 Pole
• Contact Form: 3PST (Three Pole Single Throw)
• Fuse Type: Class R Fusible
• Enclosure Material: 304 Stainless Steel
• NEMA Rating: 4, 4X, 5
• Horsepower: 125 HP
• Dimensions: 26.25 inch Width x 10.13 inch Depth x 46.25 inch Height
• Interrupt Rating: 200 kA at 240 VAC
• Type: Heavy Duty Single Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H325DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series E
• Type : H
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : NEMA 5

Product Data

• UPC : 785901333333
• GTIN : 00785901333333
• Country of Origin : Mexico
• Dimensions : 46.25 in (1174.75 mm) x 26.25 in (666.75 mm) x 10.13 in (257.30 mm) (Height x Width x Depth)
• Weight : 180.001
• Certification : UL listed
