H323NRB - Square D 100A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H323NRB

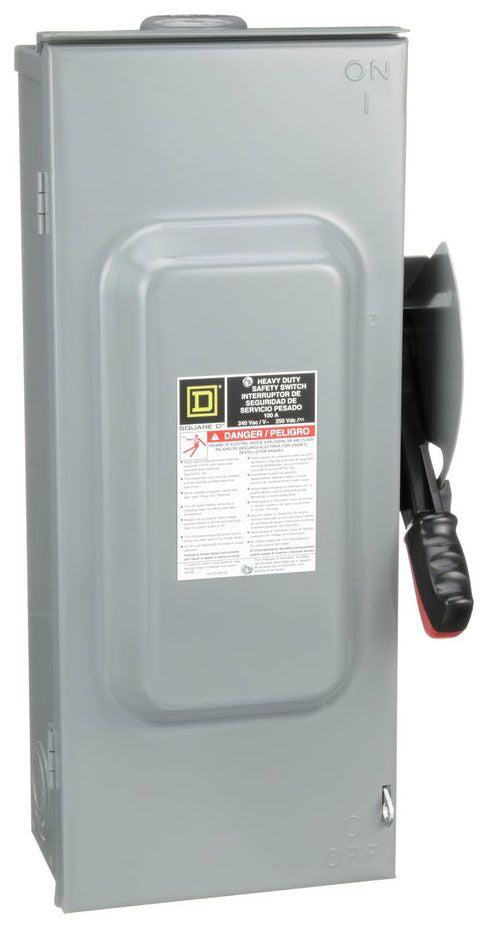

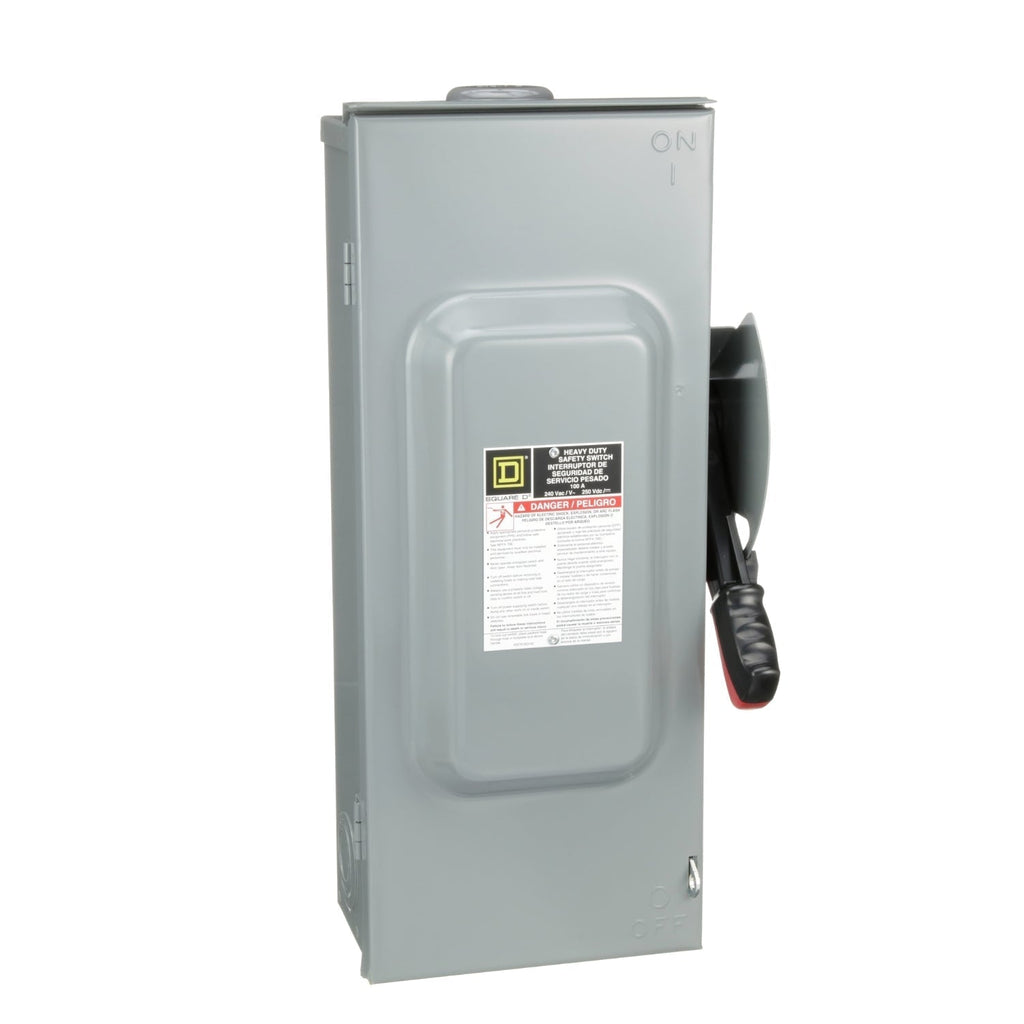

H323NRB is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts with a 3-pole configuration and factory-installed neutral.

This switch features a NEMA 3R rainproof galvannealed steel enclosure, suitable for service entrance applications when equipped with neutral assembly or grounding kit. It supports 3-phase power with a 4-wire (3 phase plus neutral) setup and has a quick make, quick break operating mechanism. The switch is rated for 30 HP and includes fuse types H, K, R, and J compatibility with an interrupt rating of up to 10 kA. It is designed for durability and safety in industrial environments.

Key Specifications
• Amperage: 100A
• Voltage: 240VAC / 250VDC
• Poles: 3
• Phase: 3
• Enclosure: NEMA 3R galvannealed steel
• Mounting Type: Bolt-on hub provision
• Interrupt Rating: 10 kA
• Fuse Types: H, K, R, J compatible
• Includes factory-installed neutral
• Horsepower Rating: 30 HP
• Operating Mechanism: Quick make, quick break
• Series/Frame: Series F
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: H323NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R

Product Data

• UPC : 785901480297
• GTIN : 00785901480297
• Dimensions : 21.25 in (539.75 mm) x 8.5 in (215.9 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 18.281
• Certification : UL
