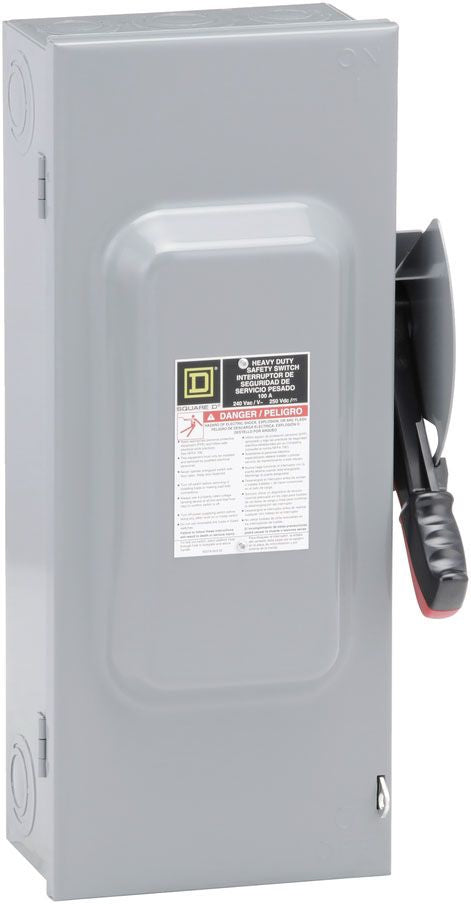

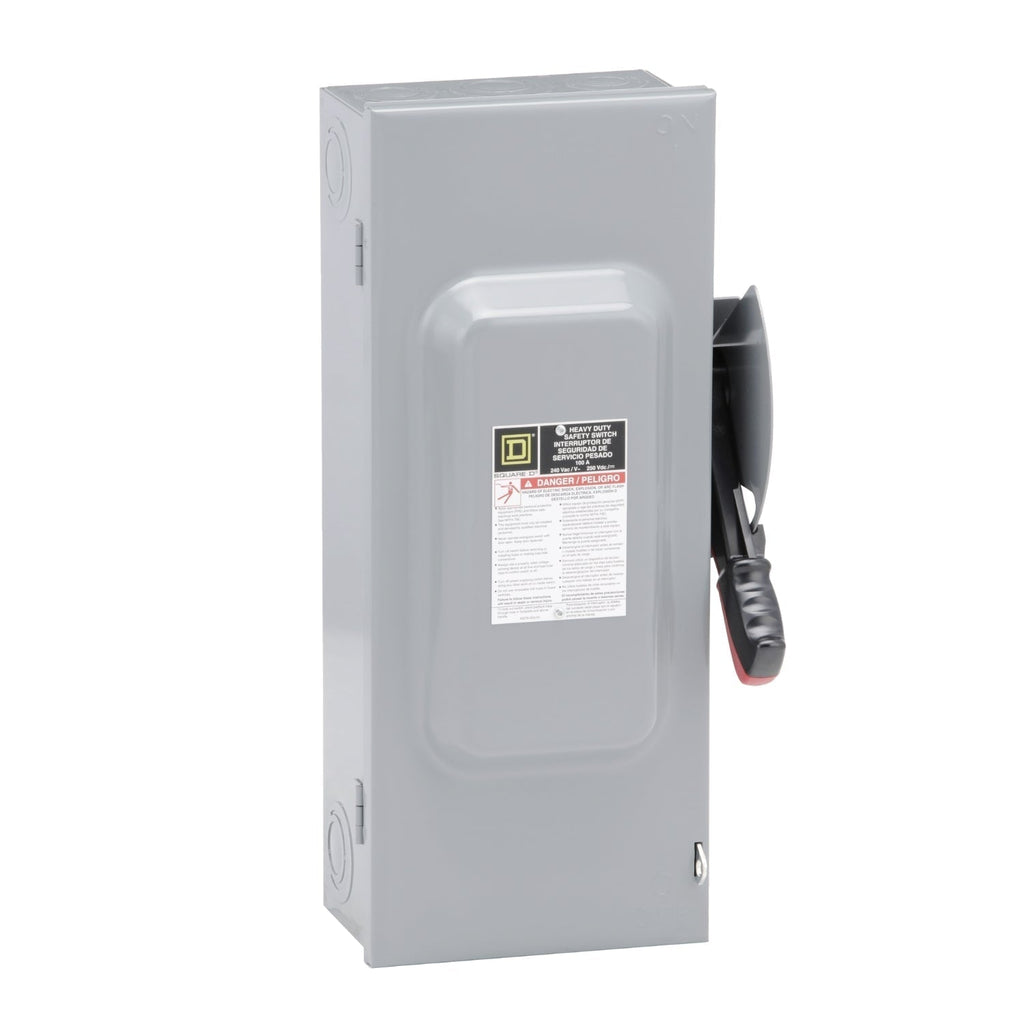

H323N - Square D 100A 240VAC 3-Pole Heavy Duty Fusible Safety Switch NEMA 1 Indoor

H323N

H323N is a Square D heavy duty fusible safety switch rated for 100 amps and 240VAC/250VDC operation with 3 poles and a neutral. H323N features a Type 1 indoor enclosure suitable for general purpose and service entrance applications when equipped with a neutral assembly. It has a quick-make, quick-break operating mechanism and accepts Class H/J/K/L/R fuses with a 200kA interrupt rating at 240V. This switch is designed for 3-phase, 4-wire systems and includes a factory-installed neutral for added convenience.

Key Specifications
• Amperage: 100 Amps
• Voltage: 240VAC / 250VDC
• Poles: 3 Pole + Neutral (4-wire)
• Interrupt Rating: 200kA at 240V
• Mounting Type: Indoor, NEMA 1 Enclosure
• Fusible: Yes, accepts Class H/J/K/L/R fuses
• Series/Frame: Square D Series H
• Trip Unit: Fusible
• Certifications: UL Listed, suitable for service entrance
• Horsepower Rating: 7.5 HP at 240V
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H323N
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 1



Product Data

• UPC : 785901480464
• GTIN : 00785901480464
• Dimensions : 21.25 in (539.75 mm) x 8.5 in (215.9 mm) x 6.38 in (162.05 mm) (Height x Width x Depth)
• Weight : 17.899
• Certification : UL Listed
