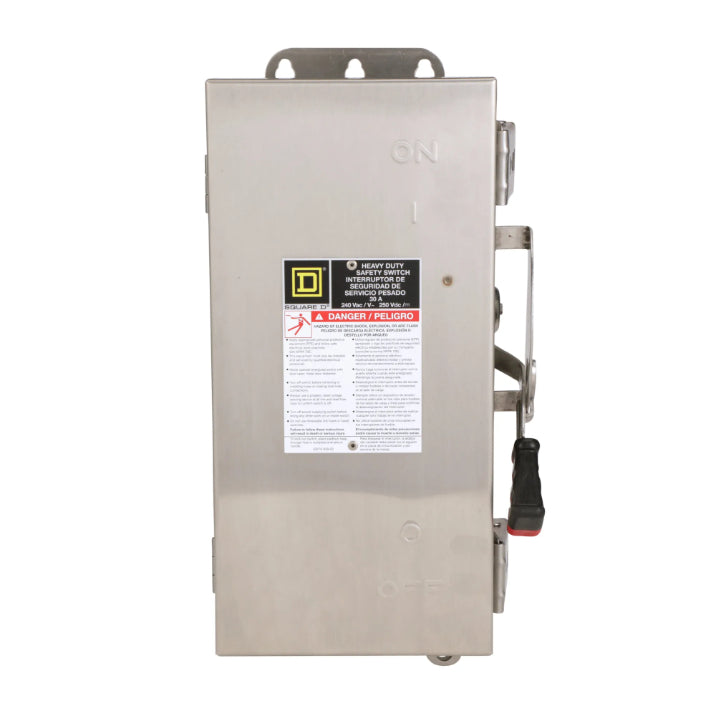

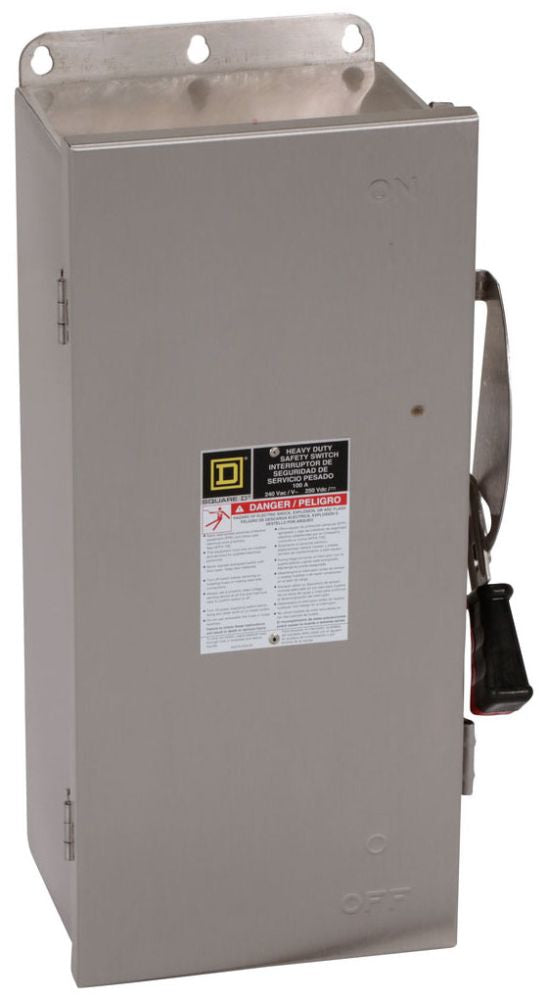

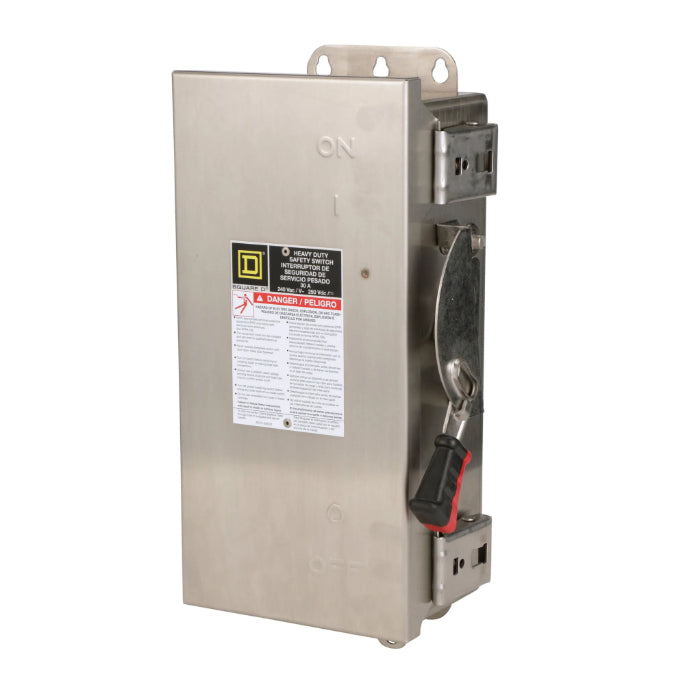

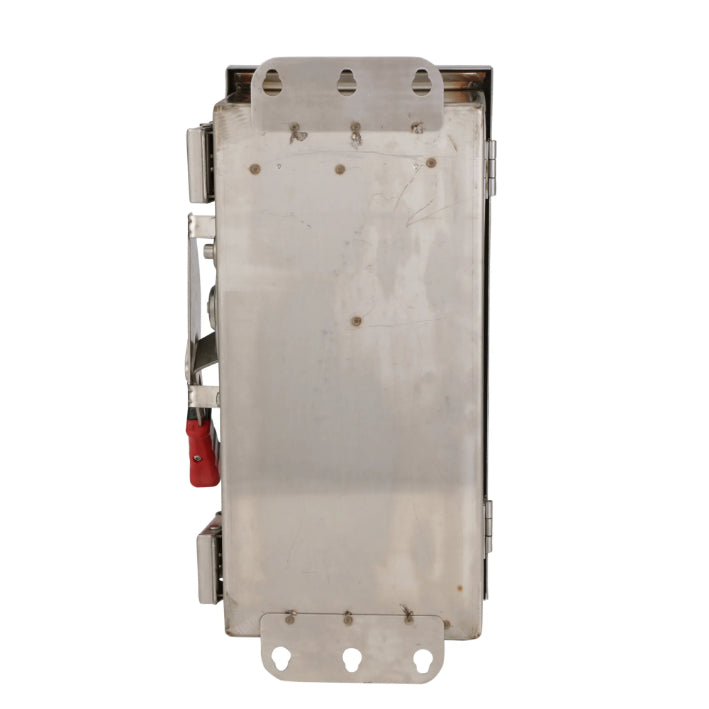

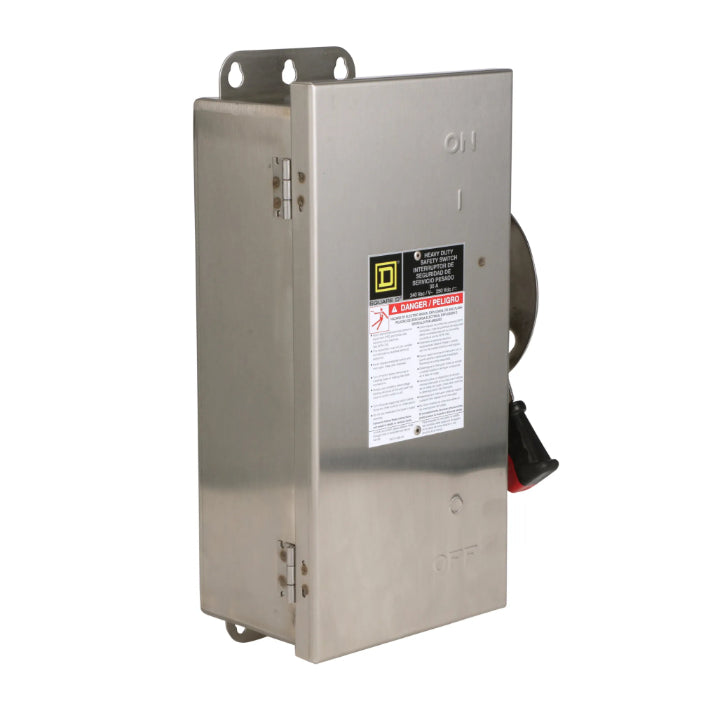

H323DS - Square D 100A 240V 3-Pole Fusible Heavy Duty Safety Switch NEMA 4X Stainless Steel

H323DS

H323DS is a Square D heavy duty fusible safety switch rated for 100 amps and 240 volts AC with a 3-pole configuration.This single throw safety switch features a stainless steel 304 enclosure with NEMA 3/3R/4/4X/12 ratings, suitable for indoor and outdoor use. It has a surface mounting type and supports wire sizes from #12 to 1/0 AWG aluminum or #14 to 1/0 AWG copper. The switch is UL listed and designed for heavy duty industrial and commercial applications, providing short circuit current ratings up to 200kA with compatible Class H, J, K, L, or R fuses.

Key Specifications
• Amperage: 100A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Mounting Type: Surface
• Interrupt Rating: Up to 200kA (Class H/J/K/L/R fuses)
• Series/Frame: H Series
• Trip Unit: Fusible Disconnect
• Enclosure Material: 304 Stainless Steel
• Enclosure Rating: NEMA 3/3R/4/4X/12
• Certifications: UL Listed
• Wire Size Range: #12 to 1/0 AWG Aluminum, #14 to 1/0 AWG Copper
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H323DS
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Compatible Frames : NSE



Product Data

• UPC : 78590102369
• GTIN : 00785901023692
• Dimensions : 20.82 in (528.83 mm) x 9.36 in (237.74 mm) x 6.97 in (177.04 mm) (Height x Width x Depth)
• Weight : 23.179
