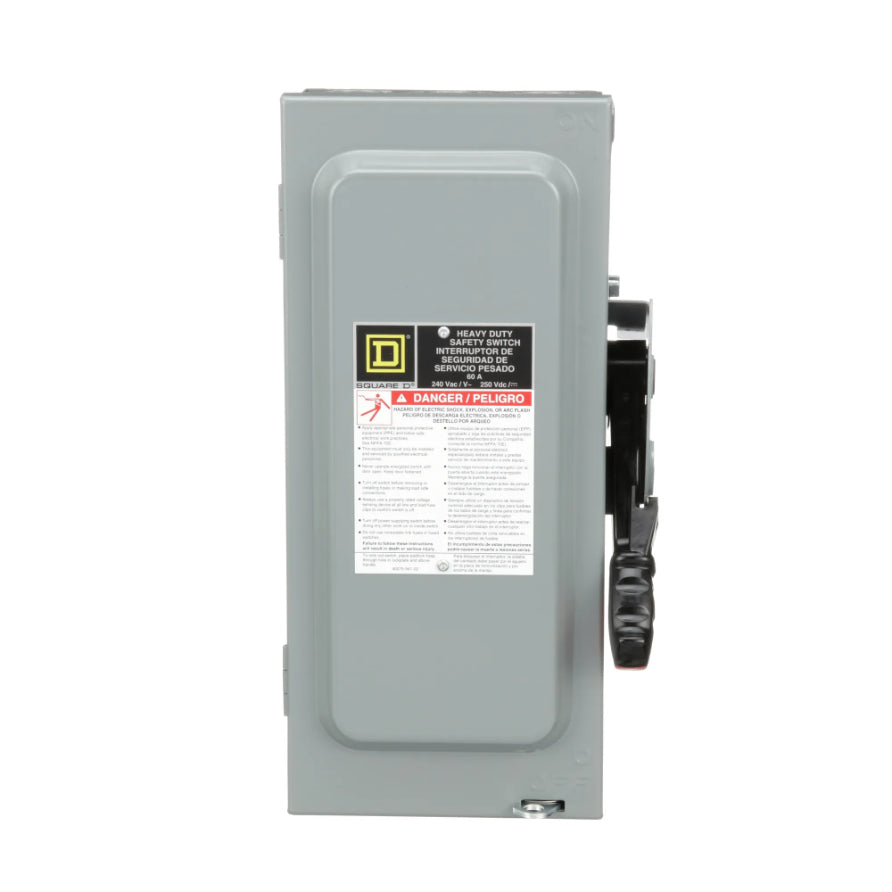

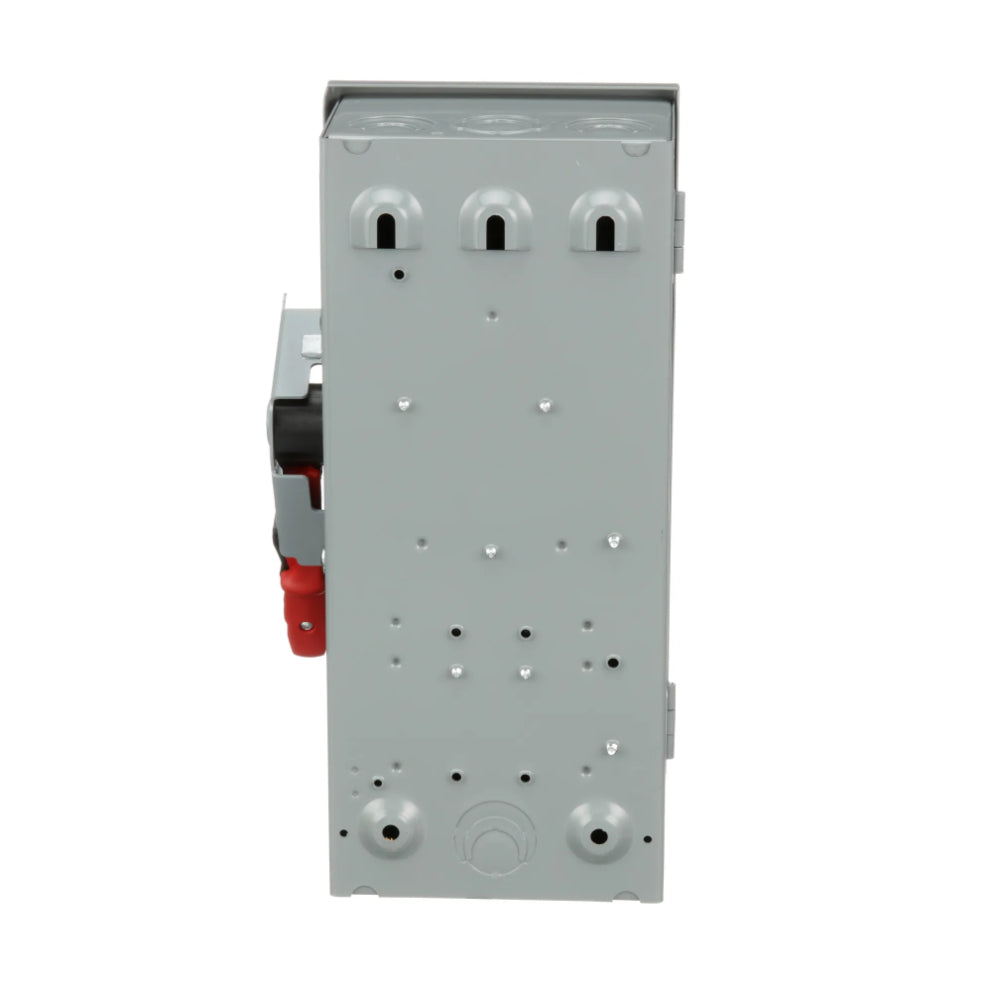

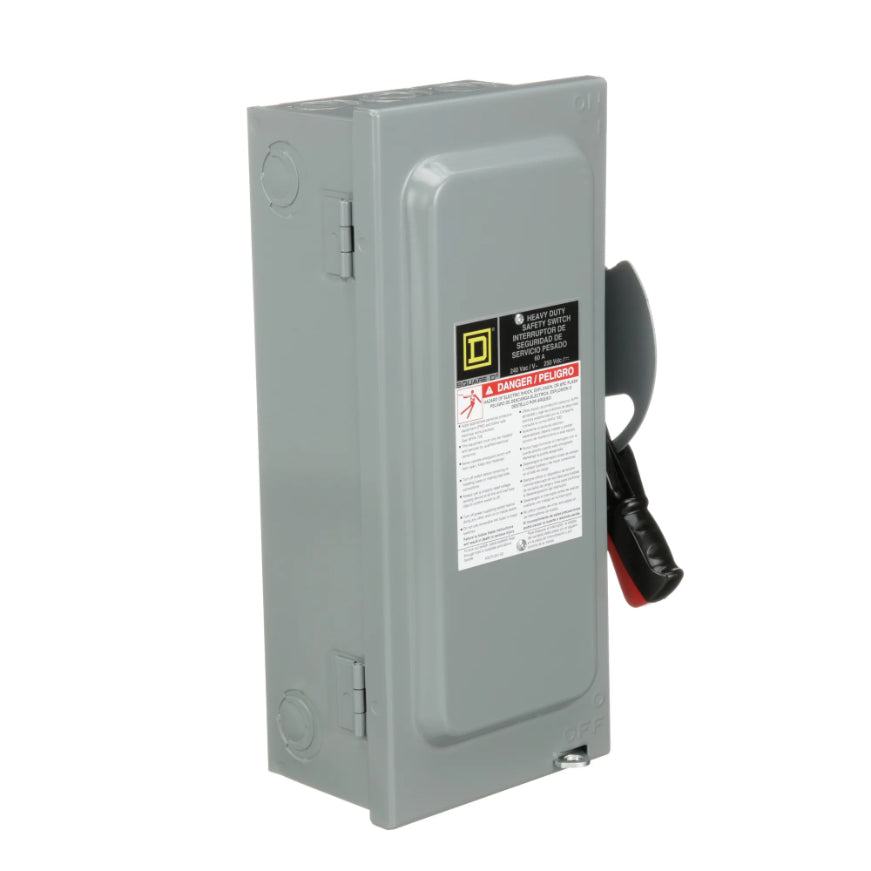

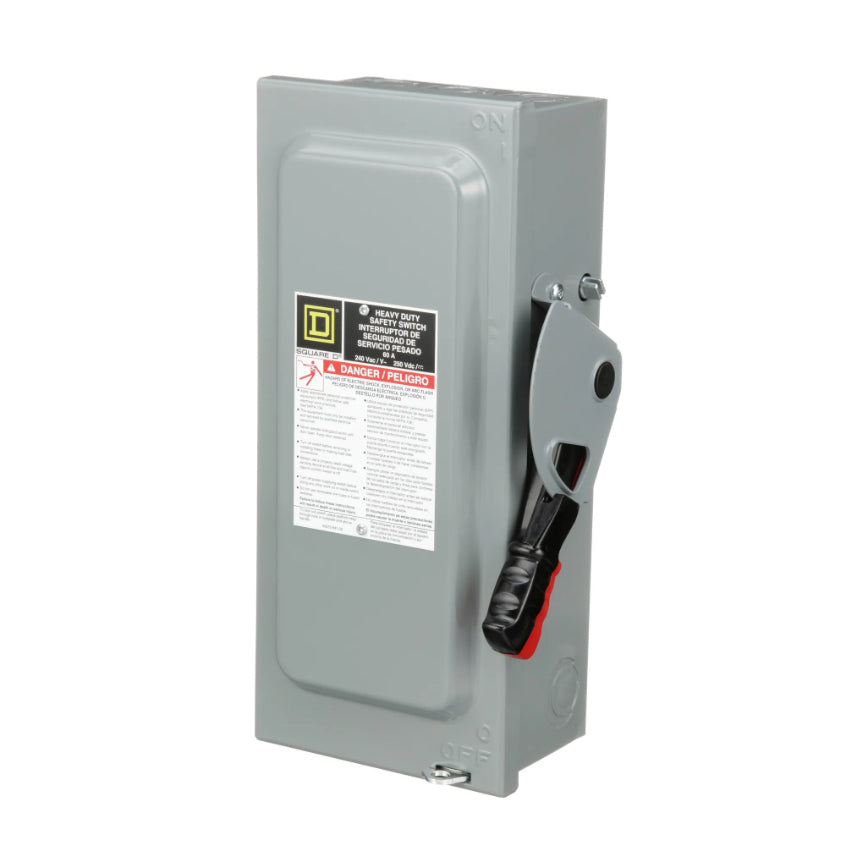

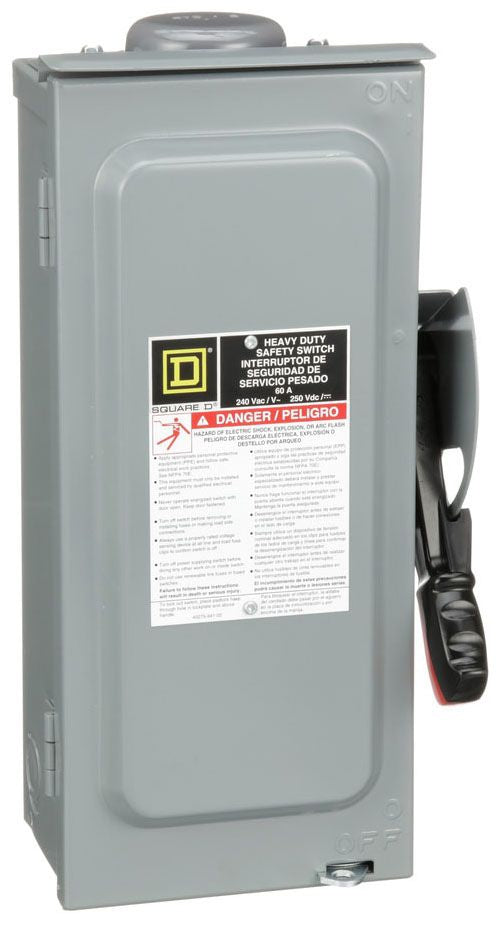

H322NRB - Square D 60A 240VAC 3-Pole Fusible Heavy Duty Safety Switch NEMA 3R

H322NRB

H322NRB is a Square D heavy duty safety switch designed for reliable power distribution and protection.This 3-pole, 60 ampere, 240 VAC/250 VDC fusible safety switch features a galvannealed steel enclosure rated NEMA 3R for rainproof and sleet/ice proof indoor/outdoor use. It supports wire sizes from #14 to #3 AWG aluminum or copper and has a short circuit current rating of 10kA (Class H or K) and up to 200kA (Class R or J). The switch is UL listed and includes a factory-installed neutral for added convenience.

Key Specifications
• Manufacturer: Square D
• Part Number: H322NRB
• Amperage: 60A
• Voltage: 240 VAC / 250 VDC
• Poles: 3
• Fusibility: Fusible
• Mounting Type: Surface
• Short Circuit Current Rating: 10kA (Class H/K), 200kA (Class R/J)
• Enclosure Material: Galvannealed Steel
• Enclosure Rating: NEMA 3R (Rainproof, Sleet/Ice Proof)
• Approvals: UL Listed
• Factory Installed Neutral: Yes
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: H322NRB
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Switch
• Item Subcategory : Disconnect
• Family : Series F
• Type : H
• Voltage : 240
• Amperage : 60
• Phase : 3
• Poles : 3
• AIC rating : 200kA@240V
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : 3R
• Compatible Frames : NSE



Product Data

• UPC : 785901480211
• GTIN : 00785901480211
• Dimensions : 14.88 in (377.95 mm) x 6.63 in (168.40 mm) x 4.88 in (123.95 mm) (Height x Width x Depth)
• Weight : 8.6
