Product Info
- Manufacturer:Eaton
- Sub-Category:Heater Element
Description
H2016B-3

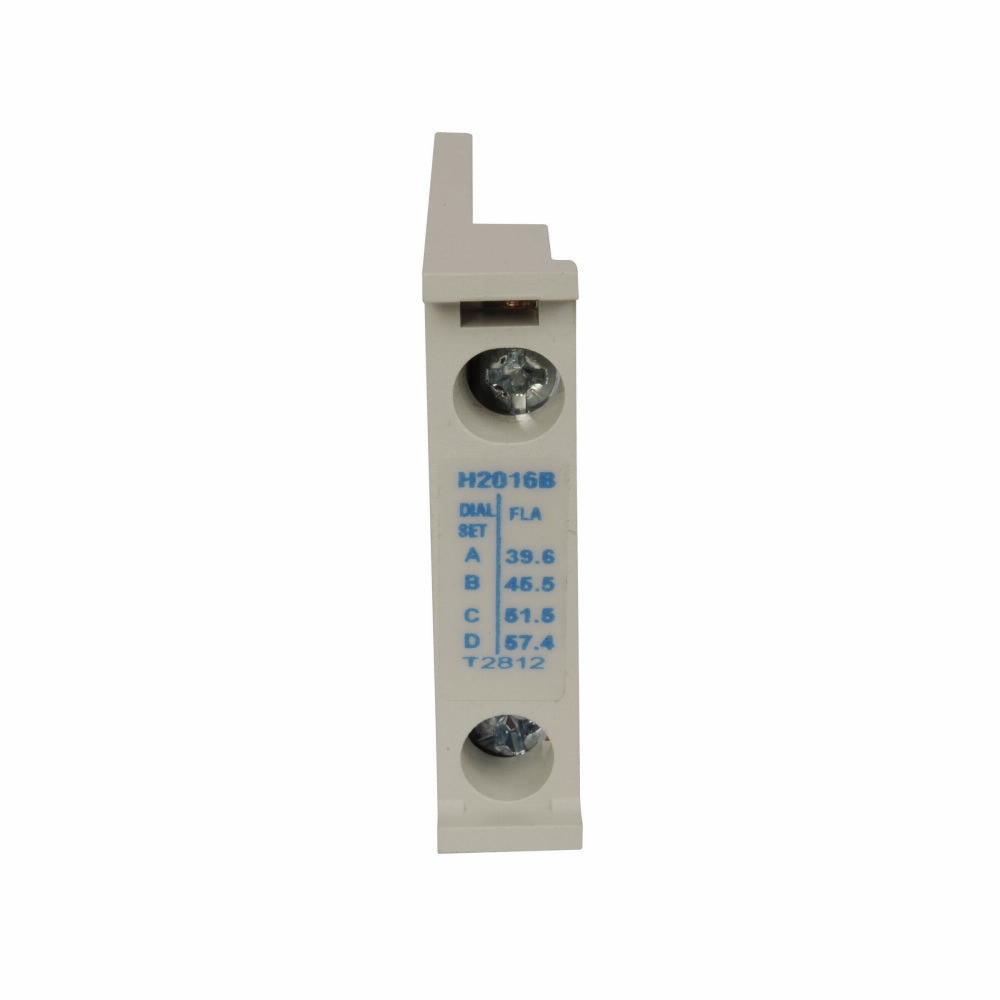

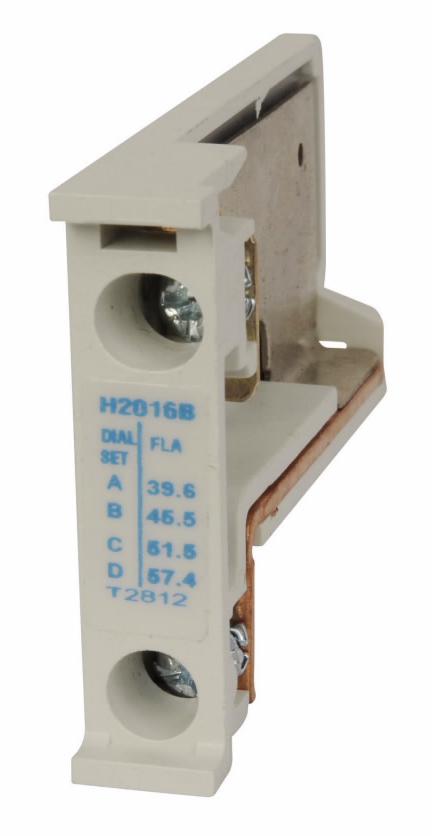

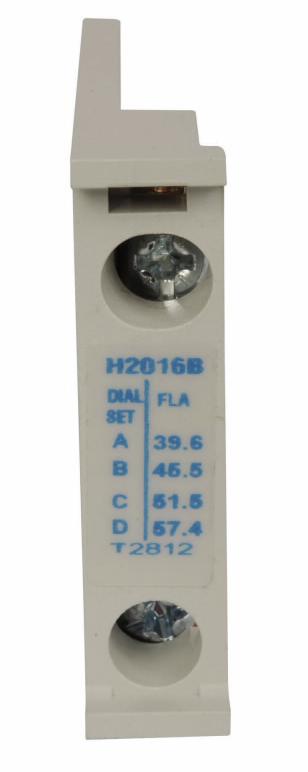

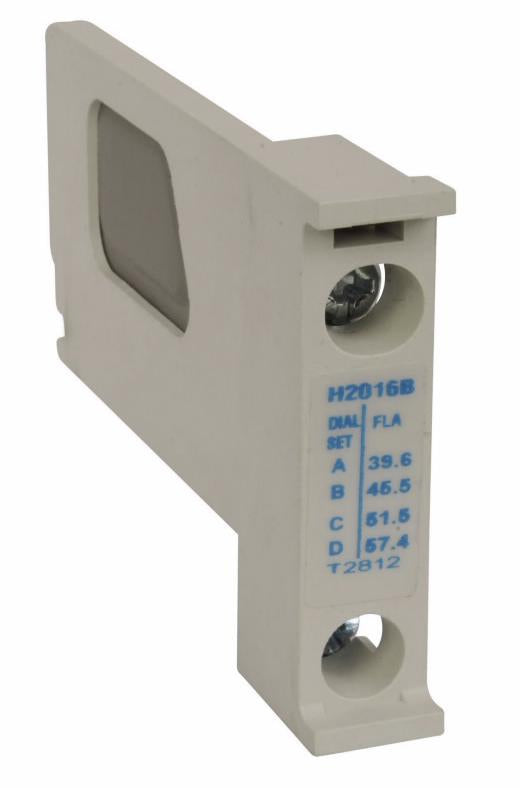

H2016B-3 is an Eaton Freedom Series definite purpose heater pack designed for motor control applications.This Eaton Freedom NEMA heater coil features a standard trip, Class 20 overload relay heater element with a relay current rating of 75 amps and a full load current range of 39.6 to 57.4 amps. It is compatible with starter size 2 and IEC sizes G-K (Series B). The heater pack is CSA certified and UL listed, ensuring compliance with industry safety standards. It ships in packs of three heater elements.
- Manufacturer: Eaton
- Series: Freedom
- Type: H definite purpose heater pack
- Relay Current Rating: 75 Amps
- Full Load Current Range: 39.6A to 57.4A (Dial positions A-D)
- Trip Type: Standard Trip, Class 20
- Mounting: NEMA Size 2, IEC Sizes G-K (Series B)
- Certifications: CSA Certified, UL Listed
- Dimensions: 3.2" H x 1.8" W x 1.8" D
- Weight: 0.1 lbs per heater
- Pack Quantity: 3 heater elements per carton
Specifications
- Part Number: H2016B-3
- Manufacturer : Eaton
- Brand : Eaton
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : Freedom Series
- Type : H
- Full Load Amp Minimum : 39.6
- Full Load Amp Maximum : 57.4
- Full Load Amps : 39.6 to 57.4
Product Data
- UPC : 782113967622
- GTIN : 00782113967622
- Country of Origin : Dominican Republic
- Dimensions : 1.8 in x 3.2 in x 1.8 in (Length/Depth x Height x Width)
- Weight : 0.1 lb
- Certification : CSA Certified,UL Listed
