Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
GHQRSP2030

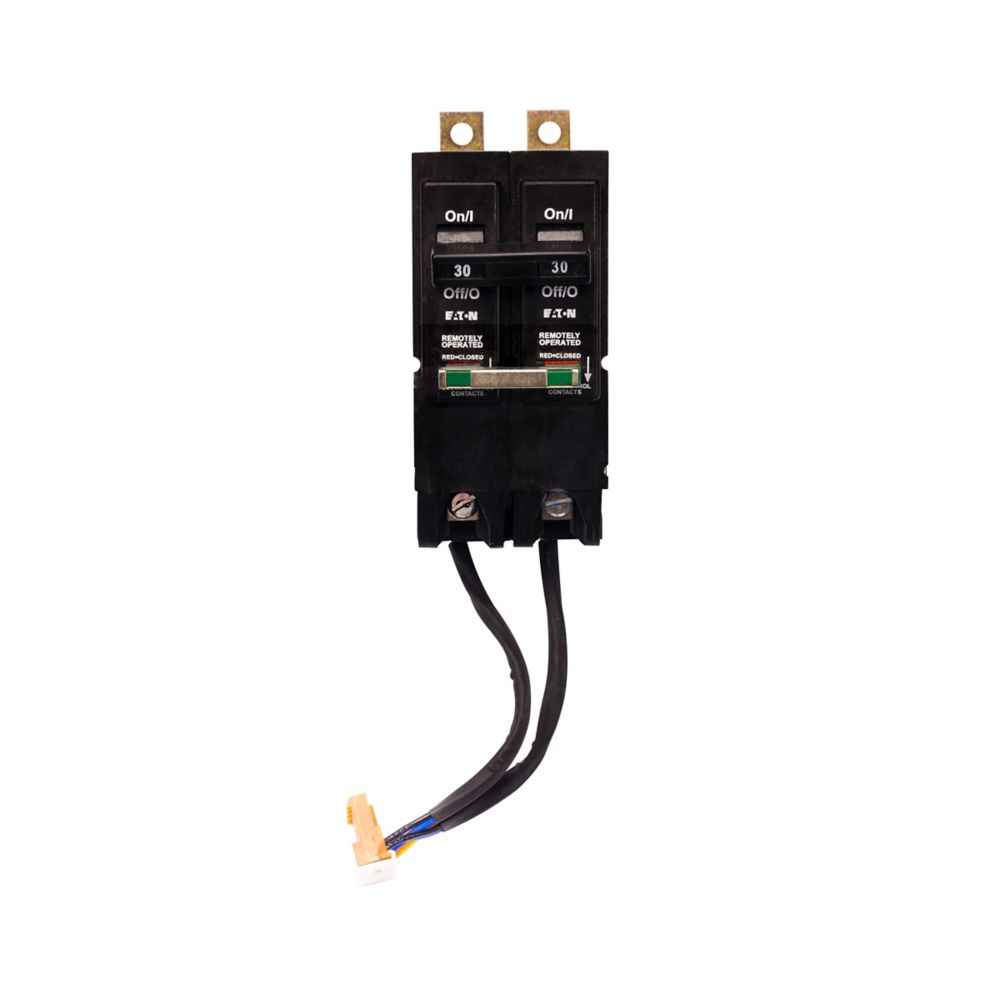

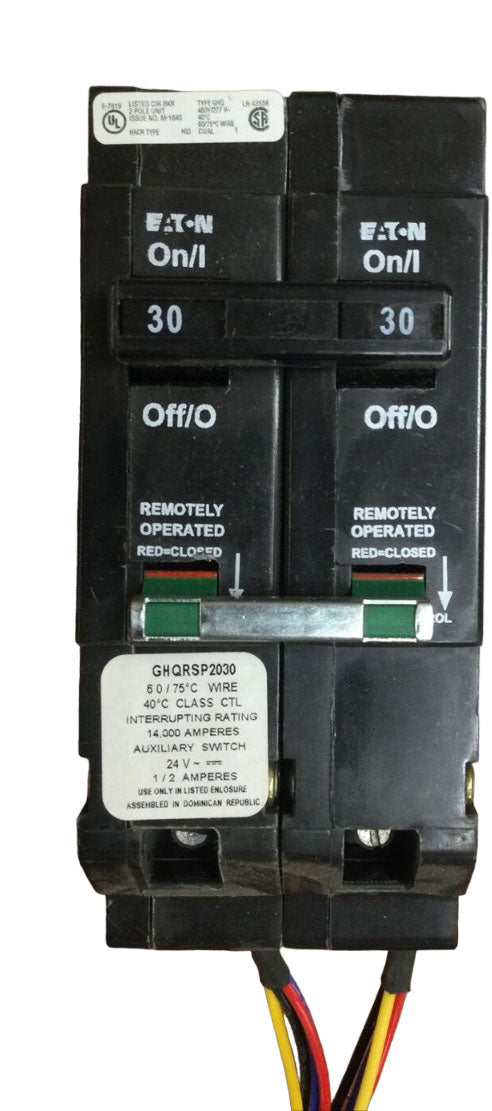

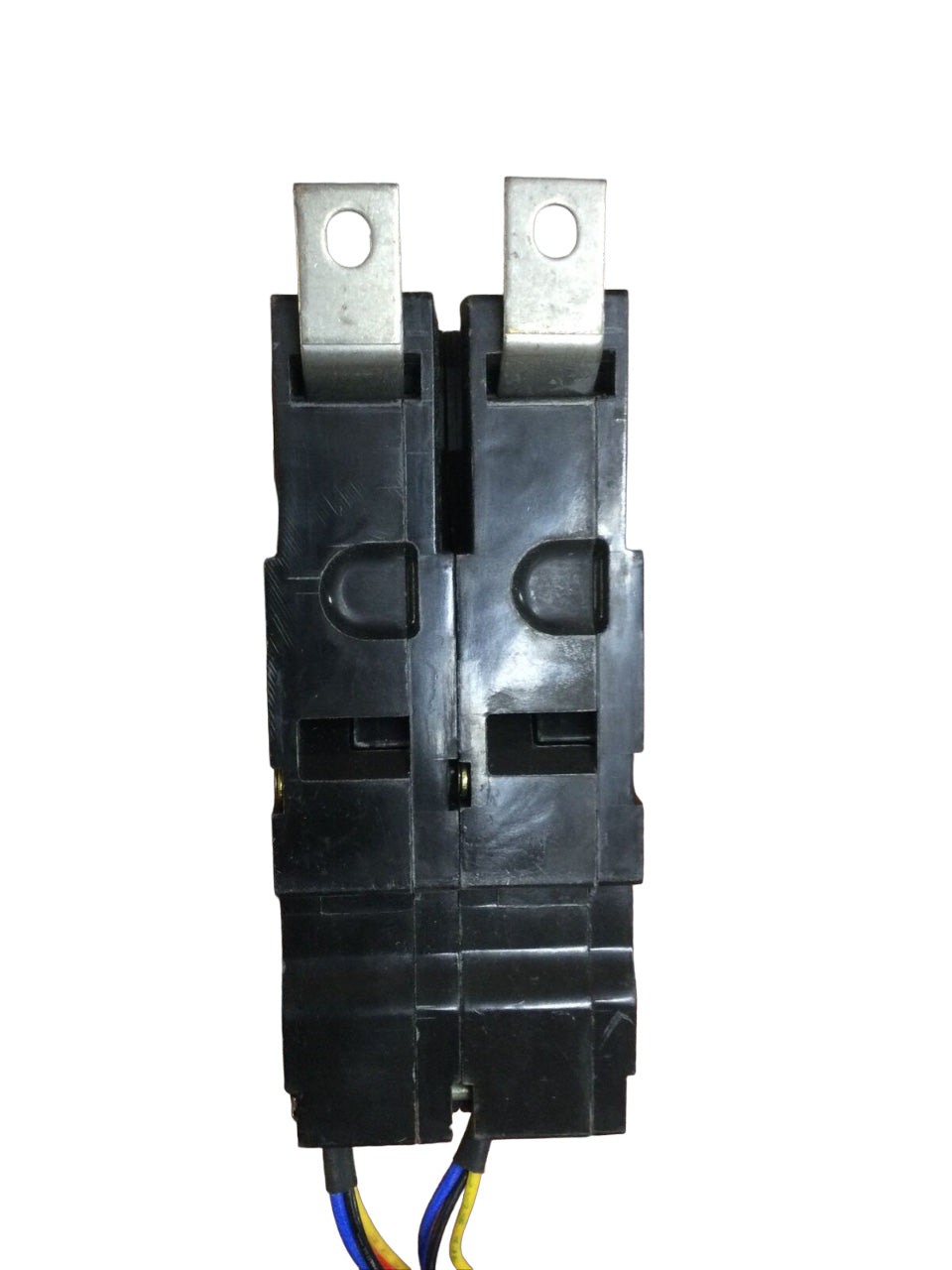

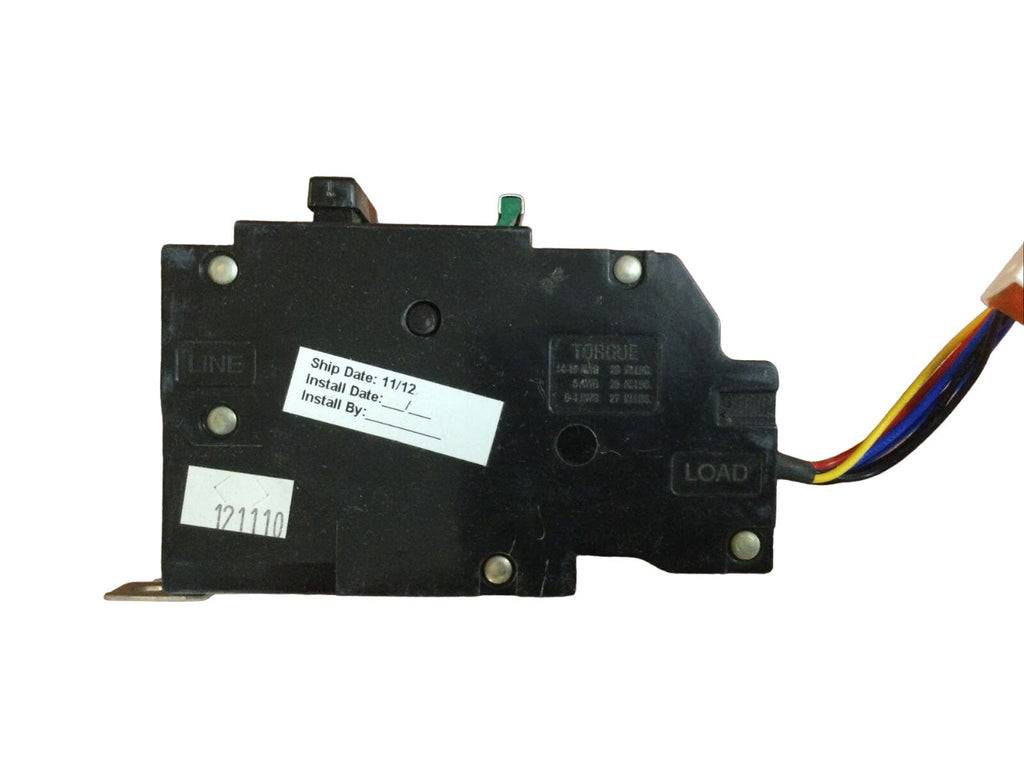

GHQRSP2030 is a Cutler Hammer Quicklag series 2-pole thermal magnetic circuit breaker rated for 30 amps and 480 volts AC.This GHQRS type molded case circuit breaker features a bolt-on mounting design, 14kA interrupting rating at 277V, and is suitable for 1-phase 50/60Hz applications. It includes long-time and instantaneous trip functions, a solenoid-operated mechanism for remote control, and line side lug terminals. The breaker is UL listed and HID rated for reliable panelboard protection.
- Manufacturer: Cutler Hammer
- Part Number: GHQRSP2030
- Amperage: 30A
- Voltage: 480Y/277V AC
- Poles: 2
- Interrupt Rating: 14kA @ 277V
- Series/Frame: Quicklag (GHQRS)
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Mounting Type: Bolt-On
- Phase: 1
- Frequency: 50/60 Hz
- Certifications: UL Listed, HID Rated
Specifications
- Part Number: GHQRSP2030
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : GHQRS
- Voltage : 480
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 10782116343550
- Dimensions : 5.7 in x 3 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 1.45
- Certification : UL
