Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
GHQRSP1030

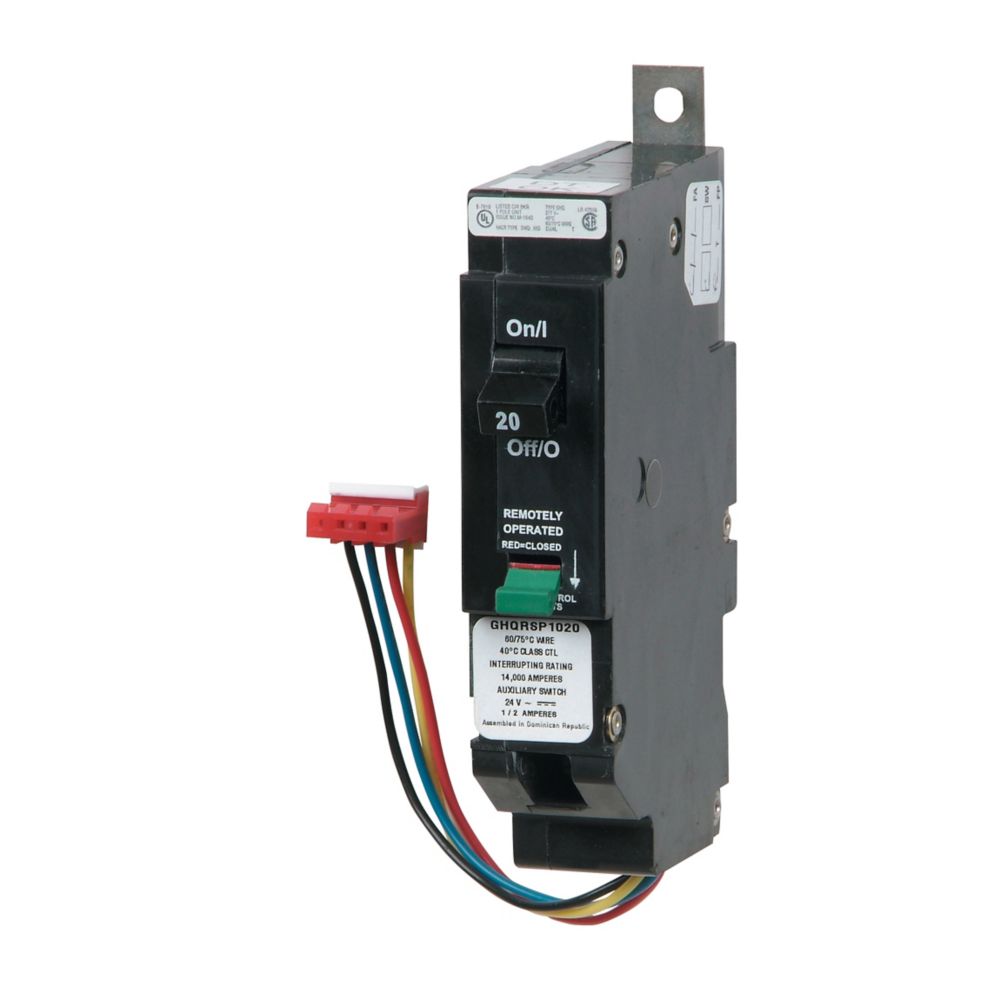

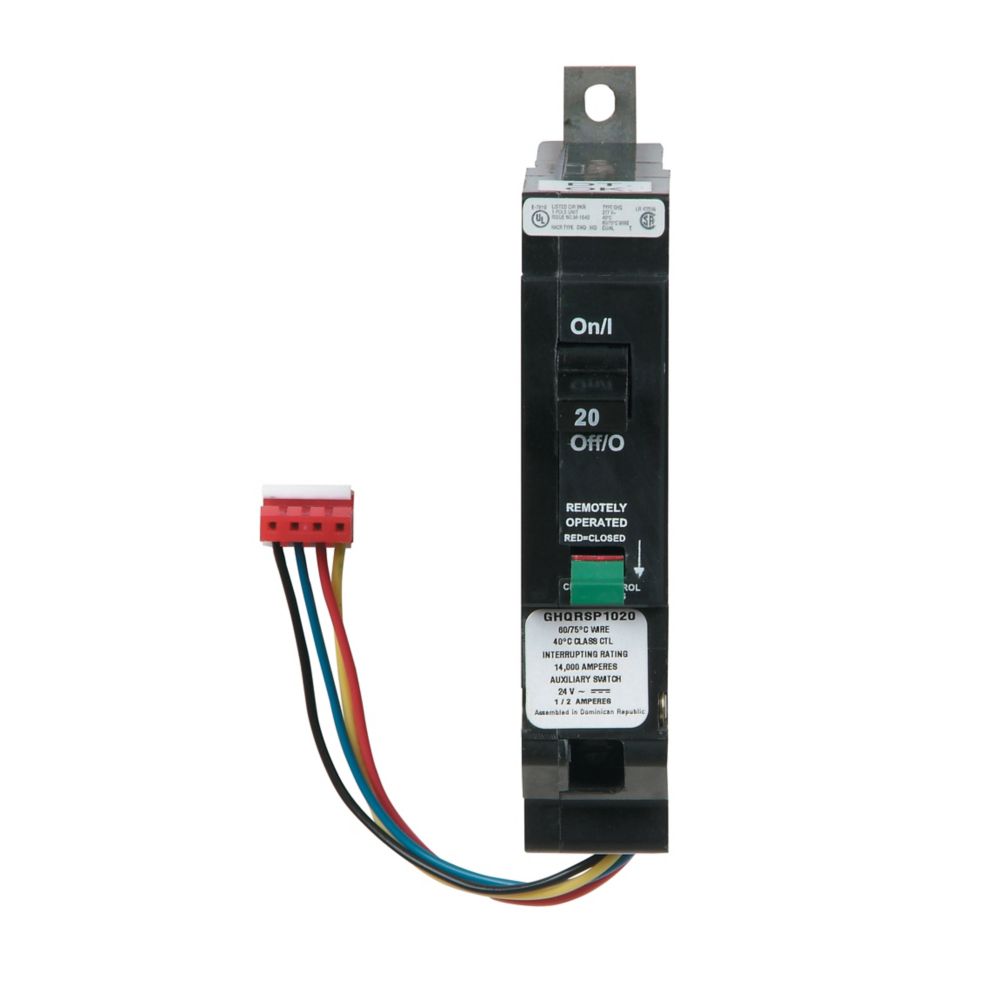

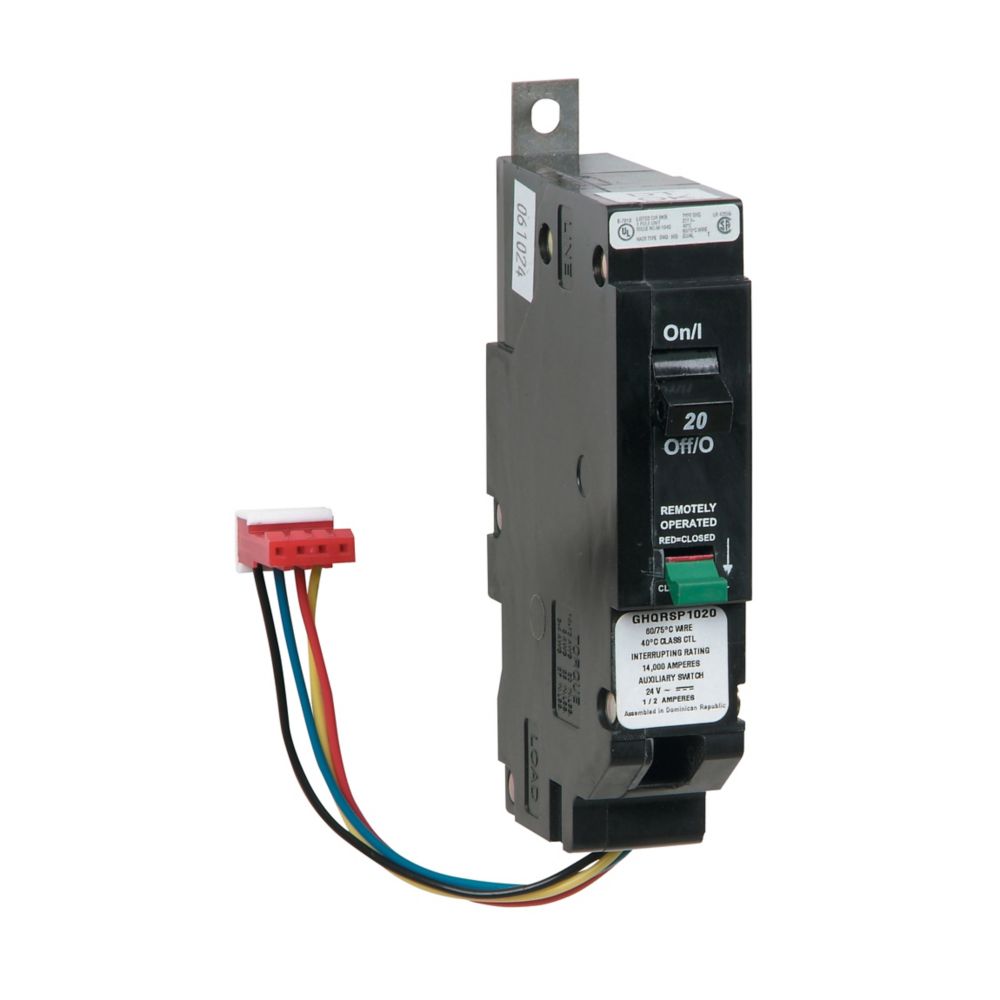

GHQRSP1030 is a Cutler Hammer 1 pole thermal magnetic circuit breaker rated for 30 amps and 480 volts with a bolt-on mounting type.This GHQRS series molded case circuit breaker features a 14kA interrupting rating at 277V, suitable for branch circuit protection in commercial and industrial applications. It provides reliable thermal magnetic trip unit protection and is designed for use in QUICKLAG panelboards.
- Key Specifications
- Amperage: 30 Amps
- Voltage Rating: 480Y/277V
- Poles: 1 Pole
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA @ 277V
- Series/Frame: GHQRS (QUICKLAG)
- Trip Unit: Thermal Magnetic
- Length/Depth: 5.7 inches
- Frequency: 50/60 Hz
- Certifications: NETA Tested (per some sources)
- Part Number: GHQRSP1030
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : GHQRS
- Voltage : 480
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 10782116343543
- Dimensions : 5.7 in x 3 in x 4.5 in (Length/Depth x Height x Width)
- Weight : 1.45
- Certification : UL
