2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Westinghouse
- Sub-Category:Molded Case
Description
GHQ1020S

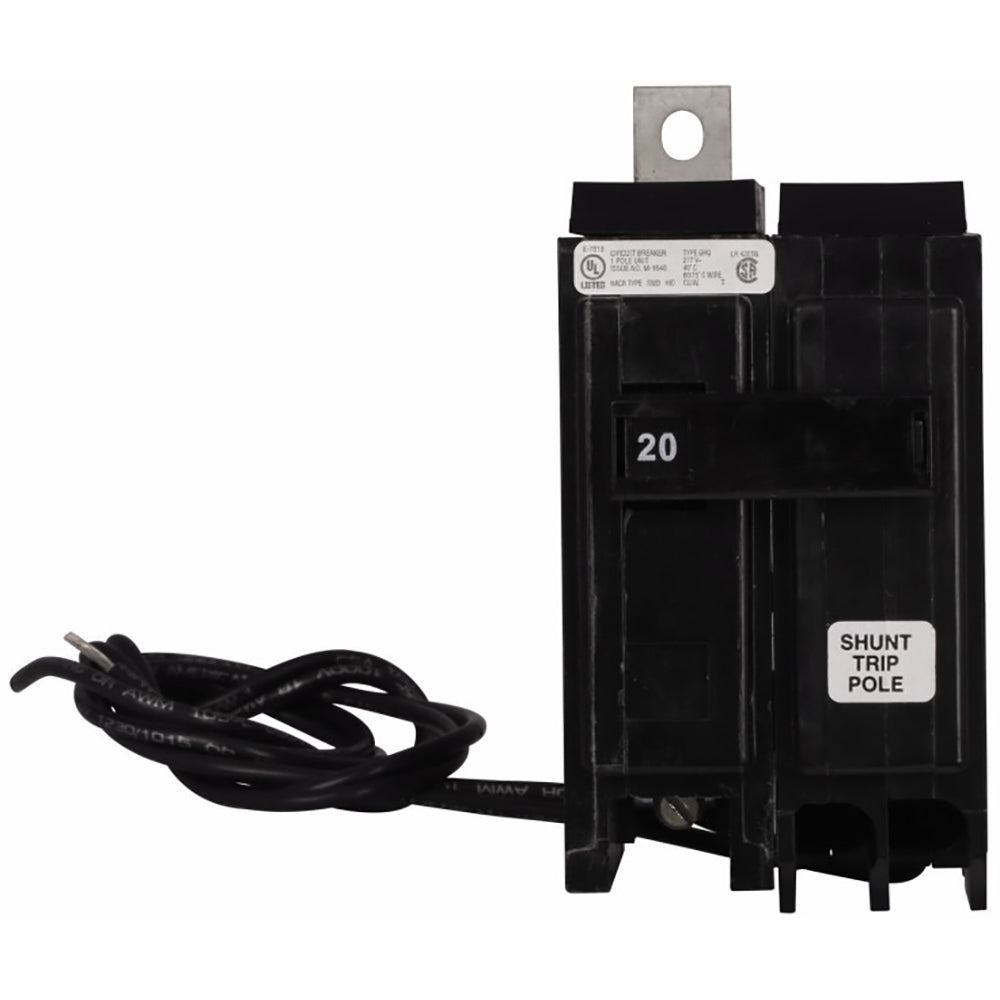

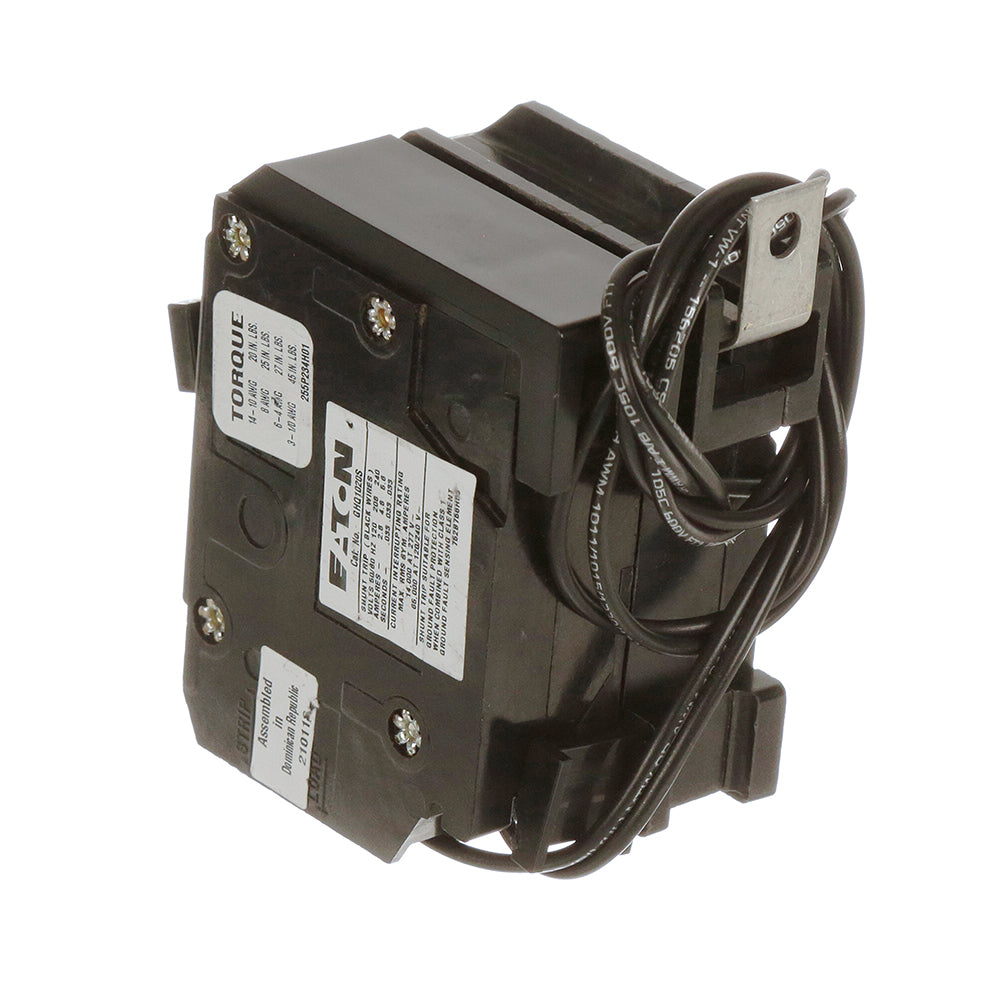

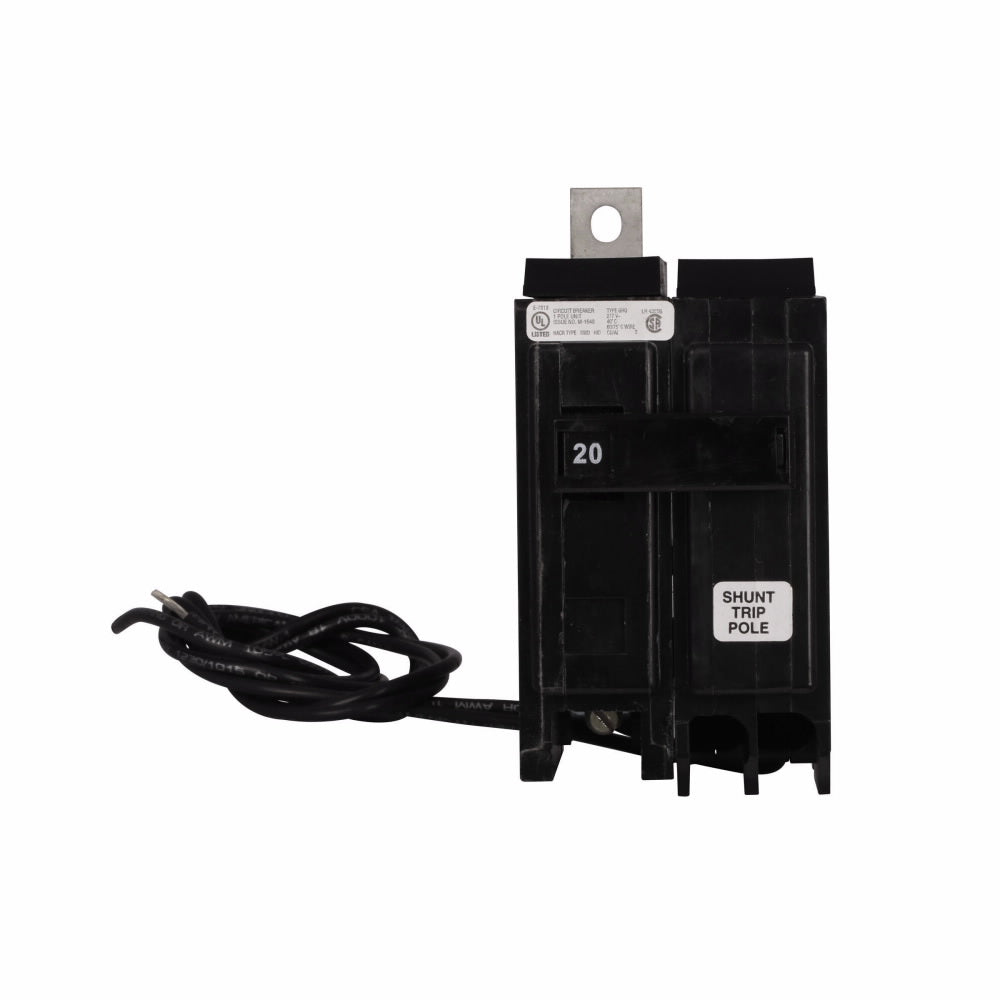

GHQ1020S is a Westinghouse Eaton 20 Amp, 1-pole thermal magnetic circuit breaker designed for reliable electrical protection.This bolt-on circuit breaker features a 277 Volt AC rating with a 14 kA interrupting capacity, suitable for use in various electrical distribution applications. It includes a non-interchangeable trip unit with long time and instantaneous trip functions, supports 120V shunt trip, and is UL 489 certified. The breaker frame type is GHQ, and it is suitable for reverse feed applications.
- Manufacturer: Westinghouse Eaton
- Amperage Rating: 20 A
- Voltage Rating: 277 V AC
- Number of Poles: 1
- Interrupt Rating: 14 kAIC
- Mounting Type: Bolt-On
- Trip Type: Thermal Magnetic, Non-Interchangeable
- Special Features: 120V Shunt Trip, Suitable for Reverse Feed
- Frame Type: GHQ
- Certifications: UL 489
Additional Information
complete with shunt trip
Specifications
- Part Number: GHQ1020S
- Manufacturer : Westinghouse
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GHQ
- Voltage : 480
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Frame Size : G Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78668540342
- GTIN : 00786685403427
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
- Weight : 0.55
- Certification : UL 489
