GHQ1015 - Westinghouse 15A 277V 1-Pole Thermal Magnetic Circuit Breaker, 14kAIC, Bolt-On Frame GHQ

GHQ1015

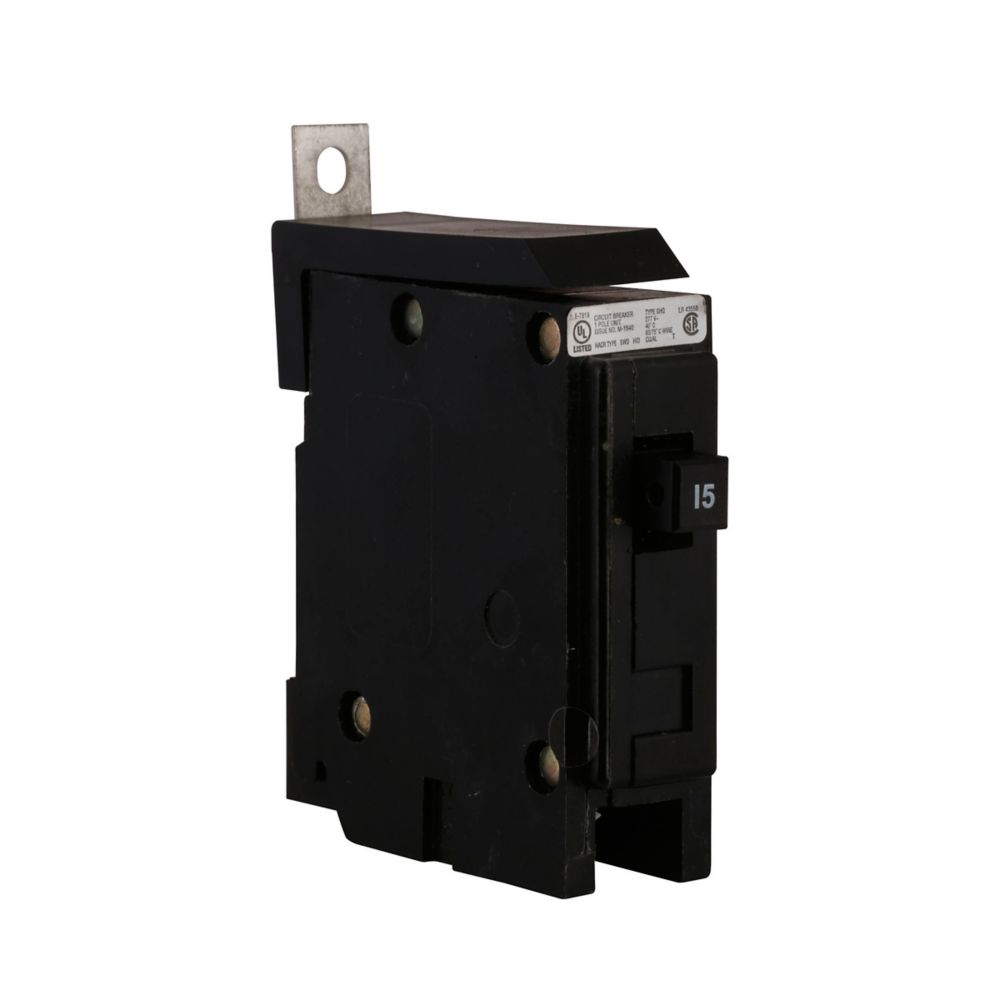

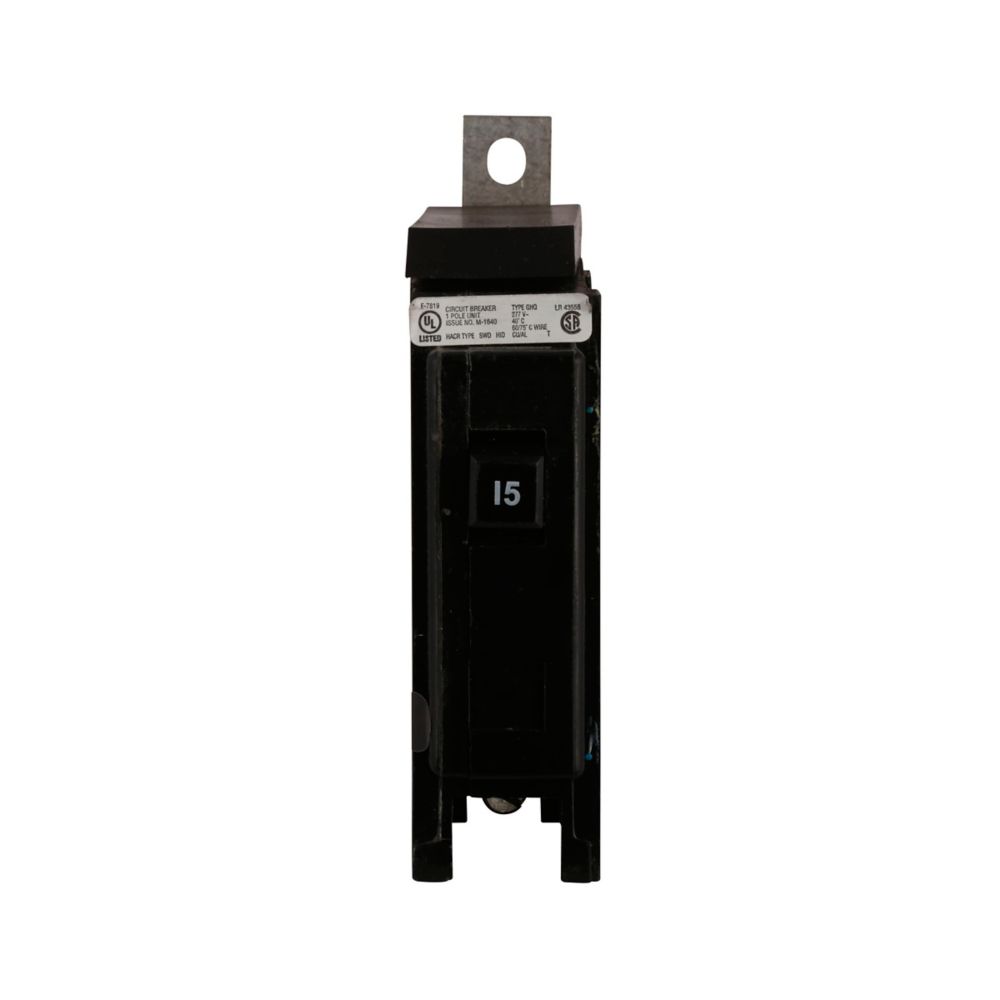

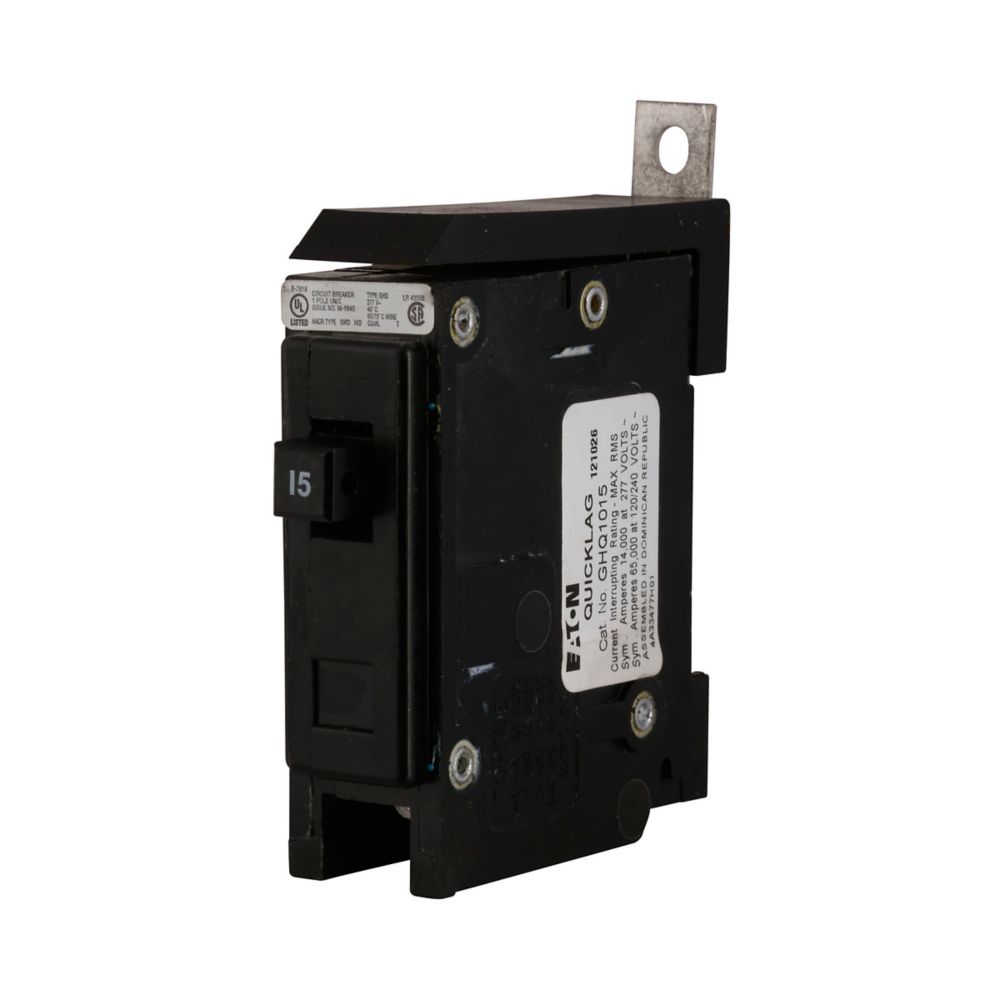

GHQ1015 is a Westinghouse 15 amp, 277 volt, 1-pole thermal magnetic circuit breaker designed for reliable circuit protection.This bolt-on type breaker features a 14 kA interrupt rating at 277V, non-interchangeable trip unit, and is UL 489 certified. It is part of the GHQ series with a GDB frame size, suitable for single-phase applications and reverse feed. The breaker includes a 4A33462H01 load clip and comes with a 1-year warranty.

• Amperage: 15A
• Voltage Rating: 277V AC
• Number of Poles: 1
• Interrupt Rating: 14 kAIC at 277V
• Mounting Type: Bolt-On
• Trip Type: Thermal Magnetic, Non-Interchangeable
• Frame Size: GDB (GHQ Series)
• Certifications: UL 489
• Includes Load Clip 4A33462H01
• Warranty: 1 Year
• Dimensions: 4" H x 3" W x 2.63" D
• Weight: 0.42 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GHQ1015
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHQ
• Voltage : 277
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 30A/G
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : A

Product Data

• UPC : 782114985106
• GTIN : 00782114985106
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 3 in (Length/Depth x Height x Width)
• Weight : 0.42
• Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
• Standards : CSA Certified, IEC Rated, UL Listed
• Certification : CSA Certified, IEC Rated, UL Listed
