Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
GHCGFEP1020

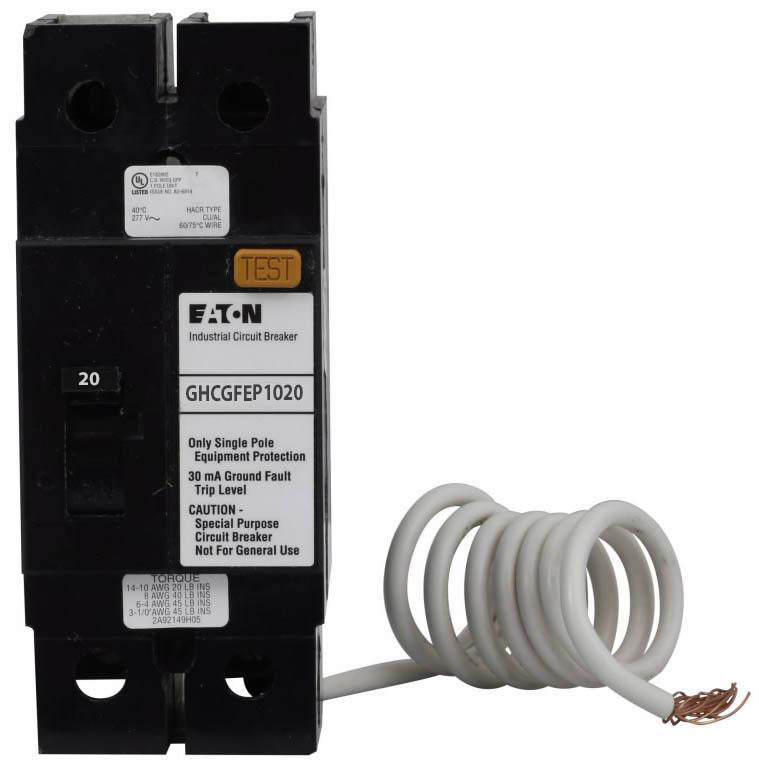

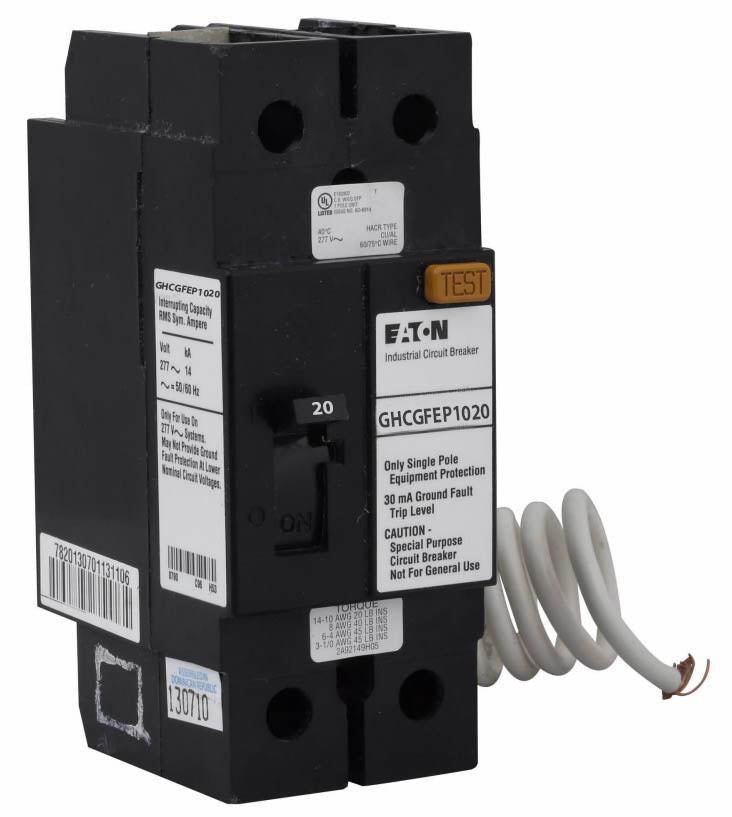

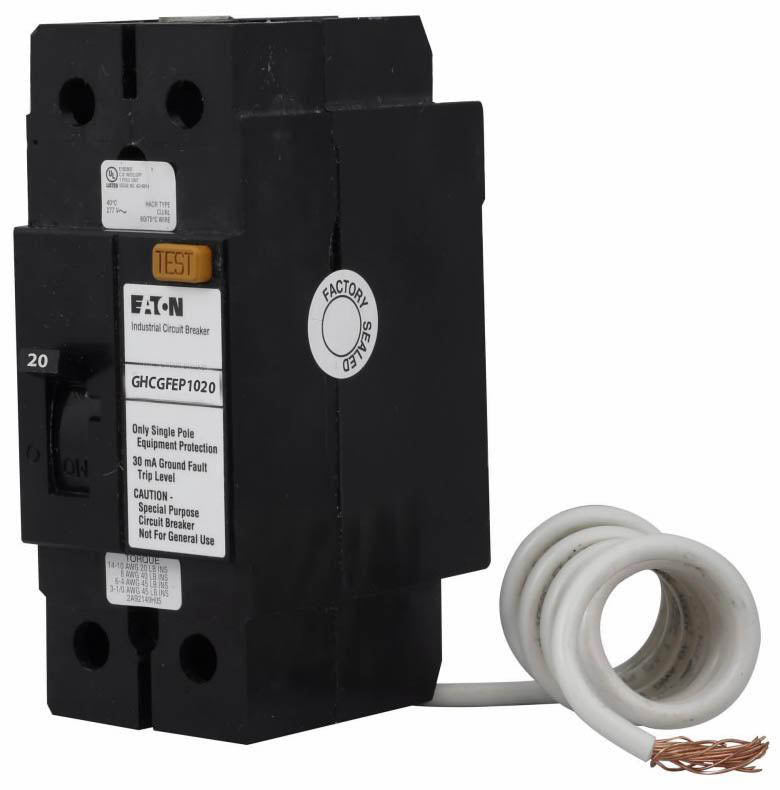

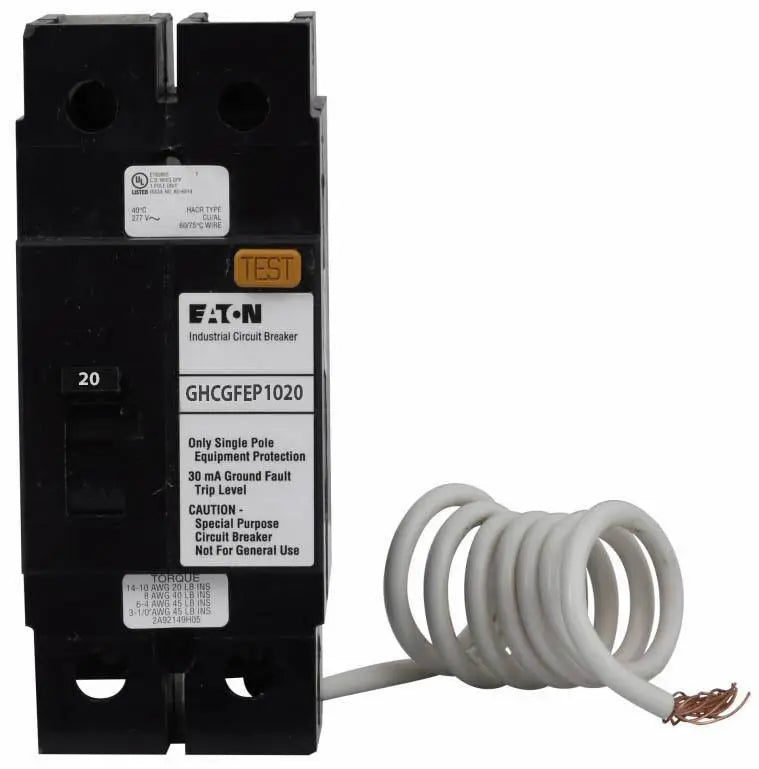

GHCGFEP1020 is a Cutler Hammer 20 Amp, 1-pole molded case circuit breaker designed for ground fault protection in electrical distribution systems.
This Eaton Series C G-frame breaker features a thermal magnetic trip unit with long-time and instantaneous functions, rated for 480Y/277 Vac and 125/250 Vdc operation. It has a 14kA interrupt rating at 277V and a bolt-on mounting type, ensuring reliable circuit protection and easy installation. UL listed for safety and compliance.
- Key Specifications
- Amperage: 20 Amps
- Voltage Rating: 480Y/277 Vac, 125/250 Vdc
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 14kA at 277 Vac
- Frame Type: G Frame
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous
- Series: Eaton Series C
- Certifications: UL Listed
- Part Number: GHCGFEP1020
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GHCGFEP
- Voltage : 277
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 14kA@277V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Frame Size : G Frame
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
- UPC : 786679067499
- GTIN : 00786679067499
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 1 in (Length/Depth x Height x Width)
- Weight : 1.5
- Certification : UL 489
