2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
GHC3100

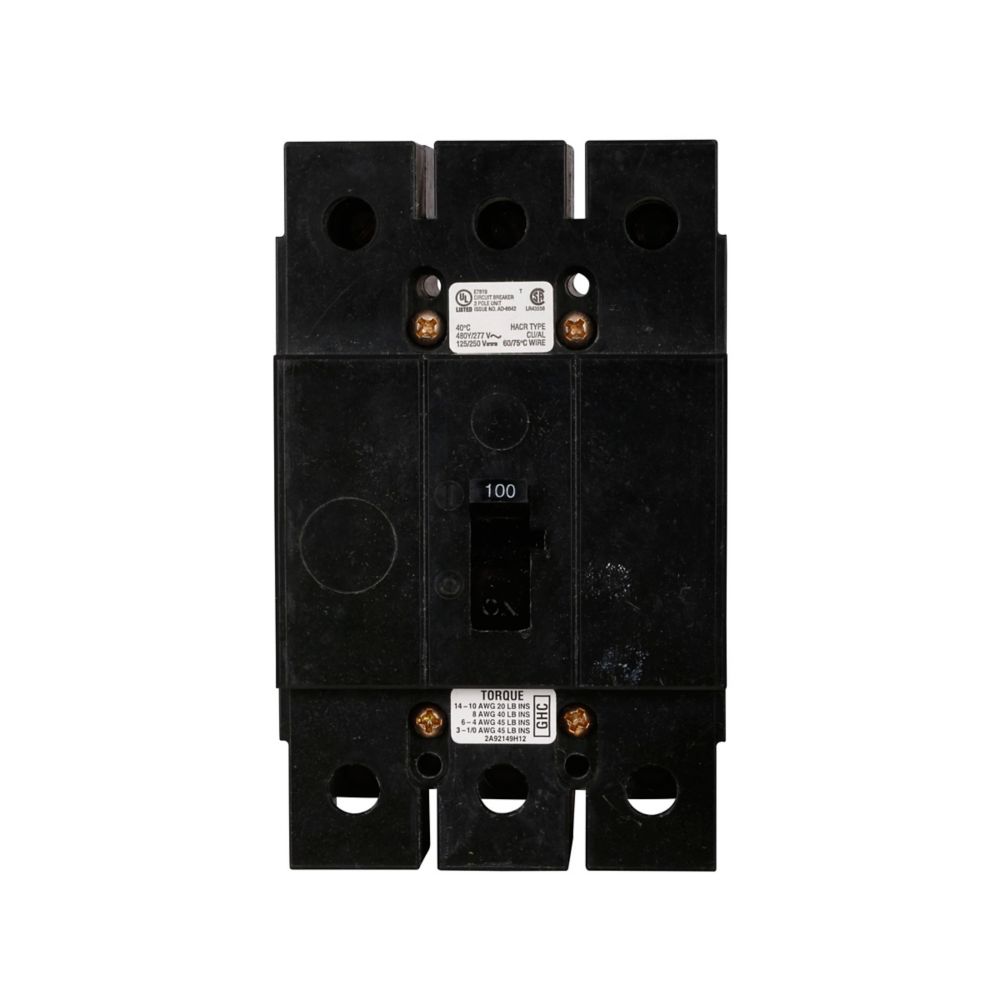

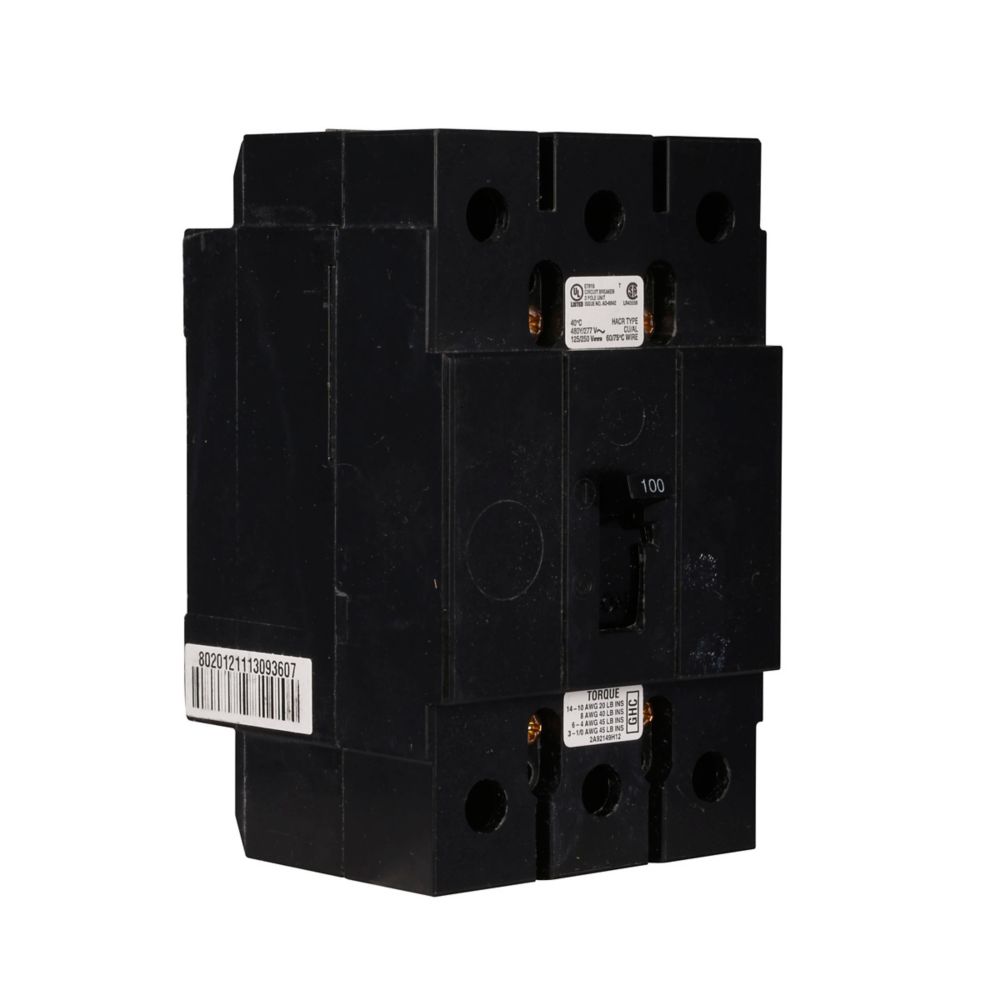

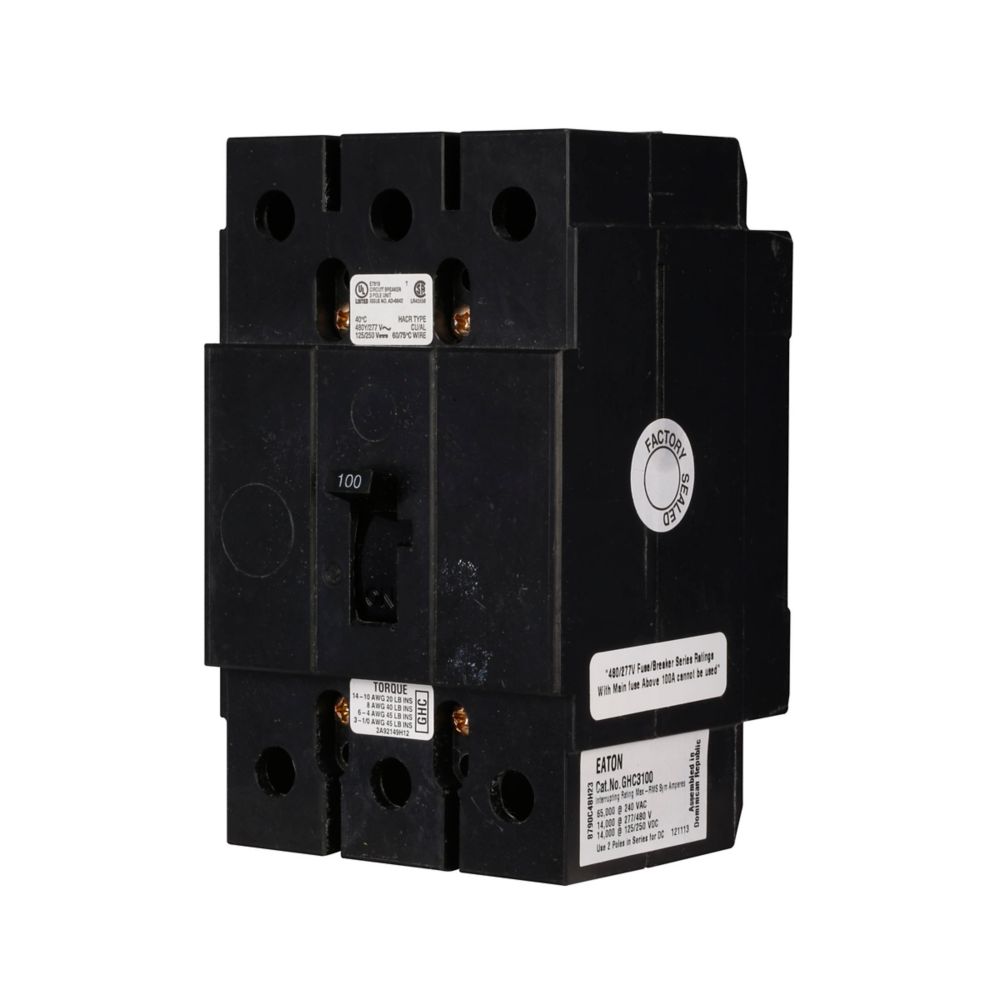

GHC3100 is a complete Eaton Series C molded case circuit breaker designed for robust circuit protection in commercial and industrial applications.
This three-pole, 100A breaker features a G-frame design, fixed thermal magnetic trip unit, and is rated for 480Y/277VAC and 125/250VDC. It offers high interrupting capacity and reliable performance for demanding electrical systems.
Key Specifications
- Amperage: 100A
- Voltage: 480Y/277VAC, 125/250VDC
- Poles: 3
- Mounting Type: Feed-thru (reverse feed capable)
- Interrupt Rating: 65kAIC at 240VAC, 14kAIC at 480Y/277VAC
- Series/Frame: Series C, G-frame
- Trip Unit: Fixed thermal, fixed magnetic (LI - Long-time and Instantaneous)
- Frequency: 50/60 Hz
- Connection Type: Feed-thru
- Certifications: UL Listed
- Dimensions: 3.2" H x 3.7" L x 3.2" W
- Weight: 1.75 lbs
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: GHC3100
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : GHC
- Voltage : 480
- Amperage : 100
- Phase : 3
- Poles : 3
- AIC rating : 14kA@480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous
- Frame Size : G Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 786679174302
- GTIN : 00786679174302
- Country of Origin : Dominican Republic
- Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
- Weight : 1.75
- Certification : UL Listed
