GHC3020 - Cutler Hammer 20 Amp 480Y/277VAC 3 Pole Molded Case Circuit Breaker G Frame

GHC3020

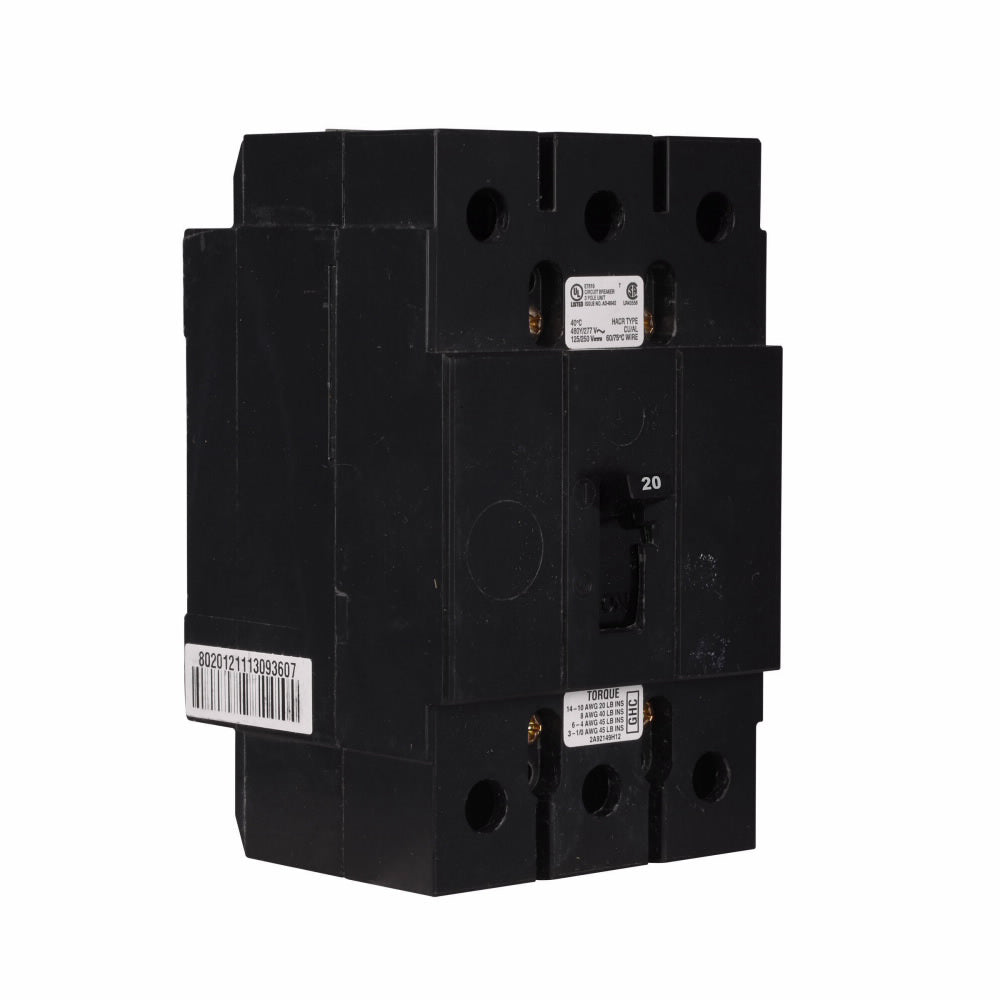

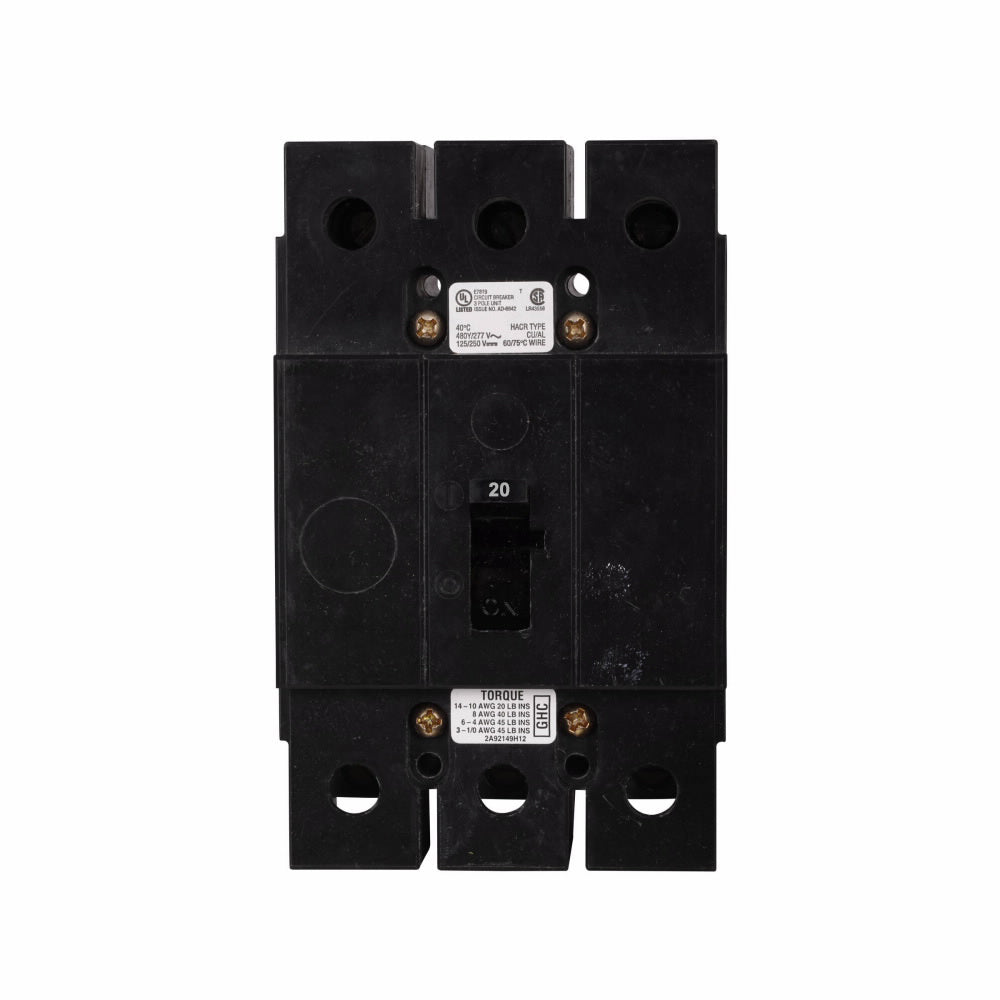

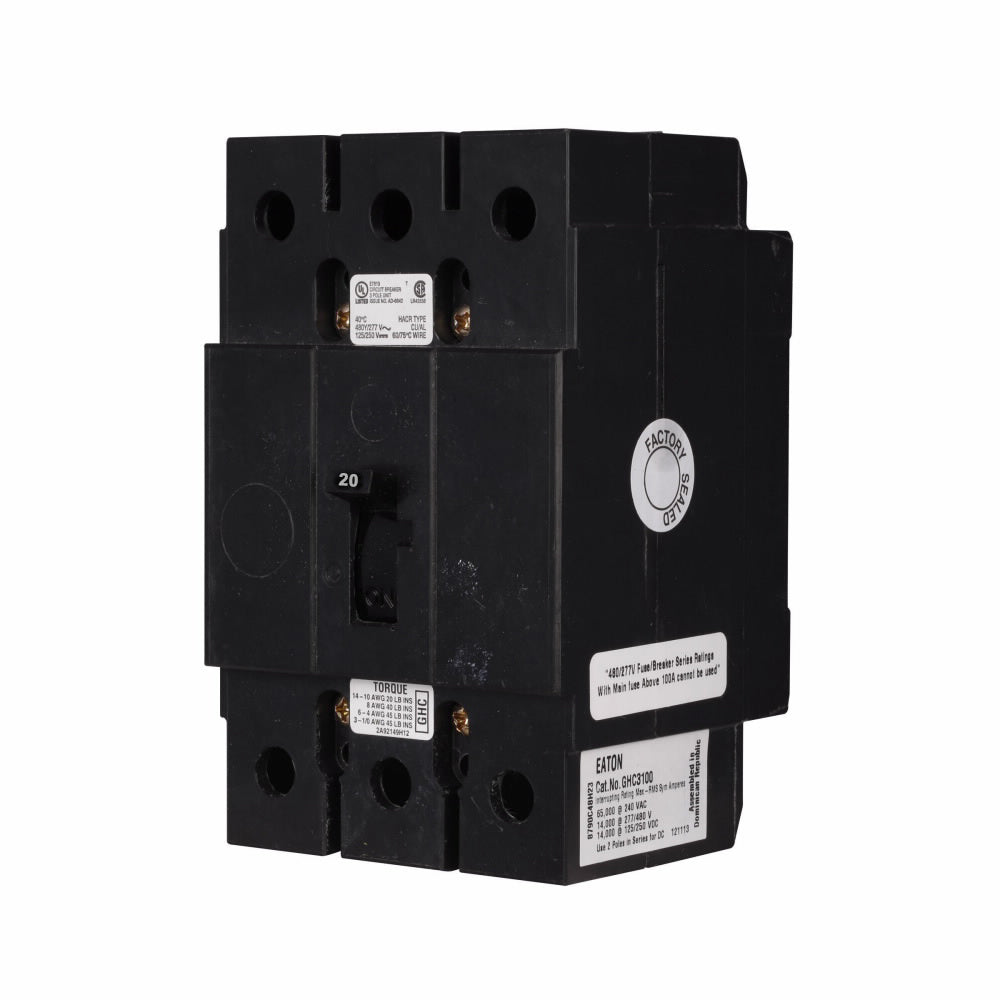

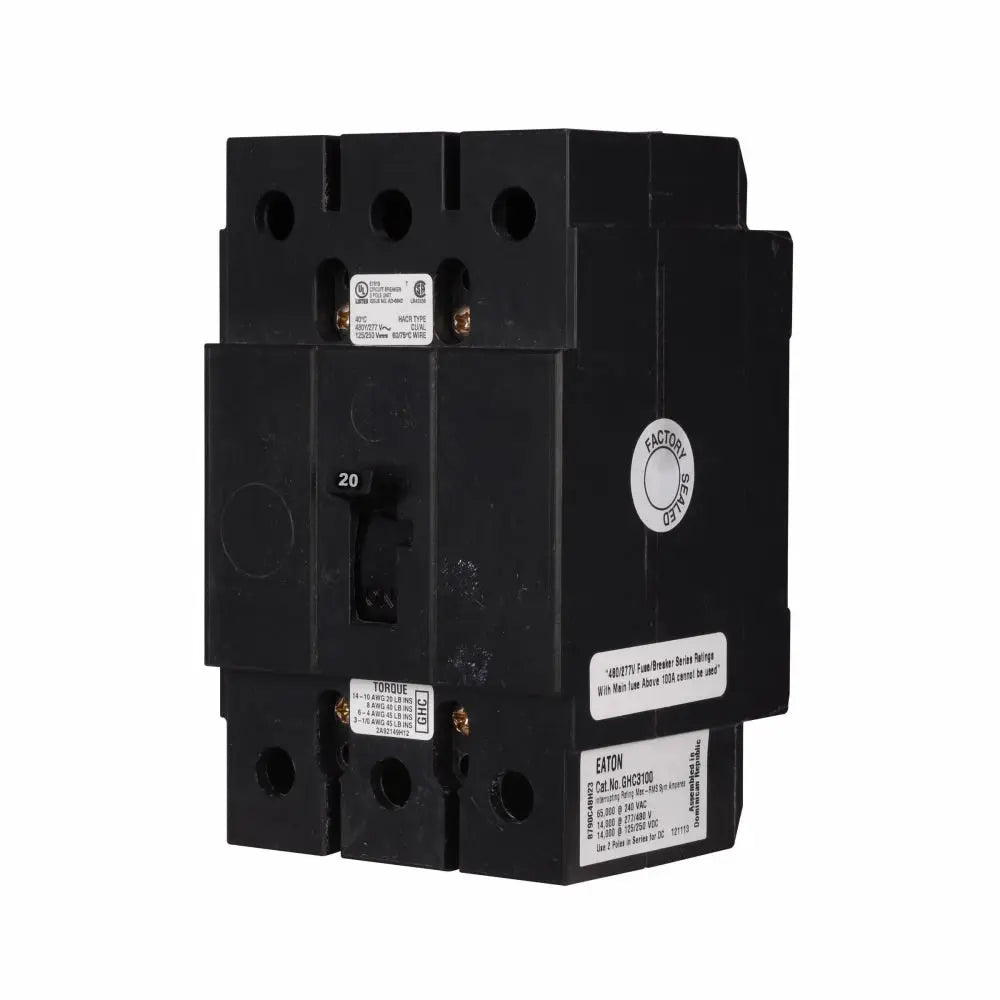

GHC3020 is a Cutler Hammer molded case circuit breaker designed for reliable thermal magnetic protection in electrical systems.This 3 pole circuit breaker features a 20 ampere current rating at 40°C and supports voltage ratings of 480Y/277VAC and 125/250VDC. It has a G frame type and offers a high interrupt rating of 65kA at 240VAC and 14kA at 480VAC, suitable for demanding industrial and commercial applications. The breaker uses screw type clamp terminals for line and load connections and complies with IEC 157-1 standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Part Number: GHC3020
• Amperage: 20 Amps
• Voltage Rating: 480Y/277VAC, 125/250VDC
• Poles: 3
• Frame Type: G Frame
• Interrupt Rating: 65kA @ 240VAC, 14kA @ 480VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Surface Mount
• Terminal Type: Screw Clamp Line and Load
• Standards: IEC 157-1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GHC3020
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHC
• Voltage : 480
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : G Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic



Product Data

• UPC : 786679174203
• GTIN : 00786679174203
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.7
• Certification : UL Listed
• Wire Size : 14 to 10 AWG
