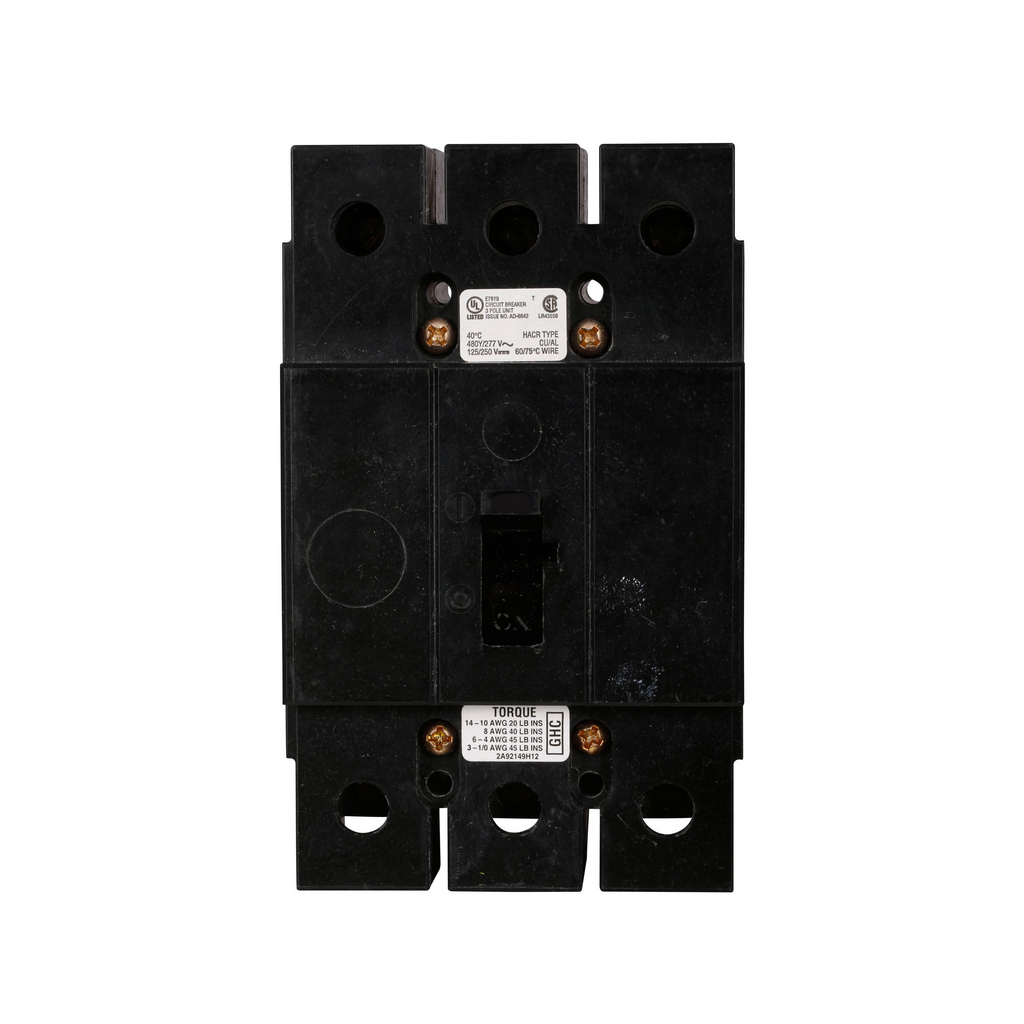

GHC3080 - Westinghouse 80 Amp 3 Pole 480VAC Molded Case Circuit Breaker, 14kA @ 480V, 65kA @ 240V, Thermal Magnetic

GHC3080

GHC3080 is an 80 Amp, 3 Pole molded case circuit breaker by Westinghouse designed for reliable power distribution protection.This Westinghouse GHC3080 circuit breaker features a thermal magnetic trip unit with a 14,000 A interrupt rating at 480VAC and 65,000 A at 240VAC. It is HACR rated and supports cable-in/cable-out mounting. The breaker frame type is GHC with approximate dimensions of 3.00"W x 4.88"H x 2.81"D, suitable for industrial and commercial applications requiring robust circuit protection.

Key Specifications
• Amperage: 80 Amps
• Voltage Rating: 480VAC
• Poles: 3
• Interrupt Rating: 14kA @ 480VAC, 65kA @ 240VAC
• Trip Unit: Thermal Magnetic
• Mounting Type: Cable-In/Cable-Out
• Type/Frame: GHC
• HACR Rated
• Approximate Dimensions: 3.00"W x 4.88"H x 2.81"D

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GHC3080
• Manufacturer : Westinghouse
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHC
• Voltage : 480
• Amperage : 80
• Phase : 3
• Poles : 3
• AIC rating : 14kA@480V
• Connection : Feed-Thru
• Functions : Long Time and Instantaneous Trip
• Frame Size : G Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679174289
• GTIN : 00786679174289
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 3 in (Length/Depth x Height x Width)
• Weight : 1.75
• Certification : UL Listed
• Wire Size : 10 to 1/0 AWG
