GHC1060 - Eaton 60A 277VAC 1P Molded Case Circuit Breaker, G-Frame, Fixed Thermal/Magnetic Trip, 14kAIC, UL 489, CSA C22.2

GHC1060

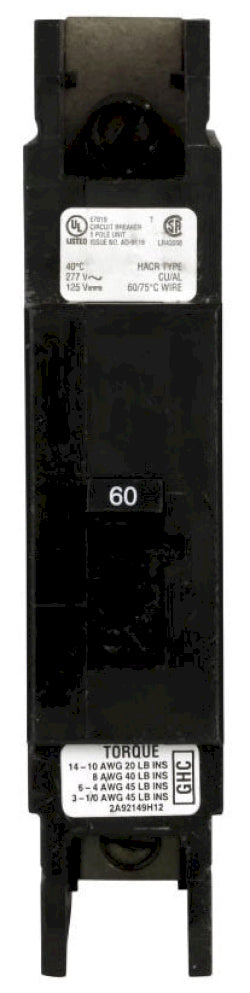

GHC1060 is a single-pole, 60A molded case circuit breaker from Eaton, designed for reliable circuit protection in commercial and industrial applications.

This Eaton Series C, G-frame breaker features a fixed thermal magnetic trip unit, providing both overload and short-circuit protection. It is rated for 277VAC and 125VDC, with an interrupting rating of 65kA at 120VAC and 14kA at 277VAC/125VDC. The breaker is panel-mounted and complies with UL 489 and CSA C22.2 standards for safety and performance.

Key Specifications
• Amperage: 60A
• Voltage: 277VAC, 125VDC
• Poles: 1
• Mounting Type: Panel
• Interrupt Rating: 65kA at 120VAC, 14kA at 277VAC/125VDC
• Series/Frame: Series C, G-Frame
• Trip Unit: Fixed Thermal Magnetic
• Certifications: UL 489, CSA C22.2
• Terminal Type: Steel pressure line and load
• Type: Molded case
• Maximum AC Voltage: 277V
• Maximum DC Voltage: 125V

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GHC1060
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHC
• Voltage : 277
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Frame Size : G Frame
• Protection : Thermal Magnetic

Product Data

• UPC : 786679174029
• GTIN : 00786679174029
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4.88 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.55
• Certification : UL Listed
