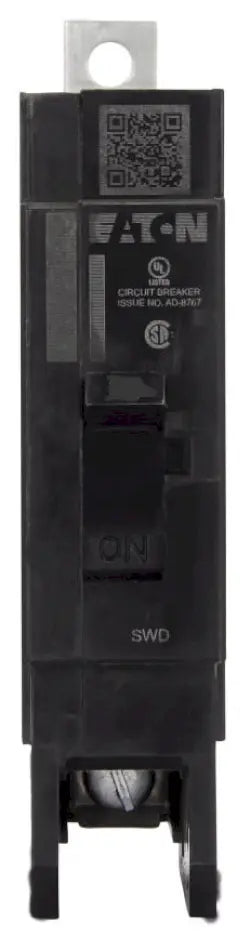

GHB1080 - Cutler Hammer 80A 1-Pole 277/480V Bolt-On Molded Case Circuit Breaker Type GHB Series C Frame

GHB1080

GHB1080 is a Cutler Hammer 1-pole molded case circuit breaker rated for 80 amps and 277/480 volts AC. It features a bolt-on mounting type and is part of the Series C G-frame family.This Type GHB circuit breaker provides reliable thermal-magnetic trip protection with a 14kA interrupt rating at 277VAC. It is UL listed and compliant with Federal Specifications W-C375B. Designed for panelboard applications, it supports 1-pole operation with a fixed trip unit.

Key Specifications
• Amperage: 80 Amps
• Voltage: 277/480 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14kA at 277VAC
• Series/Frame: Series C G-frame
• Trip Unit: Thermal-Magnetic Fixed
• Certifications: UL Listed
• Federal Spec: W-C375B
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: GHB1080
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 80
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 786679021750
• GTIN : 00786679021750
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.7
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 502
• Certification : CSA Certified, UL Listed
