GHB1025 - Cutler Hammer 25 Amp 1 Pole 277VAC/125VDC Bolt-On Circuit Breaker, 14kAIC Interrupt Rating

GHB1025

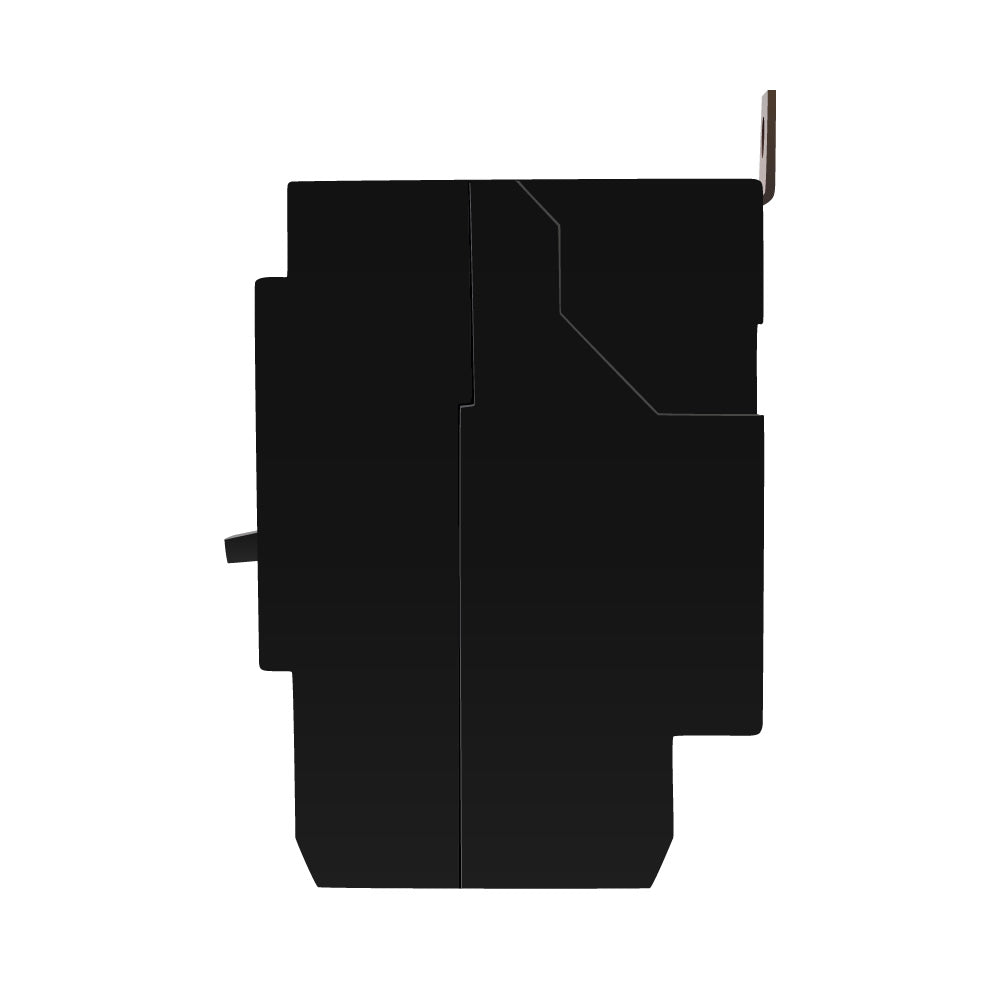

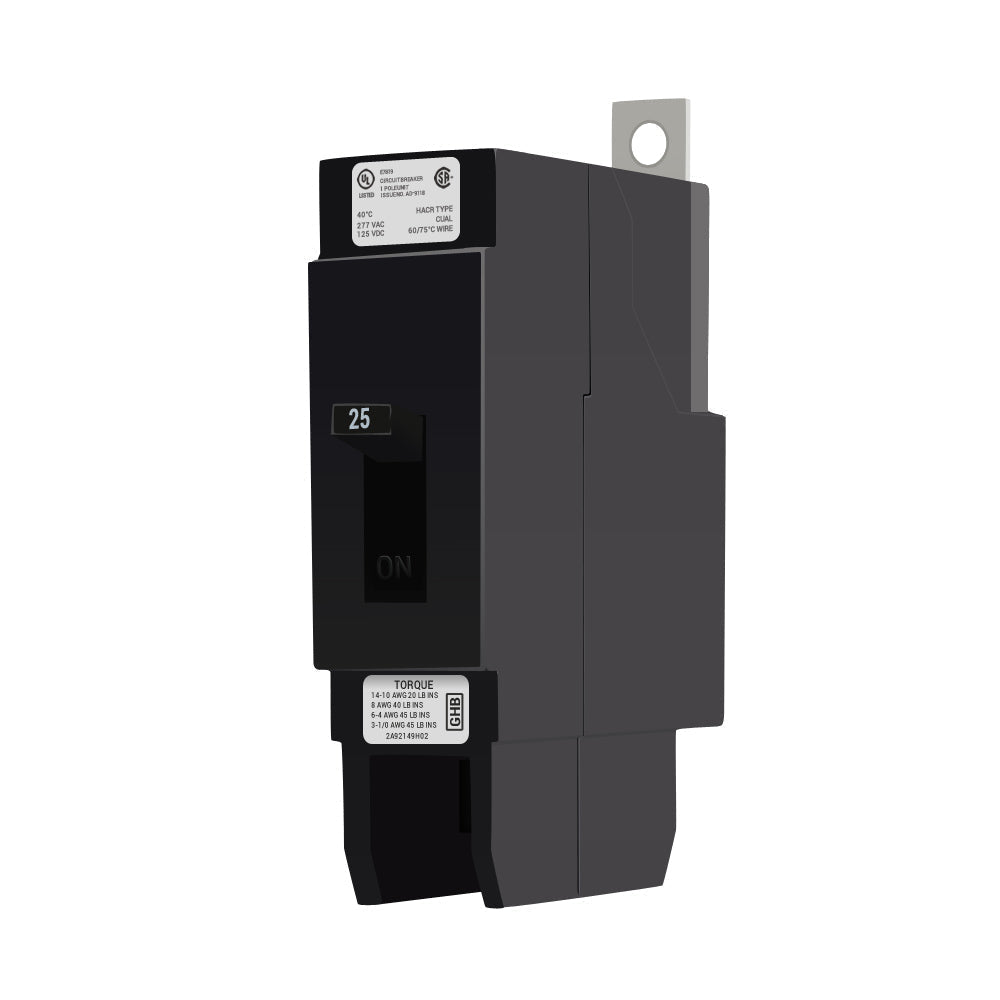

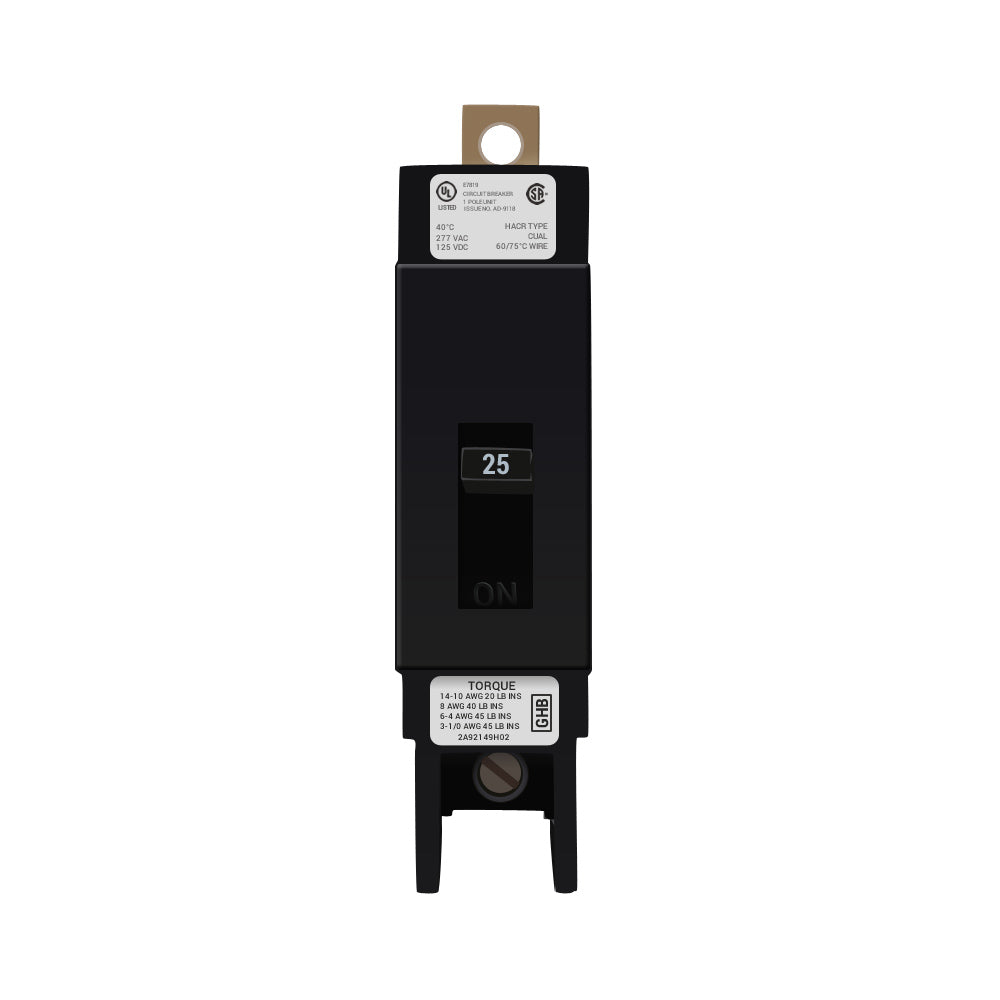

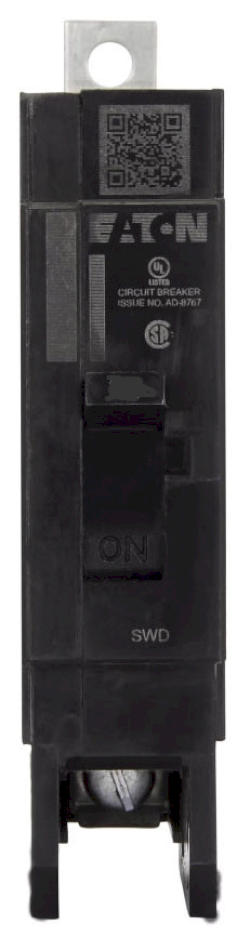

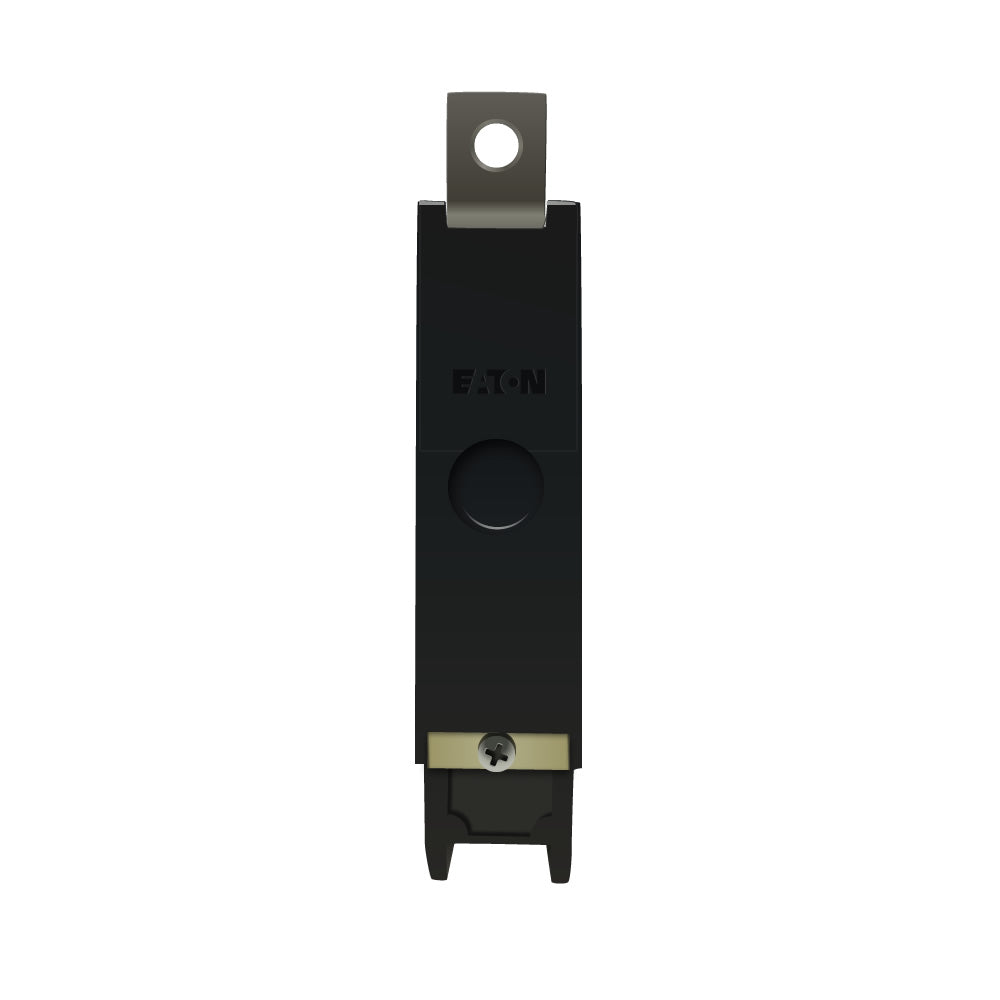

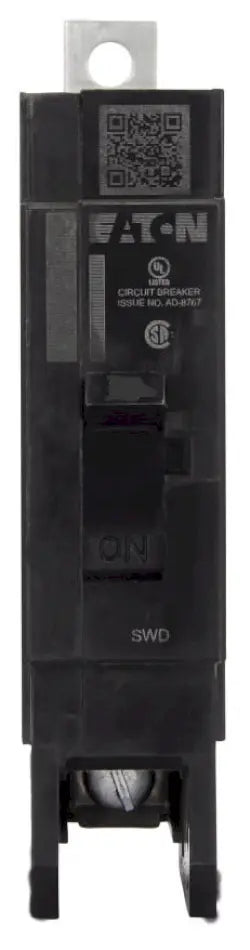

GHB1025 is a Cutler Hammer 1 pole, 25 amp thermal magnetic molded case circuit breaker designed for bolt-on mounting.This circuit breaker features a 277VAC and 125VDC voltage rating with a 14kA interrupting capacity at 277VAC. It includes long-time and instantaneous trip functions and is UL and CSA certified. The breaker uses a screw clamp terminal connection and is suitable for powerline panelboards.

• Manufacturer: Cutler Hammer
• Part Number: GHB1025
• Amperage: 25 Amps
• Voltage: 277VAC, 125VDC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14kAIC at 277VAC
• Series/Frame: GHB
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Terminal Connection: Screw Clamp
• Certifications: UL, CSA
• Dimensions (HxWxD): 2.63 x 1 x 2 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GHB1025
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 25
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 786679023631
• GTIN : 00786679023631
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 2 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.63
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 494
• Certification : CSA Certified, UL Listed
