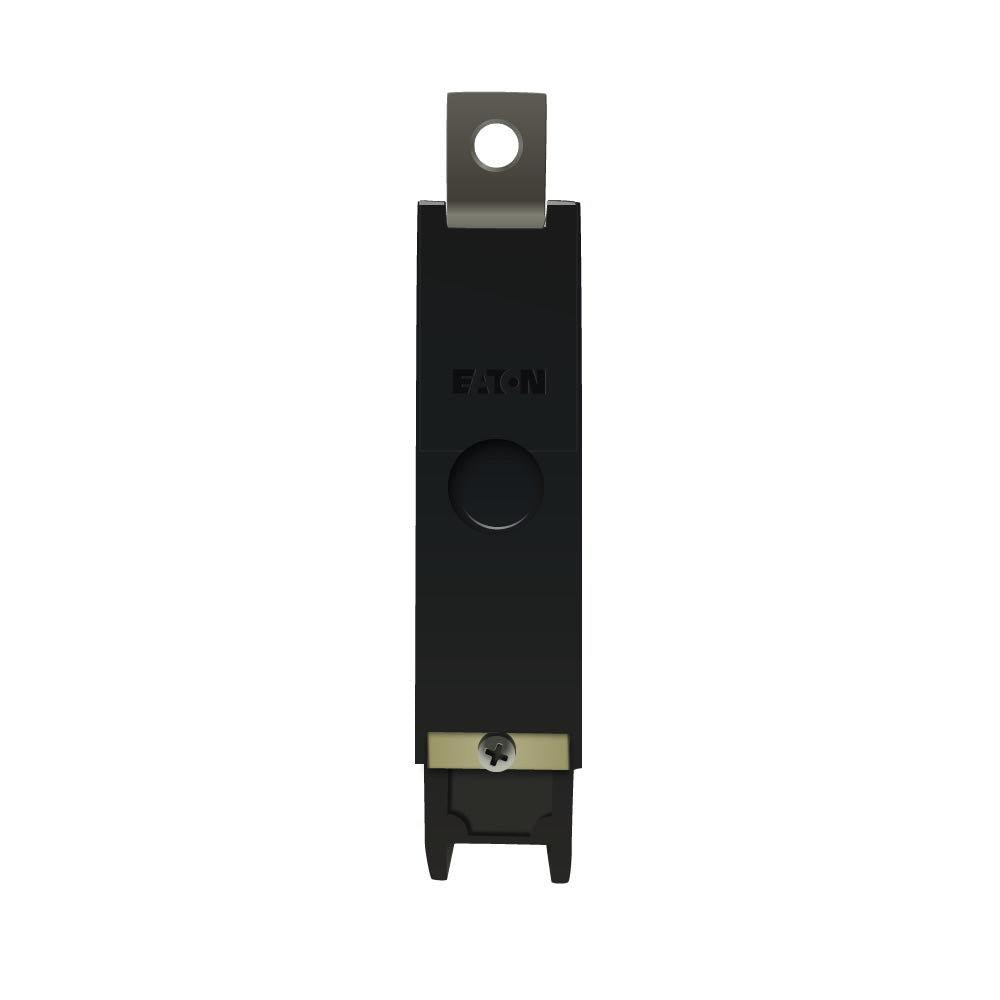

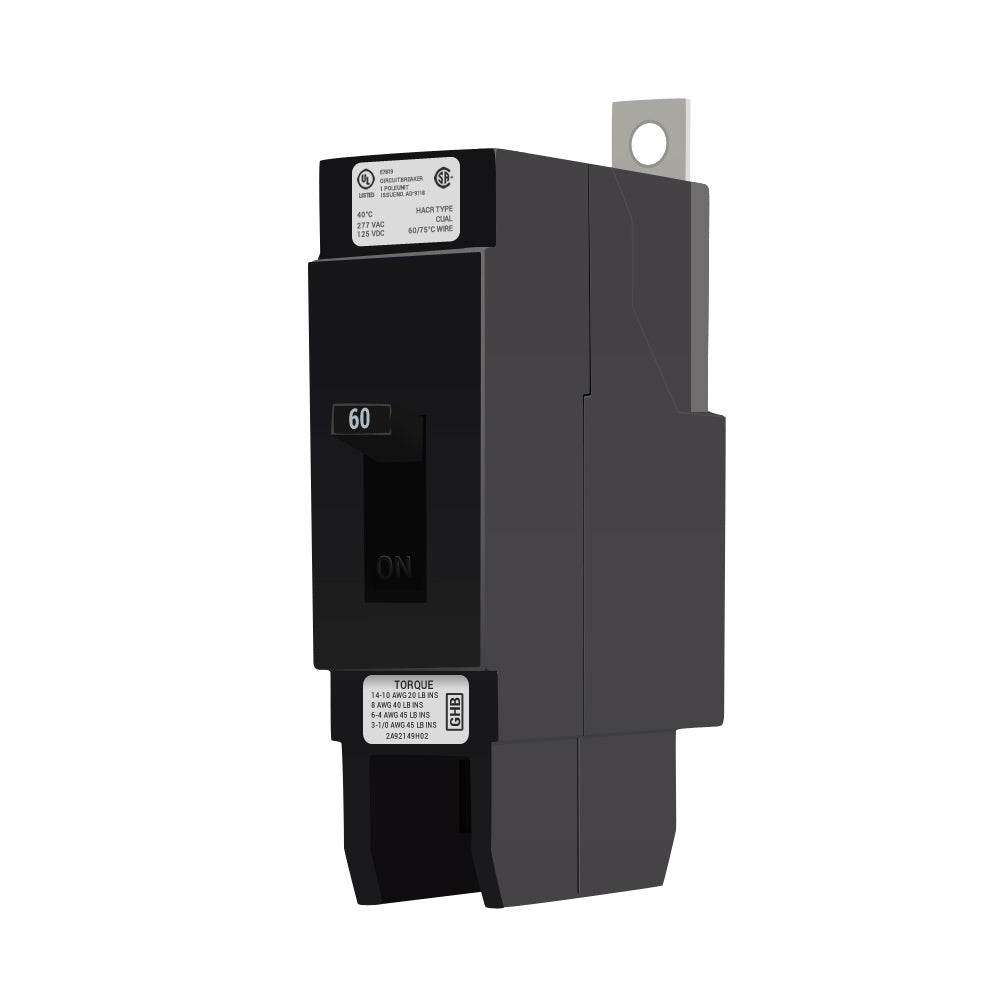

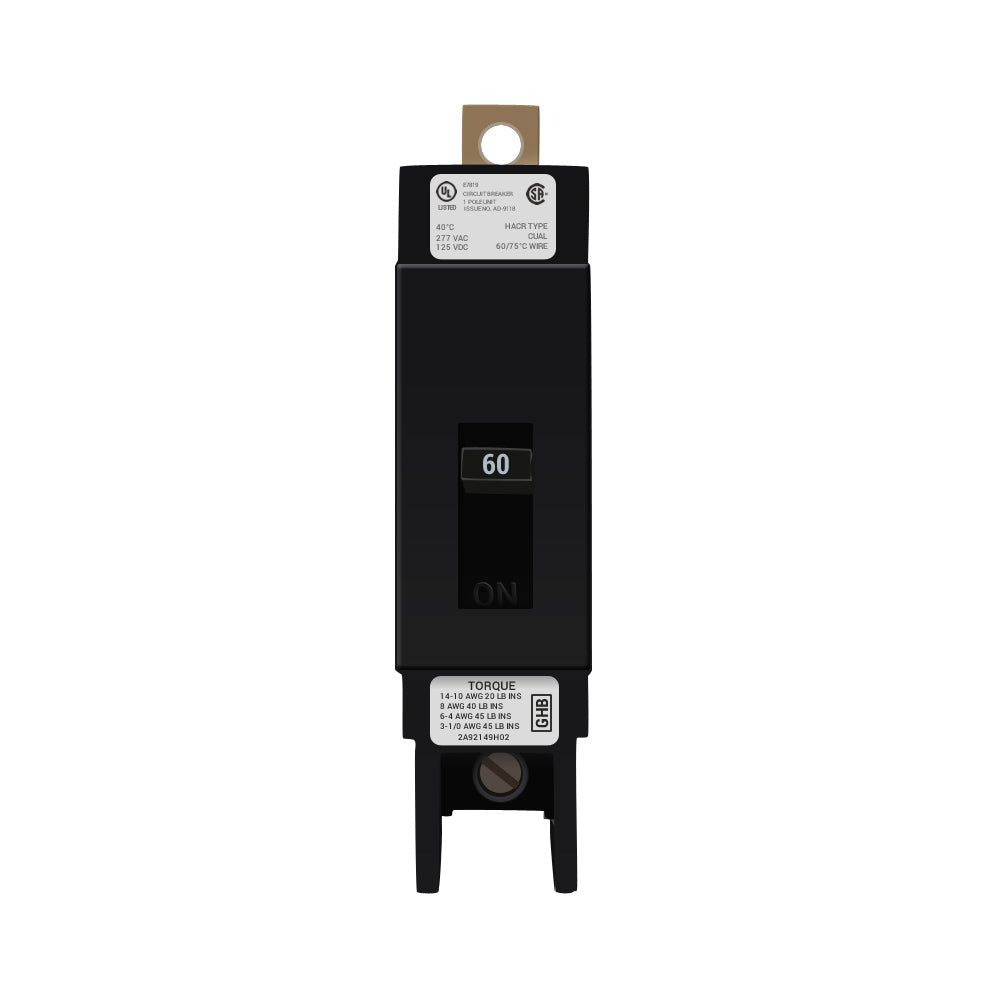

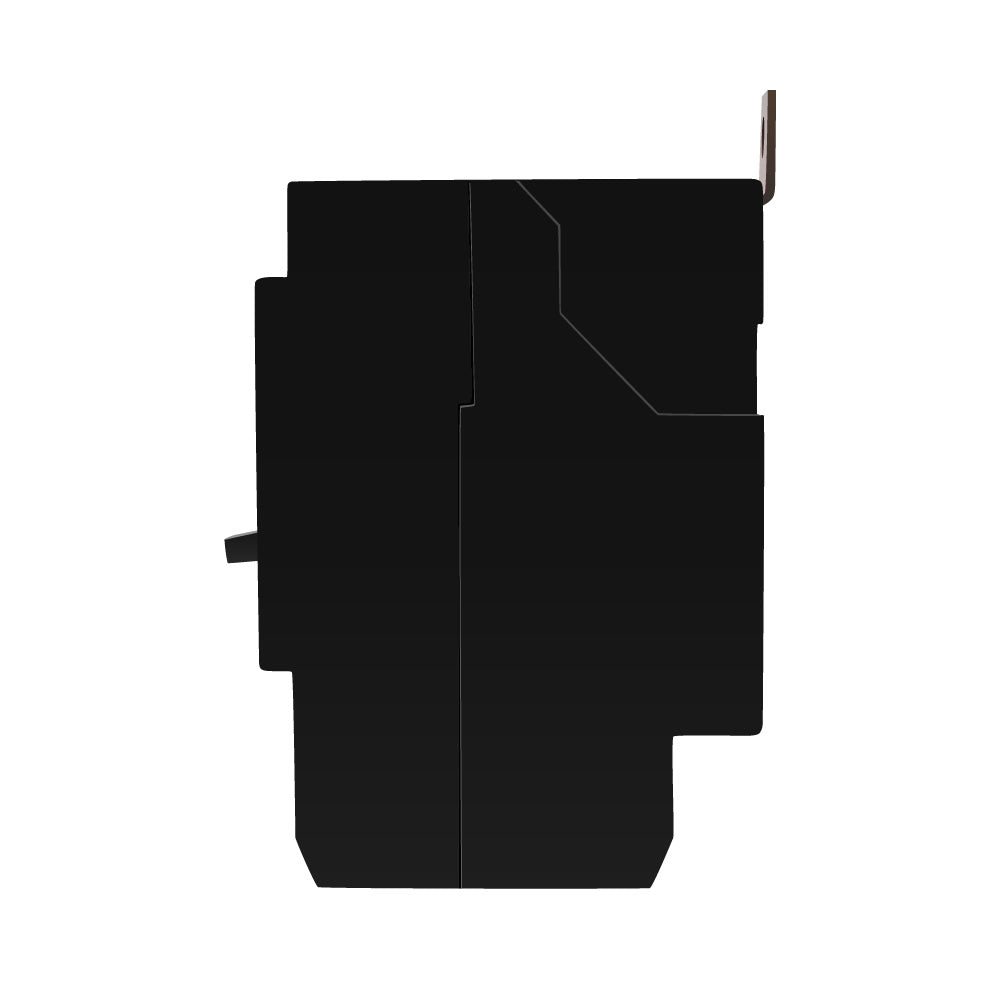

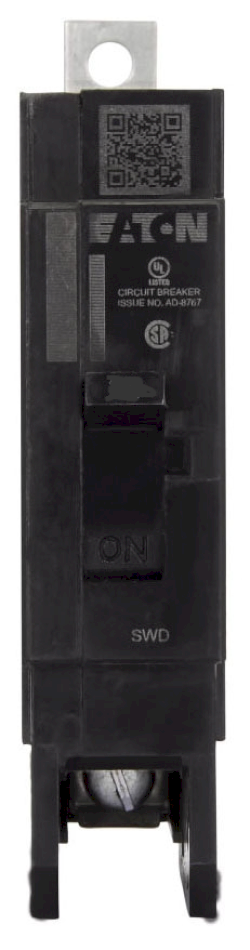

GHB1060 - Cutler Hammer 60A 277VAC/125VDC 1-Pole Molded Case Circuit Breaker Thermal Magnetic Trip

GHB1060

GHB1060 is a Cutler Hammer 60 Amp, 1 Pole molded case circuit breaker designed for reliable circuit protection.This Eaton Series C Type GHB breaker features a thermal magnetic trip unit with fixed thermal and fixed magnetic protection. It supports a voltage rating of 277 VAC and 125 VDC with an interrupt rating of 14 kA at 277 VAC. The breaker is bolt-on mounted and part of the G Frame series, suitable for panelboard applications. It is HACR rated and includes long-time and instantaneous trip functions.

Key Specifications
• Amperage: 60 A
• Voltage Rating: 277 VAC / 125 VDC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 277 VAC
• Series/Frame: G Frame, Series C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Frequency Rating: 50/60 Hz
• Category: Molded Case Circuit Breaker
• Certifications: HACR Rated
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the (more...)


Specifications

• Part Number: GHB1060
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 786679021736
• GTIN : 00786679021736
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.9
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 500
• Certification : CSA Certified, UL Listed
