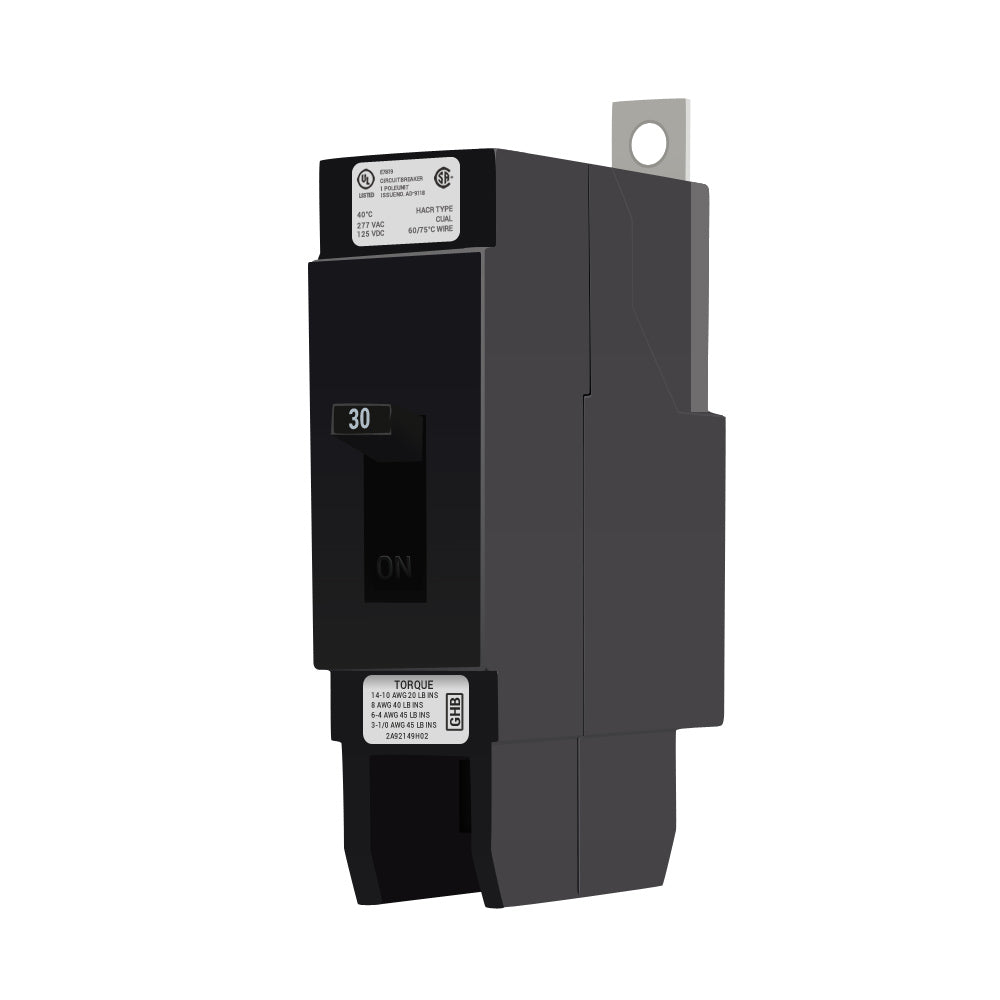

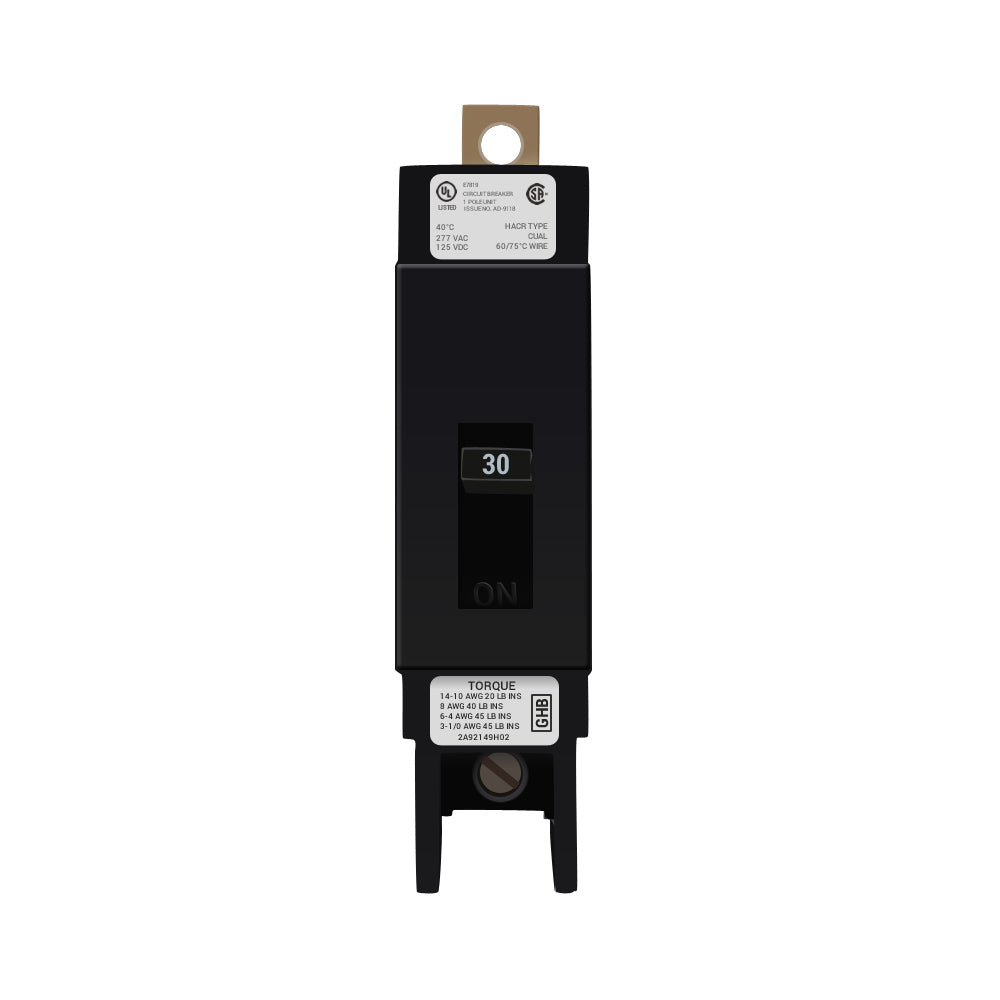

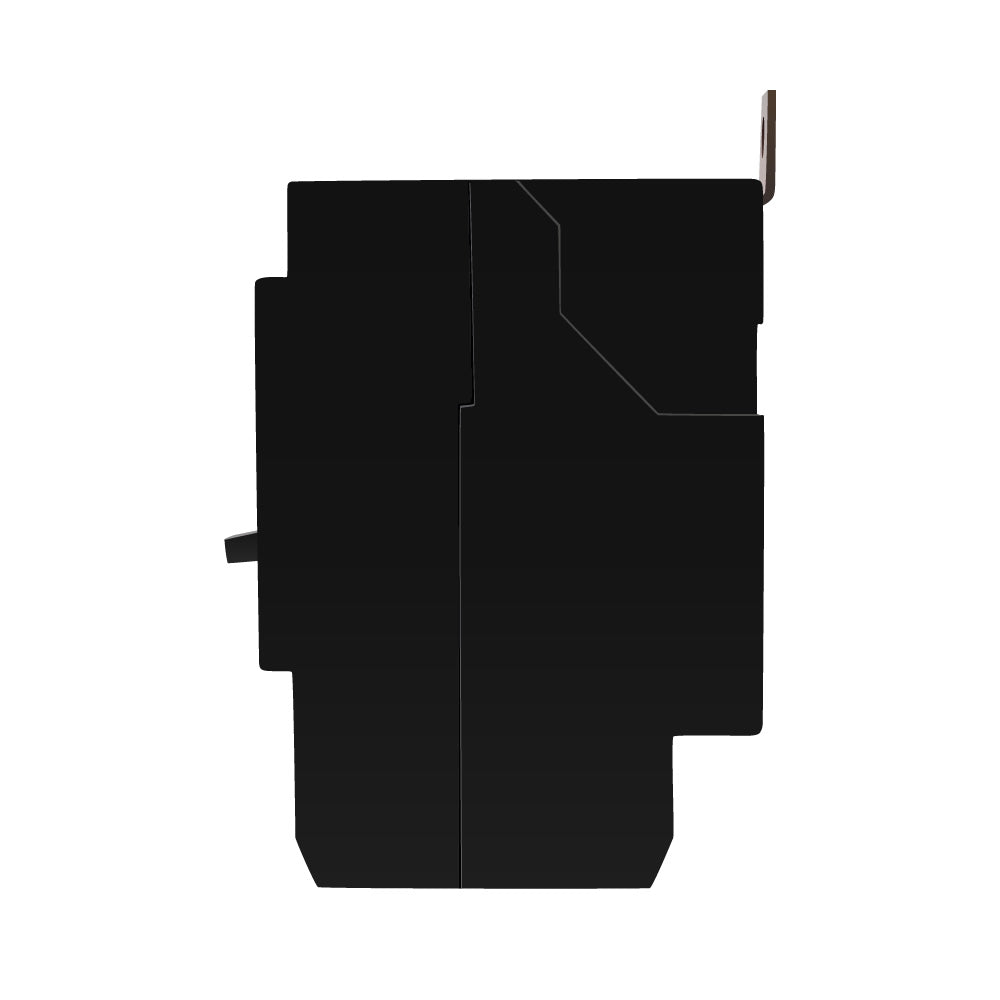

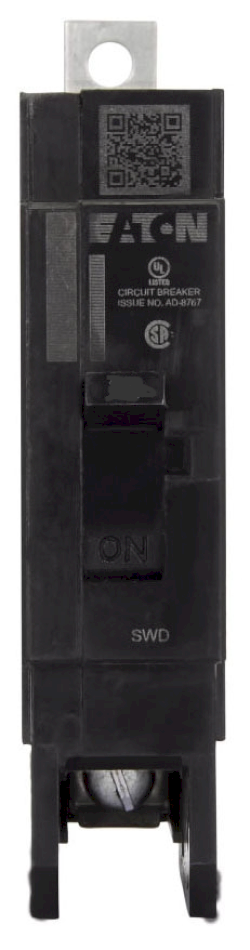

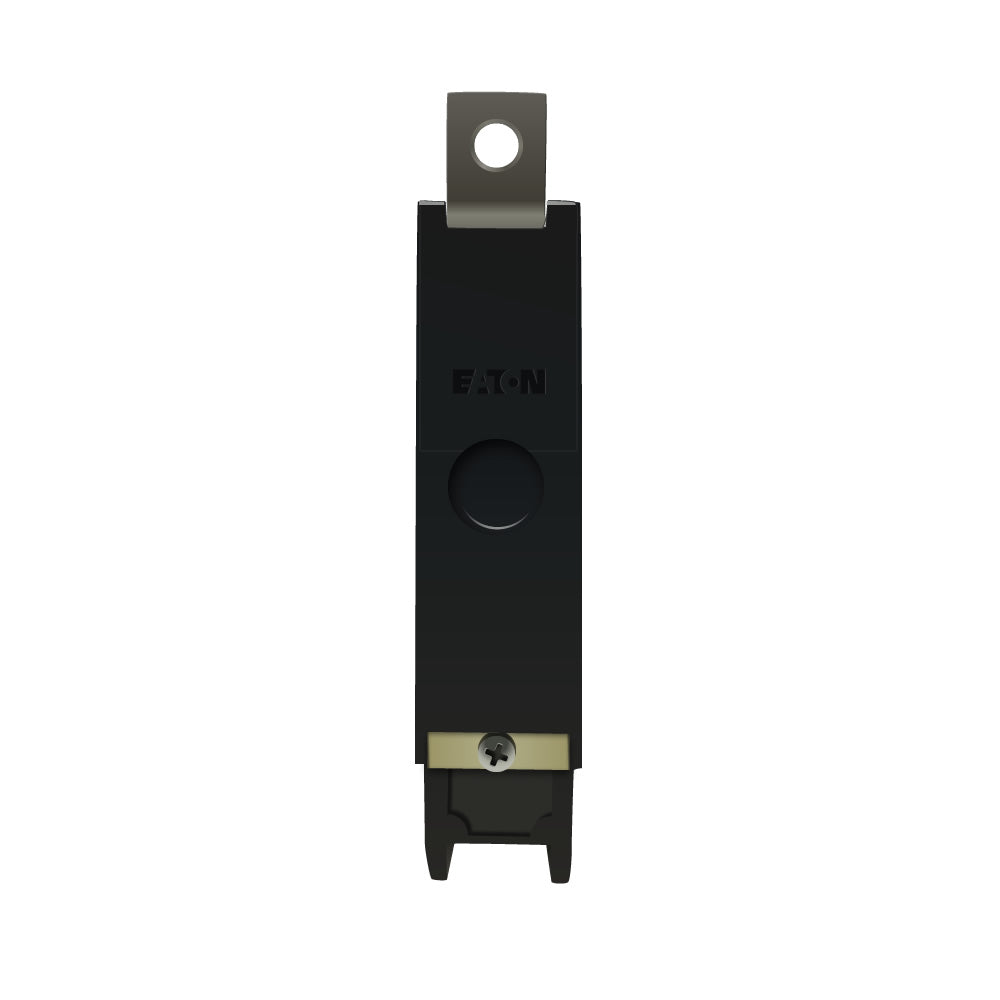

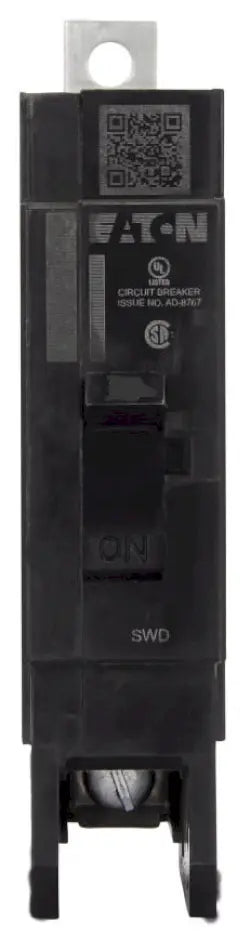

GHB1030 - Cutler Hammer 30A 277VAC 1-Pole G-Frame Molded Case Circuit Breaker Bolt-On Mount

GHB1030

GHB1030 is a Cutler Hammer molded case circuit breaker designed for reliable overcurrent protection in electrical systems.This Eaton Series C G-frame breaker features a fixed thermal and fixed magnetic trip unit, providing consistent performance at 30 amps and 277 volts AC or 125 volts DC. It is a single-pole, bolt-on mount type with a 14 kA interrupt rating at 277 VAC, suitable for panelboard and switchboard applications. Certified to UL standards and Federal Specifications Classification W-C375B, it ensures safety and compliance.

• Amperage: 30 A
• Voltage: 277 VAC / 125 VDC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 14 kA at 277 VAC
• Series/Frame: Eaton Series C, G-Frame
• Trip Unit: Fixed Thermal, Fixed Magnetic
• Certifications: UL Listed, Federal Specifications W-C375B
• Frequency: 50/60 Hz
• Trip Type: Non-Interchangeable
• Weight: Approx. 0.65 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right pro(more...)

Specifications

• Part Number: GHB1030
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Series C
• Type : GHB
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 14kA@277V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Screw Clamp
• Frame Size : 100/GHB
• Temp Rating : 28-158 ¡F (-2-70 ¡C)
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 786679016466
• GTIN : 00786679016466
• Country of Origin : Dominican Republic
• Dimensions : 2.63 in x 4 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.65
• Panel Type : Eaton Powerline Panelboards
• Standards : UL 495
• Certification : CSA Certified, UL Listed
