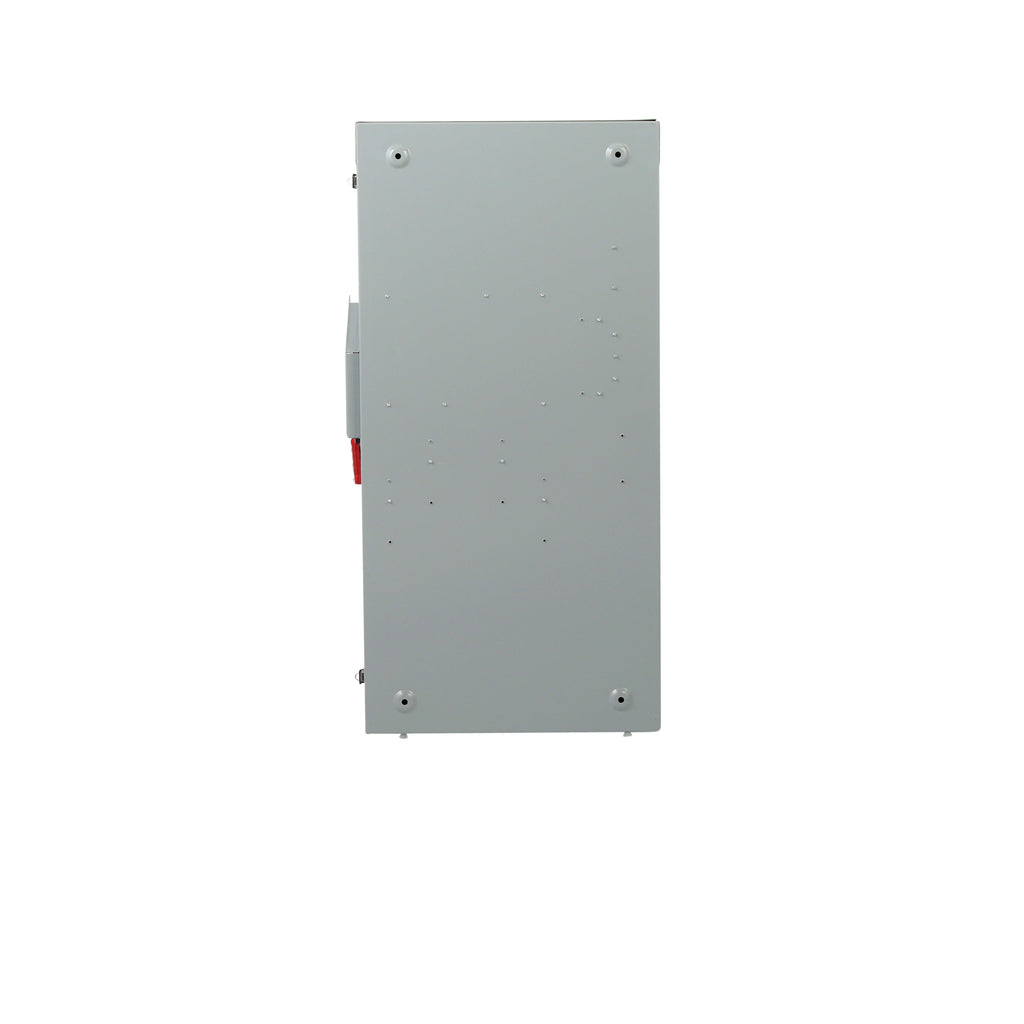

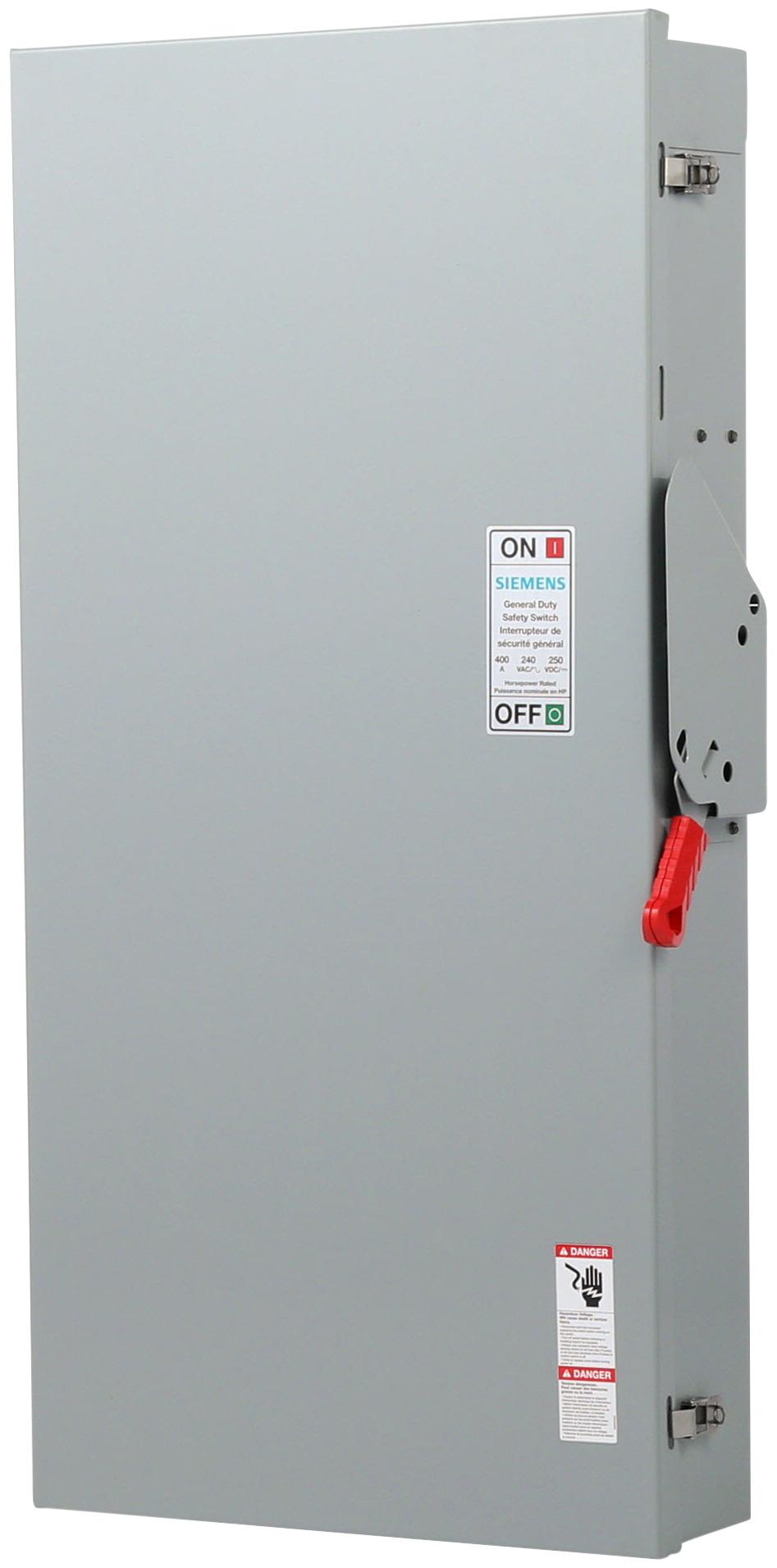

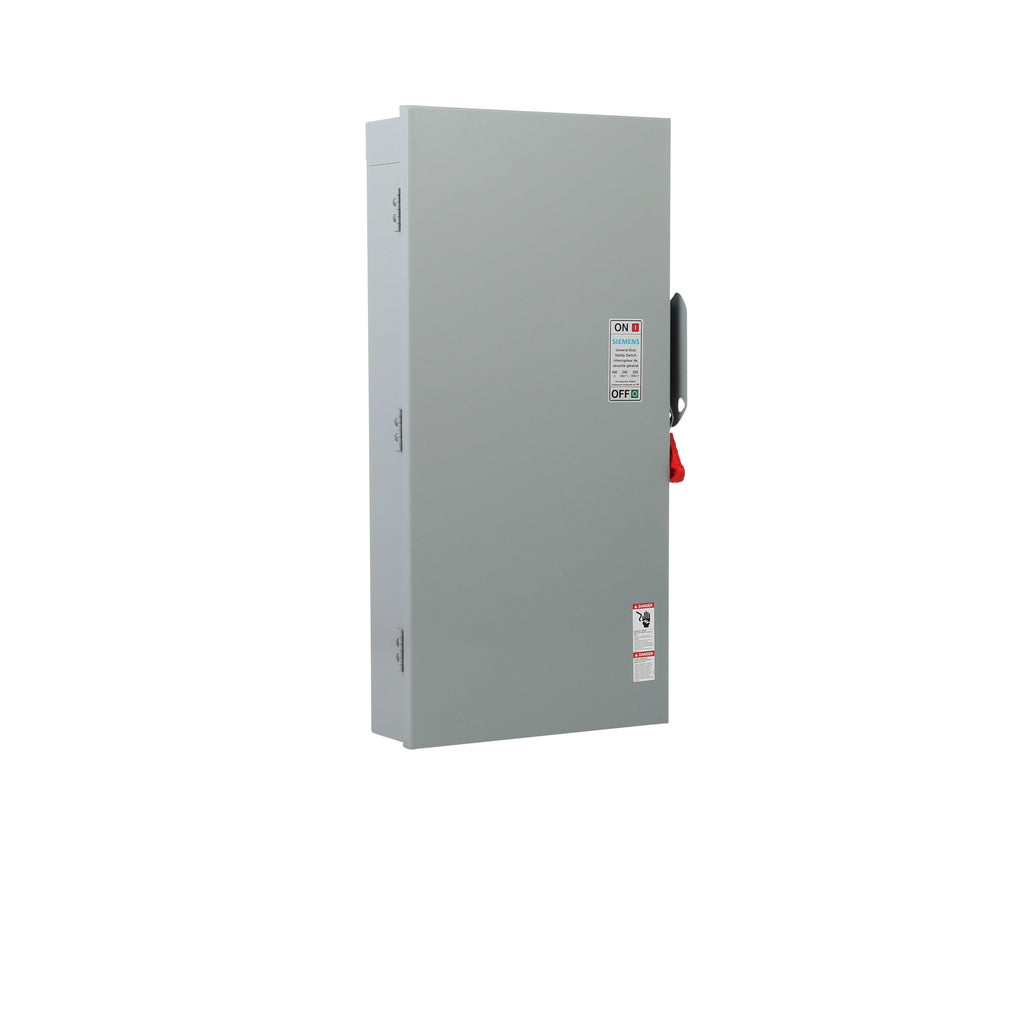

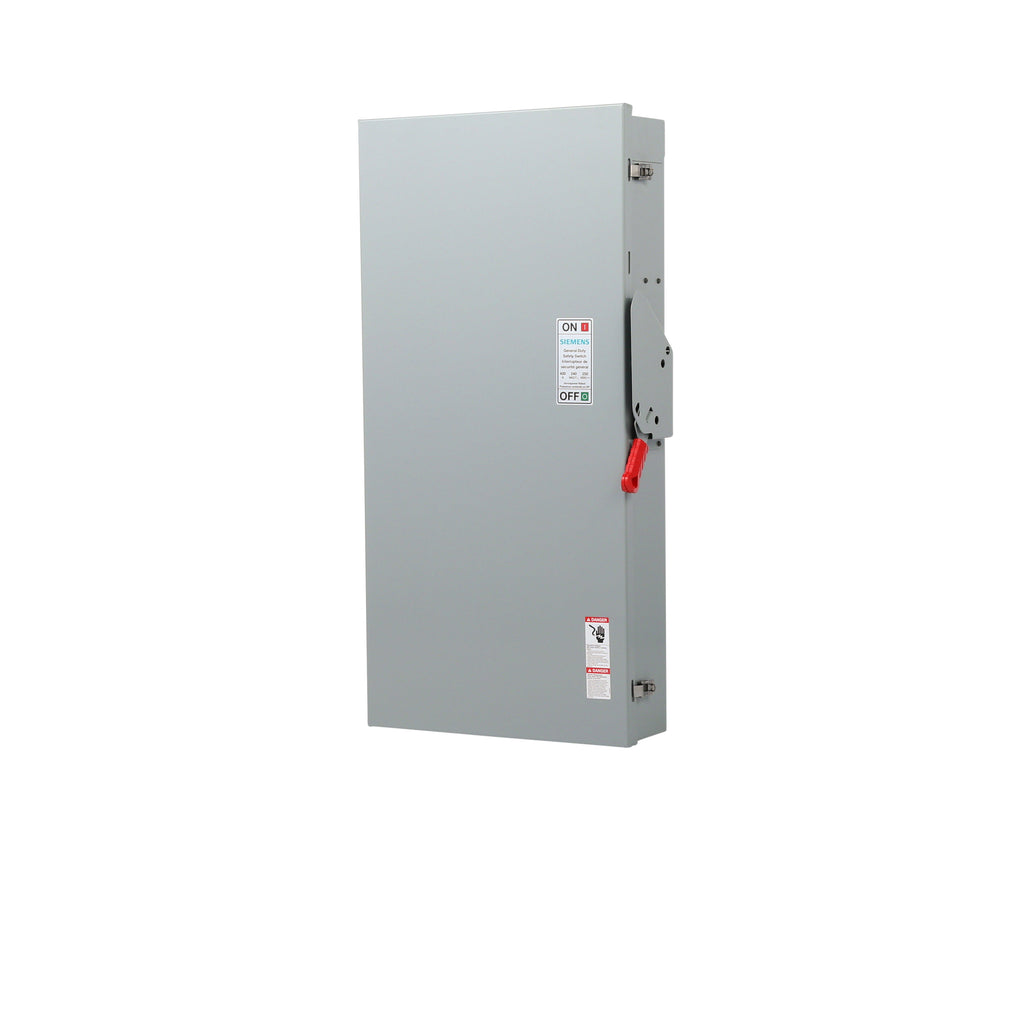

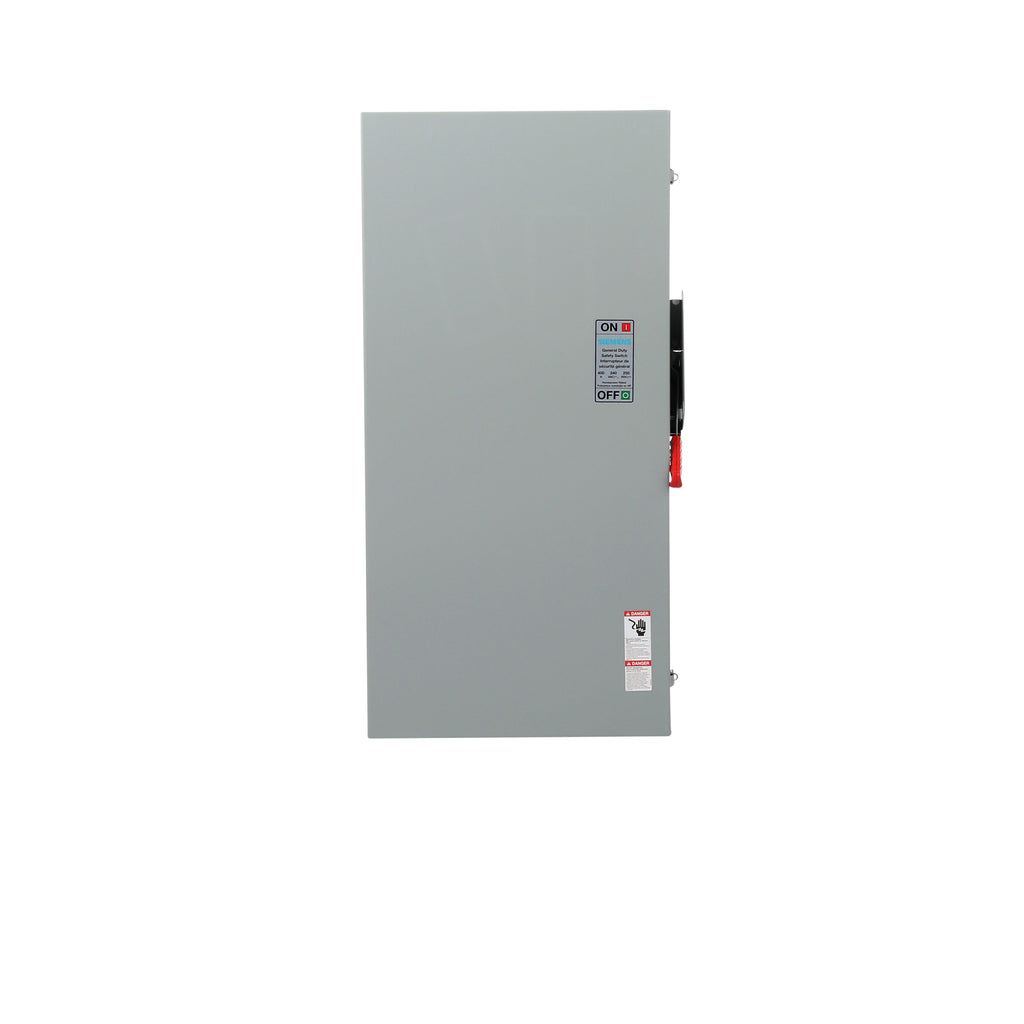

GF325NRA Siemens VBII Series Disconnect 240V 400A Fusible Switch

GF325NRA

GF325NRA is a Siemens General Duty fusible safety switch rated for 240 VAC, 400 amperes, with 3-pole configuration and solid neutral in a NEMA 3R outdoor enclosure. This low voltage circuit protection device features a Type VBII fusible design with single throw switching action, suitable for use as service entrance equipment. The switch includes visible blade design with highly visible ON/OFF indication, quick-make and break switching action, and modular design for easy part replacement. Construction uses corrosion resistant painted steel with surface mounting capability. The device meets NEMA Standard KS-1 for enclosed switches, NEC wire bending space requirements, and includes internal shields meeting 2020 NEC 230.62 touch safe requirements for service entrance equipment. UL listed under file E4776 and CSA listed under file 154852.

• Voltage Rating: 240 VAC, 250 VDC
• Amperage: 400 A
• Poles: 3-Pole with Solid Neutral
• Enclosure Type: NEMA 3R Outdoor
• Switch Type: Fusible General Duty
• Contact Configuration: TPST (Three Pole Single Throw)
• Horsepower Rating: 15 hp at 240V, 50 hp at 250V
• Operating Cycles: 6000
• Operating Temperature: -29 degrees C minimum
• Material: Steel with corrosion resistant paint
• Mounting: Surface
• Wire Range: Lay in lugs for 1/0 AWG to 500 kcmil

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GF325NRA
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible
• Family : VBII Series
• Type : GF
• Voltage : 240 AC
• Amperage : 400
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : Nema 3R
• Compatible Frames : MHP

Product Data

• UPC : 887621872410
• GTIN : 00887621872410
• Country of Origin : Mexico
• Dimensions : 6.693 x 22.047 x 45.276 inch
• Weight : 94.583
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
