GF323NR - Siemens 100A 3-Pole 240V Fusible General Duty Safety Switch Type 3R

GF323NR

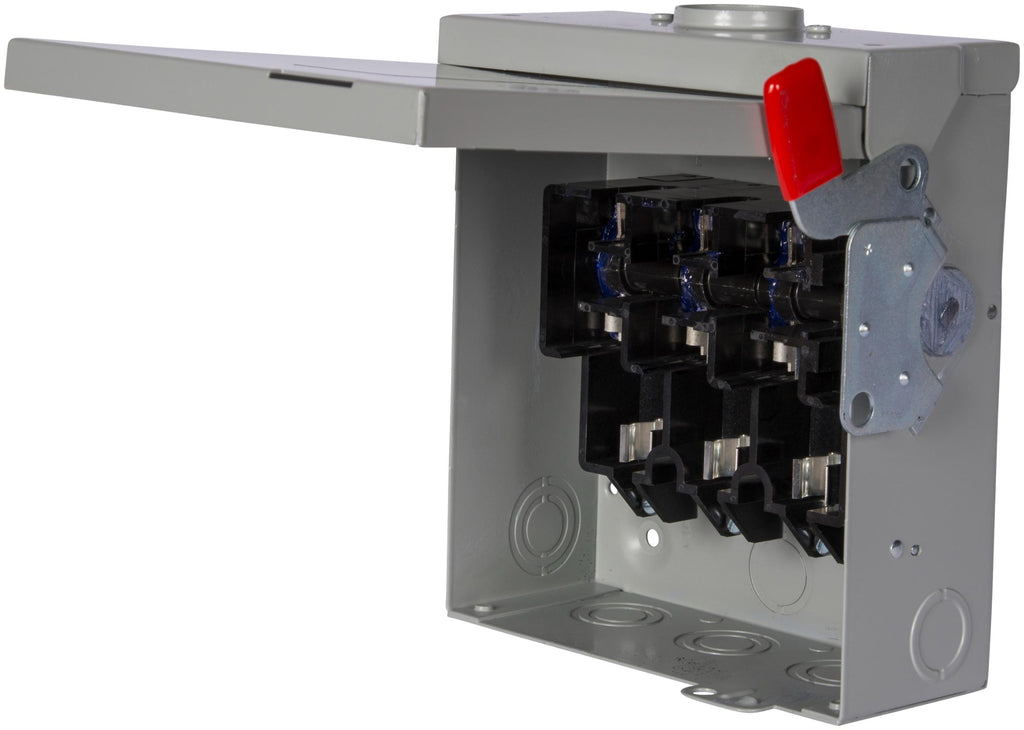

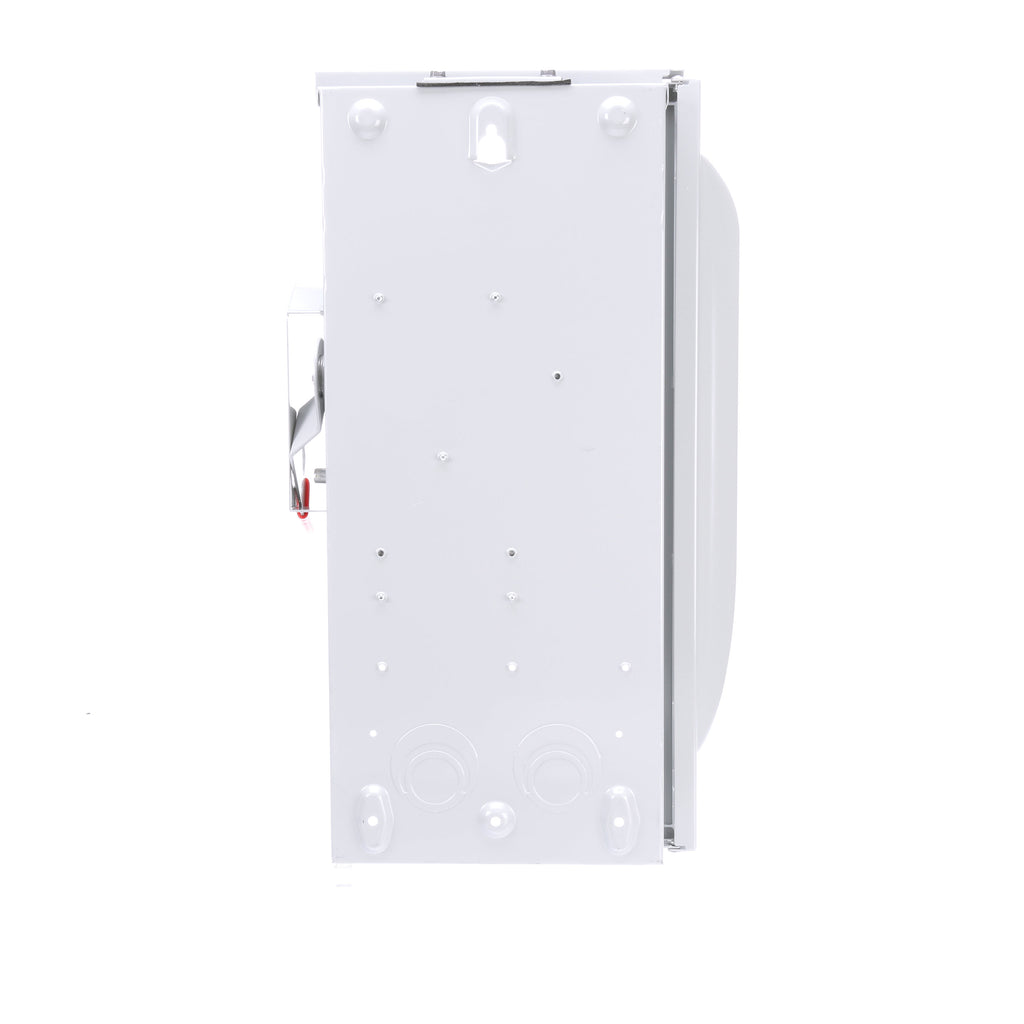

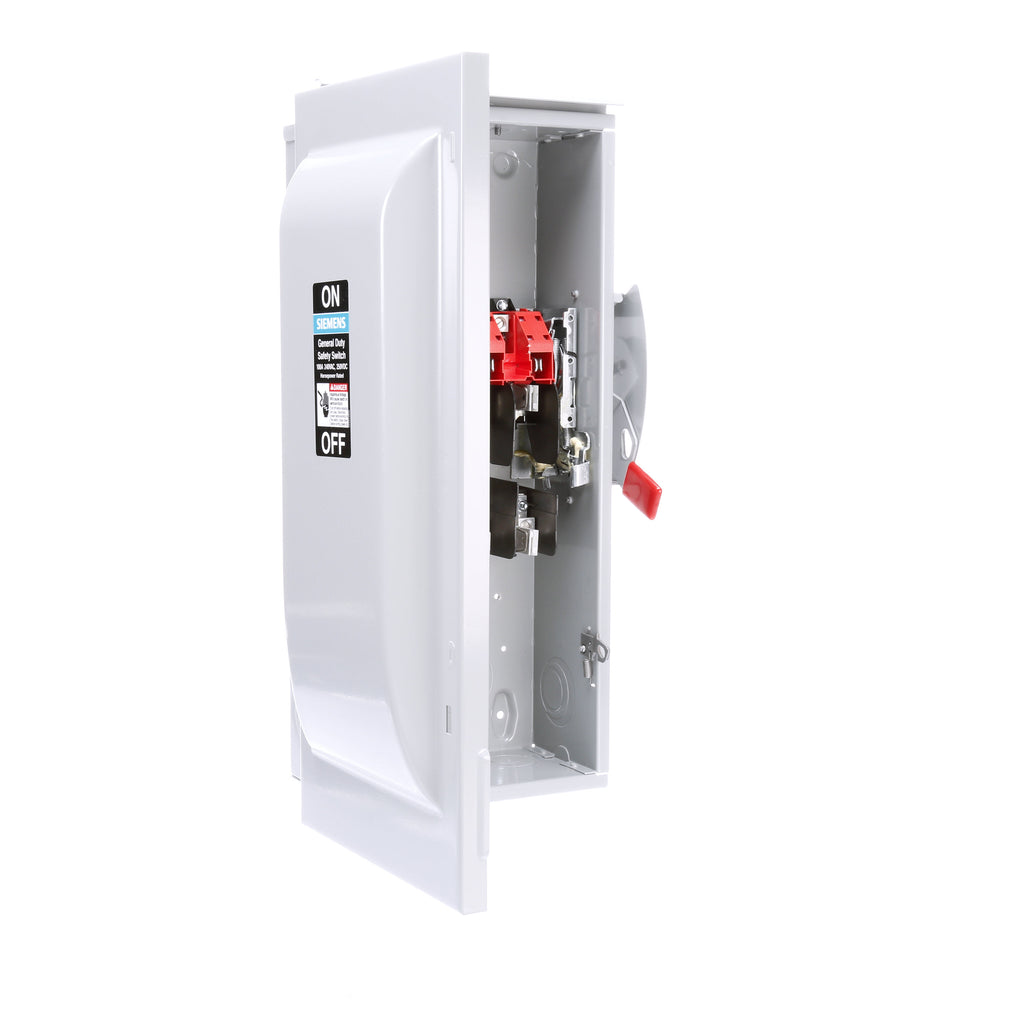

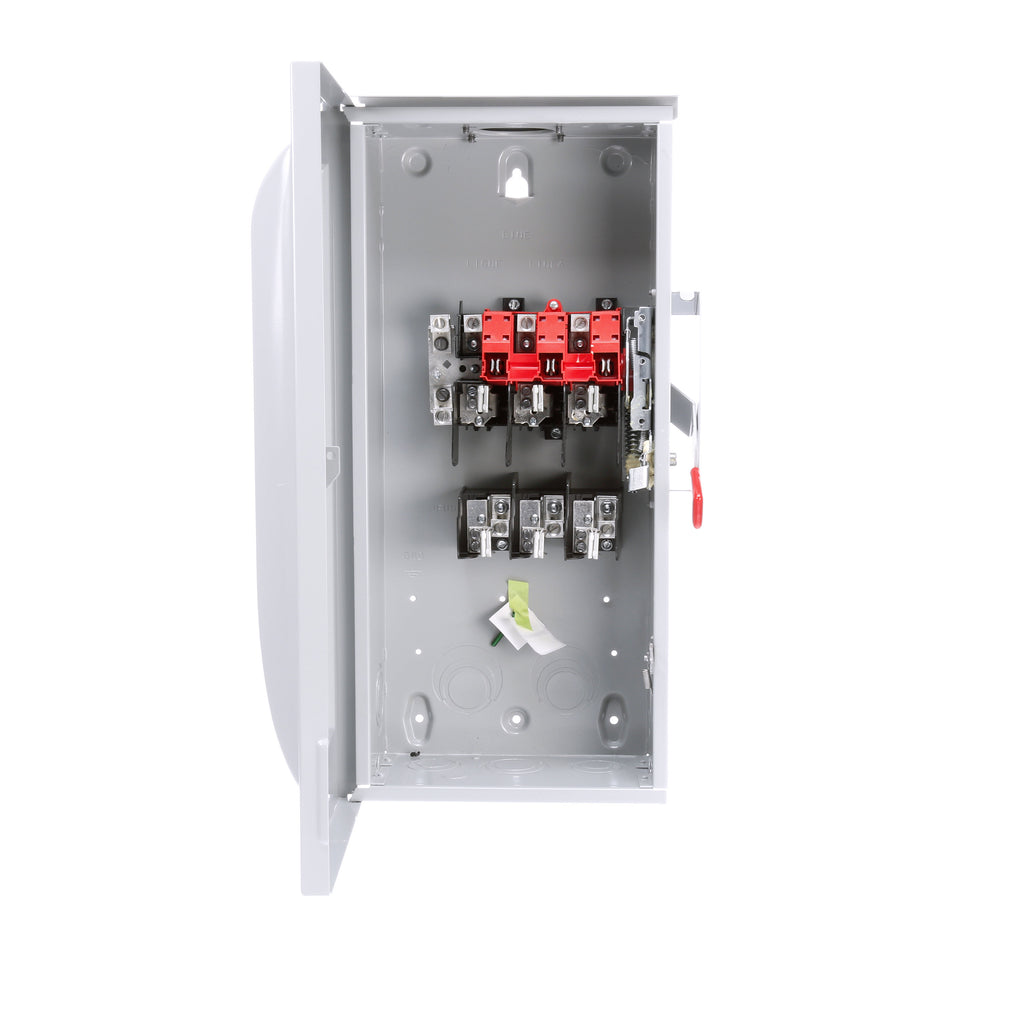

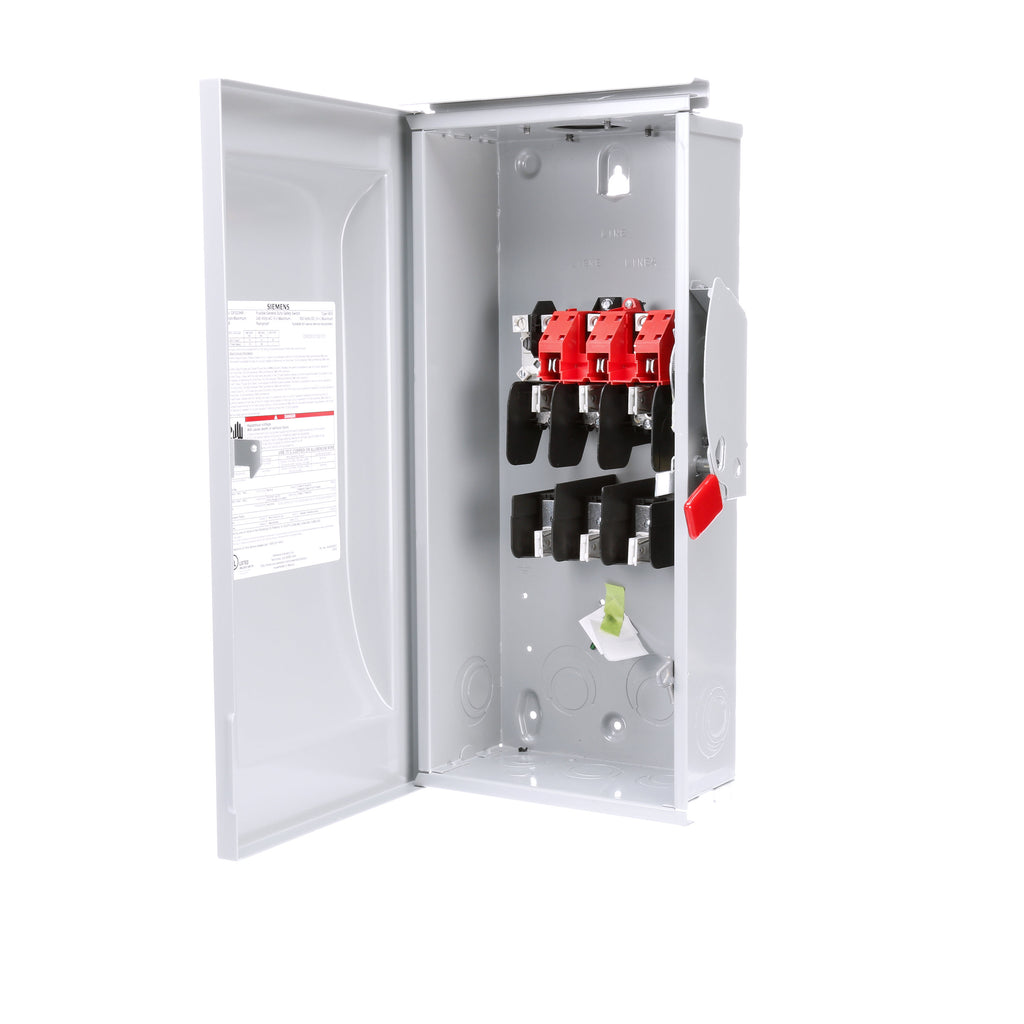

GF323NR - Siemens General Duty Outdoor Fusible Safety Switch with solid neutral, rated at 100A and 240V AC.This Siemens GF323NR is a Type VBII enclosed fusible general duty low voltage single throw safety switch featuring 3 poles, 4 wires, and NEMA 3R outdoor rating for reliable service entrance and load disconnecting. It supports mechanical lugs for electrical connection, surface mounting with 2 or 3 point holes, and offers a mechanical service life of 10000 switching cycles.Key Specifications

• Amperage: 100A
• Voltage: 240VAC / 250VDC
• Poles: 3
• Wires: 4
• Mounting Type: Surface, 2 or 3 point mounting holes
• Enclosure: NEMA 3R
• Type: Fusible, General Duty
• Actuator: Single Throw
• Neutral: Solid
• Connection: Mechanical Lugs
• Certifications: UL98

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GF323NR
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible
• Family : VBII Series
• Type : GF
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : Nema 3R
• Compatible Frames : MGP

Product Data

• UPC : 783643149311
• GTIN : 00783643149311
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.48 inch
• Weight : 21.451
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
