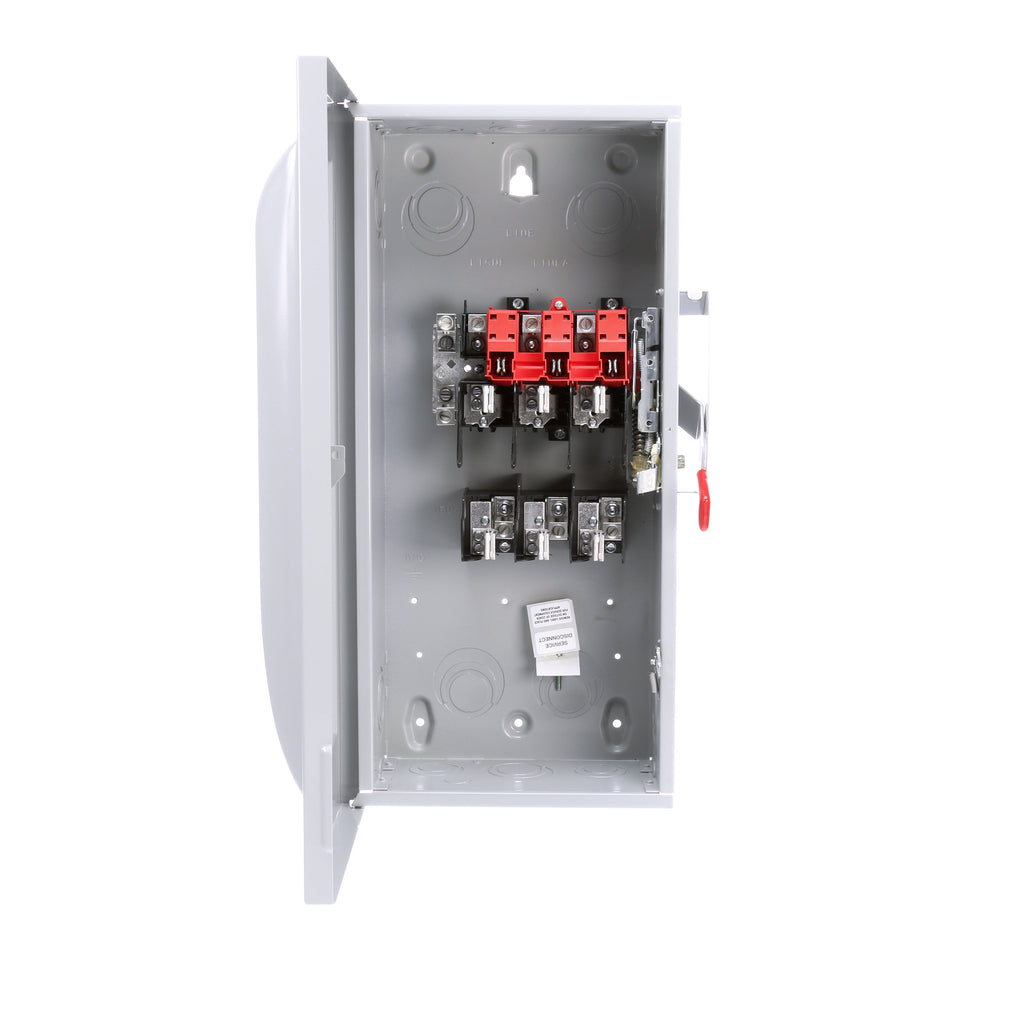

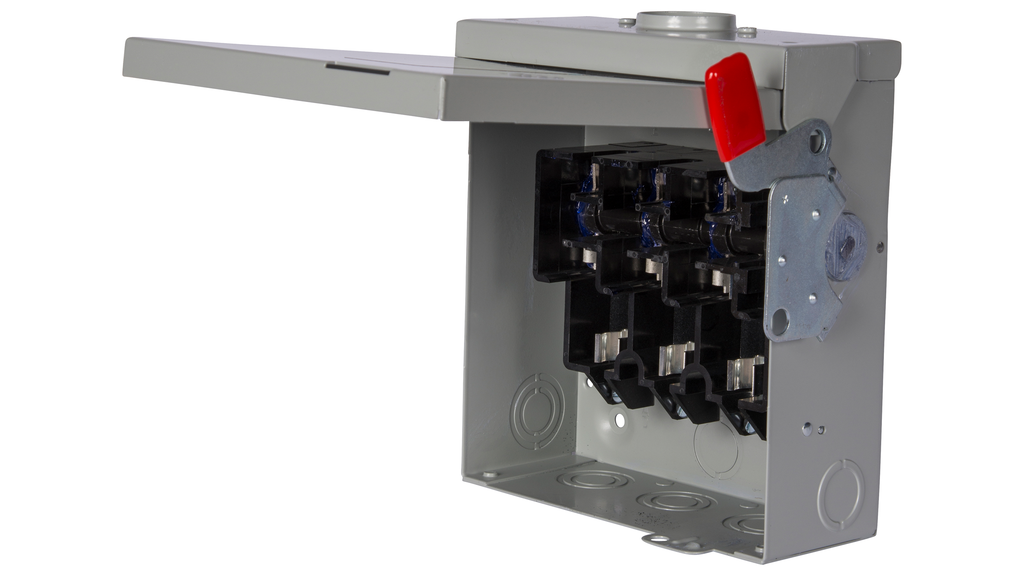

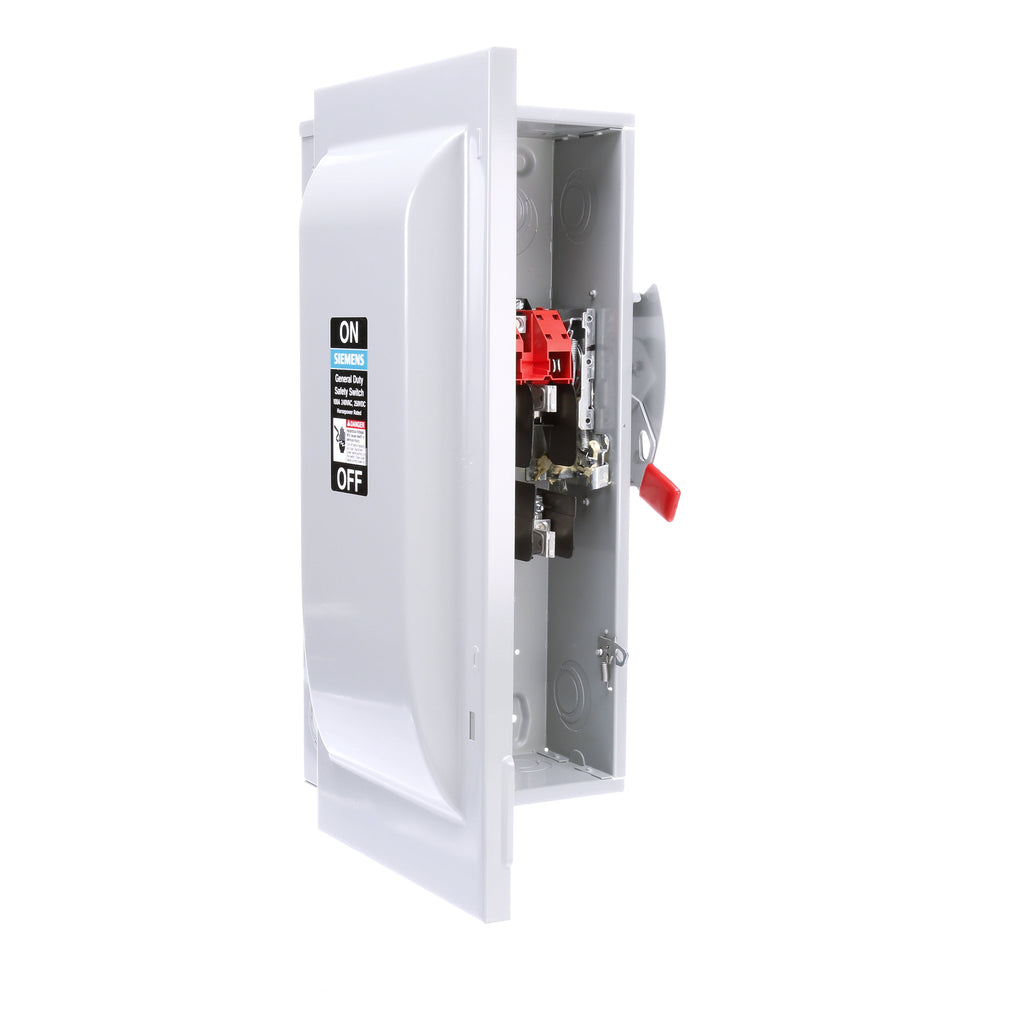

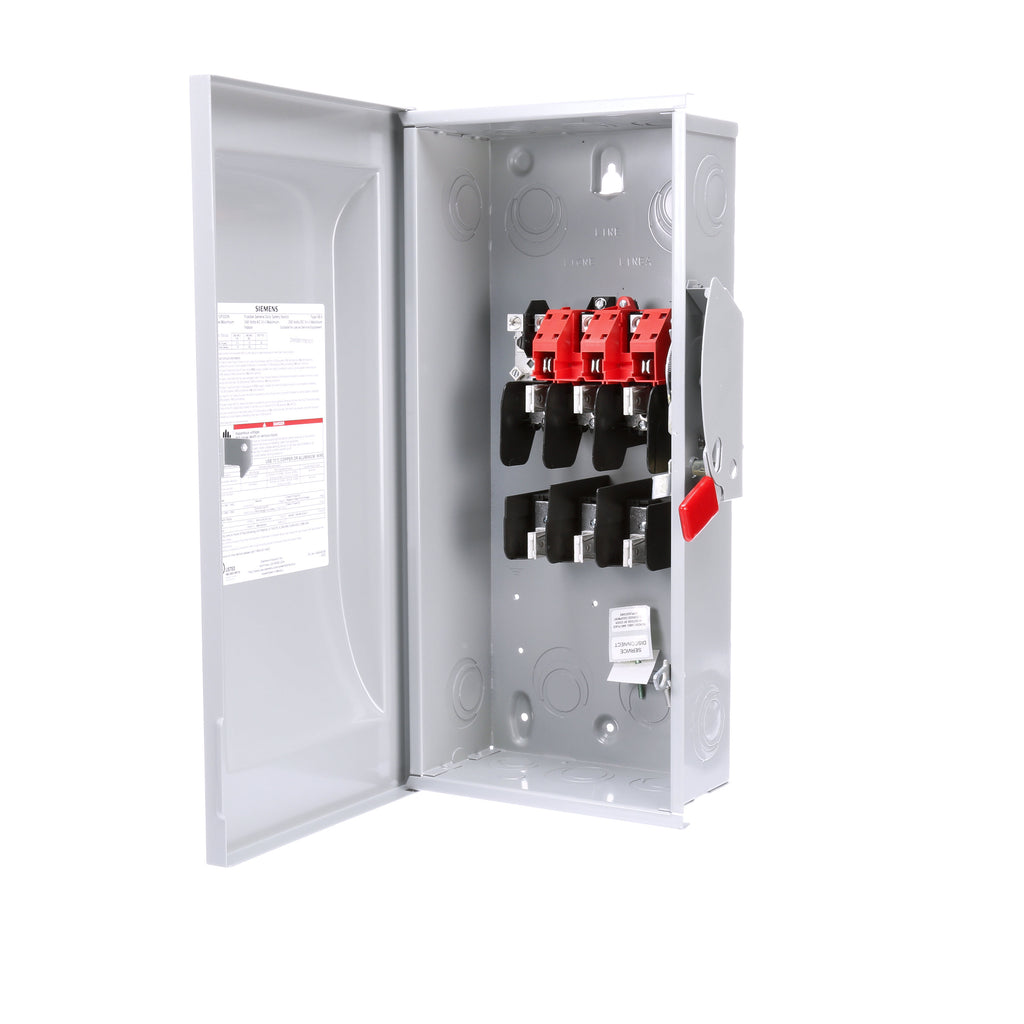

GF323N - Siemens 100A 240V 3-Pole Fusible General Duty Safety Switch NEMA 1 Enclosed

GF323N

GF323N is a Siemens enclosed fusible general-duty safety switch designed for low-voltage circuit protection applications.

This 3-pole, single-throw safety switch features a solid neutral and accommodates three fuses. It is housed in a Type 1 steel enclosure suitable for indoor use and includes 2 or 3-point mounting holes for flexible installation. The switch is rated for 240 VAC at 100 amperes and supports DC applications at 250 volts. It delivers a switching capacity of 4 watts active power and has a mechanical service life of 10,000 operating cycles. The unit operates reliably across an ambient temperature range of -20°F to 120°F (-29°C to 49°C).

• Amperage Rating: 100 A
• Voltage Rating: 240 VAC / 250 VDC
• Number of Poles: 3
• Fuse Type: 3-Fuse with solid neutral
• Enclosure Type: Type 1 (indoor)
• Material: Steel

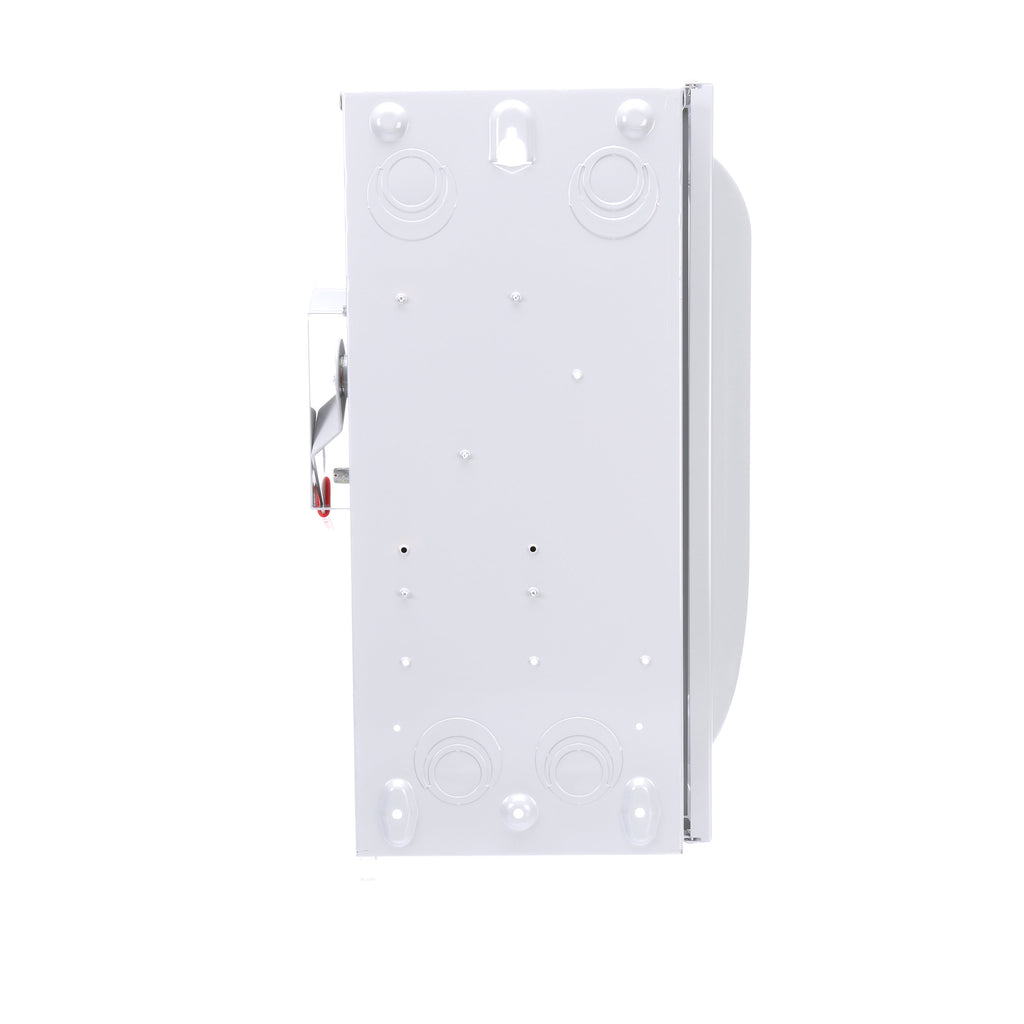

• Mounting: 2 or 3-point mounting holes
• Action: Single throw
• Mechanical Service Life: 10,000 cycles
• Operating Temperature Range: -20°F to 120°F
• Certification: UL approved

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GF323N
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible
• Family : VBII Series
• Type : GF
• Voltage : 240 AC
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : Nema 1
• Compatible Frames : MEP

Product Data

• UPC : 783643148147
• GTIN : 00783643148147
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.48 inch
• Weight : 20.834
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
