Product Info
- Manufacturer:Siemens
- Sub-Category:Disconnect
Description
GF322NR

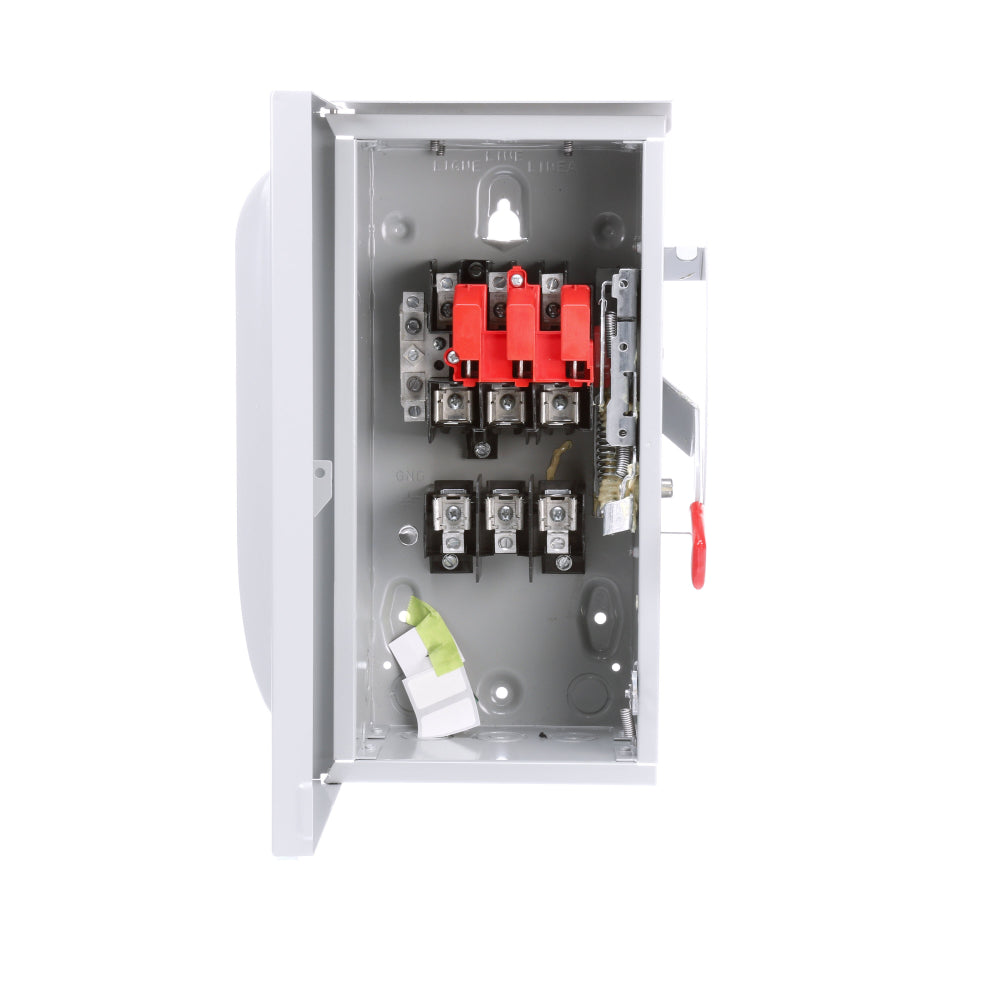

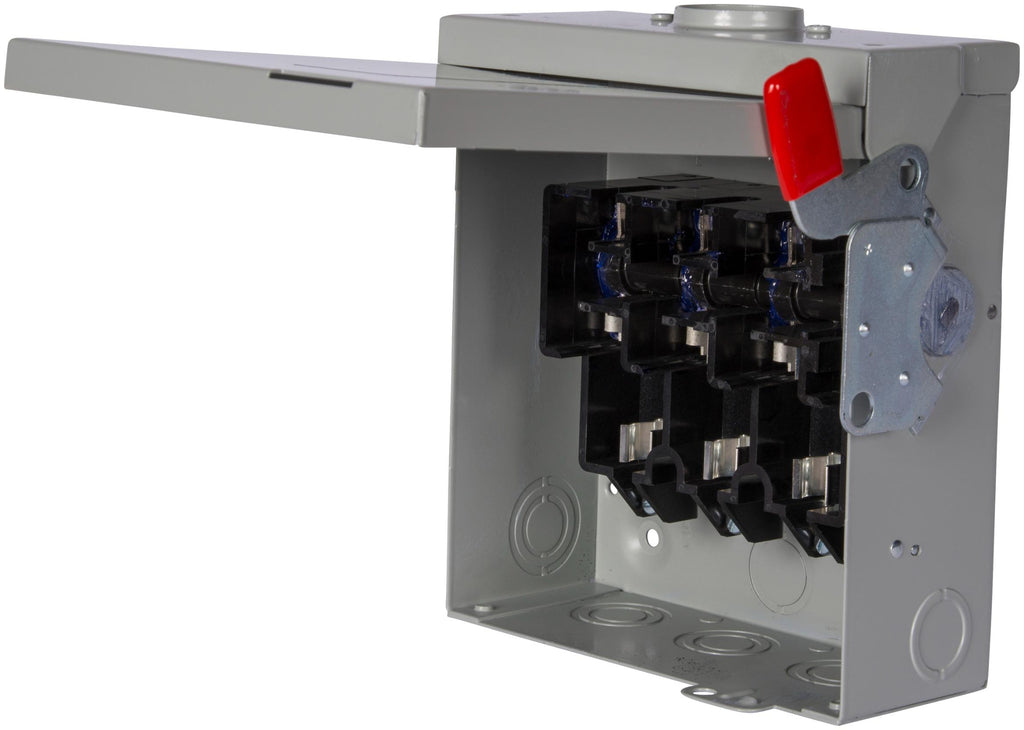

GF322NR - Siemens 60 Amp 3-pole 4-wire NEMA 3R general duty fusible safety switch.This Siemens GF322NR is a general duty safety switch rated for 60 amps at 240 VAC/250 VDC, featuring 3 poles with solid neutral in a weatherproof NEMA 3R outdoor enclosure for surface mounting. It accepts cartridge fuses such as FLNR series and provides reliable service entrance disconnect functionality.
- Amperage: 60A
- Voltage AC: 240V
- Voltage DC: 250V
- Poles: 3
- Wires: 4 (fusible with neutral)
- Mounting: Surface
- Enclosure: NEMA 3R
- Fuse Type: Cartridge (FLNR series)
- NEMA Size: 3
Specifications
- Part Number: GF322NR
- Manufacturer : Siemens
- Brand : Siemens
- Category : Switch
- Item Subcategory : Disconnect
- Section : Fusible
- Family : VBII Series
- Type : GF
- Voltage : 240 AC
- Amperage : 60
- Poles : 3
- AIC rating : 100kA@240V
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : Nema 3R
- Compatible Frames : MEP
Product Data
- UPC : 783643149298
- GTIN : 00785901491767
- Country of Origin : Mexico
- Dimensions : 18.11 x 11.024 x 7.48 inch
- Weight : 12.875
- Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
- Certification : UL listed
