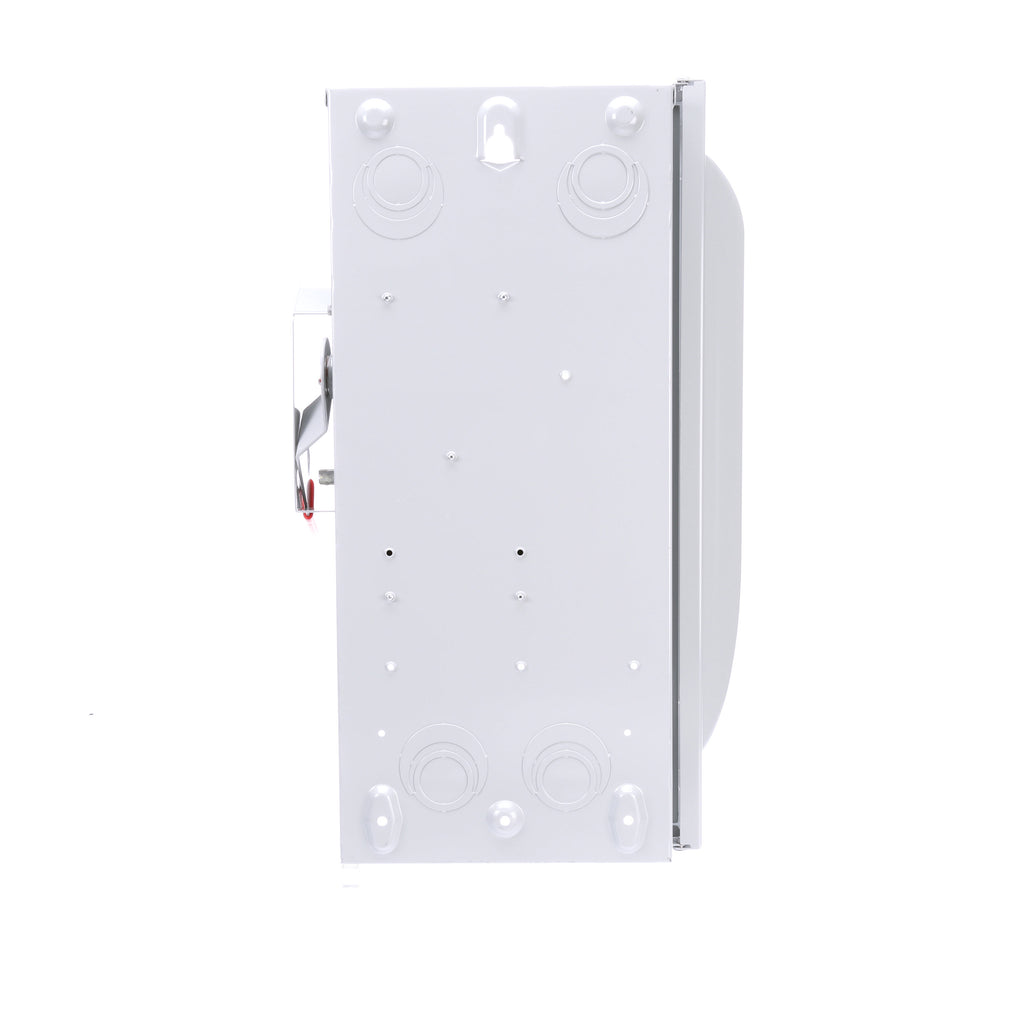

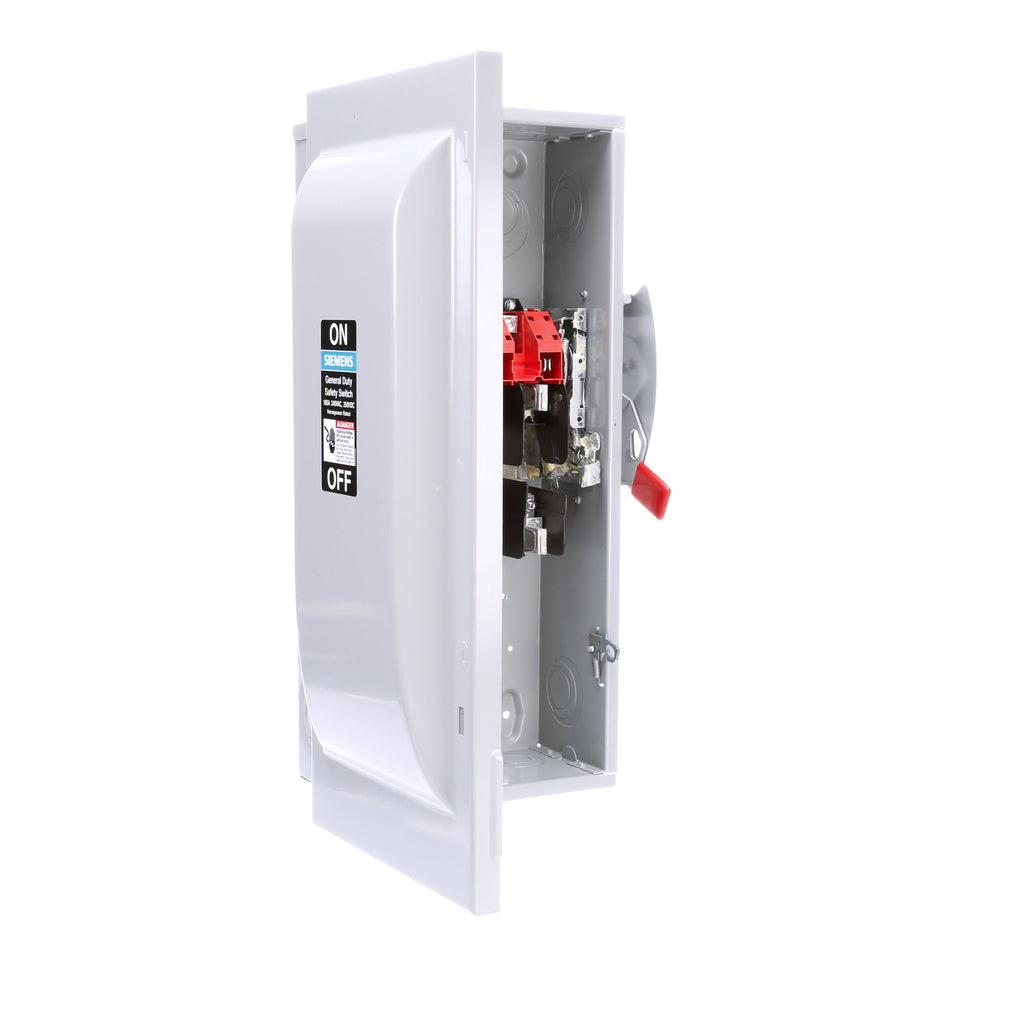

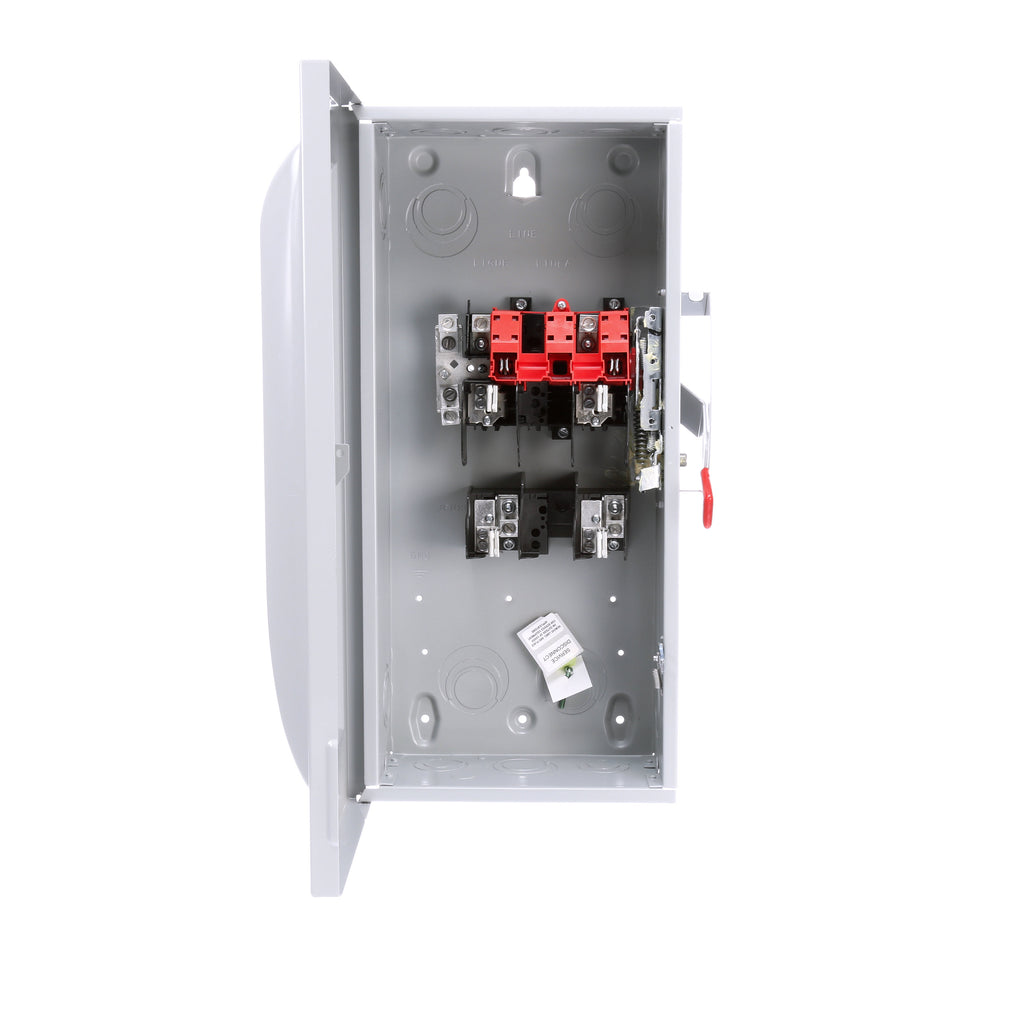

GF223N - Siemens 100A 240VAC 2-Pole Fusible General Duty Safety Switch with Neutral

GF223N

GF223N - Siemens General Duty Fusible Safety Switch, 100A rated for 240V applications.This Siemens GF223N is a 2-pole, 3-wire enclosed safety switch designed for general duty applications. It features a NEMA 1 steel enclosure for indoor use, single throw operation, and supports fusible protection with 100A ampacity at 240VAC/250VDC. Rated for 60Hz frequency with mechanical service life of 10000 cycles and ambient temperature range from -29C to 49C.

• Part Number: GF223N
• Manufacturer: Siemens
• Type: Fusible General Duty Safety Switch
• Ampacity: 100A
• Voltage Rating: 240VAC/250VDC
• Number of Poles: 2
• Wires: 3
• Enclosure Type: NEMA 1
• Material: Steel
• Mounting: 2-3 Point Holes
• Frequency: 60Hz
• Operation: Single Throw

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: GF223N
• Manufacturer : Siemens
• Brand : Siemens
• Category : Switch
• Item Subcategory : Disconnect
• Section : Fusible
• Family : VBII Series
• Type : GF
• Voltage : 240 AC
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 100kA@240V
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Fuse Class : R
• Configuration : Single
• Switch Style : Fusible
• Nema Rating : Nema 1
• Compatible Frames : MEP

Product Data

• UPC : 783643148079
• GTIN : 00783643148079
• Country of Origin : Mexico
• Dimensions : 25.591 x 13.78 x 7.48 inch
• Weight : 20.04
• Temp Rating : -13¡F - 158¡F (-25¡C - 70¡C)
• Certification : UL listed
